VOTOL EM Controller Program Manual
SiAECOSYS V2
2
Non-profession do not operate!
This manual was explained in detail for the IV generation EM series controller, which update download illustrates
and parameter adjustment.
Before using the software, please read this manual. In order to facilitate the operation, please keep this manual.
In order to make the software of maximum utility, please make sure the end user to use this manual.
Please be sure to read the manual carefully before starting the operation.
Disclaimer:
For the Ⅳgeneration of EM series controller program updates and parameter adjustment can only be
done by professional and technical personnel.
If without the written permission of our company for the ⅣVOTOL generation EM series, the
application update to download and parameter of the controller adjustment is not allowed.
Non-profession do not operate this software.
In the above event, our company will no longer be responsible for accident happens by controller.
SiAECOSYS V2
3
1. Software installation (only support win 7/10)
1.1 USB Driver Installation

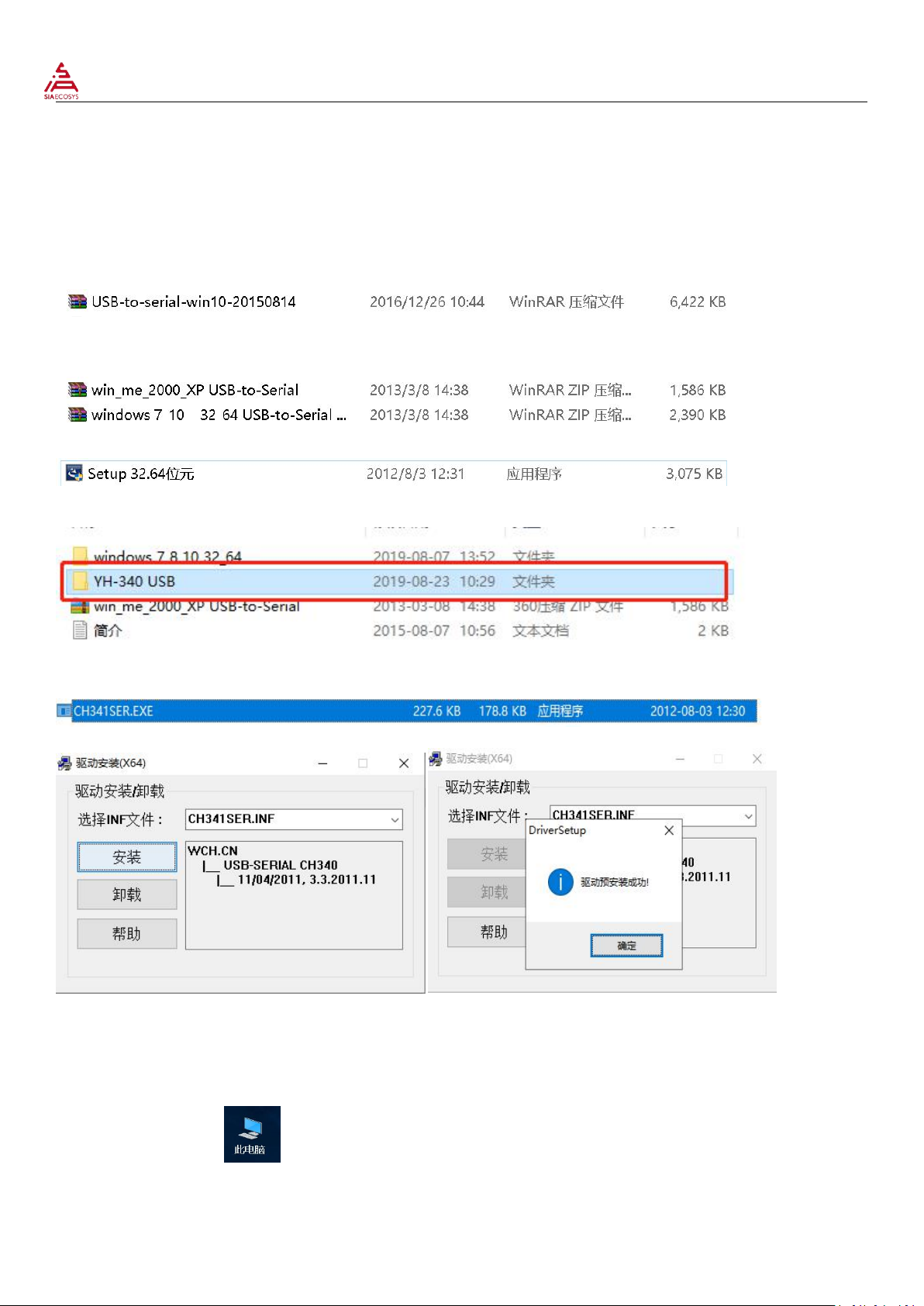

(1) Download the “USB-to-serial-win 10-20150814” file, decompressing file.
(2) choose the suitable driver with your computer for installation.
win7,win8, win 10 are available.
1.11. Decompress the operation first
2. Unzip the YH-340 USB package and select CH341SER.EXE to install it.
Follow the steps above to install
(3) After installation, please connect the USB cable with controller and computer.
If it’s unable to connect, pls Check below steps

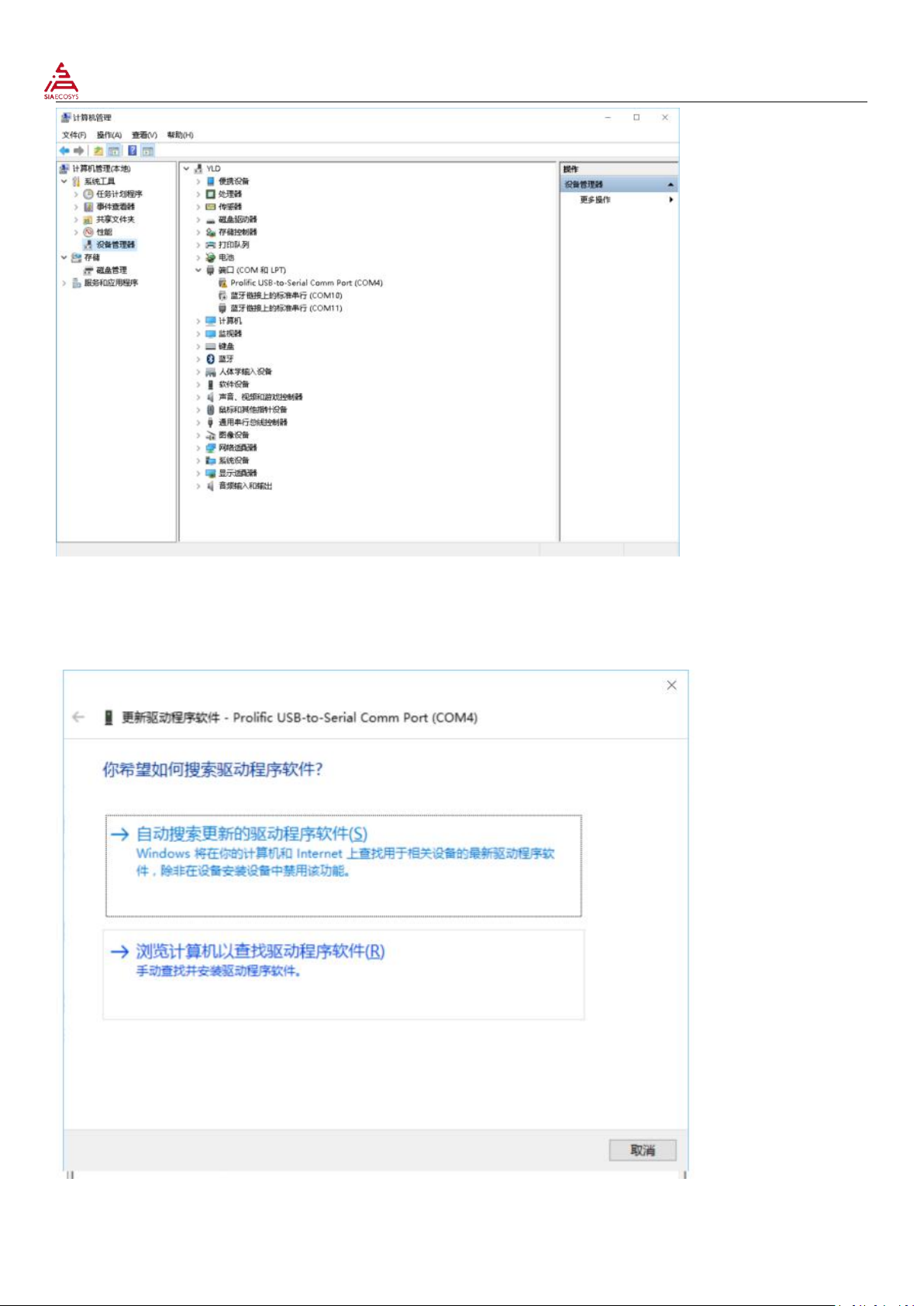

Right click“my computer” in the desktop
SiAECOSYS V2
4
then click “device manager”
choose “port(COM & LPT)”
choose the COM with“!”, click “search automatically for updated driver software
SiAECOSYS V2
5
Close the software when you finish
After running, please run the software directly: EM_V3 series debugging program;
If the port has”自2012 已停产，请联系供货商(Pls contact supplier if it is stop production since 2012)”
Methods and steps:
First step: Install driver PL2303_Prolific_DriverInstaller_v110
Second step: Right click to update the driver and select Browse Computer to find the driver software.
SiAECOSYS V2
6
Third step: Click to select from the list of drivers for your computer;
Fourth and finally, select version 3.3.10.140 (2009-11-19), click Next, close the window when finished;
SiAECOSYS V2
7
Close the window when finished.
Please run “Em_V3 Series debugging program” directly after completion.
2. Controller connection
2.1 Connect controller
Controller host computer simple wiring diagram
Description: controller B+ connects battery B+ controller B-connects battery B-, controller electric door locks connect
battery or controller B+;
The USB debug line is connected to the controller debug port;
SiAECOSYS V2
8
2.1.1 According to the controller with CAN or without CAN to select the appropriate USB debug line; with CAN controller
need to check the CAN enable, without CAN does not need to check; EM200 controller needs to exchange the debug line
CAN-H and CAN- L , otherwise can’t connect the controller;
2.1.2 Host computer selection
EM50 EM100 EM150 without CAN choose
EM50 EM100 EM150 with CAN choose
EM200 choose
EM50 EM100 EM150 EM200 model XY-03-P with CAN and without CAN can share a host computer
Specific host model needs to inquire the related sales;
SiAECOSYS V2
9
3 Open the computer device manager before connecting to the computer to check whether the USB port is successfully
installed. Select the appropriate host computer to connect the host computer to the serial port when the controller is not
powered. After selecting the corresponding serial port on the device port, click CreateFile.
2.2
Then power on (connect with e-lock), click connect (in setting 1 page), the nominal voltage should not be 0. If it’s 0, click
connect again.
SiAECOSYS V2
10
3. The setting
1. SETTING PAGE 1
