Siemens Mobile SF65 Einrichtungshandbuch

Company Confidential

Page 1of 20

Service Repair Documentation

Level 2 – SF65

Service Repair Documentation

Level 2 – SF65

Release Date Department Notes to change

1.0 05.01.2005 COM MD CC GRM T New document

1.1 27.01.2005 COM MD CC GRM T Small changes

Company Confidential

Page 2of 20

Service Repair Documentation

Level 2 – SF65

Introduction

This Service Repair Documentation is intended to carry out repairs on Siemens repair up

to level 2. The described failures shall be repaired in Siemens authorized local workshops

only.

All repairs have to be carried out in an ESD protected environment and with ESD

protected equipment/tools. For all activities the international ESD regulations have to be

considered.

Assembling/disassembling has to be done according to the latest SF65 Level 2 repair

documentation. It has to be ensured that every repaired mobile Phone is checked

according to the latest released General Test Instruction document (both documents are

available in the Technical Support section of the C-market).

Check at least weekly C-market for updates and consider all SF65 related Customer

Care Information

If you have any questions regarding the repair procedures or technical questions spare

not hesitate to contact our technical support team in Kamp-Lintfort, Germany:

Tel.: +49 2842 95 4666

Fax: +49 2842 95 4302

e-mail: st-support@ klf.siemens.de

Company Confidential

Page 3of 20

Service Repair Documentation

Level 2 – SF65

Table Of Content

1. GPRS (General Packet Radio Service).....................................................................................4

2. Key Features...............................................................................................................................5

3. Accessories.................................................................................................................................6

4. Exploded View............................................................................................................................6

5. Disassembly of SF65..................................................................................................................9

6. Assembly of SF65.....................................................................................................................14

7. IMEI Label Description..............................................................................................................19

8. Water Indicator..........................................................................................................................20

Company Confidential

Page 4of 20

Service Repair Documentation

Level 2 – SF65

1. GPRS (General Packet Radio Service)

GPRS is a new non-voice value added services that allows information to be sent

and received across a GSM mobile telephone network. It supplements today’s Circuit

Switched Data (CSD) and Short Message Services (SMS). GPRS involves overlaying

a packet based air interface on the existing circuit switched GSM network. This gives

the option to use a packet-based data service. The information is split into separated

but related “packets” before being transmitted and reassembled at the receiving end.

Theoretically, maximum speeds of up to 171.2 kilobits per second (kbps) are

achievable with GPRS using all eight timeslots at the same time. This is about 3

times as fast as the data transmission speed possible over today’s fixed

telecommunications networks and 10 times as fast as current Circuit Switched Data

services on GSM networks.

Example: Cell with 1 Frequency channel:

1 physical channel for signaling, 4 physical channels for Circuit switched and 3 physical

channels for Packet switched.

Company Confidential

Page 5of 20

Service Repair Documentation

Level 2 – SF65

2. Key Features

Feature Description

Frequency Dual band: 900-1800 MHZ

Power EGSM-900: Class 4 (2 W)

GSM-1800: Class 1 (1 W)

Antenna Integrated dual band Antenna

Telephony Codec FR, EFR, AMR

SMS Class 0, 1, 2 Short Message MT / MO

Cell Broadcast

Concatenated Messages

EMS

SIM Appl. Tool Kit SIM tool kit supported, further info depends on service provider.

Keypad 0 to 9; *; # 4-contact navigation element (2 soft keys + up / down) refer to MMI

specification

Display 65 k color screen.

Illumination Supported

Physical Details Size: 91 x 44 x 23 mm (L x W x H)

Volume: 86 cm3

Weight: 101,4 g

Interfaces IRDA & Slim Lumberg for accessory support

Battery type Li-Ion 660mAh

Standby time: Up to 400 hours

Talk time: Up to 240 minutes

Melody Polyphonic technology.

Phone Book ADN, FDN, SDN, MS-ISDN managed in SIM phone book (SIM dependent).

Address book managed in mobile memory.

CPHS No ALS

Text input T9 method inside.

Phone No. Memory Supported: Call list contains all numbers: Incoming, outgoing, missed calls.

Voice Recognition Supported: Speaker dependent.

Echo cancellation Supported

Noise reduction Supported

Company Confidential

Page 6of 20

Service Repair Documentation

Level 2 – SF65

3. Accessories

For SF65, the following accessories will be available.

Description Part number

Power Suppply EU with Service Packaging Material L36280-Z4-C404

Power Suppply UK with Service Packaging Material L36280-Z4-C405

Travel Charger EU ETC-500 L36880-N5601-A104

Travel Charger EU ETC-510 L36880-N5601-A105

Headset HHS-500 L36880-N5601-A107

Headset PTT HHS-510 L36880-N5601-A108

Car Kit Portable HKP-500 L36880-N5601-A109

Data Cable USB DCA-510 (Seriell-USB) L36880-N5601-A111

Tour Case FCT-650 L36880-N5601-A149

Car Charger Plus ECC-600 L36880-N7101-A109

Headset PureStyle HHS-610 L36880-N7101-A500

Battery Li-Ion 660mAh SF65 L50645-K1310-X319

Battery Cover SF65 Polar white L560658-A157-A15

Battery Cover SF65 onyx black L560658-A157-A34

• Accessories availability depends on Siemens marketing policy

• Note : Please refer always to Communication-Market, in order to get the latest status in

terms of prices , parts ,accessories (including second colour Onyx Black )

https://communication-market.siemens.de

4. Exploded View

Company Confidential

Page 7of 20

Service Repair Documentation

Level 2 – SF65

Company Confidential

Page 8of 20

Service Repair Documentation

Level 2 – SF65

Ref. Nr. Description Part Number R. Level Qty

1 Menu Key SF65 Silver L50658-A157-A1 1 1

2 Display Window SF65 L50658-A157-A2 1 1

3 Switch Zoom Key SF65 silver L50658-A157-A3 1 1

4 Flip Frontcase without Earphone SF65

polar white L60658-A157-A4 1 1

5 LCD Module Assy with Earphone SF65 L50680-Q7360-M1 1 1

6 Flip Rearcase SF65 Polar White L60658-A157-A5 1 1

7 Screw 14X4 Torx Plus 6IP silver SF65 L50658-A157-A6 1 6

8 Hinge Body SF65 polar white L50658-A157-A7 1 1

9 Hinge Cover SF65 polar white L50658-A157-A8 1 2

10 Rotary Metal Hinge SF65 L50658-A157-A9 1 1

11 Flexible PCB Assembly SF65 L50680-Q7360-F1 1 1

12 Screw Torx Plus-6IP M1.6X4.4mm SF65 L50658-A157-A10 1 2

13 Earphone SF65 L50604-F3090-X923 2.5 1

14 Base Upper Case Shell without keypad

SF65 polar white L50658-A157-A11 1 1

15 Keypad SF65 polar white L50658-A157-A12 1 1

16 Microphone SF65 L50654-Z6-C117 1 1

17 RF Control Board Sf65 w. Camera Flash L36880-Q7360-U10 2 1

18 Mounting Frame with Camera Glass,w/o

Vibra,w/o Camera Gasket SF65 silver L50658-A157-A19 1 1

19 Screw Torx Black SF65 L50658-A157-A14 1 4

20 Battery Li-Ion 660 mAh SF65 L50645-K1310-X319 0 1

21 Battery Cover SF65 polar white L50658-A157-A15 0 1

22 Antenna with Connectors SF65 L50651-Z1901-A57 1 1

23 Camera Gasket SF65 L50658-A157-A16 1 1

24 Vibra Unit SF65 L50653-Z5-C302 1 1

25 Flexible Camera Flash Assembly SF 65 L50680-Q7360-F2 2.5 1

26 Base Upper Case Cap SF65 polar white L50658-A157-A17 1 1

27 Camera Glass Assembly SF65 L50658-A157-A18 1 1

IRDA Communication Module SF65 L50610-U6189-D670 2.5 1

Sensor Hall SF65 L50610-U6190-D670 2.5 2

Side Tact Switch SF65 L50615-Z77-C257 2.5 3

Backup Battery SF65 L50628-F2705-Z1 2.5 1

Display Connector – Board to Board

Connector SF65 L50634-Z97-C58 2.5 2

Battery Connector SF65 L50634-Z97-C59 2.5 1

Vibra Connector SF65 L50634-Z97-C63 2.5 1

System Connector SF65 L50634-Z97-C64 2.5 1

White Led SF65 L50640-L2119-D670 2.5 8

LED Red/Green Light Design SF65 L50640-L2125-D670 2.5 1

Company Confidential

Page 9of 20

Service Repair Documentation

Level 2 – SF65

5. Disassembly of SF65

Note: ESD concept; the internal circuits will be more susceptible to ESD during the housing

exchange.The construction of the internal block is designed , in the best possible way, to protect

the circuit against sparks.

The keypad must be completely closed to prevent any occurence of an ESD disruptive discharge.

It is a requirement for the service personnel to observe ESD protection rules while performing

service on SF65.

Disassembly tools :

Name Part Number

Tweezers XXXXXXXXXXXX

Torque-Screwdriver F30032-P228-A1

Opening tool F30032-P38-A1

Hinge Tool CF62 F30032-P371-A1

Company Confidential

Page 10 of 20

Service Repair Documentation

Level 2 – SF65

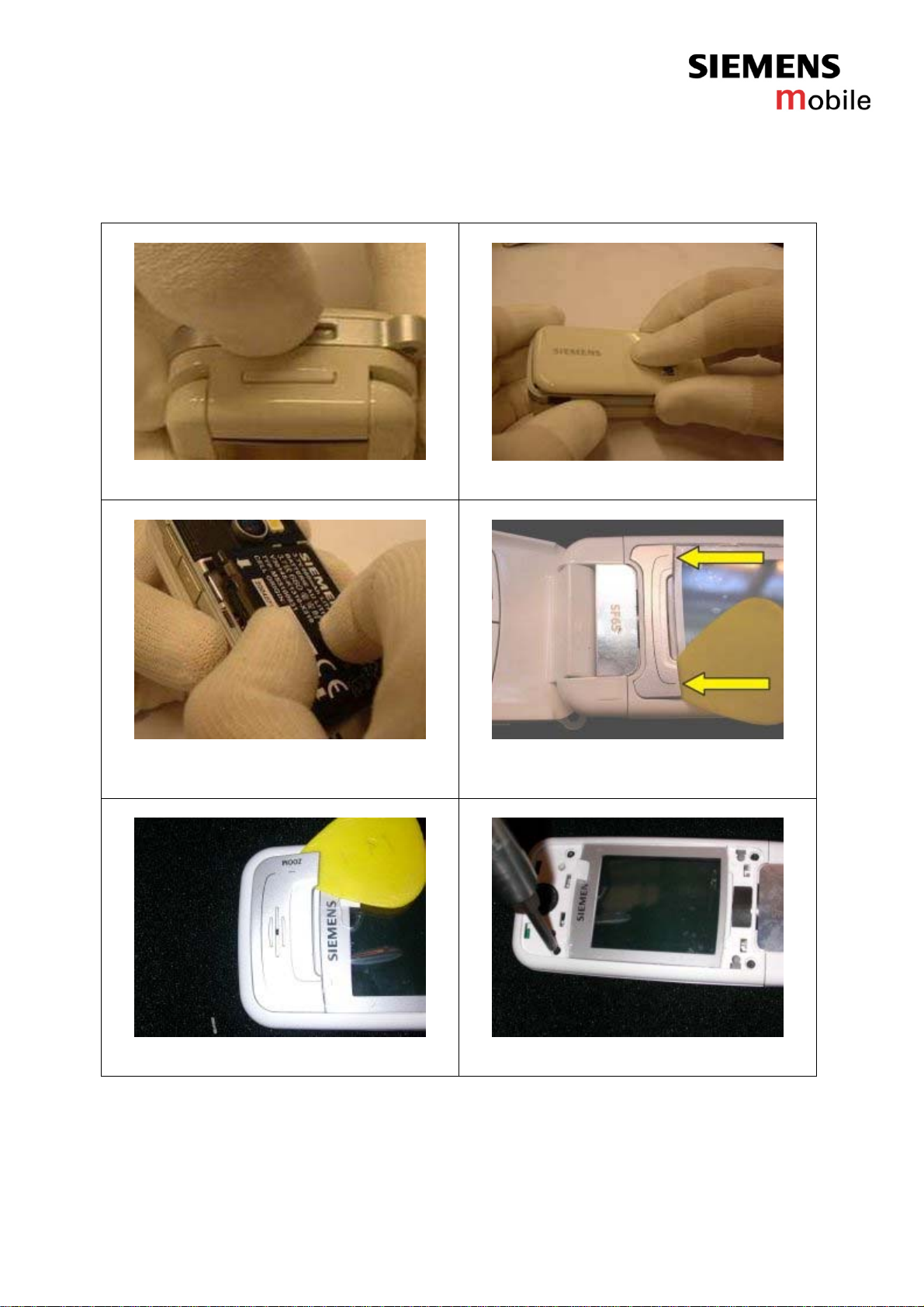

Release the battery cover (using your finger)

Shift the cover (be careful with plastic pin )

Take out the battery pack by releasing the 2

fingers from their catchs and lifting the battery

Upward from the strip.

Remove the menu key by lifting it upward with

a plastic tool

Remove the zoom key by lifting it upward

Unscrew the four screws of the flip front case
