SignaMax 065-1167 Bedienungsanleitung

Industrial Ethernet Extender

Signamax



Connectivity Systems

Industrial Ethernet Extender

Model - 065-1167

065-1167I

065-1167DIN

065-1167DINI

User’s Guide

Industrial Ethernet Extender

Quick Start Guide

This quick start guide describes how to install and use the Ethernet

Extender. The Ethernet Extender introduced here provides one channel for

Ethernet over existing voice grade copper wire.

Product Overview

Product Features

One 10/100BaseT/TX Ethernet port with RJ-45 connector

Auto negotiation of speed and duplex mode on TX port

Auto MDIX on TX port

Complies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX

standards

One Ethernet Extender port with RJ-11 connector

Ethernet Extender port auto senses the speed of

1/3/5/10/15/20/25/30/40/50Mbps

One DIP switch for configuring Ethernet Extender local or remote mode

Status LEDs

External AC to DC power adapter

Used as a stand-alone device or with a chassis

Hot-swappable when used with a chassis

Industrial Ethernet Extender

Packing List

When you unpack this product package, you will find the items listed below.

Please inspect the contents, and report any apparent damage or missing

items immediately to our authorized reseller.

The Ethernet Extender

User’s Manual

AC to DC Power Adaptor

Industrial Ethernet Extender

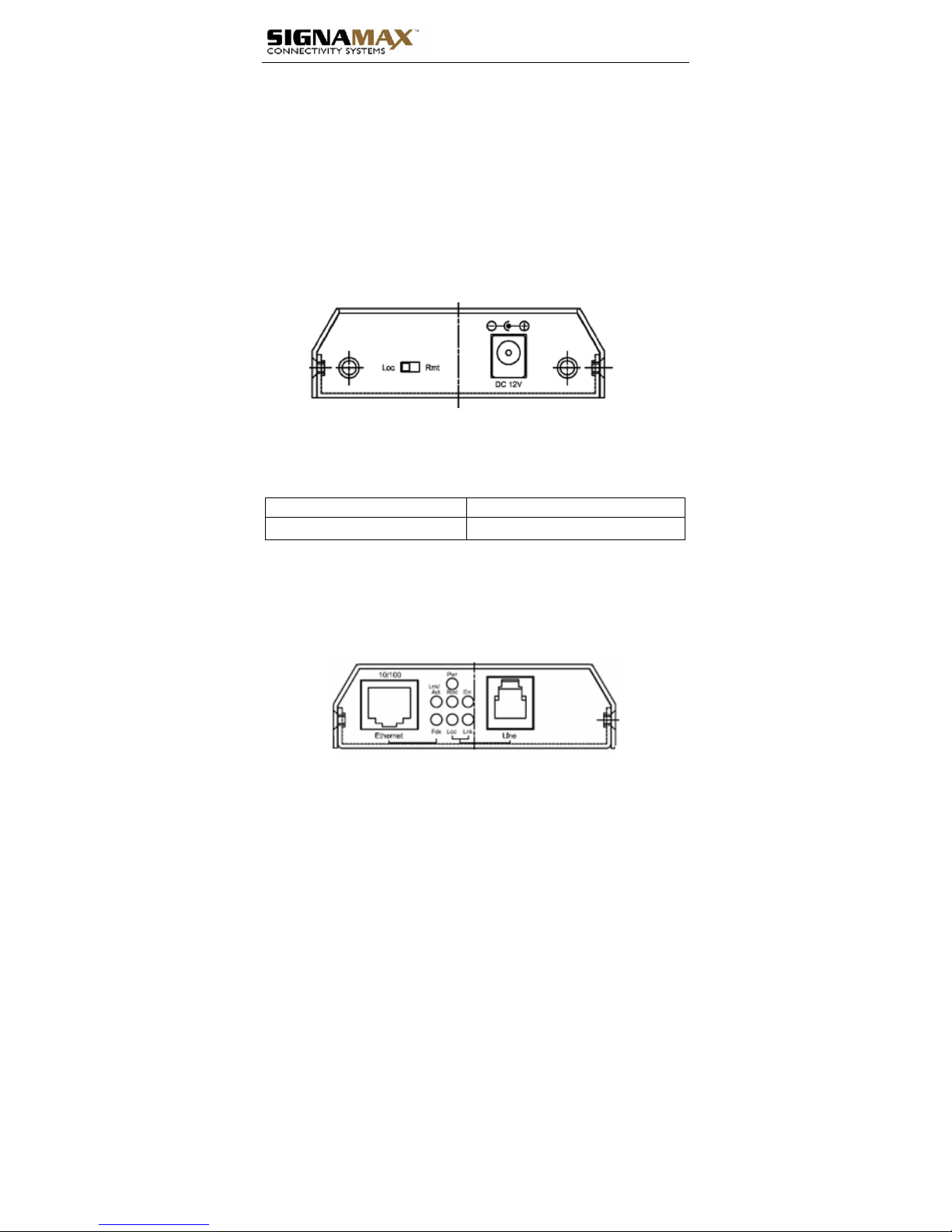

Ethernet Extender Mode Settings

Ethernet Extender mode settings are made very simple by means of a

switch at the rear panel of the Ethernet Extender. The switch has two

positions for Ethernet Extender mode settings. Refer to the table below for

more details. One device must be set to Loc and the other to Rmt when two

devices are connected.

Loc Rmt

The device operates in local mode

The device operates in remote mode

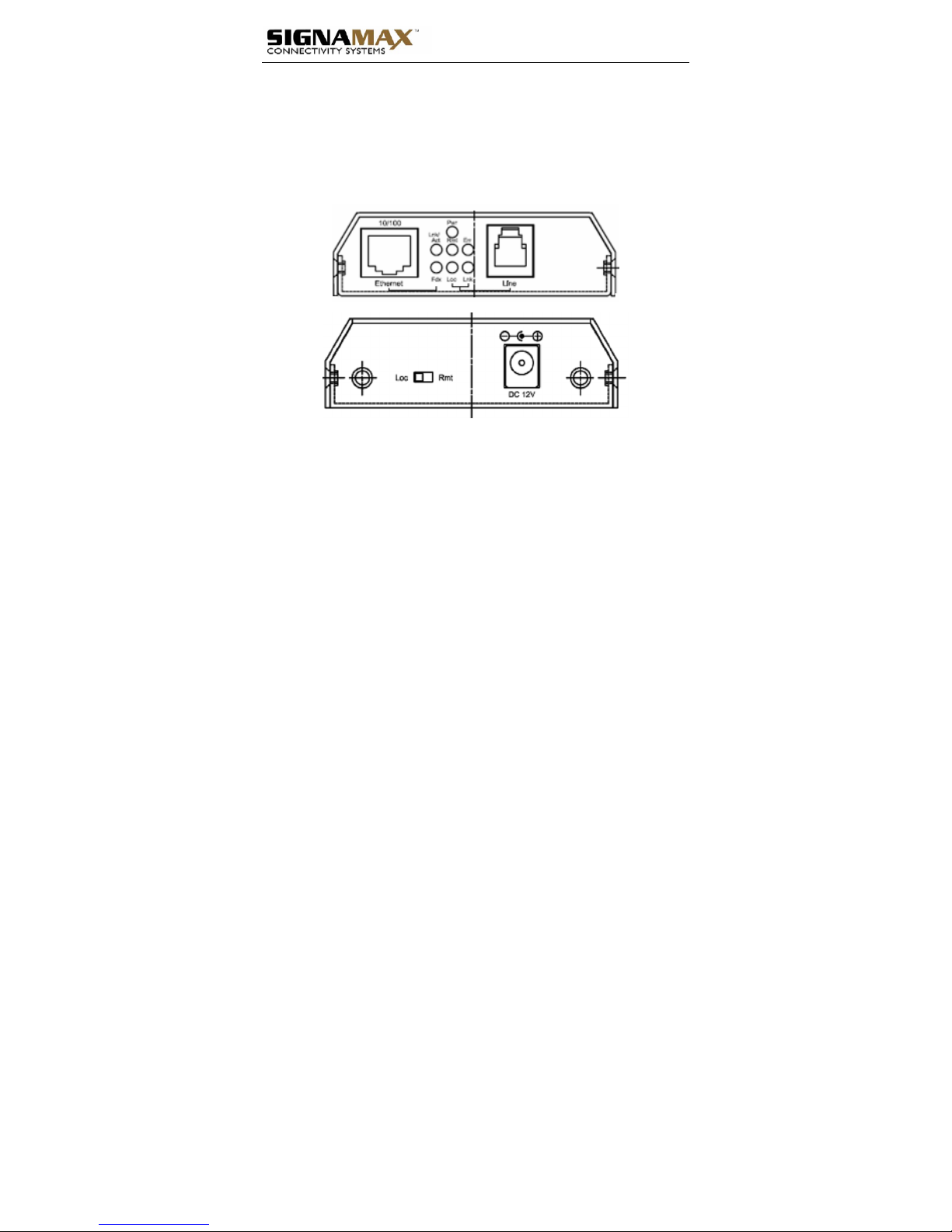

Front Panel & LEDs

The LED indicators give you instant feedback on status of the Ethernet

Extender:

LEDs State Indication

Steady Power on

Pwr stands for POWER

Pwr

Off Power off

Ethernet

Steady A valid Ethernet connection established

Lnk stands for LINK

Flashing Transmitting or receiving Ethernet data

Act stands for ACTIVITY

Lnk/Act

Off

Neither valid Ethernet connection established nor transmitting/receiving

Ethernet data

Steady Ethernet Connection in full duplex mode

Fdx stands for FULL-DUPLEX

Fdx

Off Ethernet Connection in half-duplex mode

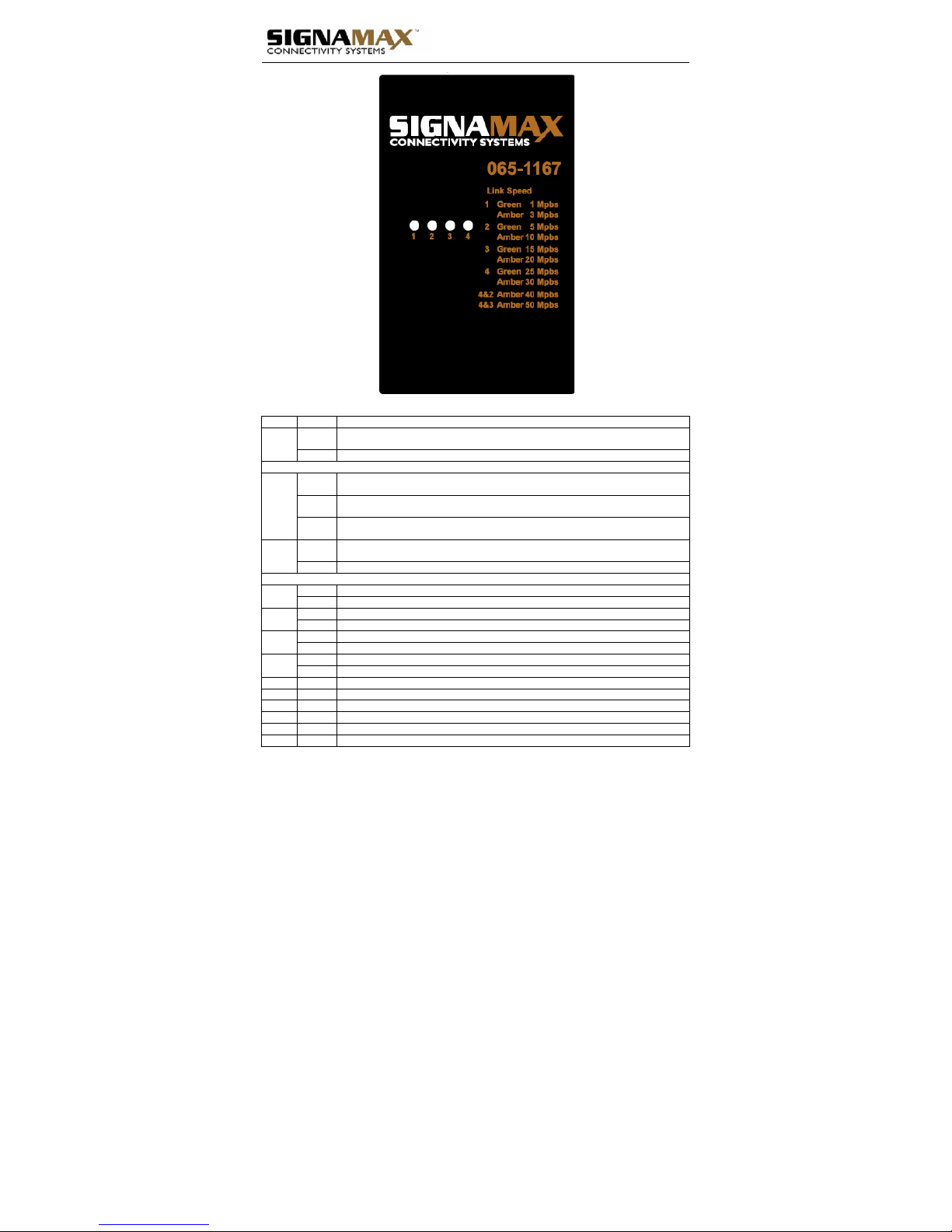

Ethernet Extender

Green

The Ethernet Extender port transmitting/receiving at 1Mbps, up to 1900M

1 Amber The Ethernet Extender port transmitting/receiving at 3Mbps, up to 1800M

Green

The Ethernet Extender port transmitting/receiving at 5Mbps, up to

1600M

Amber The Ethernet Extender port transmitting/receiving at 10Mbps, up to 1400M

Green

The Ethernet Extender port transmitting/receiving at 15Mbps, up to 1200M

3 Amber The Ethernet Extender port transmitting/receiving at 20Mbps, up to 1000M

Green

The Ethernet Extender port transmitting/receiving at 25Mbps, up to 800M

4 Amber The Ethernet Extender port transmitting/receiving at 30Mbps, up to 700M

4 + 2 Amber The Ethernet Extender port transmitting/receiving at 40Mbps, up to 600M

4 + 3 Amber The Ethernet Extender port transmitting/receiving at 50Mbps, up to 300M

Rmt Steady The device operates in remote mode

Loc Steady The device operates in local mode

Err Steady Error occurred

Lnk Steady A valid connection established

Connecting to Power

This Ethernet Extender is a plug-and-play device. Connect the supplied AC

to DC power adaptor to the receptacle on the rear panel of the Ethernet

Extender, and then attach the plug into a standard AC outlet with a voltage

range from 100 to 240V AC.

Industrial Ethernet Extender

Preface

This manual describes how to install and use the Ethernet Extender. The

Ethernet Extender introduced here provides one channel for Ethernet over

existing voice grade copper wire.

The Ethernet Extender fully complies with IEEE 802.3 10BaseT and IEEE

802.3u 100BaseTX standards.

In this manual, you will find:

Product overview

Features on the Ethernet Extender

Illustrative LED functions

Installation instructions

Specifications

Industrial Ethernet Extender

Table of Contents

Quick Start Guide .....................................................2

Product Overview............................................................2

Product Features .............................................................2

Packing List .....................................................................3

Ethernet Extender Mode Settings................................... 4

Front Panel & LEDs........................................................4

Connecting to Power .......................................................4

Preface.......................................................................5

Table of Contents ......................................................6

Introduction ..............................................................7

Product Overview............................................................7

Product Features .............................................................7

Packing List .....................................................................7

One-Channel Ethernet Extender .............................. 8

Ports.................................................................................8

Ethernet Extender Mode Settings................................... 8

Front Panel & LEDs........................................................8

Installation............................................................... 10

Selecting a Site for the Equipment................................ 10

Connecting to Power .....................................................10

Installing in a Chassis.................................................... 11

Specifications...........................................................13

Contact Information ...............................................14

Industrial Ethernet Extender

Introduction

The Ethernet Extender provides one channel for Ethernet over existing

voice grade copper wire. It can be used as a stand-alone device or with a

standard 19” chassis.

Product Overview

Product Features

One 10/100BaseT/TX(TX) Ethernet port with RJ-45 connector

Auto negotiation of speed and duplex mode on TX port

Auto MDIX on TX port

Complies with IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX

standards

One Ethernet Extender port with RJ-11 connector

Ethernet Extender port auto senses the speed of

1/3/5/10/15/20/25/30/40/50Mbps

One switch for configuring Ethernet Extender local or remote mode

Status LEDs

External AC to DC power adapter

Used as a stand-alone device or with a chassis

Hot-swappable when used with a chassis

Packing List

When you unpack this product package, you will find the items listed below.

Please inspect the contents, and report any apparent damage or missing

items immediately to our authorized reseller.

The Ethernet Extender

User’s Manual

AC to DC Power Adaptor

Industrial Ethernet Extender

One-Channel Ethernet Extender

Ports

The Ethernet Extender provides one TX port and one Ethernet Extender

port.

For the TX port, it uses RJ-45 connector and auto senses the speed of

10/100 Mbps.

For the Ethernet Extender port, it uses RJ-11 connector and auto senses

the speed of 1/3/5/10/15/20/25/30/40/50Mbps.

Ethernet Extender Mode Settings

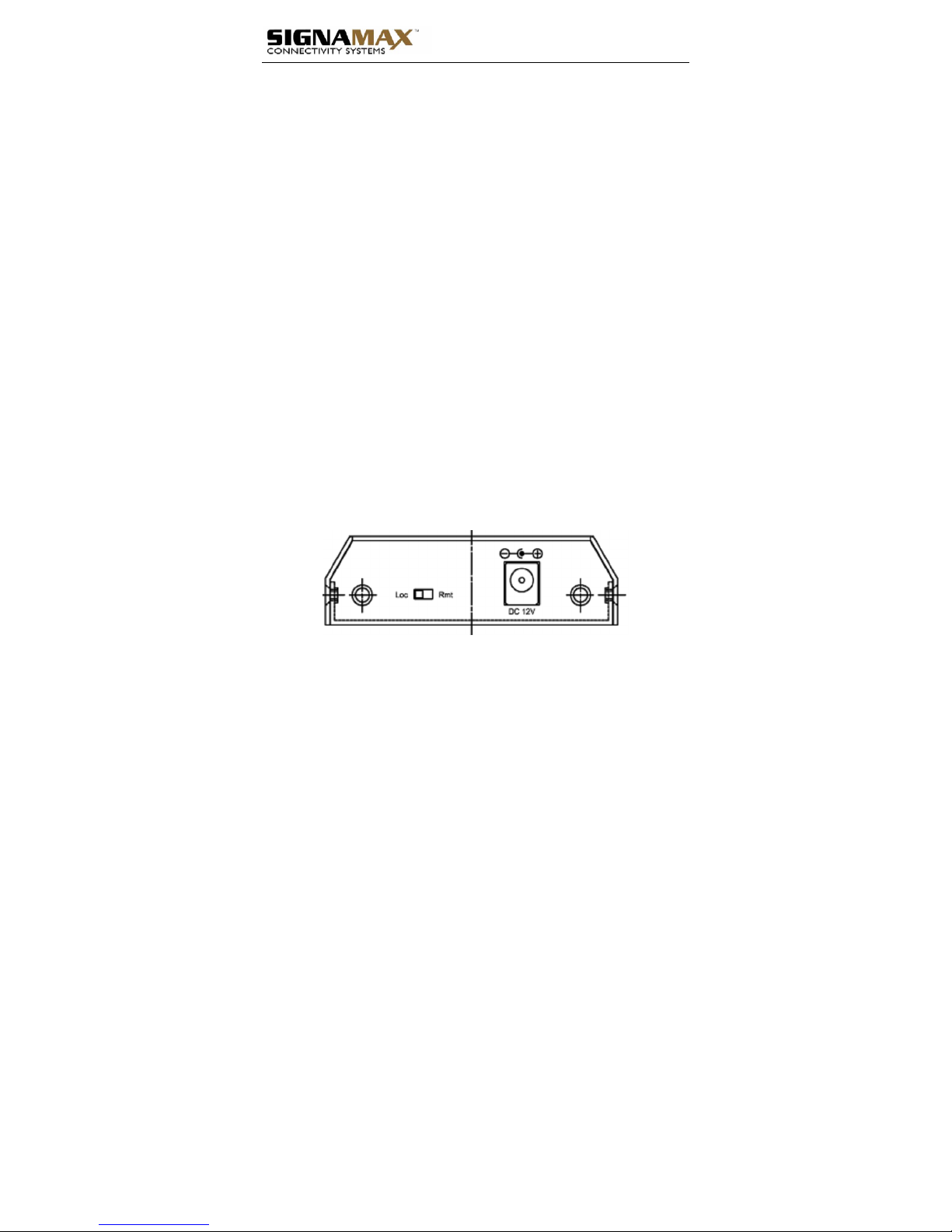

Ethernet Extender mode settings are made very simple by means of a 2

position switch at the rear panel of the Ethernet Extender.

Mode switch

There is one position on the Mode switch for Ethernet Extender mode

settings. Refer to the table below for more details. One end must be set to

Loc and the other to Rmt when two devices are connected.

Loc Rmt

The device operates in local mode The device operates in remote mode

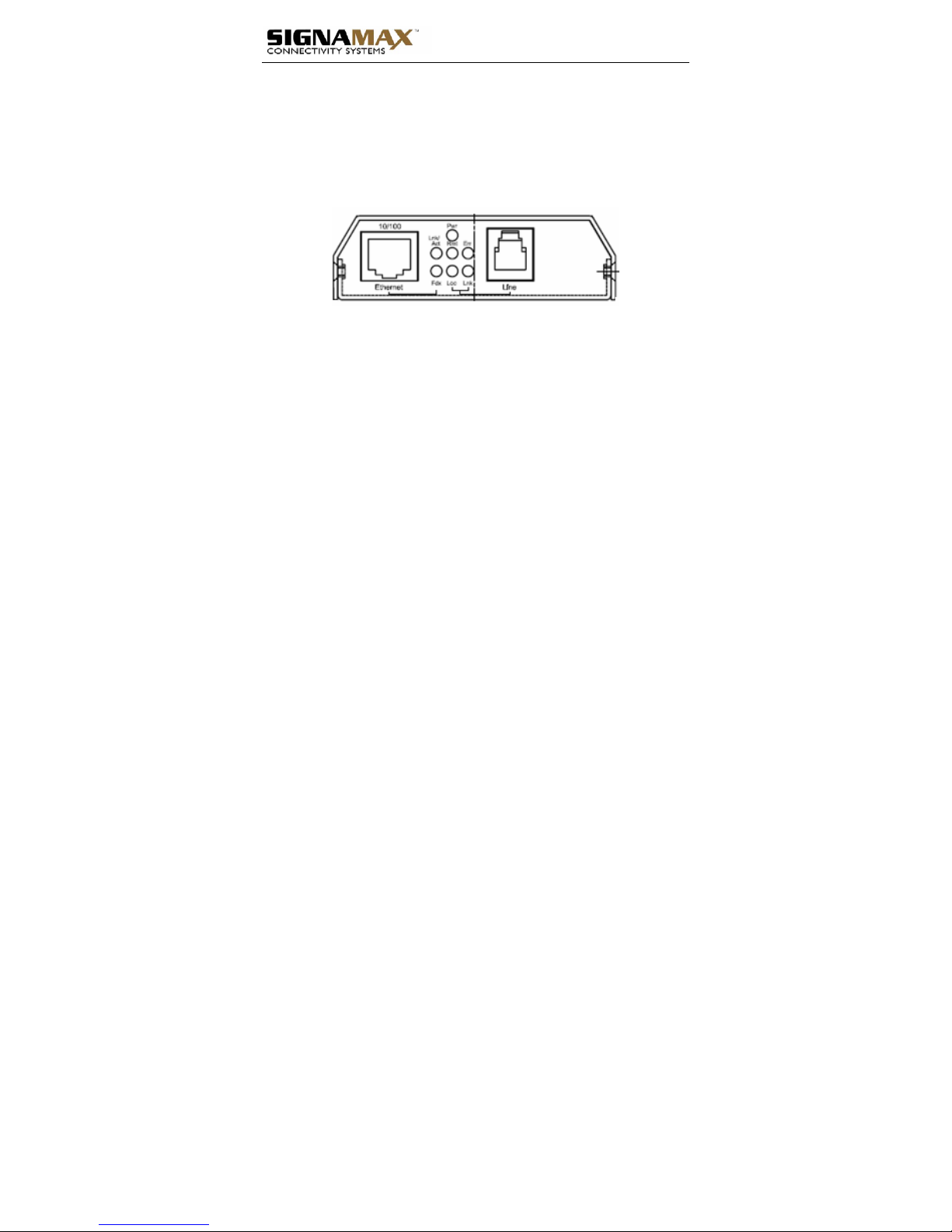

Front Panel & LEDs

LED Indicators

The LED indicators give you instant feedback on status of the Ethernet

Extender:

Industrial Ethernet Extender

LEDs State Indication

Steady Power on

Pwr stands for POWER

Pwr

Off Power off

Ethernet

Steady A valid Ethernet connection established

Lnk stands for LINK

Flashing

Transmitting or receiving Ethernet data

Act stands for ACTIVITY

Lnk/Act

Off Neither valid Ethernet connection established nor transmitting/receiving

Ethernet

data

Steady Ethernet Connection in full duplex mode

Fdx stands for FULL-DUPLEX

Fdx

Off Ethernet Connection in half-duplex mode

Ethernet Extender

Green The Ethernet Extender port transmitting/receiving at 1Mbps, up to 1900M

1 Amber The Ethernet Extender port transmitting/receiving at 3Mbps, up to 1800M

Green The Ethernet Extender port transmitting/receiving at 5Mbps, up to 1600M

2 Amber The Ethernet Extender port transmitting/receiving at 10Mbps, up to 1400M

Green The Ethernet Extender port transmitting/receiving at 15Mbps, up to 1200M

3 Amber The Ethernet Extender port transmitting/receiving at 20Mbps, up to 1000M

Green The Ethernet Extender port transmitting/receiving at 25Mbps, up to 800M

4 Amber The Ethernet Extender port transmitting/receiving at 30Mbps, up to 700M

4 + 2 Amber The Ethernet Extender port transmitting/receiving at 40Mbps, up to 600M

4 + 3 Amber The Ethernet Extender port transmitting/receiving at 50Mbps, up to 300M

Rmt Steady The device operates in remote mode

Loc Steady The device operates in local mode

Err Steady Error occurred

Lnk Steady A valid connection established

Industrial Ethernet Extender

Installation

This chapter gives step-by-step installation instructions for the Ethernet

Extender.

Selecting a Site for the Equipment

As with any electric device, you should place the equipment where it will not

be subjected to extreme temperatures, humidity, or electromagnetic

interference. Specifically, the site you select should meet the following

requirements:

The ambient temperature should be between -20 to 60 degrees Celsius.

The relative humidity should be less than 90 percent, non-condensing.

Surrounding electrical devices should not exceed the electromagnetic

field (RFC) standards.

Make sure that the equipment receives adequate ventilation. Do not

block the ventilation holes on each side of the equipment.

The power outlet should be within 1.8 meters of the product.

Connecting to Power

This Ethernet Extender is a plug-and-play device.

Connect the supplied AC to DC power adaptor to the receptacle on the

rear panel of the Ethernet Extender, and then attach the plug into a

standard AC outlet with a voltage range from 100 to 240VAC.
