SignaMax 065-7532 Bedienungsanleitung
User‘s Guide
16 Port Nway Fast Ethernet
Web Smart Switch
Model
:065-7532
SIGNAMAX LLC • www.signamax.eu
FCC Warning
This device has been tested and found to comply with limits for a
Class B digital device, pursuant to Part 2 and 15 of FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates and
radiates radio frequency energy and, if not installed and used in
accordance with the user’s manual, it may cause interference in
which case users will be required to correct interference at their
own expenses.
CE Warning
This is a Class B product. In a domestic environment, this
product may cause radio interference in which case the user may
be required to take adequate measures.
SIGNAMAX LLC • www.signamax.eu
Introduction
065-7532 switch provides 16 10/100M ports. 065-7532 switch
was designed for easy installation and high performance in an
environment where traffic is on the network and the number of
users increases continuously.
The compact rigid desktop size was specifically designed for
small to medium workgroups. 065-7532 switch can be installed
where space is limited; moreover, it provides smooth network
migration and easy upgrade to network capacity.
SIGNAMAX LLC • www.signamax.eu

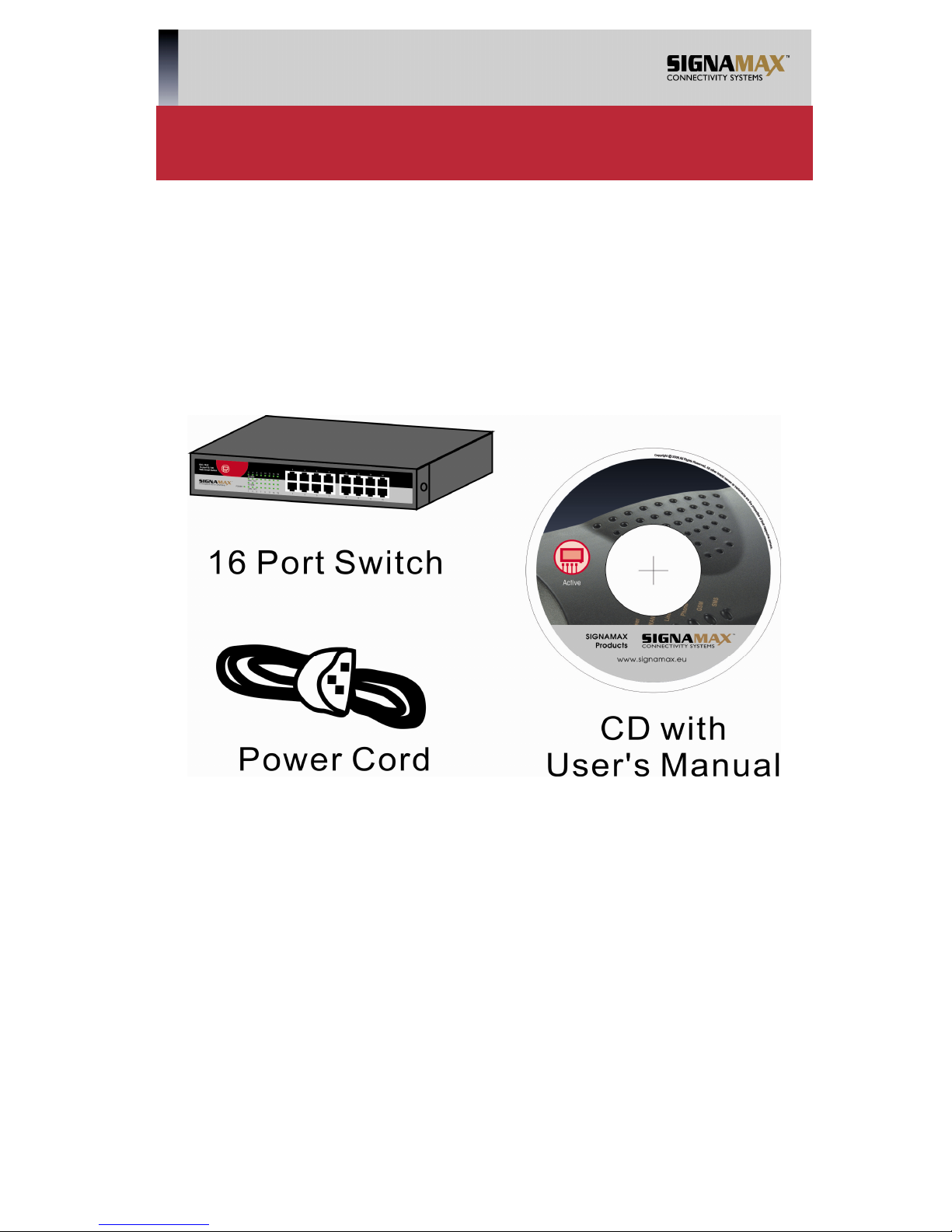

Package Contents
Before you start to install this switch, please verify your package
that contains the following items:
One 065-7532 Fast Ethernet Switch
One Power Cord
One CD with User’s Manual
Note: If any of these items is found missing or damaged, please
contact your local supplier for replacement.
SIGNAMAX LLC • www.signamax.eu
Key Features
16 Port 10/100M Nway (Auto-negotiation) Switch
11” Desktop size with metal case
Can be installed in a 19” cabinet by rack-mount kits
Auto-learn of networking configurations
Auto-detect full/half-duplex modes for any port
Dedicated full-duplex 200Mbps bandwidth
Store-and-Forward switching methods
IEEE 802.3x flow control for full-duplex and back-pressure
flow control for half-duplex
Non-blocking & Non-head-of-line blocking full wire speed
forwarding
Auto-MDI/MDI-X function for any port
Smart plug & play
Front Panel (LEDs)
LED Indicators of 16 Port 10/100M Switch
LED Status Description No. Of LED
Power On Power on Power
On Port is on the
100M status
16 (1~16)10/100M
Off
Port is on the 10M
status 16 (1~16)
On 10/100Mbps port
for connection 16 (1~16)
LINK/ACT.
Flashing
10/100Mbps for
data activating 16 (1~16)
SIGNAMAX LLC • www.signamax.eu

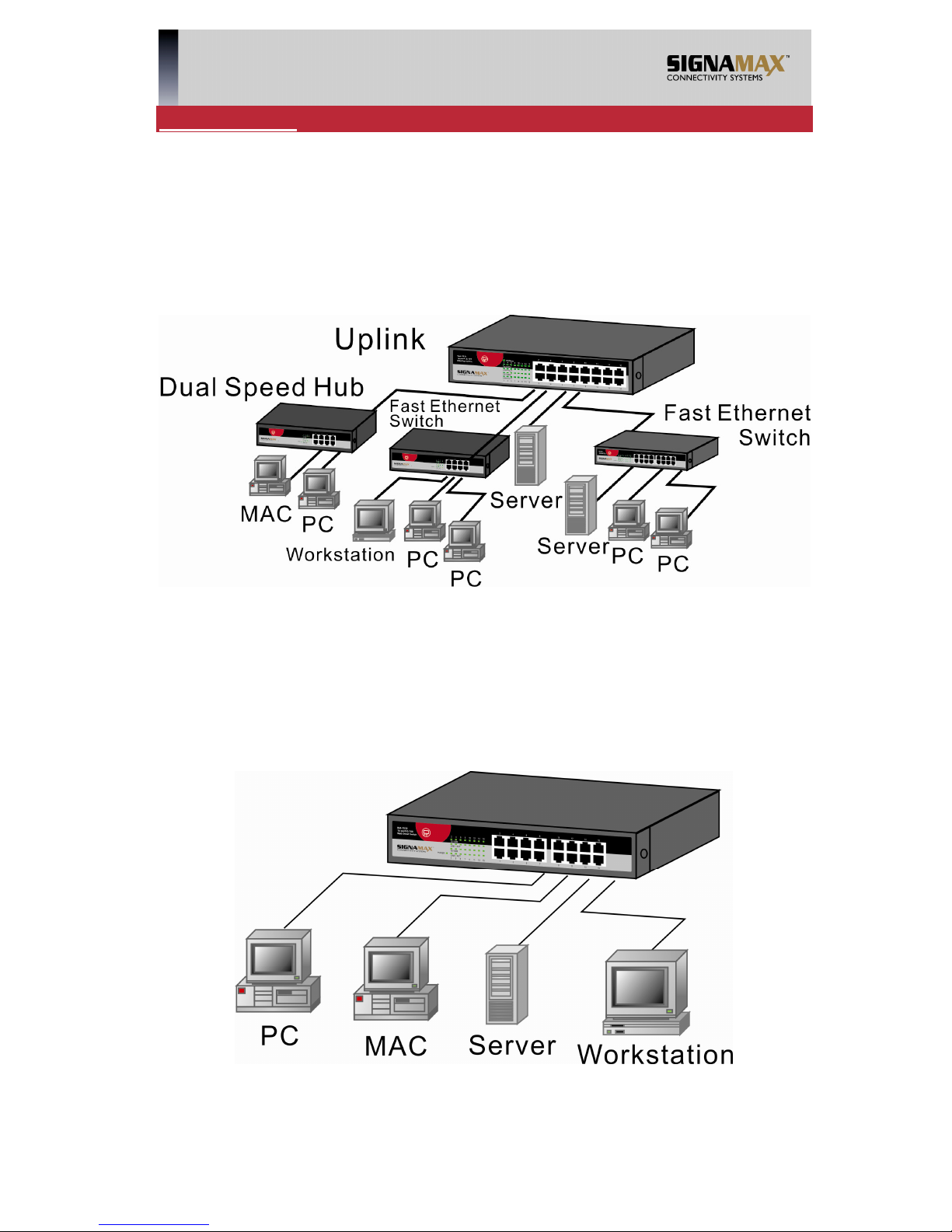

Connections
Switch/Hub to 065-7532 Fast Ethernet Switch
065-7532 switch provides automatic crossover detection
functionality for any port. It is simple and friendly to up-link to
another switch without crossover cable.
PC/Other devices to 065-7532 Fast Ethernet Switch
Via a twisted pair cable straight through, 065-7532 switch can be
connected to PCs, servers and other network devices.
SIGNAMAX LLC • www.signamax.eu
Rear Panel (Power)
AC input
AC input (100~240V/AC, 50~60Hz) UL Safety
Technical Specifications
Standards
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3x Flow control
Features
Number of Ports: 16
MAC Address: 4K
Buffer Memory: 1.5 Mb
Method: Store and Forward
Filtering/
Forwarding Rates
100Mbps port – 148,800pps
10Mbps – 14,880pps
Transmission Media
10BaseT Cat. 3, 4, 5
UTP/STP
100BaseTX Cat. 5 UTP/STP
LED Indicators
Per Port: LINK/ACT,
10/100M
Per Unit: Power
Power Requirement 100~240V/AC, 50~60Hz
Power Consumption 9.2 Watts (Max)
Dimensions 266 × 160 × 44 mm
(L x W x H)
Weight 1.40 kg
SIGNAMAX LLC • www.signamax.eu
Operating
Temperature 0 to 55℃
Storage
Temperature -20 to 90℃
Humidity 10 to 90% RH
(non-condensing)
Certifications FCC Class B, CE
Web Smart Switch
Configure
Please follow the steps to configure this Web Smart switch.
Step 1:
Use a twisted pair cable to connect this switch to your PC.
Step 2:

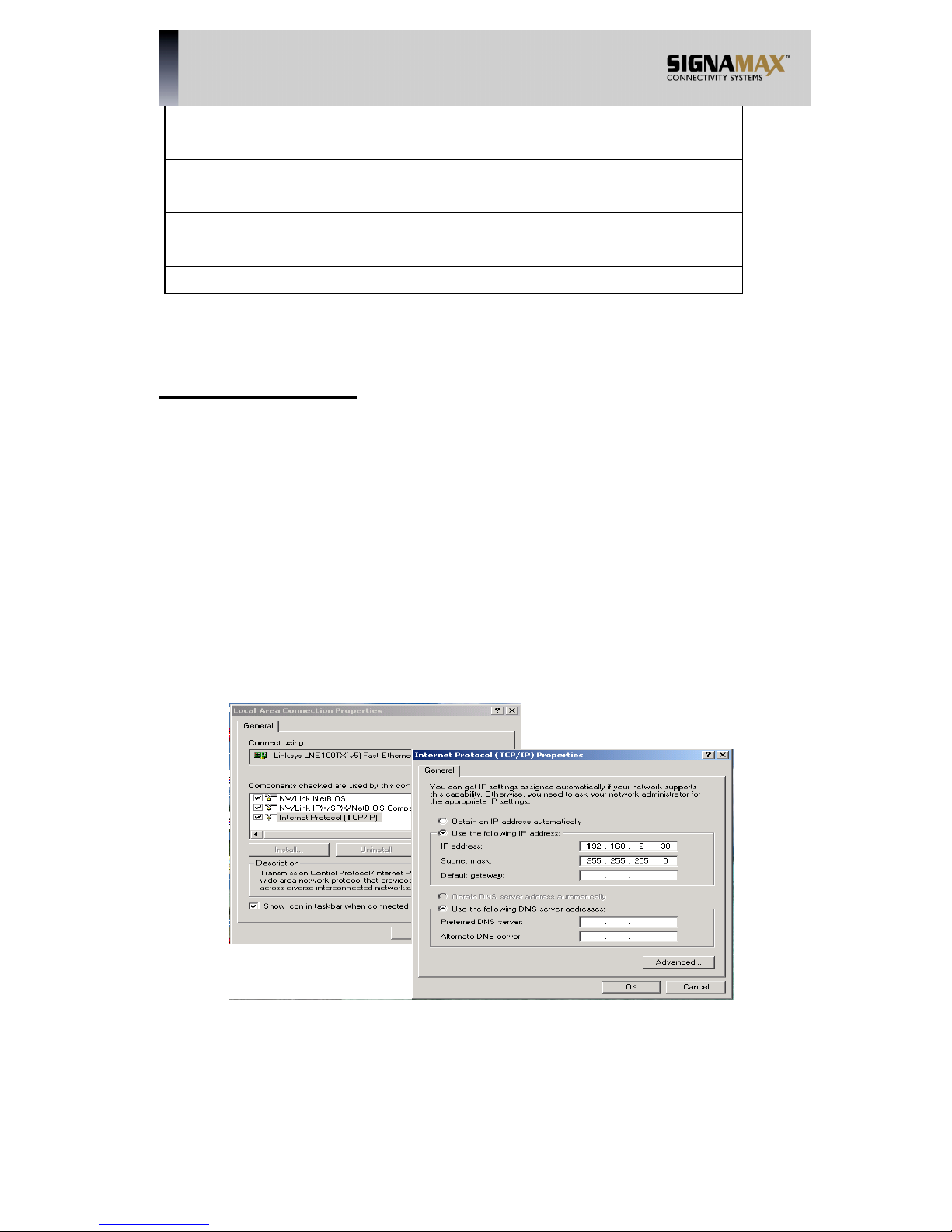

Set your PC’s IP to 192.168.2.xx.
SIGNAMAX LLC • www.signamax.eu

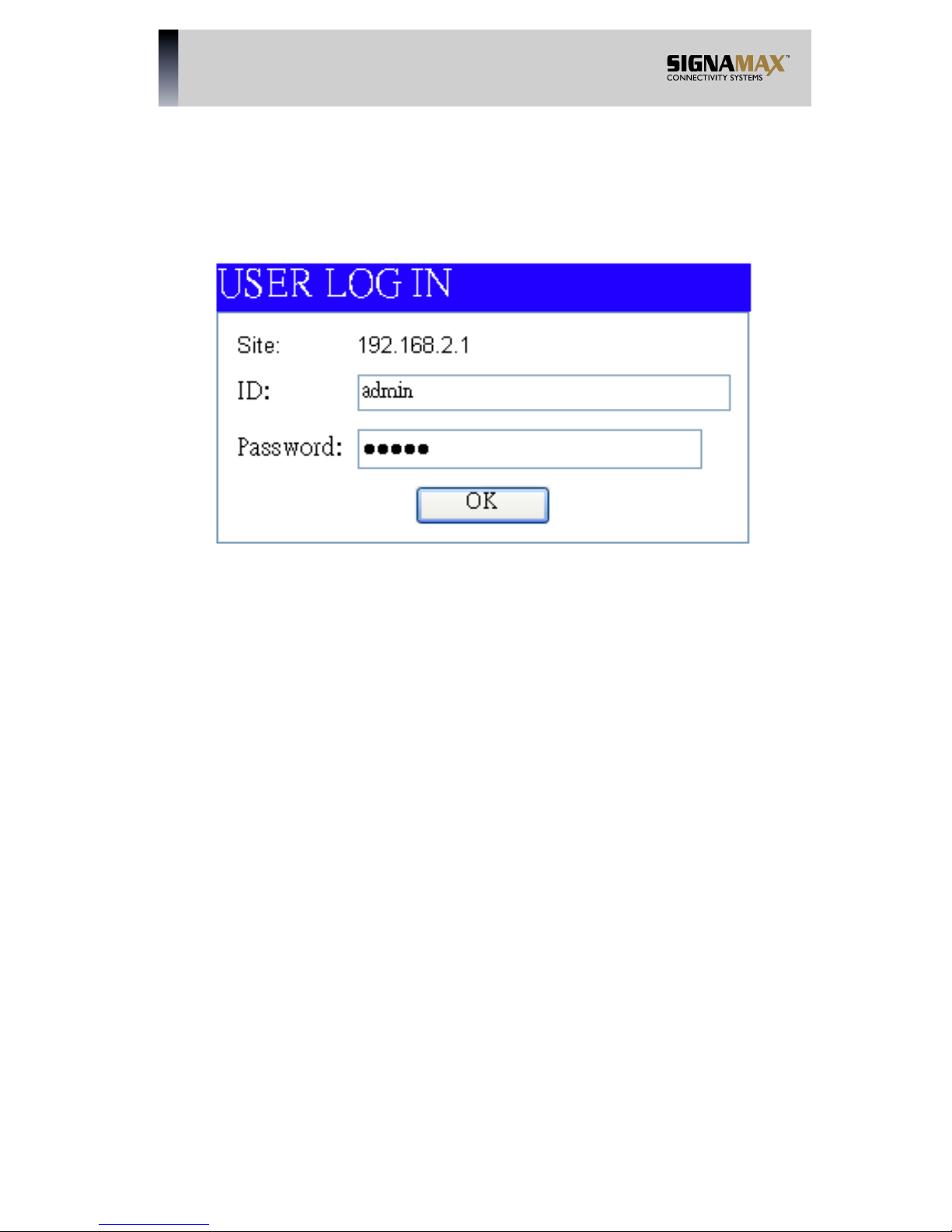

Step 3:
Open the web browser (like IE…), and go to 192.168.2.1 site,
and then you will see the login screen.
Key in the user ID and the password to pass the
authentication,
IP: 192.168.2.1
ID: admin
Password: admin
After the authentication procedure, the home page shows up.
SIGNAMAX LLC • www.signamax.eu
Step 4:
On the following home page, select the configuration by
clicking the icon. It includes,
- Administrator
- Port Management
- VLAN Setting
- QoS Setting
- Port Security
- Logout
