802.11b+g Multi Function

Wireless Access Point

4 port Switching Hub

Model: 065-1789

User‘s Guide

Table of Contents

CHAPTER 1 INTRODUCTION...................................................................................... 1

Wireless Router Features.................................................................................... 1

Package Contents ................................................................................................ 5

Physical Details .................................................................................................... 6

CHAPTER 2 INSTALLATION....................................................................................... 8

Requirements........................................................................................................ 8

Procedure.............................................................................................................. 8

CHAPTER 3 SETUP ................................................................................................... 10

Overview.............................................................................................................. 10

Configuration Program...................................................................................... 12

Setup Wizard....................................................................................................... 14

LAN Screen ......................................................................................................... 17

Wireless Screen.................................................................................................. 19

Password Screen................................................................................................ 25

CHAPTER 4 PC CONFIGURATION........................................................................... 26

Overview.............................................................................................................. 26

Windows Clients................................................................................................. 26

Macintosh Clients............................................................................................... 38

Linux Clients....................................................................................................... 38

Other Unix Systems ........................................................................................... 38

Wireless Station Configuration......................................................................... 39

CHAPTER 5 OPERATION AND STATUS.................................................................. 40

Operation............................................................................................................. 40

Status Screen...................................................................................................... 40

Connection Status - PPPoE............................................................................... 43

Connection Status - PPTP................................................................................. 45

Connection Status - L2TP.................................................................................. 46

Connection Status - Telstra Big Pond.............................................................. 48

Connection Details - SingTel RAS.................................................................... 49

Connection Details - Fixed/Dynamic IP Address ............................................ 51

CHAPTER 6 ADVANCED FEATURES ...................................................................... 53

Overview.............................................................................................................. 53

Access Control ................................................................................................... 53

Dynamic DNS (Domain Name Server) .............................................................. 58

Advanced Internet Screen................................................................................. 60

URL Filter............................................................................................................. 64

Define Schedule.................................................................................................. 66

User Groups........................................................................................................ 67

Virtual Servers .................................................................................................... 68

WAN Port Configuration.................................................................................... 72

CHAPTER 7 ADVANCED ADMINISTRATION .......................................................... 76

Overview.............................................................................................................. 76

Config File........................................................................................................... 77

Logs ..................................................................................................................... 78

Network Diagnostics.......................................................................................... 80

Options................................................................................................................ 81

SIGNAMAX LLC • www.signamax.eu i

PC Database........................................................................................................ 82

Remote Admin .................................................................................................... 86

Routing................................................................................................................ 88

Security................................................................................................................ 92

Upgrade Firmware.............................................................................................. 94

APPENDIX A TROUBLESHOOTING......................................................................... 95

Overview.............................................................................................................. 95

General Problems............................................................................................... 95

Internet Access................................................................................................... 95

Wireless Access................................................................................................. 96

APPENDIX B ABOUT WIRELESS LANS.................................................................. 98

Modes .................................................................................................................. 98

BSS/ESS.............................................................................................................. 98

Channels.............................................................................................................. 99

WEP...................................................................................................................... 99

WPA-PSK............................................................................................................. 99

WPA2-PSK......................................................................................................... 100

Wireless LAN Configuration............................................................................ 100

APPENDIX C SPECIFICATIONS ............................................................................. 102

Multi-Function Wireless Router ...................................................................... 102

Wireless Interface............................................................................................. 102

Regulatory Approvals ...................................................................................... 103

P/N: 065-1789

Document Version: 1.1

All trademarks and trade names are the properties of their respective owners.

SIGNAMAX LLC • www.signamax.eu ii

Chapter 1

Introduction

This Chapter provides an overview of the Wireless Router's features and

capabilities.

Congratulations on the purchase of your new Wireless Router. The Wireless Router is

a multi-function device providing the following services:

• Shared Broadband Internet Access for all LAN users.

• 4-Port Switching Hub for 10BaseT or 100BaseT connections.

• Wireless Access Point for 802.11b and 802.11g Wireless Stations.

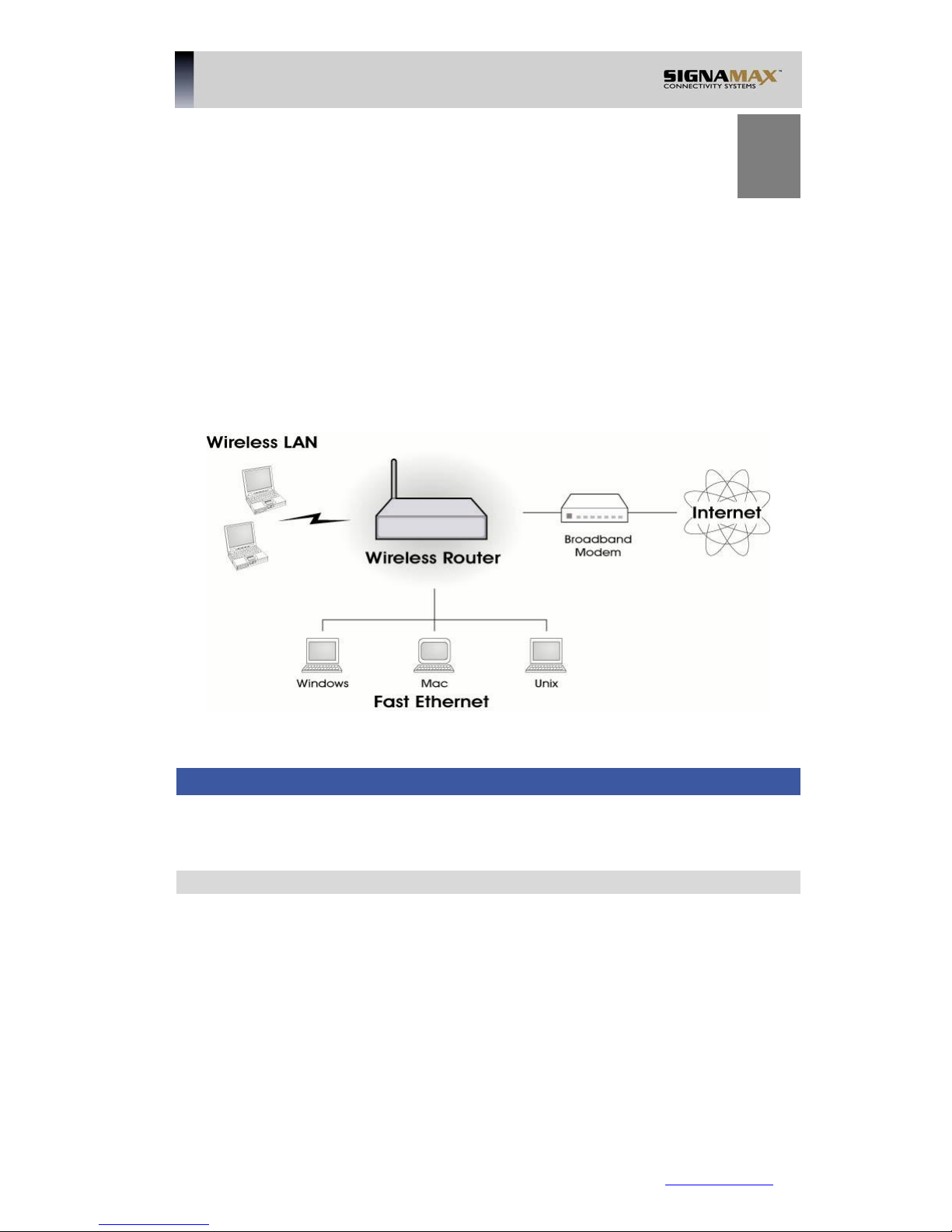

Figure 1: Wireless Router

Wireless Router Features

The Wireless Router incorporates many advanced features, carefully designed to

provide sophisticated functions while being easy to use.

Internet Access Features

• Shared Internet Access. All users on the LAN or WLAN can access the

Internet through the Wireless Router, using only a single external IP Address. The

local (invalid) IP Addresses are hidden from external sources. This process is

called NAT (Network Address Translation).

• DSL & Cable Modem Support. The Wireless Router has a 10/100BaseT

Ethernet port for connecting a DSL or Cable Modem. All popular DSL and Cable

Modems are supported. SingTel RAS and Big Pond (Australia) login support is

also included.

• PPPoE, PPTP, SingTel RAS and Telstra Big Pond Support. The Internet

(WAN port) connection supports PPPoE (PPP over Ethernet), PPTP (Peer-to-

Peer Tunneling Protocol), SingTel RAS and Telstra Big Pond (Australia), as well

SIGNAMAX LLC • www.signamax.eu 1

as "Direct Connection" type services. Unnumbered IP with PPPoE is also sup-

ported.

• Fixed or Dynamic IP Address. On the Internet (WAN port) connection, the

Wireless Router supports both Dynamic IP Address (IP Address is allocated on

connection) and Fixed IP Address.

Advanced Internet Functions

• Communication Applications. Support for Internet communication applica-

tions, such as interactive Games, Telephony, and Conferencing applications,

which are often difficult to use when behind a Firewall, is included.

• Special Internet Applications. Applications which use non-standard connec-

tions or port numbers are normally blocked by the Firewall. The ability to define

and allow such applications is provided, to enable such applications to be used

normally.

• Virtual Servers. This feature allows Internet users to access Internet servers

on your LAN. The required setup is quick and easy.

• DDNS Support. DDNS (Dynamic DNS) allows Internet users to connect to

Virtual Servers on your LAN using a domain name, even if your IP address is not

fixed.

• Multi-DMZ. For each WAN (Internet) IP address allocated to you, one (1) PC on

your local LAN can be configured to allow unrestricted 2-way communication with

Servers or individual users on the Internet. This provides the ability to run pro-

grams which are incompatible with Firewalls.

• URL Filter. Use the URL Filter to block access to undesirable Web sites by LAN

users.

• Internet Access Log. See which Internet connections have been made.

• Access Control. Using the Access Control feature, you can assign LAN users

to different groups, and determine which Internet services are available to each

group.

• VPN Pass through Support. PCs with VPN (Virtual Private Networking)

software using PPTP, L2TP and IPSec are transparently supported - no configura-

tion is required.

Wireless Features

• Standards Compliant. The Wireless Router complies with the IEEE802.11g

(DSSS) specifications for Wireless LANs.

• Supports both 802.11b and 802.11g Wireless Stations. The 802.11g

standard provides for backward compatibility with the 802.11b standard, so both

802.11b and 802.11g Wireless stations can be used simultaneously.

• Speeds to 54Mbps. All speeds up to the 802.11g maximum of 54Mbps are

supported.

• WEP support. Support for WEP (Wired Equivalent Privacy) is included. Key

sizes of 64 Bit and 128 Bit are supported.

• WPA support. Support for WPA is included. WPA is more secure than WEP,

and should be used if possible.

• WPA2 support. Support for WPA2 is also included. WPA2 uses the extremely

secure AES encryption method.

SIGNAMAX LLC • www.signamax.eu 2

• Wireless MAC Access Control. The Wireless Access Control feature can

check the MAC address (hardware address) of Wireless stations to ensure that

only trusted Wireless Stations can access your LAN.

• Simple Configuration. If the default settings are unsuitable, they can be

changed quickly and easily.

• WDS Support. Support for WDS (Wireless Distribution System) allows the Wire-

less Access Point to act as a Wireless Bridge. Both Point-to-Point and Multi-Point

Bridge modes are supported.

• WPS Support. WPS (Wi-Fi Protected Setup) can simplify the process of con-

necting any device to the wireless network by using the push button configuration

(PBC) on the Wireless Access Point, or entering a PIN code if there's no button.

LAN Features

• 4-Port Switching Hub. The Wireless Router incorporates a 4-port

10/100BaseT switching hub, making it easy to create or extend your LAN.

• DHCP Server Support. Dynamic Host Configuration Protocol provides a

dynamic IP address to PCs and other devices upon request. The Wireless Router

can act as a DHCP Server for devices on your local LAN and WLAN.

• Multi Segment LAN Support. LANs containing one or more segments are

supported, via the Wireless Router's RIP (Routing Information Protocol) support

and built-in static routing table.

Configuration & Management

• Easy Setup. Use your WEB browser from anywhere on the LAN or WLAN for

configuration.

• Configuration File Upload/Download. Save (download) the configuration

data from the Wireless Router to your PC, and restore (upload) a previously-

saved configuration file to the Wireless Router.

• Remote Management. The Wireless Router can be managed from any PC on

your LAN. And, if the Internet connection exists, it can also (optionally) be config-

ured via the Internet.

• Network Diagnostics. You can use the Wireless Router to perform a Ping or

DNS lookup.

• UPnP Support. UPnP (Universal Plug and Play) allows automatic discovery

and configuration of the Wireless Router. UPnP is by supported by Windows ME,

XP, or later.

Security Features

• Password - protected Configuration. Optional password protection is

provided to prevent unauthorized users from modifying the configuration data and

settings.

• Wireless LAN Security. WEP (Wired Equivalent Privacy) is supported, as well

as Wireless access control to prevent unknown wireless stations from accessing

your LAN.

• NAT Protection. An intrinsic side effect of NAT (Network Address Translation)

technology is that by allowing all LAN users to share a single IP address, the loca-

tion and even the existence of each PC is hidden. From the external viewpoint,

there is no network, only a single device - the Wireless Router.

SIGNAMAX LLC • www.signamax.eu 3

• Stateful Inspection Firewall. All incoming data packets are monitored and all

incoming server requests are filtered, thus protecting your network from malicious

attacks from external sources.

• Protection against DoS attacks. DoS (Denial of Service) attacks can flood

your Internet connection with invalid packets and connection requests, using so

much bandwidth and so many resources that Internet access becomes unavail-

able. The Wireless Router incorporates protection against DoS attacks.

SIGNAMAX LLC • www.signamax.eu 4

Package Contents

The following items should be included:

• The Wireless Router Unit

• Power Adapter

• Quick Installation Guide

• CD-ROM containing the on-line manual.

If any of the above items are damaged or missing, please contact your dealer imme-

diately.

SIGNAMAX LLC • www.signamax.eu 5

Physical Details

Front-mounted LEDs

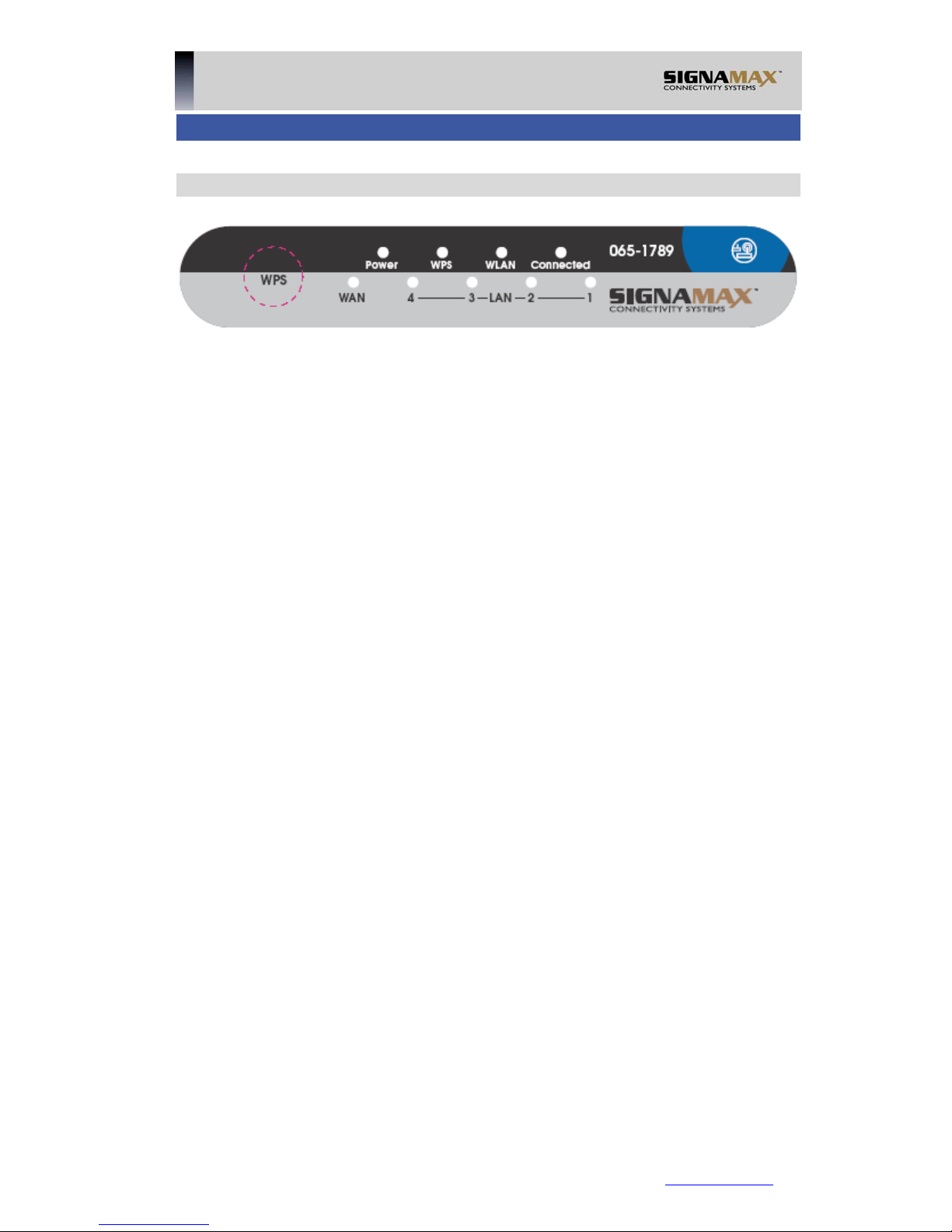

Figure 2: Front Panel

WPS Button Push the WPS button on the device and on your other wireless

device to perform WPS function that easily creates an encryption-

secured wireless connection automatically.

Power LED On - Power on.

Off - No power.

WPS LED Off - WPS feature is not in use.

On - If the LED is blinking for a while and then on, WPS is process-

ing successfully.

Blinking - If the LED is blinking for over 1 minute then off, the

WPS is not processing successfully.

WLAN LED On - Idle.

Off - Error - No Wireless connection available.

Flashing - Data is being transmitted or received via the Wireless

access point. This includes "network traffic" as well as user data.

Connected

LED On - Internet connection is available.

Off - No Internet connection available.

Flashing - Data is being transmitted or received.

WAN LED On - Connection to the Broadband Modem attached to the WAN

(Internet) port is established.

Off - No connection to the Broadband Modem.

Flashing - Data is being transmitted or received via the WAN port.

LAN LEDs For each port, there are 1 LED

• 10 (Orange)/100 (Green)

• On - Corresponding LAN (hub) port is active.

• Off - No active connection on the corresponding LAN (hub)

port.

• Flashing - Data is being transmitted or received via the

corresponding LAN (hub) port.

SIGNAMAX LLC • www.signamax.eu 6

Rear Panel

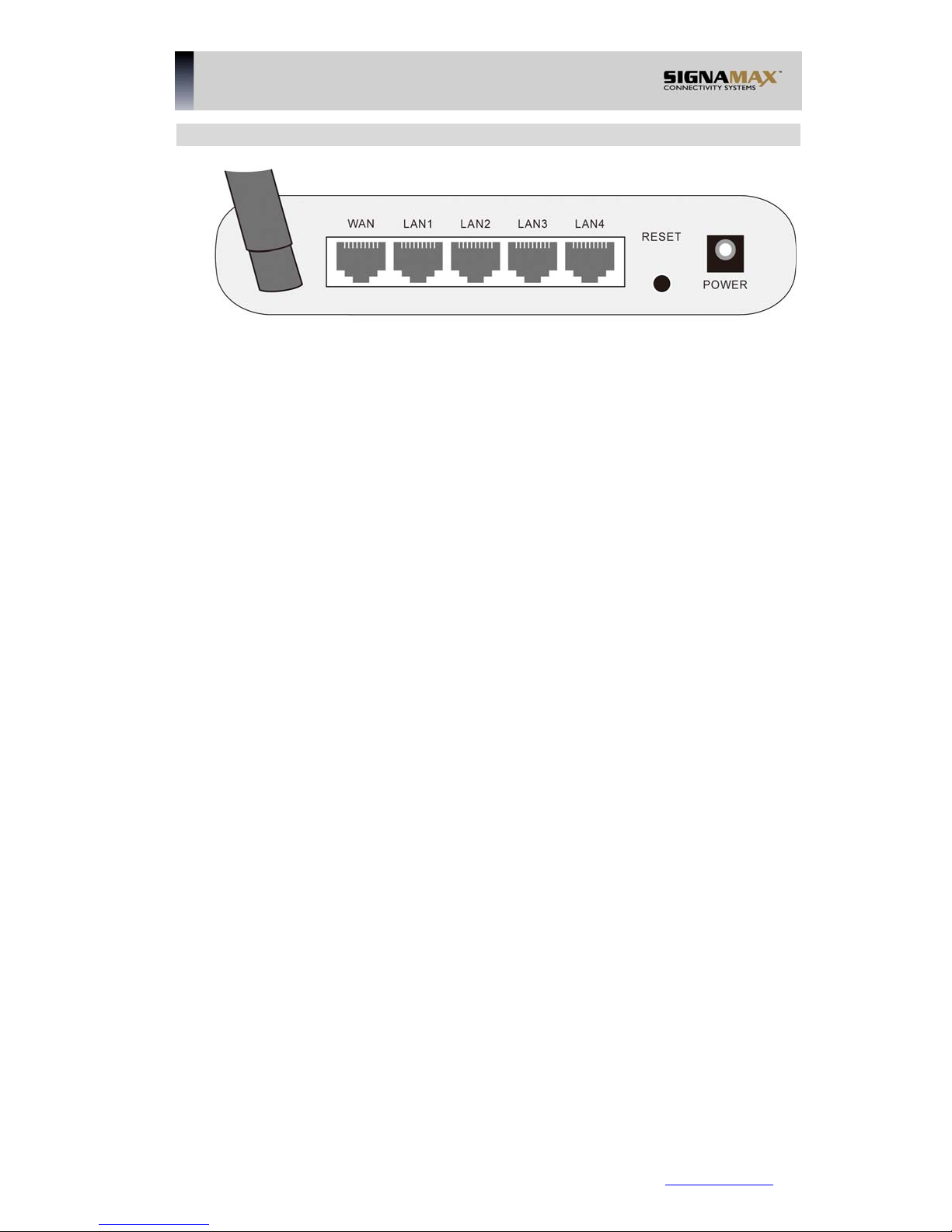

Figure 3: Rear Panel

Antenna One 2 dbi antenna.

WAN Connect the DSL or Cable Modem here. If your modem came

with a cable, use the supplied cable. Otherwise, use a stan-

dard LAN cable.

LAN Use standard LAN cables (RJ45 connectors) to connect your

PCs to these ports.

Reset Button This button has two (2) functions:

• Reboot. When pressed and released, the Wireless

Router will reboot (restart).

• Clear All Data. This button can also be used to clear ALL

data and restore ALL settings to the factory default values.

To Clear All Data and restore the factory default values:

1. Power Off.

2. Hold the Reset Button down while you Power On.

3. Keep holding the Reset Button for a few seconds, until the

RED LED has flashed TWICE.

Release the Reset Button. The Wireless Router is now using

the factory default values.

Power port Connect the supplied power adapter here.

SIGNAMAX LLC • www.signamax.eu 7

Inhaltsverzeichnis

Andere SignaMax WLAN-Router Handbücher

SignaMax

SignaMax TW263R4 Bedienungsanleitung

Beliebte WLAN-Router Handbücher anderer Marken

Milesight

Milesight UG67 Bedienungsanleitung

Airlogic

Airlogic AirSync Class 1 Betriebsanleitung

Samsung

Samsung WCH730B Bedienungsanleitung

TELEFONICA

TELEFONICA USB Adapter Bedienungsanleitung

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Bedienungsanleitung

Askey

Askey RAC2V1K Bedienungsanleitung

Alloy

Alloy WLF2454AP-S Bedienungsanleitung

TP-Link

TP-Link TL-WR542G Bedienungsanleitung

NETGEAR

NETGEAR WNR2000v4 Bedienungsanleitung

Hama

Hama 53120 Bedienungsanleitung

Intellinet

Intellinet 524582 Bedienungsanleitung

Asus

Asus RT-N10P Bedienungsanleitung

D-Link

D-Link DIR-506L Bedienungsanleitung

Sapido

Sapido GR297n Bedienungsanleitung

Asus

Asus DSL-N55U Bedienungsanleitung

AMTC

AMTC WR7502 Bedienungsanleitung

Compaq

Compaq CP-2W - iPAQ Connection Point Bedienungsanleitung

SMC Networks

SMC Networks WBR14-N2 FICHE Bedienungsanleitung
