1Ryle 4-way Thermostatic Valve Installation Instructions

RYLE 4-WAY THERMOSTATIC VALVE

INSTALLATION INSTRUCTIONS

Before you begin, read the installation instructions below. Observe all local building and safety codes.

Unpack and inspect the product for any shipping damages. If you nd damages, do not install. Contact Customer

Service at 1.866.855.2284. If you need assistance or have questions while installing your diverter valve, contact

Customer Service.

We recommend consulting a professional if you are unfamiliar with installing bathroom xtures, and plumbing.

Signature Hardware accepts no liability for any damage to the plumbing or wall, or for personal injury during

installation.

TOOLS AND MATERIALS:

INSTALLATION

Screwdriver

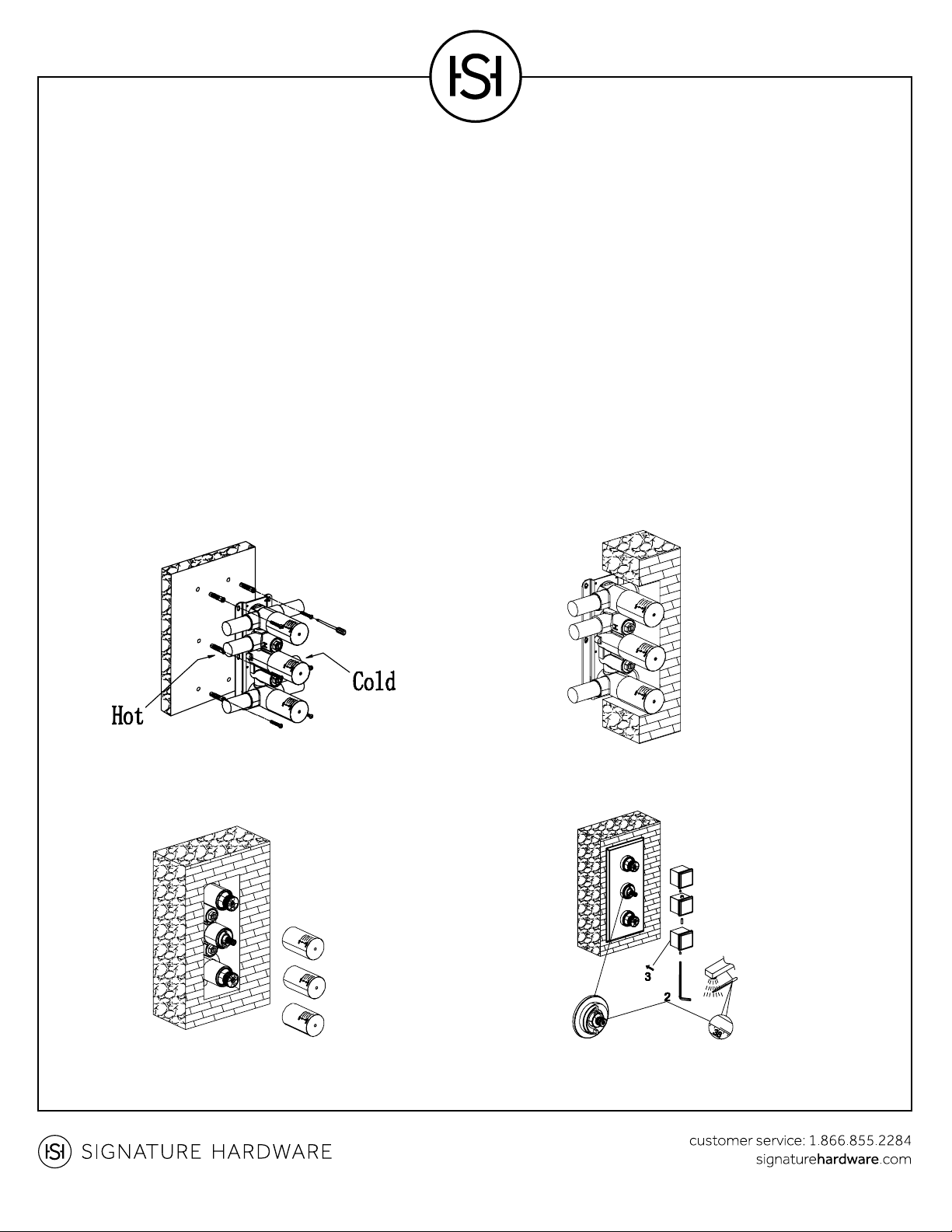

1. Install the valve body. Wrap the threaded portion

of the joints in Teon tape and connect the water

inlet and outlet.

2. Put the protective covers on the valve body

and nish the shower wall.

3. When the nished wall is complete, remove

the protective covers.

4. Install the escutcheon, and handle. Tighten the set

screw with an Allen wrench to secure.

2Ryle 4-way Thermostatic Valve Installation Instructions

1 DS12525000100

2 OXQ21020

3 SD12525070300

4 FX0710

5 SD12825101000

6 SD12525010600

7 SD12525000700

8 SD10110000200

9 M0404012

10 SD12525000900

11 FX0840

12 M0304018

13 M1204064

14 SD12525001300

15 SD12525001400

16 SD12525001500

17 SD12525001600

18 SD12525001700

19 OXQ10010

20 SD12525001900

21 OXQ24020

22 SD12525002100

23 SD12525002200

24 SD12525032400

25 M1206097

26 M0306010

27 H156-2500D

28 H156-2500T

29 OXQ48030

30 SD15625033000

PARTS LIST:
