3-Port DVI Splitter

Quick Installation Guide

Introducing the 3-Port DVI Splitter

The 3-Port DVI Splitter provides an easy solution for

distributing one DVI video signal to three displays.

Features and Benefits

• Connects a DVI video source to 3 DVI compatible

displays

• Perfect as a repeater by regenerating the DVI signal

• Stackable; up to 8 devices to support up to 17

outputs

• Reads and remembers EDID of displays

Technical Specifications

• Input connector: 1 x DVI-I

• Output connector: 2 x DVI-I

• Maximum resolution: 1600 x 1200

• LEDs: 1 x Green (ID), 1 x Red (power)

• DIP switch: 2

• Dimensions: 12mm (L) x 88mm (W) x 25mm (H)

• Weight: 300g

PackageContents

•3-Port DVI Splitter

• DVI Y-cable (DVI to DVI x2, 100/180 cm)

• Power Adapter (5V, 2A)

• Quick Installation Guide

04-0493A

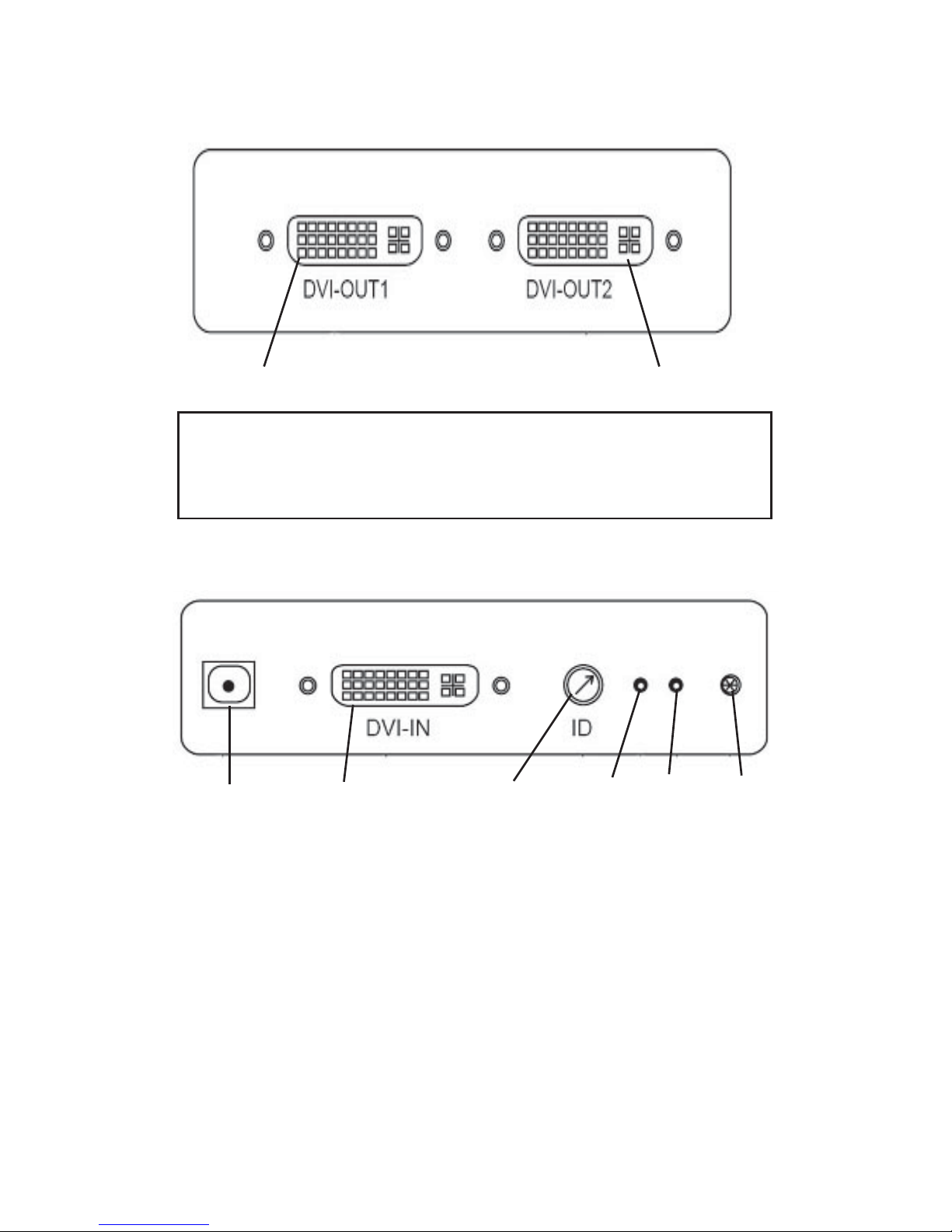

Front Panel

Note: When cascading, use the short cable of the

DVI Y-cable to connect to the next splitter's

DVI-IN.

Rear Panel

Power Jack

Connect to DVI Display Connect to DVI Y-cable

Connect to DVI

output (PC)

Rotary

switch

Green

LED

Red

LED

Infrared

receiver

•Power Jack: connect to the power supply

•DVI-In: connect to DVI output source, such as PC

•Rotaryswitch:usedwhencascading,assigndifferent

ID for each switch. Ignore when only a single

splitter is used.

•Green LED: lights when the splitter is selected

•Red LED: lights when powered on

•Infrared Receiver (optional): not enabled

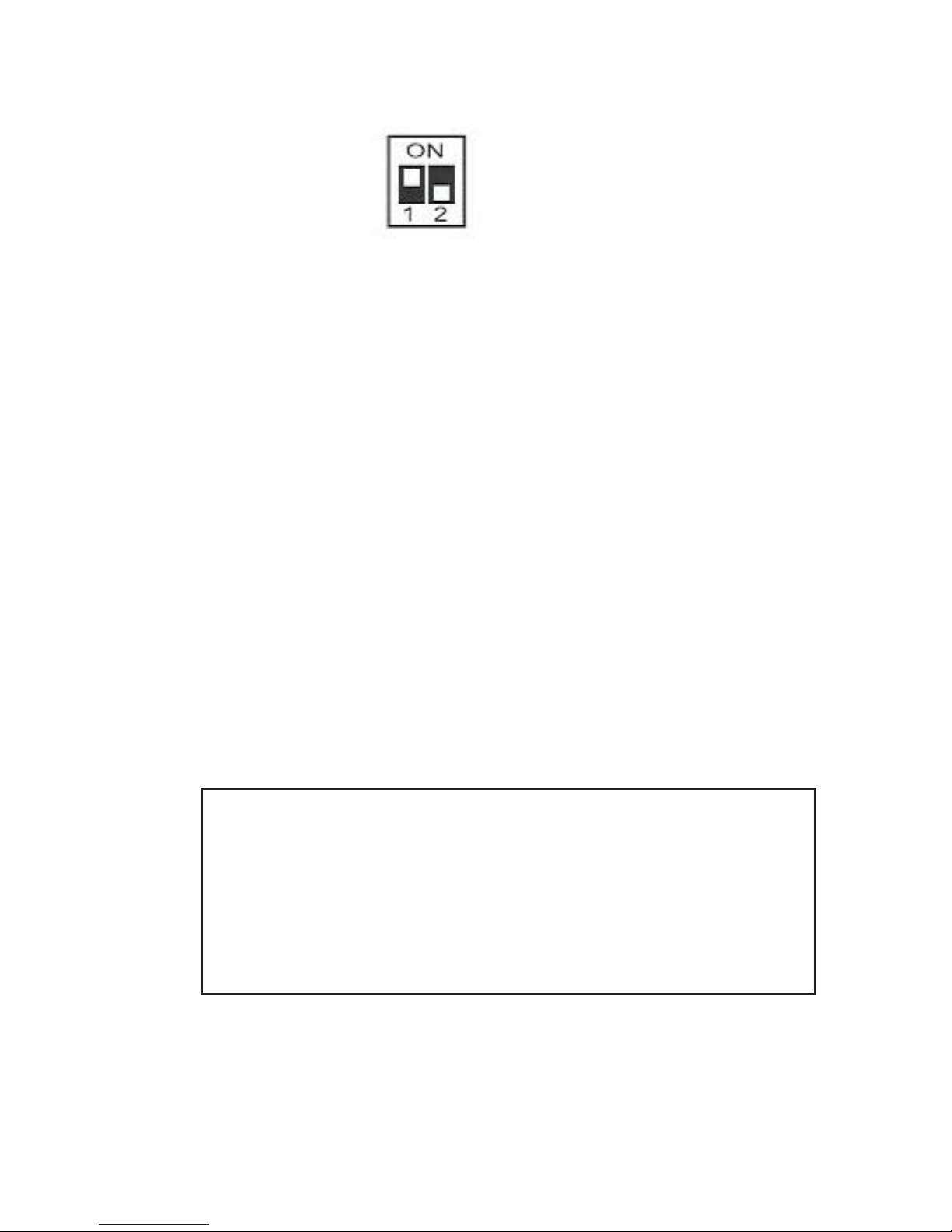

DIP Switch

•1 ON: open EQ. Less noise but more power

consumption

•1 OFF: Close EQ

•2 ON: Writing Default EDID. Set switch to ON,

plug in the power adapter. The green light will turn

on after the writing process in completed.

•2 OFF: Recording EDID of the Connected Display

via DVI-Out 1 connector. Plug in the DVI cable first

fromthedisplay and then pluginthepower adapter.

The recording process will be initated and the green

LED lights up. The green LED will turn off after the

reading process is completed.

Important: Do not plug in your DVI source when the

3-Port DVI Splitter is writing default EDID or recording

EDID from displays. This will cause damage to the EDID

in the flash memory.

Note: If you cannot boot your computer from the

connected 3-Port DVI Spitter due to damaged EDID

in the splitter, proceed with Writing Default EDID

and Recording EDID of the Connected Display as

outlined above. This will force the 3-Port DVI

Splitter to write the EDID from the display.

Hardware Installation

We suggest to connect the monitor with the lowest

resolution to DVI-OUT 1. Unless you would like to use

the default universal EDID, please set DIP switch 2 at

OFF position, which allows the 3-Port DVI Splitter to read

the first connected monitor's EDID.

Single Splitter

1. Connect a monitor, projector or other displays with

DVI inputs to DVI-Out 1 of the 3-Port DVI Splitter.

2. PlugtheDVIY-cable into the DVI-Out 2of the 3-Port

DVISplitter.

3. Connect the second and third displays to the DVI

female connectors of the DVI Y-cable.

4. Plug the power adapter into the Power Jack, then

plug the adapter into a reliable power outlet.

5. Connect a PC or other device with DVI output to the

DVI-In of the 3-Port DVI Splitter.

Multiple Splitters (Cascading)

1. Connect a monitor, projector or other displays with

DVI inputs to DVI-Out 1 of the 3-Port DVI Splitter.

2. Plug the DVI Y-cable into the DVI-Out 2 of the 3-

Port DVI Splitter.

3. Connect the second display to the long cable of the

DVI Y-cable female connector and plug the short

cable to the DVI-In of the second 3-Port DVI Splitter.

4. Connect the third display to the DVI-Out 1 of the

second 3-Port DVI Splitter

5. Repeatsteps2-4 fortheremainingcascaded splitters.

6. For each splitter, plug the power adapter into the

Power Jack, then plug the power adapter into a

reliable power outlet.

7. Connect a PC or other device with DVI output to the

DVI-In of the first 3-Port DVI Splitter.

Safety Precautions

Like all electronic equipment the 3-Port DVI Splitter

should be used with care. Please read and follow the

safety precautions to protect yourself from possible

injury and minimize the risk of damage to the unit.

• Follow all instructions and warnings marked on

the unit

• Provide proper ventilation and air circulation, do

not use near water

• Do not attempt to service the unit yourself, except

where explained in the manual

• Keep objects that might damage the device at a safe

distance and assure that the placement of this unit

is on a stable surface

• Do not use liquid or aerosol cleaners to clean this

unit and always unplug the power to the device

before cleaning

• Use only the power adapter and accessories that

came with the unit

Blank Page

Technical Support and Warranty

QUESTIONS? SIIG’sOnline Support hasanswers! Simplyvisitour

web site at www.siig.com and click Support. Our online support

database is updated daily with new drivers and solutions. Answers

toyourquestionscouldbejustafewclicks away. You can also submit

questions online and a technical support analysts will promptly

respond.

SIIGoffers a 2-year manufacturer warranty with thisproduct. Please

see our web site for more warranty details. If you encounter any

problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the

product to the store where you purchased from.

B) Ifyourpurchase has passed the store's return policy period, please

follow these steps to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

•Properly pack the product for shipping. All software, cable(s)

and any other accessories that came with the original package

must be included.

•Clearly write your RMA number on the top of the returned

package. SIIG will refuse to accept any shipping package, and

will not be responsible for a product returned without an

RMA number posted on the outside of the shipping carton.

•You are responsible for the cost of shipping. Ship the product

to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

•SIIG will ship the repaired or replaced product via Ground

in the U.S. and International Economy outside of the U.S. at

no cost to the customer.

3-PortDVISplitterisatrademarkofSIIG,Inc. SIIGandtheSIIGlogoareregisteredtrademarksofSIIG,

Inc. Other names used in this publication are for identification only and may be trademarks of their

respectivecompanies.

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer

of I/O connectivity products, including PCIe, PCI & ISA serial and

parallel ports, USB, Serial ATA & UltraATA controllers, FireWire

(1394a/b),networking, sound cards,andother accessories. SIIG is the

premier one-stop source of upgrades.

SIIGproducts offercomprehensiveuser manuals, manyuser-friendly

features, and are backed by an extensive manufacturer warranty.

High-quality control standards are evident by the overall ease of

installation and compatibility of our products, as well as one of the

lowest defective return rates in the industry. SIIG products can be

found in computer retail stores, mail order catalogs, through major

distributors, system integrators, and VARs in the Americas and the

UK, and through e-commerce sites.

PRODUCT NAME

3-Port DVI Splitter

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS

B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

Ph: 510-657-8688
