Articulating Monitor Desk
Mount - 13" to 27"
Installation Instructions
04-0680B
2
Unpacking
• Carefully remove contents and lay out on
cardboard or other protective surface
• Check package contents against the parts
list to ensure that all components were
received undamaged. Do not use damaged
or defective parts
• Carefully read all instructions before
attempting installation
Safety Information
• Use proper safety equipment during
installation
• If you don't understand the installation
instructions, please consult an installation
specialist
• Do not use this product for any purpose or
in any configuration not explicitly specified
in these instructions
3

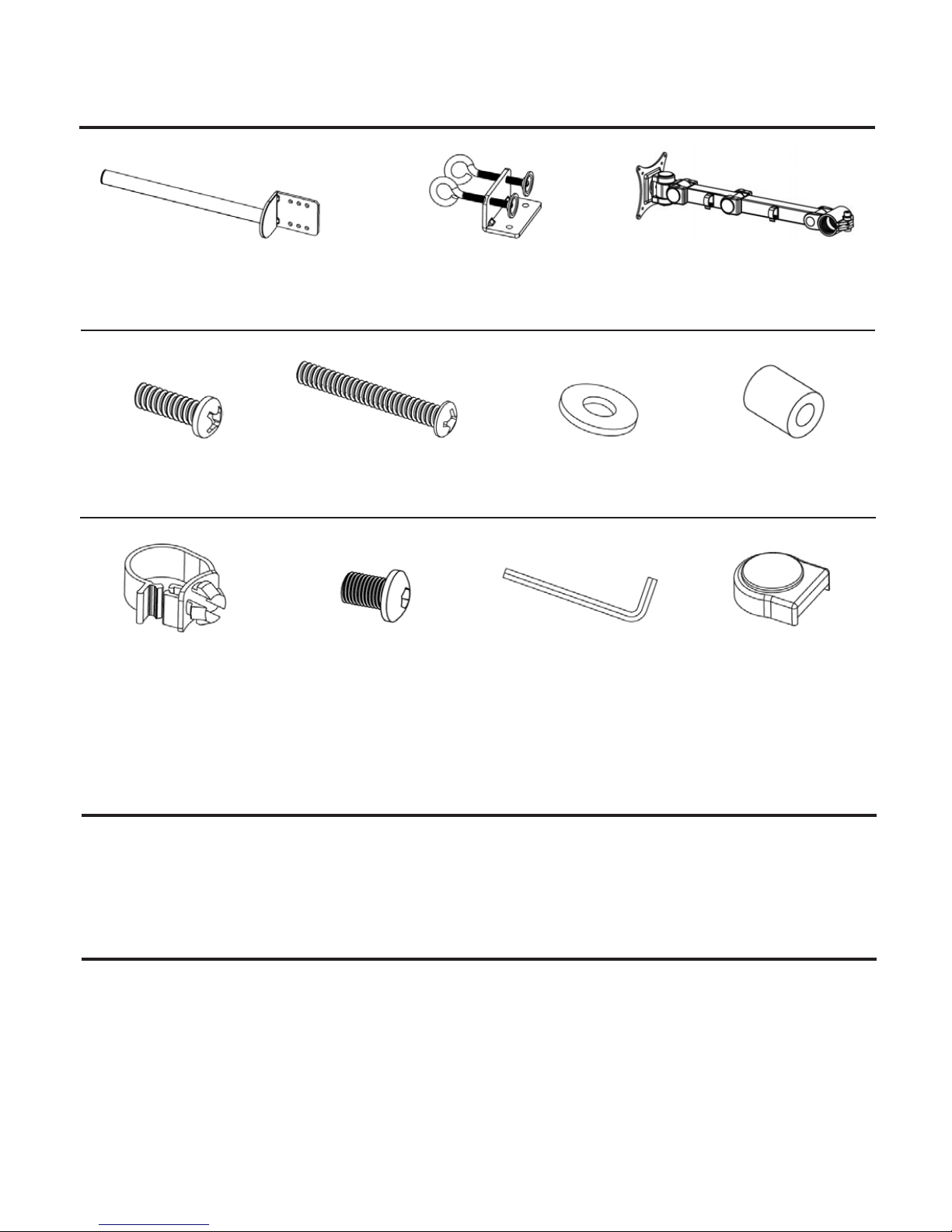

Parts List
a - (1x) 35mm
Tube Support
b - (1x) C Clamp c - (1x) Vesa
Plate with Arm
d - (4x) M4x12 Bolt e - (4x) M4x30 Bolt f - (8x) M4 Washer (4x) M4 Spacer
h - (2x) Wire Clip i - (2x) M10x15 Bolt j - (1x) Allen Key k - (2x) Spare
Plastic Cover
Tools Required
• Phillips screwdriver
Installation
Caution:Thismonitordeskmountmustbesecurly
attached to the horizontal desktop. If the mount
is not properly installed it may fall, resulting in
possible injury and/or damage.
4

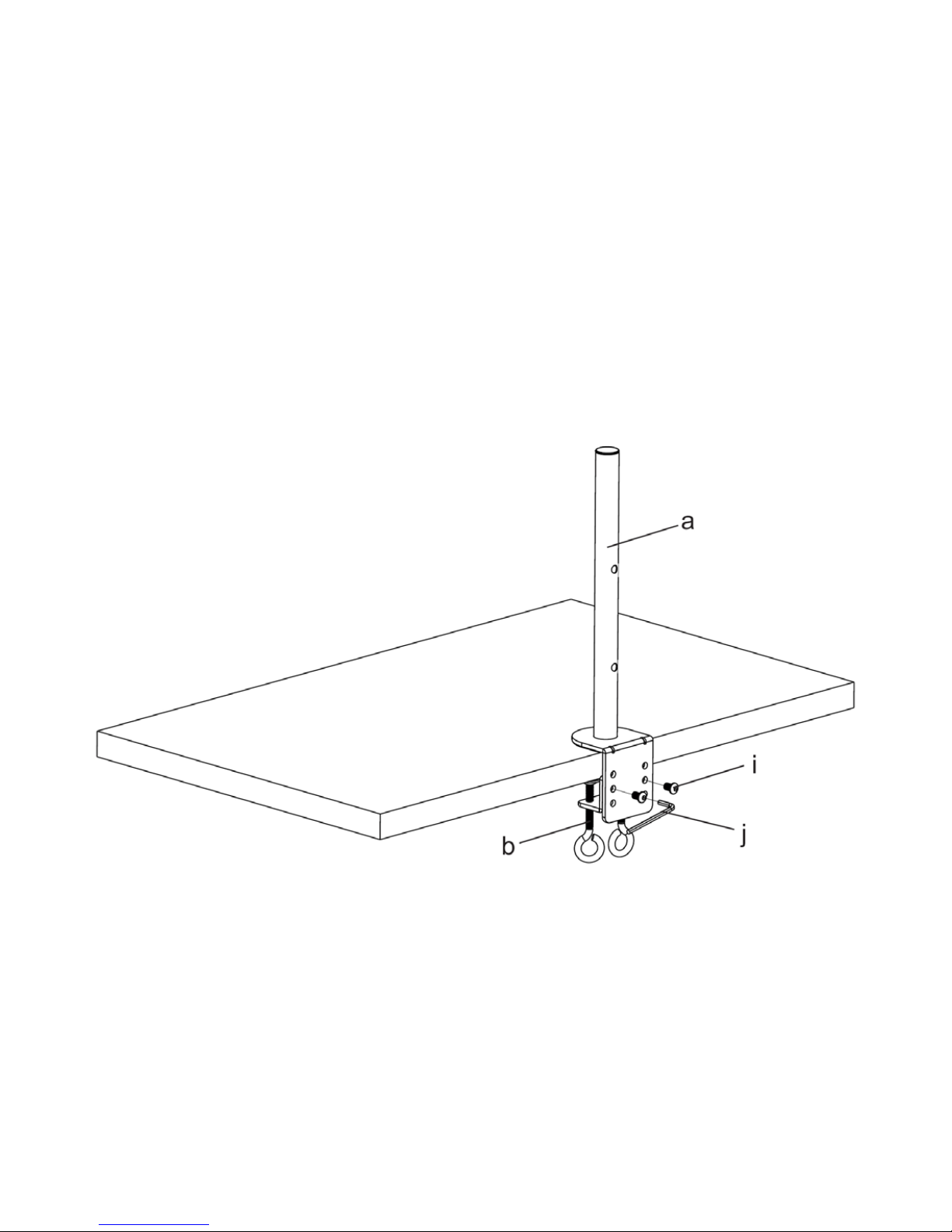

1. Install the C Clamp (b) to the 35mm Tube
Support (a) according to the thickness of
the desktop. The thickness can be changed
in three positions. Connect it using 2
M10x15 Bolts (i) and tighten using the Allen
Key (j). Tighten the C Clamp to the desktop
using the 2 eye bolts.
5

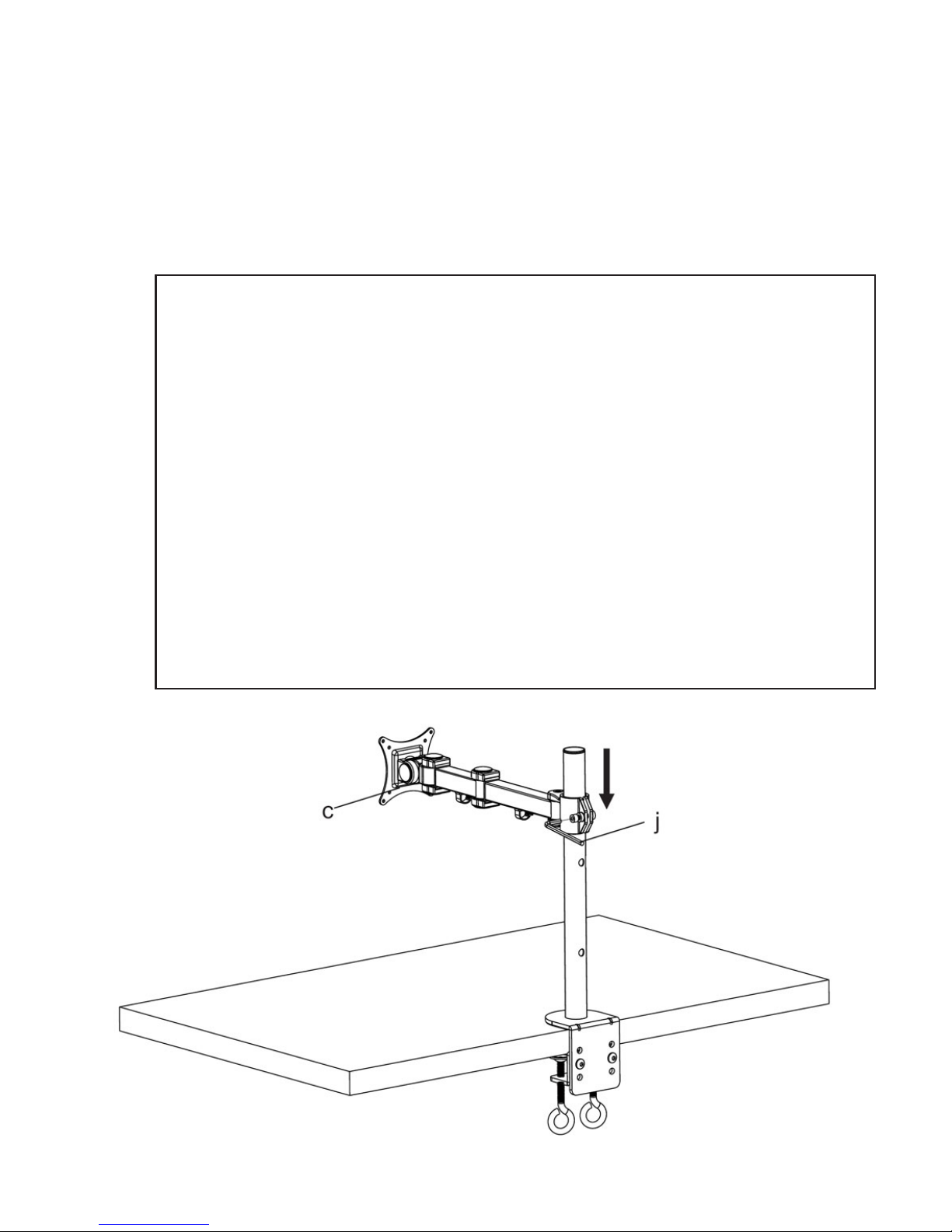

2. Install the Vesa Plate with Arm (c) to the
tube support, make sure the wire clips are
on the bottom. Tighten the clamp bolt using
the Allen Key (j).
Caution: When installing the VESA Plate
with Arm (c), DO NOT over tighten the
clamp bolt. The VESA Plate with Arm is
intended to rotate (360 degrees) and is not
meant to be attached in a fixed position.
Tighten the bolt only tight enough to keep
the VESA Plate with Arm at the desired
height position. Over tightening the bolt
may result in damage to the clamp.
6
3. Mount the monitor to the Vesa plate.

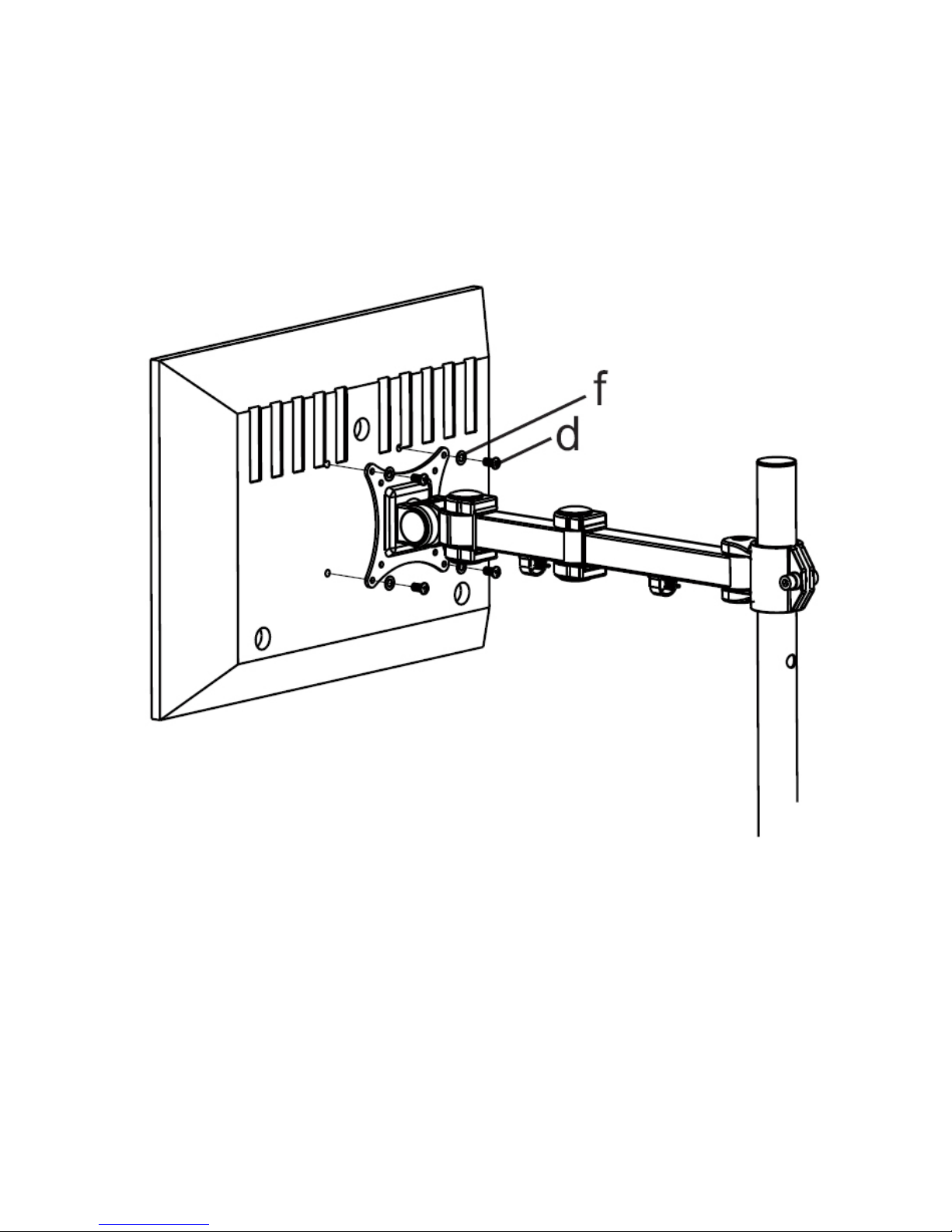

3-1. For flat back monitors use M4x12 Bolt
(d) and M4 Washer (f).
Flat Back Monitor
7

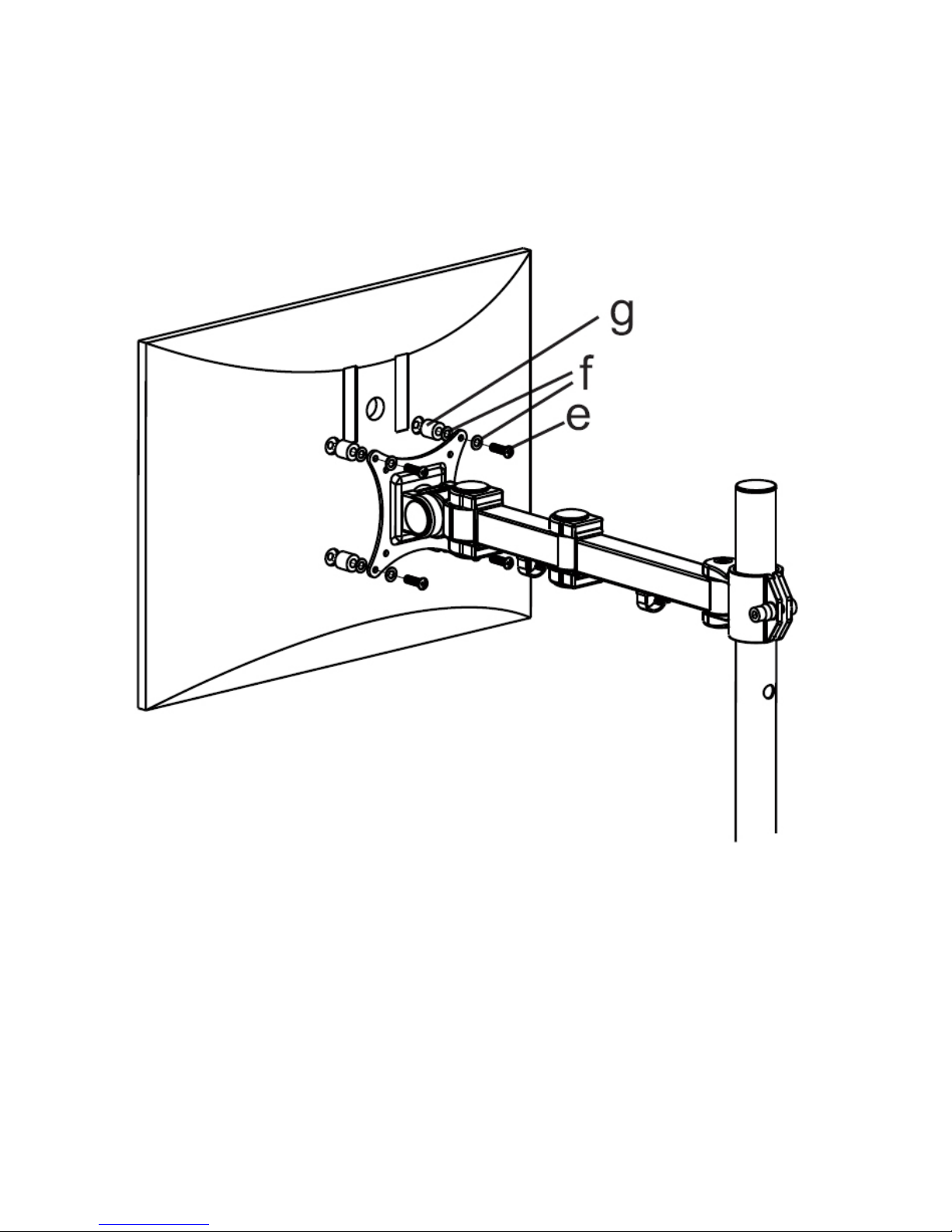

3-2. For curved back monitors use M4
Spacer (g), M4x30 Bolt (e) and M4 Washer
(f).
Curved Back Monitor
8

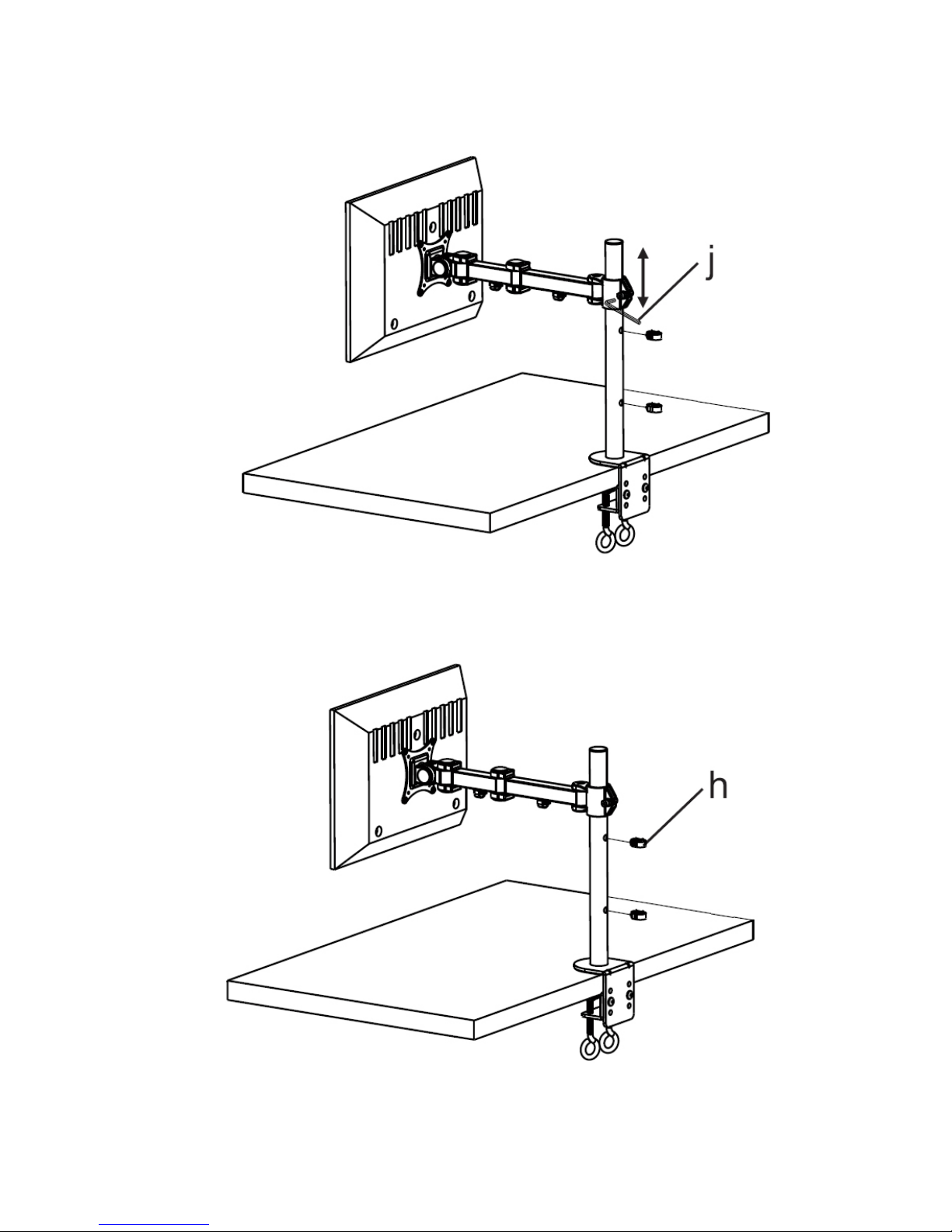

4. Adjust the height and install the Wire Clips
(h).
Adjust Height
Install Wire Clips
9

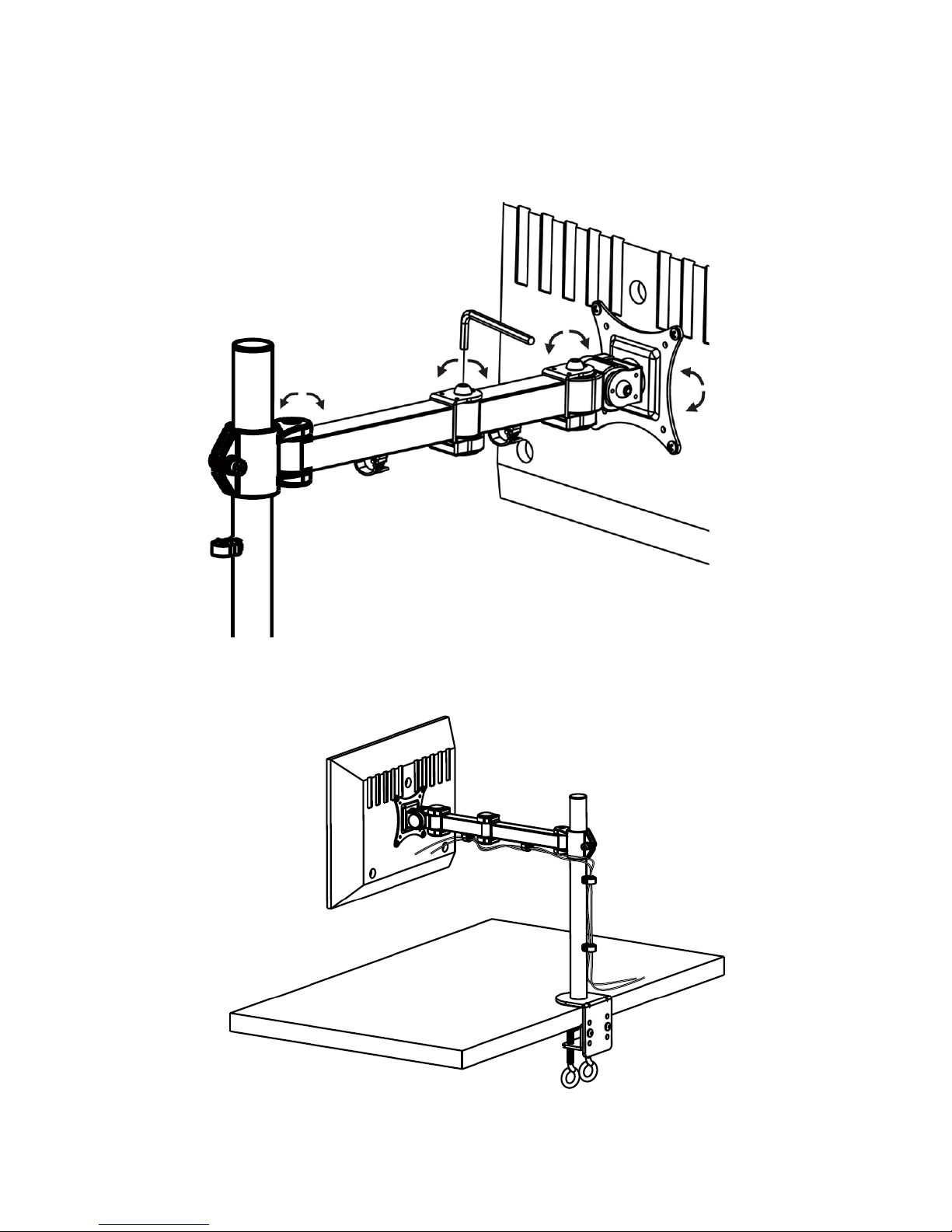

5. Check the tightness, arrange the cables
through the wire clips, and make any final
adjustments.
Check Tightness
Arrange Cables
10
