TSM1285 Demo Board

A 300ksps, Single-supply, 12-Bit Serial-output ADC

Page 1

FEATURES

Quick and easy Interface to computer for

evaluation via Nano River Technologies

ViperBoard and USB cable

Input BNC connection

On-board +3.3V supply voltage

External power supply connection available

Fully Assembled and Tested

2in x 3in 2-layer circuit board

DESCRIPTION

The demo board for the TSM1285 is a completely

assembled and tested circuit board that can be used

for evaluating the TSM1285. For easy and quick

evaluation of the TSM1285, a Nano River Tech

ViperBoard with an onboard microcontroller and

FPGA for signal processing is available. The

ViperBoard interfaces to any computer via USB port

and a user-friendly Windows OS compatible software

is available for evaluation.

The TSM1285 – a single-supply, single-channel, 12-

bit analog-to-digital converter (ADC) - is an alternate

source for the MAX1285 and a higher-speed upgrade

to the MAX1240 and MAX1240 ADCs. The TSM1285

combines a high-bandwidth track-and-hold (T/H), a

high-speed serial digital interface, an internal +2.5V

reference, and low conversion-mode power

consumption. The TSM1285 operates from a single

+2.7V to+3.6V supply and draws less than 2.5mA at

300ksps.

Product data sheet and additional documentation can

be found at www.silabs.com.

ORDERING INFORMATION

Order Number Description

TSM1285DB TSM1285

Demo Board

TSDA-VB Nano River Tech ViperBoard

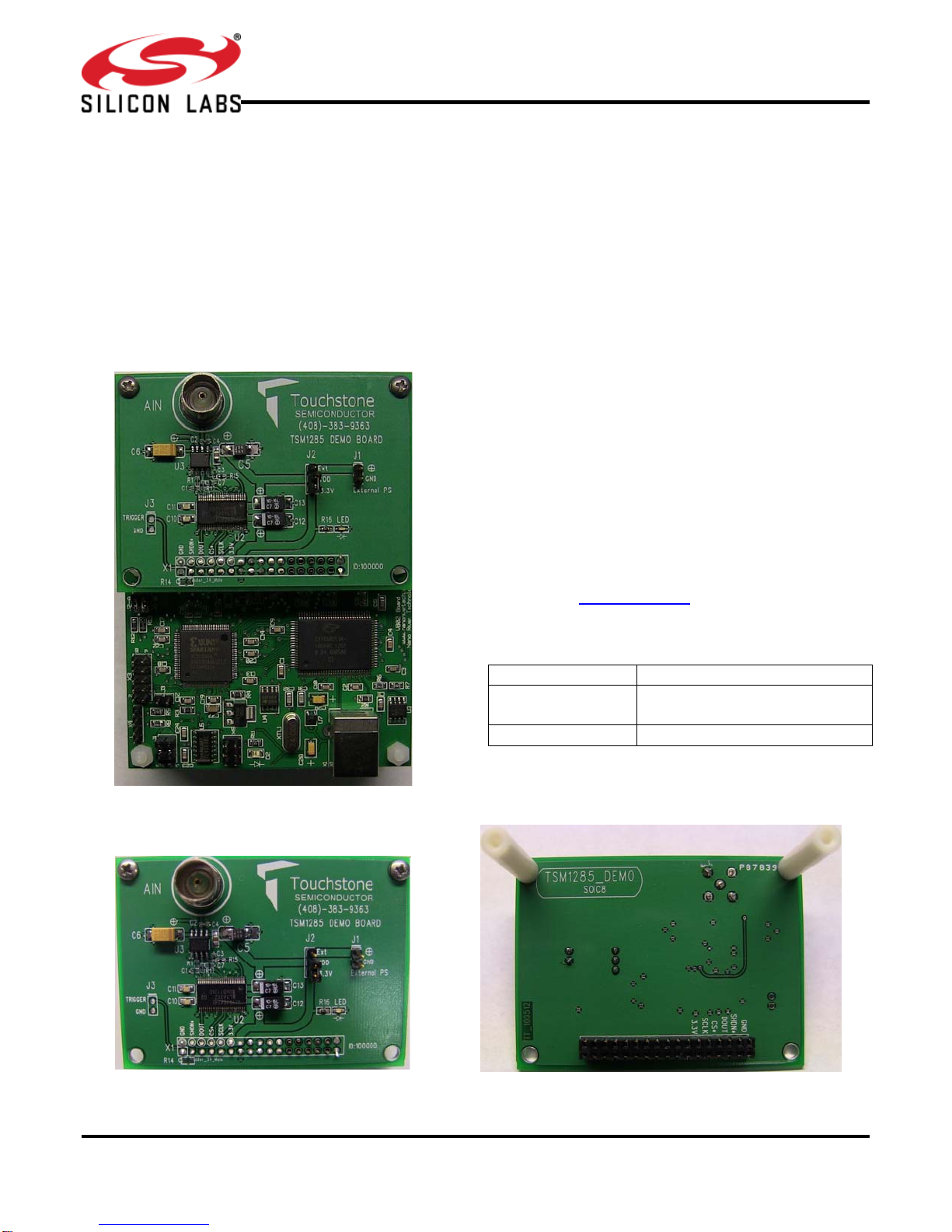

Figure 2. TSM1285 Evaluation Board

(Top View)

Figure 1. TSM1285 Evaluation Board

with Nano River Tech ViperBoard

Figure 3. TSM1285 Evaluation Board

(Bottom View)

TSM1285 Demo Board

Page 2 TSM1285-EVB Rev. 1.0

Description

The TSM1285 demo board provides an easy-to-use

scheme for evaluating the TSM1285. The default

configuration of the demo board in conjunction with

the Nano River Technologies ViperBoard is for

operation at a supply voltage of VDD =+3.3V.

The TSM1285 demo board includes a

74ALVC164245 signal level translator in order to

translate signal levels from VDD of the TSM1285 to

+3.3V signal voltage levels necessary for the

ViperBoard. The TSM1285 and the ViperBoard are

connected via an on-board 34-pin ribbon socket (X1).

A separate power supply can be used to power the

TSM1285 from +2.7V to +3.6V. If evaluating the

TSM1285 demo board without the ViperBoard, a

single power supply is needed. A BNC connector is

available for the input of the TSM1285, AIN, and it is

recommended to use a low-noise signal generator in

order to acquire optimal SNR and THD results. Refer

to Table 1. Figure 6 shows the TSM1285 demo

board schematic, Figure 2 and Figure 3 show a

picture of the top and bottom of the TSM1285 demo

board, respectively. Figure 1 shows a picture of the

TSM1285 demo board with the ViperBoard

connected.

A USB cable is used to interface the ViperBoard to a

PC with Windows Vista 32-bit/Vista 64-bit/XP/7. For

the “Touchstone ADC Evaluation Platform GUI”

user’s manual and for the necessary driver and GUI

installer files needed to successfully evaluate the

TSM1285 with the ViperBoard, please refer to

www.silabs.com.

Quick Start Procedure

Required Equipment

TSM1285 Demo Board

Nano River Tech ViperBoard

USB cable

Computer with Windows Vista 32-bit/64-bit/XP/7

ViperBoard driver and GUI software installed to

PC( refer to “Touchstone ADC Evaluation

Platform GUI” user’s manual)

Low-noise Signal Generator Stanford Research

Systems Model DS360 or better w/ BNC cable

In order to evaluate the TSM1285, jumper J2 is to be

set to position 1-2. The default configuration for J2 is

1-2. Refer to Figure 6 and Table 1. The default

configuration on the board is for VDD = +3.3V. The

following steps are to be performed:

1) Connect the TSM1285 demo board to the

ViperBoard via the 34-pin socket (X1).

2) Set the function generator frequency, amplitude,

and offset to 70kHz, 2.499VPP, and 1.25V,

respectively. Then, connect the BNC cable from

the signal generator to the BNC connector AIN on

the TSM1285 demo board. Set the output of the

signal generator to OFF.

3) To run the GUI, go to Start > All Programs >

TouchStoneEvalBoard 2.2.10 > 01 Touchstone

Evaluation App. The GUI should appear and on

the top right hand side, the status should be “PC

disconnected” and “No Type” for demo board

type. Both should be highlighted in red indicating

the ViperBoard and the TSM1285 demo board is

not connected.

4) Connect one side of the supplied USB cable to

the ViperBoard USB connector. Connect the

other side to a USB port on the PC. After

approximately three seconds, the status on the

GUI screen will switch to “PC Connected” and

“TSM1285” indicating the ViperBoard and the

TSM1285 demo board were recognized

successfully by the software. The green LED on

the TSM1285 demo board should be ON and the

green LED on the ViperBoard, D2, should be ON.

Use the default sampling rate of 300kSPS and an

FFT length of 8192.

5) Turn on the signal generator. On the GUI screen,

click on “continuous” in the sampling section, and

monitor the results on the screen. The top plot

shows a samples vs code plot and the bottom

plot is an FFT plot. The SNR and THD values

should be approximately 70dB and –80dB,

respectively. Please refer to Figure 4 for an

example of what the results should look like. In

this case, the SNR and THD values are 69dB and

-85dB, respectively.

Additional Functions

6) As shown in the TSM1285 ADC section, a

shutdown control function is available. If the

“shutdown” button is selected when sampling in

continuous mode, the TSM1285 will be in

shutdown mode and no additional conversions

TSM1285 Demo Board

TSM1285-EVB Rev. 1.0 Page 3

will occur. To de-assert the shutdown function,

press the button again and the conversions will

resume. Figure 5 shows what the GUI looks like

when the shutdown control function is enabled.

7) A shutdown between conversions function is

available by selecting the “Shutdown between

conversions” box. Refer to Figure 4. When

performing a continuous conversion, press the

“shutdown” button and then select the

“Shutdown between conversions” box. The

samples vs code and the FFT plot will update

after every conversion.

8) To perform a single conversion, press the “single”

button in the sampling section.

9) For details on the evaluation platform GUI, refer

to the “Touchstone ADC Evaluation Platform GUI”

user’s manual at: www.silabs.com.

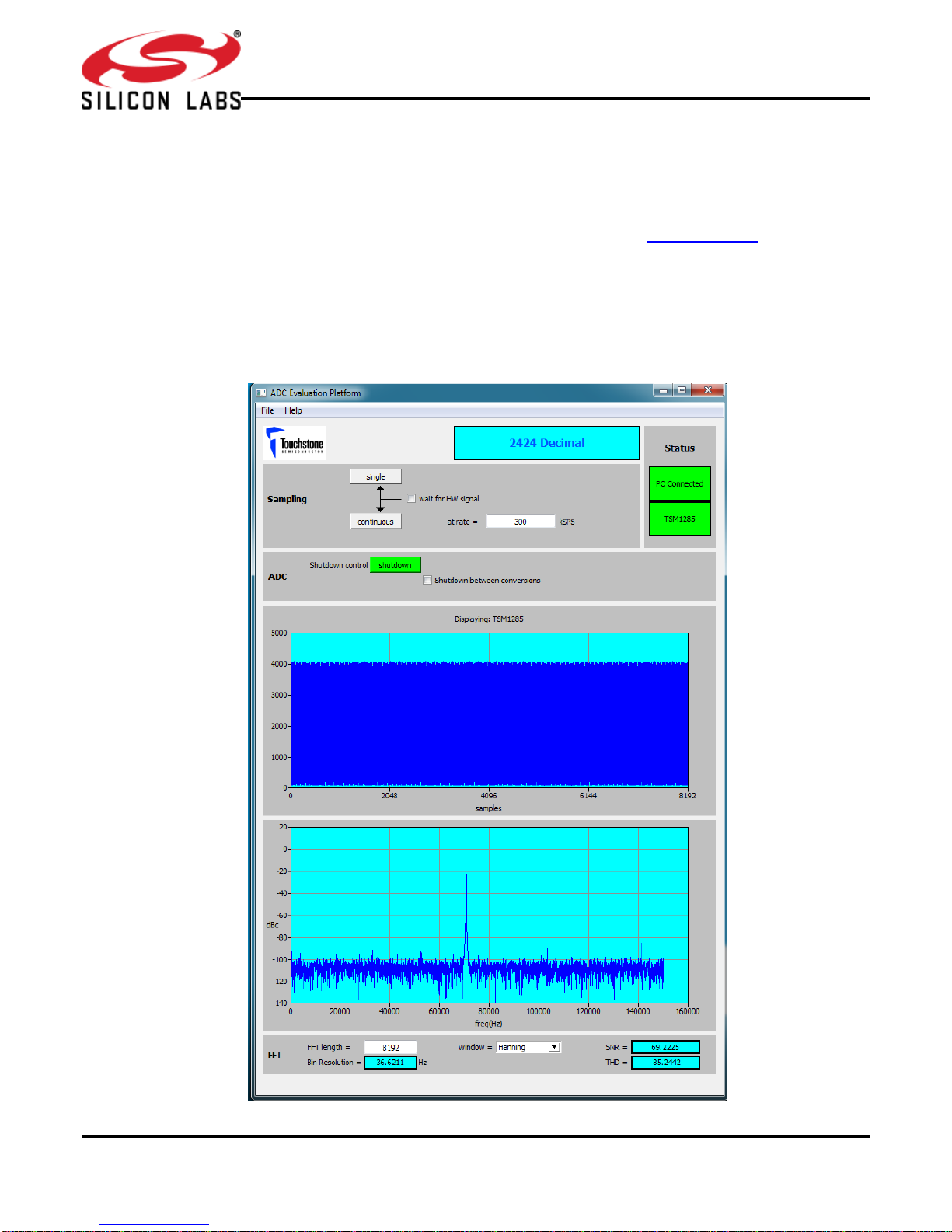

Figure 4. TSM1285 Response with GUI

Sampling section

TSM1285 ADC section

Samples vs Code plot

FFT plot

TSM1285 Demo Board

Page 4 TSM1285-EVB Rev. 1.0

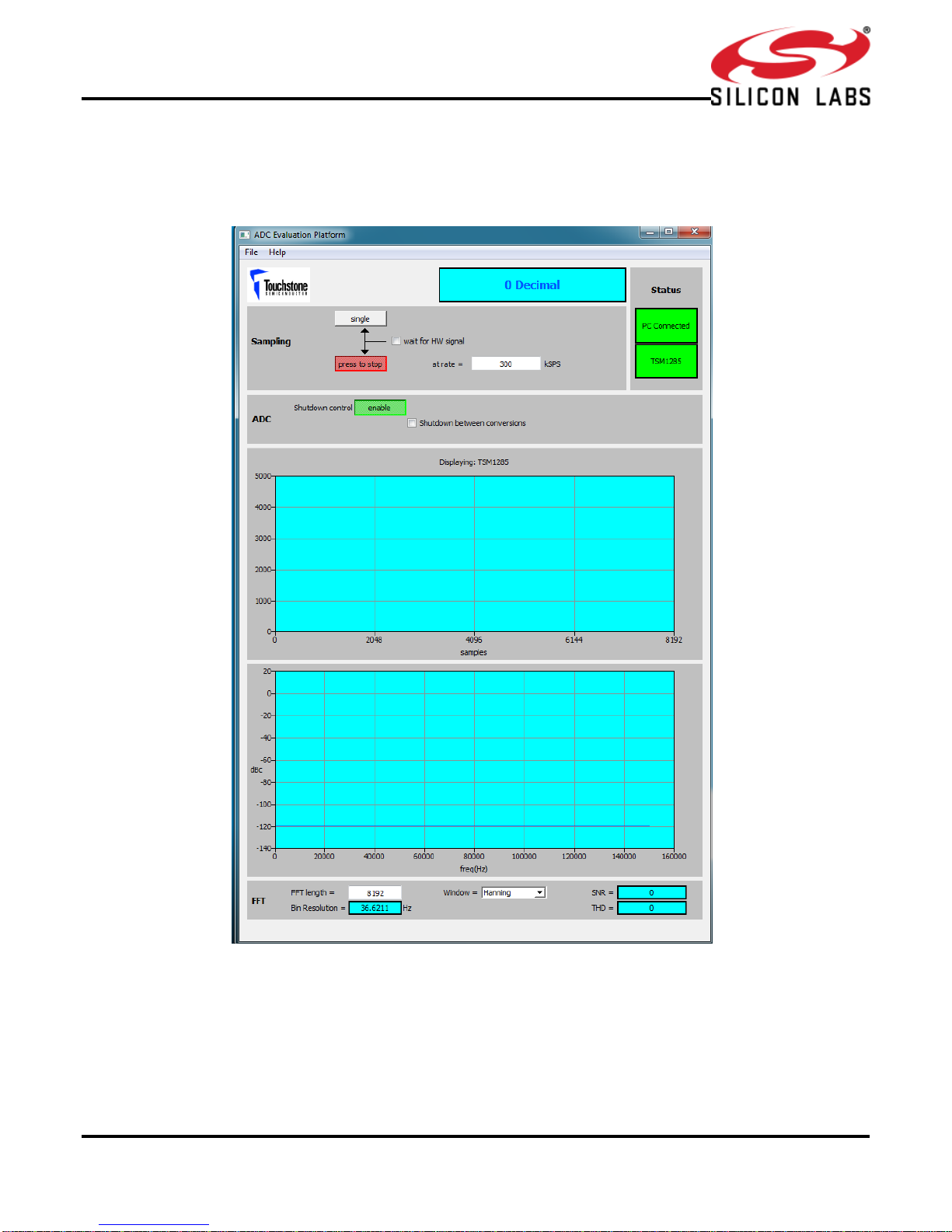

Figure 5. TSM1285 Shutdown Control Enabled

TSM1285 Demo Board

TSM1285-EVB Rev. 1.0 Page 5

Evaluation with TSM1285

Demo Board Only

Required Equipment

TSM1285 Demo Board

DC Power Supply

Low-noise Signal Generator Stanford Research

Systems Model DS360 or better w/ BNC cable

Ammeter

In order to evaluate the TSM1285 using the TSM1285

demo board only, additional input signals for the CS



SCLK and SHDN



pins will be necessary along with an

oscilloscope to monitor the inputs and output. The

following steps are to be performed:

1) Set the voltage of the power supply between

+2.7V and +3.6V and turn it off. Connect the

positive terminal of the DC power supply to pin 12

labeled as “3.3V” on X1, and the ground terminal

to pin 2 labeled as “GND”. Refer to Figure 6.

2) Timing signals for the TSM1285 input signals

AIN, CS



, SHDN



, and SCLK should be set

according to the desired measurement based

while following the product datasheet

specifications. Refer to the TSM1285 product

data sheet “Description of Operation” for details.

Access to these pins is available through the 34-

pin socket, X1, labeled as “SCLK”, “CS



"SHDN"



, and “DOUT”. The corresponding pins on

X1 are 10, 8, 4, and 6, respectively.

3) To measure the supply current of the TSM1285,

place jumper J2 to position 2-3. Then, apply an

external power supply to J1. An ammeter can

now be connected in series with the power supply

for a supply current measurement of the

TSM1285. The supply current should be less

than 650µA. Please refer to Figure 6 and table 1.

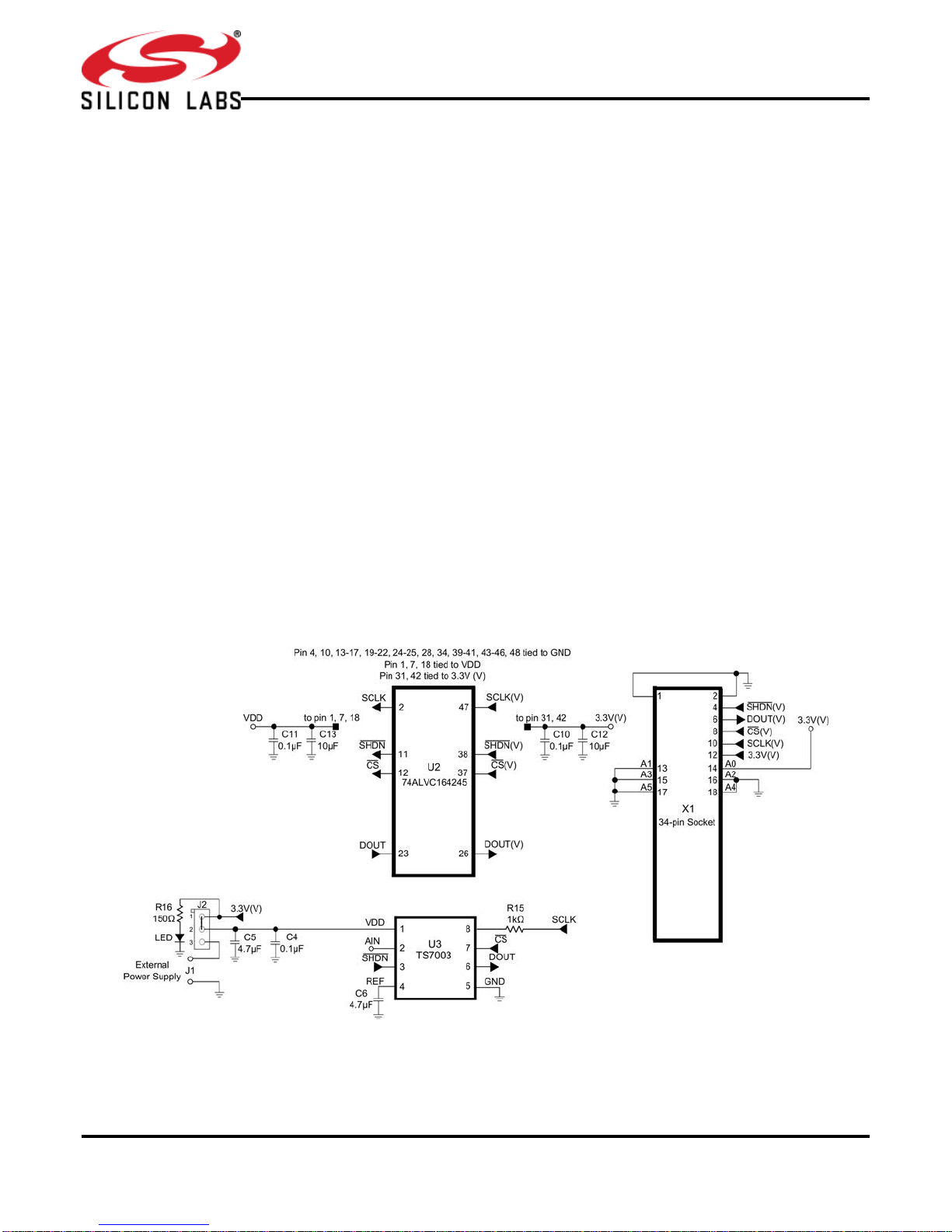

Figure 6. TSM1285 Evaluation Board Circuit

TSM1285 Demo Board

Page 6 TSM1285-EVB Rev. 1.0

DESIGNATION QTY DESCRIPTION

C4, C10, C11 3 0.1µF ±10%

capacitor (0603)

C12, C13, 2 10µF ±10%

capacitor

(SMD6032)

C5, C6 2 4.7µF ±10%

capacitor

(SMD6032)

C2 1 100pF ±10%

capacitor (0603)

R16 1 150Ω± 1% (0603)

R15 1 1kΩ± 1% (0402)

LED 1 Green LED (0603)

AIN 1 BNC connector

J1 1 2-pin terminal

block

X1 1 34-pin socket

U2 1 74ALVC164245

translating

transceiver

J2 1 Jumper

U3 1 TSM1285

Table 2. Component list

J1 J2 X1 External

Power

Supplies

TSM1285DB w/

Nano River Tech

ViperBoard

NA 1-2

(VDD = 3.3V

only) 34-pin socket

+2.7V

+3.6V 2-3 1

TSM1285 Only

NA 1-2 Apply +2.7 to

+3.6V to pin 12 1

TSM1285 Only

(Supply Current

Measurement)

+2.7V

+3.6V 2-3 NA 1

Table 1. J1, J2, and X1 connections

TSM1285 Demo Board

Silicon Laboratories, Inc. Page 7

400 West Cesar Chavez, Austin, TX 78701 TSM1285-EVB Rev. 1.0

+1 (512) 416-8500 ▪www.silabs.com

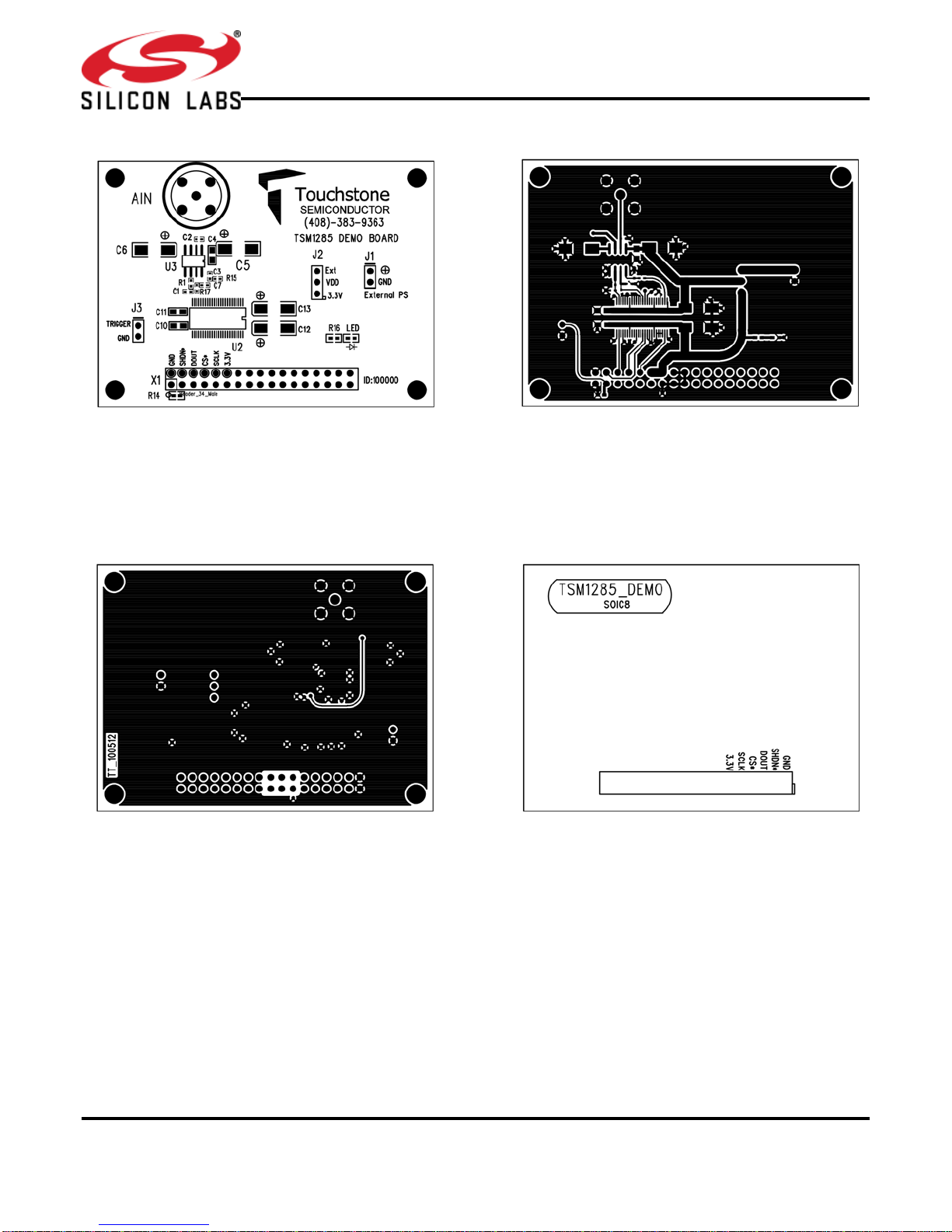

Figure 6. Top Layer Component View

Figure 7. Top Layer Trace View

Figure 8. Bottom Layer #1

Figure 9. Bottom Layer #2

Disclaimer

Silicon Laboratories intends to provide customers with the latest, accurate, and in-depth documentation of all peripherals and modules available for system and software implementers

using or intending to use the Silicon Laboratories products. Characterization data, available modules and peripherals, memory sizes and memory addresses refer to each specific

device, and "Typical" parameters provided can and do vary in different applications. Application examples described herein are for illustrative purposes only. Silicon Laboratories

reserves the right to make changes without further notice and limitation to product information, specifications, and descriptions herein, and does not give warranties as to the accuracy

or completeness of the included information. Silicon Laboratories shall have no liability for the consequences of use of the information supplied herein. This document does not imply

or express copyright licenses granted hereunder to design or fabricate any integrated circuits. The products must not be used within any Life Support System without the specific

written consent of Silicon Laboratories.A"Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected

to result in significant personal injury or death. Silicon Laboratories products are generally not intended for military applications. Silicon Laboratories products shall under no

circumstances be used in weapons of mass destruction including (but not limited to) nuclear, biological or chemical weapons, or missiles capable of delivering such weapons.

Trademark Information

Silicon Laboratories Inc., Silicon Laboratories, Silicon Labs, SiLabs and the Silicon Labs logo, CMEMS®, EFM, EFM32, EFR, Energy Micro, Energy Micro logo and combinations

thereof, "the world’s most energy friendly microcontrollers", Ember®, EZLink®, EZMac®, EZRadio®, EZRadioPRO®, DSPLL®, ISOmodem ®, Precision32®, ProSLIC®, SiPHY®,

USBXpress® and others are trademarks or registered trademarks of Silicon Laboratories Inc. ARM, CORTEX, Cortex-M3 and THUMB are trademarks or registered trademarks of

ARM Holdings. Keil is a registered trademark of ARM Limited. All other products or brand names mentioned herein are trademarks of their respective holders.

http://www.silabs.com

Silicon Laboratories Inc.

400 West Cesar Chavez

Austin, TX 78701

USA

Smart.

Connected.

Energy-Friendly

Products

www.silabs.com/products Quality

www.silabs.com/quality Support and Community

community.silabs.com

Inhaltsverzeichnis

Andere Silicon Laboratories Hauptplatine Handbücher

Silicon Laboratories

Silicon Laboratories SLWRB4173A Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Sensor-EXP-EVB Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Si5338-EVB Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories CP2105 Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories EFM8UB2-SLSTK2001A Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories SiLinkPS-EVB Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories EFR32BG1 Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Si5346-EVB Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories IRSLIDER2EK Si1142 Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories CP2103 Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Si514 Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories C8051F960 Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Thunderboard EFR32BG22 Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories CP2104 Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories EFR32ZG14 Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Si827 Series Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Si53108-EVB Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Si1102EK Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Si4827-DEMO Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Si2493/57/34/15/04-EVB Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Si3474-EVB Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Si80xx-EVB Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories Si5344-EVB Bedienungsanleitung

Silicon Laboratories

Silicon Laboratories UG233 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
