Silicon power Sky Share H10 Bedienungsanleitung

USB 3.0 WiFi Hard Drive

Sky Share H10 User Manual

1. Introduction.......................................................................................................... 3

2. S ec and System Requirements............................................................................ 5

3. Sky Share H10 Overview ....................................................................................... 6

4. Sky Share Web UI Overview ................................................................................. 8

5. Sky Share a Overview ..................................................................................... 11

6. Sky Share Wi-Fi Security ..................................................................................... 13

7. Setting u Sky Share Device................................................................................ 13

8. Regarding File format ......................................................................................... 16

9. How to lay and view your media files............................................................... 17

10. Downloading Content to Your WiFi Device or Com uter.................................. 23

11. U loading Content to Sky Share from Your WiFi Device or Com uter ............. 24

12. Sky Share Setu Page........................................................................................ 25

13. How to delete the files stored in Sky Share ...................................................... 31

14. How to safely remove Sky Share from your com uter ..................................... 31

15. Troubleshooting................................................................................................ 32

1. Introduction

Sky Share H10, a portable Wi-Fi hard drive available i 500GB above, breaks the

storage limits for all Smart ha dheld devices such as iPho e, iPad, A droid pho e,

A droid tablets, wi dows mobile pho e…etc. a d ca also support Notebook, PC,

a d Mac.

More tha a traditio al portable hard drive’s fu ctio s, H10 is capable of havi g up

to 8 users to share a d stream media co te ts simulta eously a d wirelessly.

Its USB 3.0 i terface provides up to 5Gbs high speed access i portable hard drive

mode. Build-i 2T2R a te a a d re-chargeable Lithium battery to provide the

wireless tra sfer speed up to 300Mbs a d up to 5 hours streami g per si gle charge.

Sky Share H10 also provides iPho e App, iPad App, A dorid App, a d Web UI (Web

browser User I terface) to support various WiFi devices me tio ed above.

The compact size desig makes Sky Share H10 easy to carry, a d it is also desig ed

for wireless a d cableless operatio , providi g bigger capacity to support your

Smartpho e a d tablet as a wireless portable media library.

The package is i cludi g-

USB Wall adapter x 1 pcs

(The adapter type is subject to the cou try.)

(Australia/ New Zeala d)

(EU, Ira , Russia...etc)

(Japa , Taiwa , USA...etc)

(UK...etc)

USB to DC Jack x 1pcs

Sky Share x 1 pcs

USB 3.0 cable x 1pcs

Quick Guide i cludi g warra ty card x 1pcs

2. S ec and System Requirements

Capacity: 500GB, 1TB

Dime sio : 133 x 86 x 23.5 mm

Weight: 255g +/- 5%

WiFi I terface: IEEE 802.11b/g/ Sta dard

Build-i 2T2R A te a, up to 300 Mbs

Build-i USB 3.0 (Compatible with USB 2.0),

up to 5Gb/s Tra sfer rate (USB 3.0 Mode)

WiFi co ectio : up to 8 users

Co ectio ra ge: up to 100 Feets

Power Supply: DC 5V/2A (Power supplied through AC-to-DC adapter)

Battery: Build-i Lithium Battery for up to 5 hours multimedia streami g a d shari g

(Si gle device)

Operati g Temperature: 5℃ ~ 45℃

Storage Temperature: -10℃ ~ 70℃

Wireless security: WPA+WPA2

Operatio system: Support Wi 7, Wi XP, Wi Vista, Mac OS X (10.5.X+),

iPho e 3GS (iOS 4.2+), iPho e 4, iPho e 4S, iPad, ipad2, the ew ipad, A roid 2.3

above smart pho es a d Tablets

Browsers: Support Safari 5 or later versio , Webkit (A droid), I ter et Explorer 8 or

later versio , Firefox, a d Google Chrome

File system: FAT32/NTFS

Supporti g file types:

You ca store a y file i Sky Share H10, but eed your WiFi device to support the file

format a d resolutio you wa t to play or view.

Sky Share iPhone/iPad A : you ca play or view the followi g file types.-

Video: .m4v, mp4, .mov

Photo: JPG, BMP, PNG, GIF

Music: MP3

Docume t: DOC, XLS, PPT, PDF

For rest of file types, you ca fi d them i Home directory a d play them if supported

by your device applicatio . (for example, .m4a played by Quick Time Player a d .wma

played by Wi dows Media Player)

Sky Share Web UI:

Play a y file supported by your device applicatio s a d recomme ded browsers

3. Sky Share H10 Overview

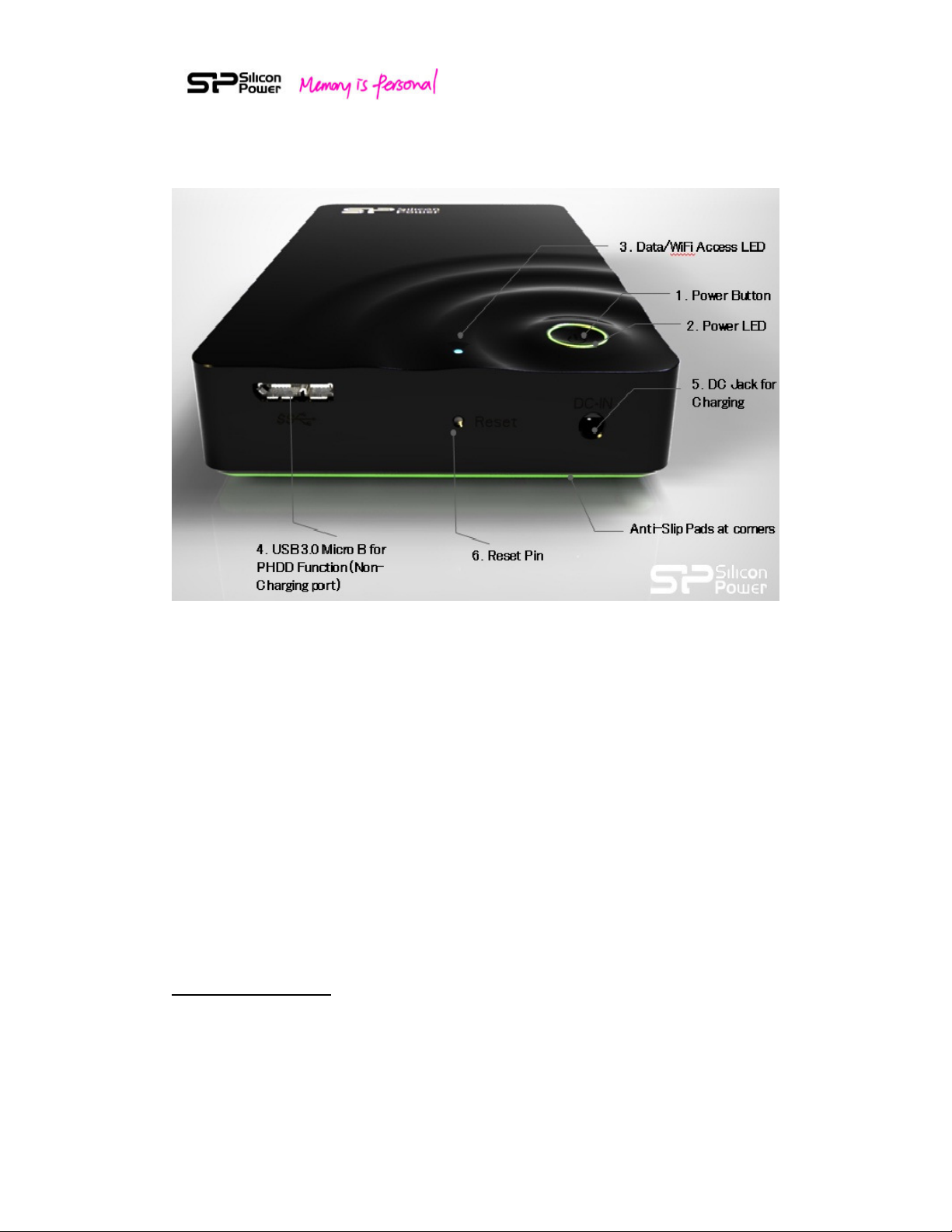

Fig. 1 Sky Share H10 Overview

Power button (1): O ce pressi g the power butto , Sky Share H10 is tur o a d will

go i to WiFi Mode i a mi ute.

Power button LED (2):

Solid Gree : Full battery

Bli ki g Ora ge: Half full

Solid Red: Low battery, chargi g is required

Solid Ora ge: Chargi g

Note: It takes about 1.5 hours for the battery without activatio a d about 4 hours

for the battery with activatio to charge from low to full status by the wall adapter.

Data/WiFi Access LED (3):

The LED i dicates the data access i both of PHDD (portable hard drive) mode a d

WiFi mode.

WiFi mode (Power o )

Bli ki g Purple: Duri g setup

Solid Blue: Ready for access

Bli ki g Blue: WiFi accessi g

Solid Red: System error

PHDD mode (Co ected to the computer by USB cable)

Fast Bli ki g Blue: Duri g setup

Solid Blue: Ready for access

Bli ki g Blue: Data Access

LED off: Hard drive Safety removal

USB 3.0 Micro B (4): Co ects Sky Share H10 to your computer a d the Sky Share

will behave like a portable hard drive (PHDD).

Note: No power charge i this co ectio . All chargi g is required to go through DC

Jack (5) of Sky Share H10.

DC Jack (5): Co ects Sky Share via the USB to DC Jack power cable a d its wall

charger for chargi g. You ca charge first a d the stream the co te t as a portable

media library wirelessly. I additio , you ca stream the co te t while chargi g.

Reset Pin (6): a). Press the pi lightly a d release it immediately. The system will be

rebooted. b). Press a d hold the pi for about 3 seco ds a d the release the pi .

The system will be reset to factory default setti g. Duri g this reset process, all data

stored i Sky Share H10 will be still remai i g.

4. Sky Share Web UI Overview

Sky Share Web UI provides a solutio for a user to play a d view his files stored i Sky

Share by his WiFi device’s web browser.

After co ecti g to Sky Share, ope i g web browser, a d typi g www.skyshare.com

or 192.168.49.73 i the URL (U iform resource locator) colum , Sky Share Web UI

will be displayed. (Referri g to the Fig. 2 below)

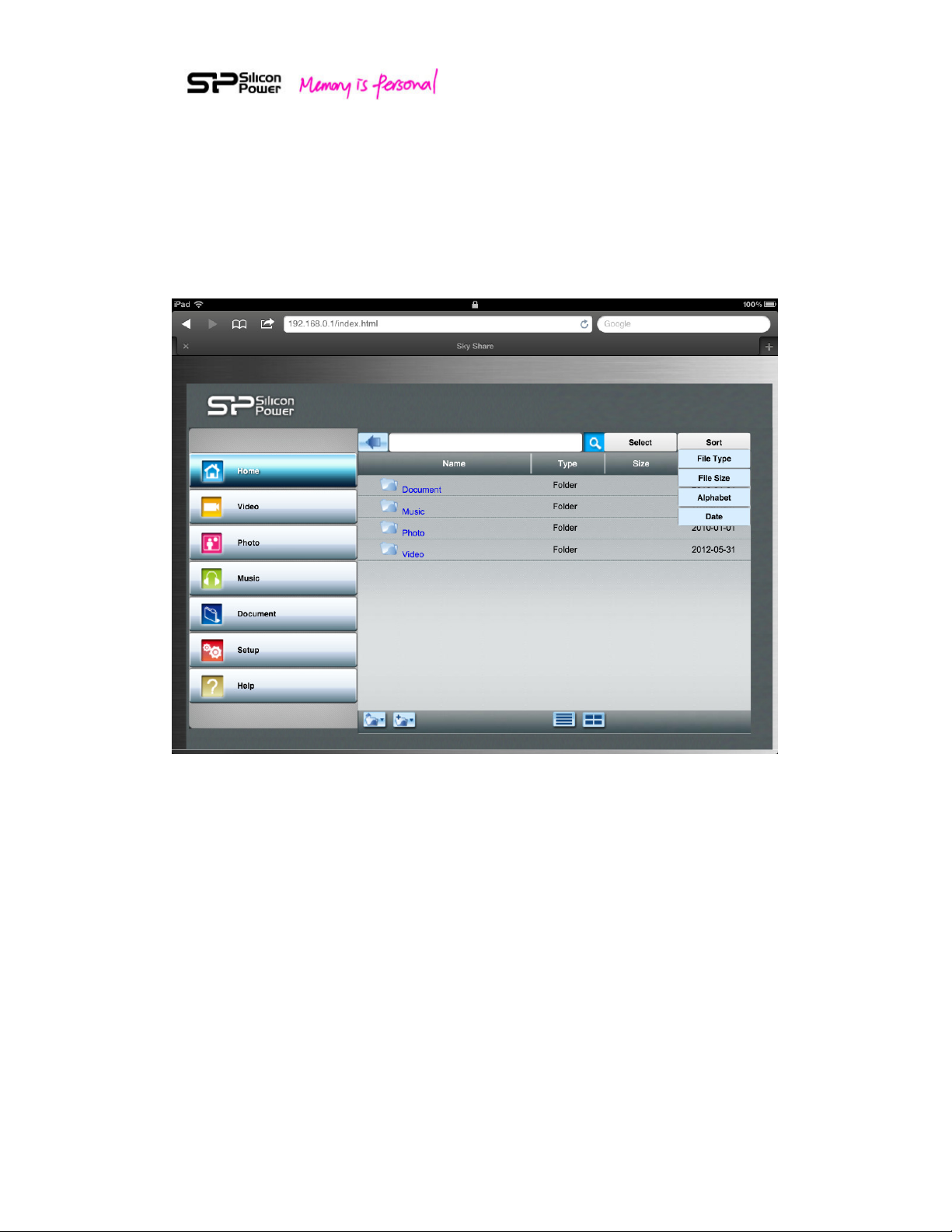

Fig. 2 Sky Share Web UI Overview - 1

Home: Home page of Sky Share Web UI

You ca see all files i home directory.

Default Media Folders: Video, Photo, Music, Document

Sky Share avoids sorti g the whole hard drive duri g each power-o . This ca save a

user’s time duri g each device power-o whe he stores a large umber of files i

Sky Share. I stead, a user is ecessary to store video, photo, music, a d docume t

files i the default video, photo, music, a d docume t folder respectively. These four

default folders are located u der the folder of Sky Share.

Sky Share\

The default folders o the left side of the scree will display the supported video,

photo, music, a d docume t files o ly. If you happe to mix your file types a d

ca ot fi d them i these four default folders, you ca go to “Home” for a complete

file structure view to fi d your file.

Search: I put keyword i the search colum . Sky Share will display all files

associated with the keyword.

Sort: The files ca be sorted by the file type, file size, alphabet of file ame, or

creatio date.

Select/Cancel: Click “select” butto to select media files for play, upload, or

dow load. O ce clicki g ca cel, all selectio will be deselected.

Folder View: Display the files i a file list a d folder structure

Thumbnail view: Display the files i thumb ail size

Setu : You ca setup Sky Share device from “Setup” page. The detail fu ctio s will

be described later. (Referri g to Chapter 12 –Sky Share Setup page)

Hel : Help page provides some tips for freque tly asked questio s.

U load icon:

: Click to upload files from your computer to Sky Share

Create Folder icon: Click to create the ew folder other tha the default

folders.

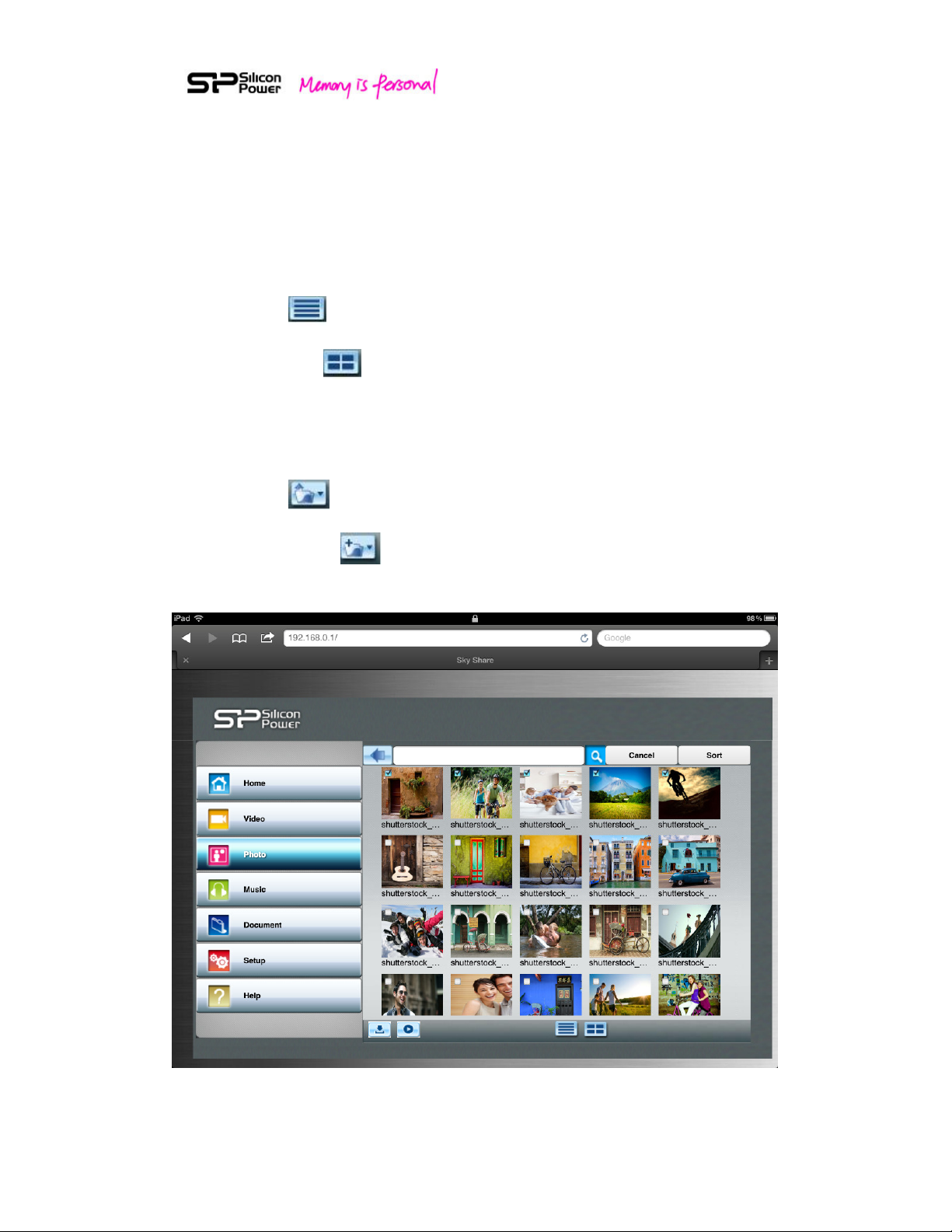

Fig. 3 Sky Share Web UI Overview - 2

Download icon: You ca click to dow load the selected files from Sky

Share to your computer.

Play icon: After you select o e or multiple files, you ca click play ico to

play the media files selected by you.
