OPERATION MANUAL

SC-TL01

Tylten Pro

Appendix I:

1. Introduction to Silux Control®

2. Introduction to the Tylten Pro®

3. Applications

4. Electrical Specifications

5. Instructions

I. Configuring the Tylten Pro®

II. Installing the Tylten Pro®

III. Replacing the AAA 1.5V batteries

IV. How to pair with Silux Control®devices

V. Hubcentric Topology

VI. Factory Reset

6. Versions and Changes

7. More Silux Control ®automation products

Appendix II:

1. Troubleshooting

2. Warranty

I. What this warranty covers

II. What period does this warranty cover

III. What Silux Control®will do to correct any problems

IV. What is not covered by this warranty

3. Support

4. Disclaimer of Liability

Appendix I:

1. Introduction to Silux Control®

PLEASE NOTE: The Tylten Pro®connects to the Silux Control®

Network through approved Silux Control®devices such as the

Collector®. This is a notification device and is used to alert when an

action is performed.

The idea behind the Silux Control® automation series is to have a

fully automated lifestyle. No longer will you need to push a button

to switch on appliances or lights; it will simply be switched on for

you with motion, schedules and scenes. You can schedule your

geyser or water heater to turn on and set it to the temperature you

wish. Your irrigation system can be automated, and so much more

can be controlled. The sky is the limit, and all this under one app,

all controlled from one place. You can create scenes or even

control a couple of appliances from the convenience of your living

room or anywhere across the world using any smart device

running Android or iOS. At Silux Control®, we tried to keep our

products as affordable as possible, without compromising quality.

Our devices are specially designed to make it as easy as possible

to install with easy usability and a wide range of applications. With

encrypted data control, you are also protected from the outside

world, providing you with a peace of mind. We have thought of

everything. What are you waiting for? Install Silux Control®and let

us help you control your world safely, securely, and efficiently.

2. Introduction to the Tylten Pro®

The Tylten Pro®is one of the many useful and wonderful products

that form part of the the Silux Control®automation series. The

purpose of this product is to monitor your garage doors/gate or

any other open/close object, from your smart device, with the

option of receiving push notifications.

Note that although it can be used for outside gates, the

necessary waterproof protection must be considered, as this

product is only IP54.

The Tylten Pro®requires set up via the Silux Control App.

Warning: Please follow all safety precautions when installing this

product. It is always recommended to use a qualified electrician.

Silux Control® and its distributors and resellers cannot be held

responsible for any injury or death.

3. Applications

The Tylten Pro®was designed to give you feedback on wether a

door, gate, window, etc. is either open/closed or when it is in motion.

Note that although it can be used for outside gates, the

necessary waterproof protection must be considered.

4. Electrical Specifications

Operating Battery: 2 x AAA 1.5V Batteries

Power supply Operating Voltages: Input: 110V AC – 230V AC

Output: 5V/DC

Operating Temperatures: -5°C – 60°C

IP Rating: IP54

Tylten Pro Layout

5. Instructions

I. Configuring the Tylten Pro®

There are 4 configuration settings, namely Magnetic sensor,

Accelerometer, open/closed and closed transition.

The settings are as follows:

Motion detection

1. Magnetic sensor - Sliding, swinging and tylting objects

2. Accelerometer sensor - Swinging and tylting objects

3 Status - What position your object is at when stopped

4. Activity- Notifies you of movement on your object

Warning: Please follow all safety precautions when installing this

product. It is always recommended to use a qualified electrician.

Silux Control® and its distributors and resellers cannot be held

responsible for any injury or death.

3. Applications

The Tylten Pro®was designed to give you feedback on wether a

door, gate, window, etc. is either open/closed or when it is in motion.

Note that although it can be used for outside gates, the

necessary waterproof protection must be considered.

4. Electrical Specifications

Operating Battery: 2 x AAA 1.5V Batteries

Power supply Operating Voltages: Input: 110V AC – 230V AC

Output: 5V/DC

Operating Temperatures: -5°C – 60°C

IP Rating: IP54

Tylten Pro Layout

5. Instructions

I. Configuring the Tylten Pro®

There are 4 configuration settings, namely Magnetic sensor,

Accelerometer, open/closed and closed transition.

The settings are as follows:

Motion detection

1. Magnetic sensor - Sliding, swinging and tylting objects

2. Accelerometer sensor - Swinging and tylting objects

3 Status - What position your object is at when stopped

4. Activity- Notifies you of movement on your object

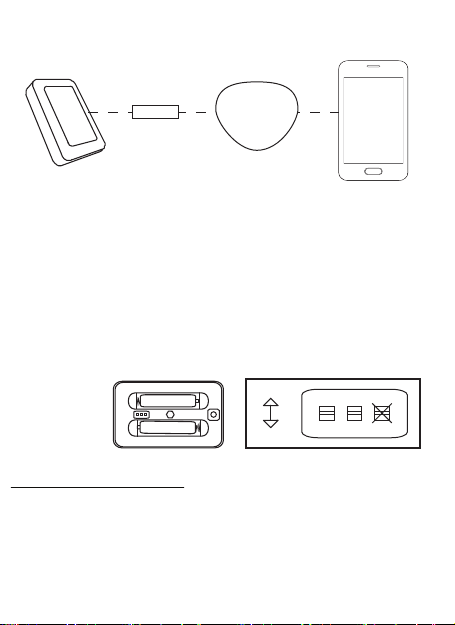

IntelliHub

Device1

Smart Device

Running

Silux Control

App

DOWN

1 3

2 4

Warning: Please follow all safety precautions when installing this

product. It is always recommended to use a qualified electrician.

Silux Control® and its distributors and resellers cannot be held

responsible for any injury or death.

3. Applications

The Tylten Pro®was designed to give you feedback on wether a

door, gate, window, etc. is either open/closed or when it is in motion.

Note that although it can be used for outside gates, the

necessary waterproof protection must be considered.

4. Electrical Specifications

Operating Battery: 2 x AAA 1.5V Batteries

Power supply Operating Voltages: Input: 110V AC – 230V AC

Output: 5V/DC

Operating Temperatures: -5°C – 60°C

IP Rating: IP54

Tylten Pro Layout

5. Instructions

I. Configuring the Tylten Pro®

There are 4 configuration settings, namely Magnetic sensor,

Accelerometer, open/closed and closed transition.

The settings are as follows:

Motion detection

1. Magnetic sensor - Sliding, swinging and tylting objects

2. Accelerometer sensor - Swinging and tylting objects

3 Status - What position your object is at when stopped

4. Activity- Notifies you of movement on your object

We recommend testing your settings before permanent installation

of the Tylten Pro®

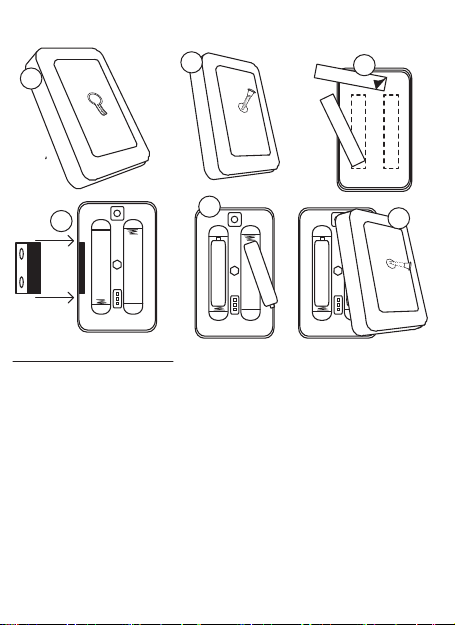

II. Installing the Tylten Pro

1. Remove the change battery sticker.

2. Unscrew the lid with a star screw driver.

3. Remove the first liner of the double sided tape supplied and

stick it to the back part of the Tylten Pro

4.Please make sure that the magnet supplied lines up with the

Tylten Pro

, before removing the second liner and sticking the

Tylten Pro’s back side firmly onto the

parallel

object, and let it set.

5. Slide the AAA Batteries into the battery holders. The Tylten Pro

will now be powered on.

6. Place the lid over the plastic and screw back tightly.

You can keep an eye on your battery levels using the Silux

Control

App. Please refer to “V. How to pair with Silux Control

Devices”.

change

battery

2. 3.

5. 6.

III. Replacing the AAA 1.5V batteries:

There will be two AAA batteries supplied with the product. The two

batteries will have a life span of 1 to 2 years,nd how often the

Tylten Pro

is triggered.

1. Open the plastics by removing the ‘change battery’ sticker and

unscrewing the lid

2. Pop out the two old AAA batteries and replace it with two new

AAA batteries. The Tylten Pro

will now be powered on.

3. Place the lid over the plastic and screw back tightly.

*Please Note: It’s not necessary to pair the Silux Control

devices

again after replacing the batteries.

IV. How to pair with Silux Control

Devices:

1. Ensure the Silux Control

device you would like to pair is

powered on. Press the Teach button on a Silux Control

device like

a Collector

as example, in a similar area or room to the Tylten

Pro

position. The light will start flashing.

2. Ensure the Tylten Pro

is on, then press the Teach button on the

Tylten Pro

. The light on the Tylten Pro

will start flashing.

3. The light will switch off once successfully paired. If the light

stays on for 30 seconds, the pairing was unsuccessful. Wait for the

light to go off before trying again.

Water Heater

IntelliHub

Tier 1 Tier 2 Tier 3

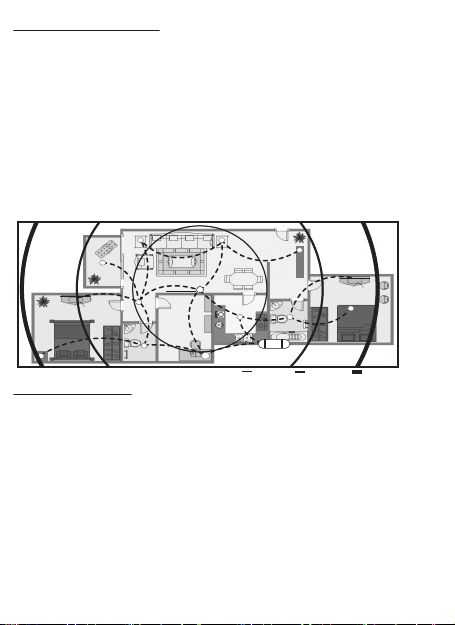

V. Hubcentric topology.

Your Silux Control®automation system uses a technology known

as Hubcentric topology. This means that all your devices

communicate with each other. In larger areas, it is possible that a

device might be too far from the IntellihHub®to communicate

reliably. Your IntelliHub®will then use other devices which are

more in range to create a more reliable connection to the out of

range device. The distance at which your IntelliHub®can

communicate with your Silux Control®devices varies according to

the environment. The IntelliHub®has been developed to achieve a

distance of 20m, however, thick walls, large electrical appliances

and long distances are 3 factors that can limit communication with

Silux Control®devices pairing your Tylten Pro to the nearest Silux

Control device.

VI. Factory Reset:

This function will remove all paired devices and restore the

settings to the original state. Press and hold the Teach button

on the

Tylten Pro

5 seconds. On the 5th second, the light will

flash 3 times. Your device will now be restored to its default

state.

Warning: Please follow all safety precautions when installing this

product. It is always recommended to use a qualified electrician.

Silux Control® and its distributors and resellers cannot be held

responsible for any injury or death.

3. Applications

The Tylten Pro®was designed to give you feedback on wether a

door, gate, window, etc. is either open/closed or when it is in motion.

Note that although it can be used for outside gates, the

necessary waterproof protection must be considered.

4. Electrical Specifications

Operating Battery: 2 x AAA 1.5V Batteries

Power supply Operating Voltages: Input: 110V AC – 230V AC

Output: 5V/DC

Operating Temperatures: -5°C – 60°C

IP Rating: IP54

Tylten Pro Layout

5. Instructions

I. Configuring the Tylten Pro®

There are 4 configuration settings, namely Magnetic sensor,

Accelerometer, open/closed and closed transition.

The settings are as follows:

Motion detection

1. Magnetic sensor - Sliding, swinging and tylting objects

2. Accelerometer sensor - Swinging and tylting objects

3 Status - What position your object is at when stopped

4. Activity- Notifies you of movement on your object

6. Versions and changes

Currently, there is only one variant of this product. In the future, this might

change or new types of

Tylten Pro

®’s may join the family.

The

Tylten Pro

®Model no: SC-TP01

User Manual Revision No: TP01.1

This user manual may be outdated.

Please visit our website at www.siluxcontrol.com for updated

models & versions, updated user manuals, future products and to

see the rest of the wonderful products Silux®has to offer.

7. More Silux Control®automation products

Product Silux Control®Name

Hub IntelliHub®

Relay Module Dry contact Collector®

Relay Module Collector Relay®

Relay Module Dimmable Collector Dimmable®

Repeater/Range Extender Silux RPT®

PIR Sensor Seeker®

Touch Plate EU/SA Touch Lamina Altus®

Touch Plate USA Touch Lamina Artatus®

Plug Electrifier®

Smoke/Gas Detector Halitus®

Water Heater / Geyser Thermo Stabilizer®

High Power Appliances Tolleno®

Irrigation Saturizer®

Garage Tilt Tylten Pro®

Smart Switch Smart Module®

RGB Globe Spektra Globe®

RGB Downlight Spektra Downlight®

*Please note: Not all the products on this list are available yet, but will

become available in the near future. This list can change at any time.

Please refer to www.siluxcontrol.com for new and discontinued

products. New products will be added in time to come as well.

Appendix II

1. Troubleshooting

Please visit our website at www.siluxcontrol.com/FAQ for detailed list of all the

Frequently Asked Questions.

• Ensure that the power going to the device is on.

• Ensure that all the wires are connected to their proper places

• Ensure that the RED Light is on.

• Ensure that the GREEN Light on the front switches on and off when switching

with the app or Tylten Pro®.

• Ensure that the Light flashes when pressing the Teach button.

• Ensure the IntelliHub®is on and connected to your local network.

• Verify that you have the latest app installed on your smart device.

• Verify that the Silux Control® device is added to your device list when using the

app.

• Verify that you have the correct Silux Control®device selected when on the app.

• Verify that you have the latest firmware installed on the IntelliHub®.

2. Warranty

I. What this warranty covers:

Silux Control®warrants to the original purchaser of this Silux Control®product that

the product shall be free from defects in design, assembly, material, or

workmanship under normal use and operation.

Silux Control®‘s sole and exclusive obligation under the foregoing warranty shall

be to repair or replace, at its option, any defective product that fails during the

warranty period. The expense of removal and reinstallation of any item is not

included in this warranty.

WARNING: Silux Control®and its distributors and resellers cannot be held

responsible for any damages this product might have caused including 3rd

party damages.

II. What period does this warranty cover:

Silux Control®warrants this product for 12 months.

III. What Silux Control®will do to correct any problems:

Silux Control®will repair or replace, at its option, any defective product free of

charge (except for shipping charges for this product). Silux Control®reserves the

right to discontinue any of its products without notice and disclaims any limited

warranty to repair or replace any such discontinued products.

Warning: Please follow all safety precautions when installing this

product. It is always recommended to use a qualified electrician.

Silux Control® and its distributors and resellers cannot be held

responsible for any injury or death.

3. Applications

The Tylten Pro®was designed to give you feedback on wether a

door, gate, window, etc. is either open/closed or when it is in motion.

Note that although it can be used for outside gates, the

necessary waterproof protection must be considered.

4. Electrical Specifications

Operating Battery: 2 x AAA 1.5V Batteries

Power supply Operating Voltages: Input: 110V AC – 230V AC

Output: 5V/DC

Operating Temperatures: -5°C – 60°C

IP Rating: IP54

Tylten Pro Layout

5. Instructions

I. Configuring the Tylten Pro®

There are 4 configuration settings, namely Magnetic sensor,

Accelerometer, open/closed and closed transition.

The settings are as follows:

Motion detection

1. Magnetic sensor - Sliding, swinging and tylting objects

2. Accelerometer sensor - Swinging and tylting objects

3 Status - What position your object is at when stopped

4. Activity- Notifies you of movement on your object

Appendix II

1. Troubleshooting

Please visit our website at www.siluxcontrol.com/FAQ for detailed list of all the

Frequently Asked Questions.

• Ensure that the power going to the device is on.

• Ensure that all the wires are connected to their proper places

• Ensure that the RED Light is on.

• Ensure that the GREEN Light on the front switches on and off when switching

with the app or Tylten Pro®.

• Ensure that the Light flashes when pressing the Teach button.

• Ensure the IntelliHub®is on and connected to your local network.

• Verify that you have the latest app installed on your smart device.

• Verify that the Silux Control® device is added to your device list when using the

app.

• Verify that you have the correct Silux Control®device selected when on the app.

• Verify that you have the latest firmware installed on the IntelliHub®.

2. Warranty

I. What this warranty covers:

Silux Control®warrants to the original purchaser of this Silux Control®product that

the product shall be free from defects in design, assembly, material, or

workmanship under normal use and operation.

Silux Control®‘s sole and exclusive obligation under the foregoing warranty shall

be to repair or replace, at its option, any defective product that fails during the

warranty period. The expense of removal and reinstallation of any item is not

included in this warranty.

WARNING: Silux Control®and its distributors and resellers cannot be held

responsible for any damages this product might have caused including 3rd

party damages.

II. What period does this warranty cover:

Silux Control®warrants this product for 12 months.

III. What Silux Control®will do to correct any problems:

Silux Control®will repair or replace, at its option, any defective product free of

charge (except for shipping charges for this product). Silux Control®reserves the

right to discontinue any of its products without notice and disclaims any limited

warranty to repair or replace any such discontinued products.

Appendix II

1. Troubleshooting

Please visit our website at www.siluxcontrol.com/FAQ for detailed list of all the

Frequently Asked Questions.

• Ensure that the power going to the device is on.

• Ensure that all the wires are connected to their proper places

• Ensure that the RED Light is on.

• Ensure that the GREEN Light on the front switches on and off when switching

with the app or Tylten Pro®.

• Ensure that the Light flashes when pressing the Teach button.

• Ensure the IntelliHub®is on and connected to your local network.

• Verify that you have the latest app installed on your smart device.

• Verify that the Silux Control® device is added to your device list when using the

app.

• Verify that you have the correct Silux Control®device selected when on the app.

• Verify that you have the latest firmware installed on the IntelliHub®.

2. Warranty

I. What this warranty covers:

Silux Control®warrants to the original purchaser of this Silux Control®product that

the product shall be free from defects in design, assembly, material, or

workmanship under normal use and operation.

Silux Control®‘s sole and exclusive obligation under the foregoing warranty shall

be to repair or replace, at its option, any defective product that fails during the

warranty period. The expense of removal and reinstallation of any item is not

included in this warranty.

WARNING: Silux Control®and its distributors and resellers cannot be held

responsible for any damages this product might have caused including 3rd

party damages.

II. What period does this warranty cover:

Silux Control®warrants this product for 12 months.

III. What Silux Control®will do to correct any problems:

Silux Control®will repair or replace, at its option, any defective product free of

charge (except for shipping charges for this product). Silux Control®reserves the

right to discontinue any of its products without notice and disclaims any limited

warranty to repair or replace any such discontinued products.

IV. What is not covered by this warranty

Upon claiming this warranty, all above warranties are null and void

if the purchased Silux Control®product is not returned for an

authorized inspection, at the sole expense of the purchaser, or if

Silux Control®determines that the Silux Control®product has been

improperly installed, altered in any way, or opened/tampered with.

The Silux Control®product warranty does not protect against

instances of uncontrollable natural disasters such as flood,

lightning, earthquake, war, vandalism, theft, normal use wear and

tear, erosion, depletion, obsolescence, physical damage, water

damage, damage due to low voltage disturbances (i.e. brownouts

or sags), non-authorized program, or system equipment

modification or alteration.

3. Support

Please visit our website at www.siluxcontrol.com for any other

support, products, future products, and updated user manuals.

4. Disclaimer of Liability

Please read this user manual thoroughly before using the

product. Follow all safety precautions when installing this

product. It is always recommended to use a qualified

electrician.

Under no circumstances shall Silux Control®or its associates

be liable for any direct, indirect, incidental, special or

consequential damage that results from the use of or inability

to use the Silux Control®products. By using the IntelliHub®or

any other Silux Control®Automation products, you expressly

agree that the use of these products are at own risk. Neither

Silux Control®nor its affiliates, subsidiaries, or designees nor

each of their respective officers, directors, employees,

agents, third party content providers, designers, contractors,

distributors, merchants, sponsors or licensors can be held

responsible for any injury, death or damages this product

might have caused.

Dieses Handbuch passt für folgende Modelle

Andere Silux Control Hausautomation Handbücher

Silux Control

Silux Control Transview InterVedo Bedienungsanleitung

Silux Control

Silux Control Tolleno Bedienungsanleitung

Silux Control

Silux Control Thermo Stabilzer Bedienungsanleitung

Beliebte Hausautomation Handbücher anderer Marken

Truth Hardware

Truth Hardware Sentry II Bedienungsanleitung

FIBARO

FIBARO FGWPA-111 Bedienungsanleitung

Hezborg

Hezborg BGR8016B Bedienungsanleitung

MYDLINK

MYDLINK Pro Series Bedienungsanleitung

Panasonic

Panasonic KX-HNA101FX Bedienungsanleitung

GamaBit

GamaBit Houseper Bedienungsanleitung

nedis

nedis WIFILRF10C37 Bedienungsanleitung

Veho

Veho TA45 Bedienungsanleitung

Nexa

Nexa ZPR-111 Bedienungsanleitung

Vimar

Vimar 00801 Bedienungsanleitung

Leviton

Leviton 47604-F6 Bedienungsanleitung

EVERSPRING

EVERSPRING AN180 Bedienungsanleitung

Coltech

Coltech 18-1339 Bedienungsanleitung

IDS

IDS NXT vegas Leitfaden

Vimar

Vimar 03975 Bedienungsanleitung

iNels

iNels RFIM-20B Bedienungsanleitung

EVA Logik

EVA Logik ZW30 Bedienungsanleitung

Leviton

Leviton ODCØP-S0W Bedienungsanleitung
