OPERBTIIIC

mnnunL

DAISY

WHEEL

PRINTER

SILVER-REED

EXP

550

Sil¥ER-REEO

_sv

FCC

Notice

(U.S.A.

only)

This

equipment

generates

and

uses

radio frequency

energy

and

if

not

installed

and

used

properly,

that

is,

in

strict

accordance

with

the

manufacturer's

instructions,

may

cause

interference

to

radio

and

televi-

sion

reception.

It

has

been

type

tested

and

found

to

comply

with

the

limits

for

a

Class

B

computing

device

in

accordance

with

the specifica-

tions

in

Subpart

J

of

Part

15

of

FCC

rules,

which

are

designed

to

provide

reasonable

protection

against

such

interference

in

a

residential

installation.

However,

there

is

no

guarantee

that

interference

will

not

occur

in

a

particular

installation.

If

this

equipment

does

cause

inter-

ference

to

radio

or

television

reception,

which

can

be

determined

by

turning the

equipment

off

and

on,

the

user

is

encouraged

to

try

to

correct

the

interference

by

one

or

more

of

the

following

measures:

—

Reorient

the

receiving

antenna

—

Relocate

the

equipment

with

respect

to

the

receiver

—

Move

the

equipment

away

from

the

receiver.

—

Plug

the

equipment

into

a

different

outlet

so

that

the

equipment

and

receiver

are

on

different

branch

circuits.

If

necessary,

the

user

should

consult

the

dealer

or

an

experienced

radio/

television

technician

for

additional

suggestions.

The

user

may

find

the

following

booklet

prepared

by

the

Federal

Communication

helpful:

"How

to

Identify

and

Resolve Radio

TV

Interference

Problems"

This

booklet

is

available

from

the

U.S.

Government

Printing

Office,

Washington, DC

20402.

Stock

No.

004-000-00345-4.

©SILVER

SEIKO

LTD

1982

1.

Preface

This

equipment

is

a

daisy

wheel

impact

printer

which

delivers

high

quality

printouts.

The

printer

provides

both

a

serial

print

mode

and

a

line

print

mode

by

means

of

a

DIP

switch

operation.

In

the

serial

print

mode,

an

ESC

sequence

offers

a

minimum

of

1/120

inch

carriage

movement

and

a

minimum

of

1/48

inch

paper

feed,

which

allows

the

printer

to

perform

bold

print,

superscripts

and

subscripts.

Full

use

of

various

word

processing

programs

such

as

WordStar*,

etc.

is

possible.

In

line

print

mode,

the

equipment

automatically

prints

bi-directionally.

The

printer

is

provided

with

a

Centronics

compatible

parallel

interface.

The

printer

for

RS232C

serial

interface

is

also

available.

'WordStar

is

registered

trademark

of

MicroPro

International

Corporation.

Contents

1.

Preface

I

2.

Description

2

3.

Preparing

the

Machine

for

Operation

3

4.

Control

Panel

10

5.

DIP

Switch

11

6.

Codes

and

Functions

12

6-1

Line

Print

Mode

—

Function

Codes

13

6-2

Serial

Print

Mode

—

Print

Formats

13

6-3

Serial

Print

Mode

—

Function

Codes

15

7.

Power-On

and

Remote

Reset

17

8.

ASCII

Codes

18

9.

Parallel

Interface

10

9-1

Explanation

of

Signals

and

Specifications

...

19

9-2

Input/Output

Circuits

21

10.

Complement

Spacing

Units

when

PS

Daisy

Wheel

is

in

use

....

22

11.

Specifications

23

12.

Care

and

Maintenance

24

In

Case

of

Difficulty

24

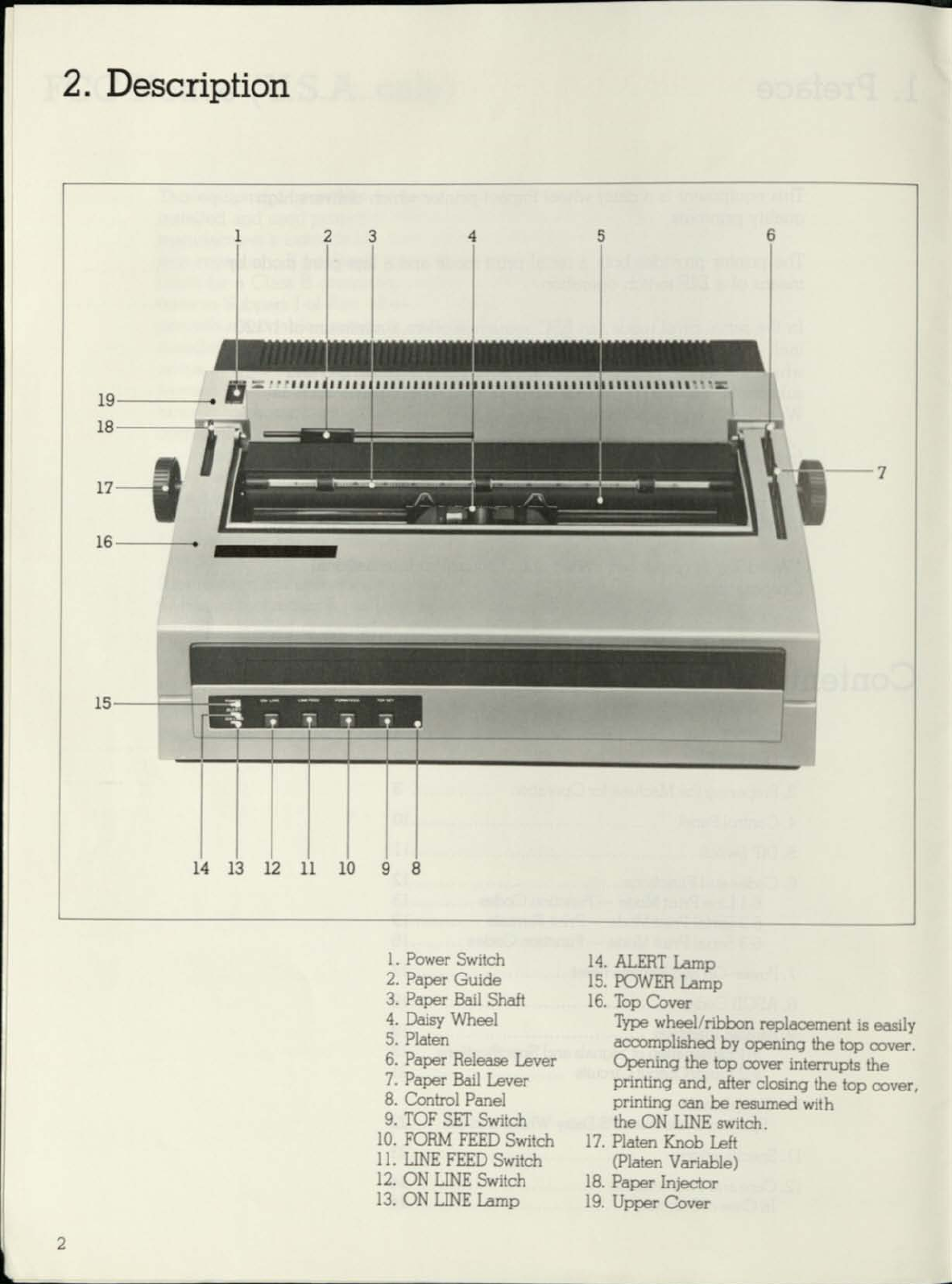

2.

Description

1.

Power

Switch

2.

Paper

Guide

3.

Paper

Bail

Shaft

4.

Daisy

Wheel

5.

Platen

6.

Paper

Release

Lever

7.

Paper

Bail

Lever

8.

Control

Panel

9.

TOF

SET

Switch

10.

FORM

FEED

Switch

11.

LINE

FEED

Switch

12.

ON

LINE

Switch

13.

ON

LINE

Lamp

14.

ALERT

Lamp

15.

POWER

Lamp

16.

Top

Cover

Type

wheel/ribbon

replacement

is

easily

accomplished

by

opening

the

top

oover

Opening the

top

oover

interrupts

the

printing

and,

after

closing

the

top

cover

printing

can

be

resumed

with

the

ON

LINE

switch.

17.

Platen

Knob

Left

(Platen

Variable)

18.

Paper

Injector

19.

Upper

Cover

2

3.

Preparing

the

Machine

for

Operation

The

following

accessories

are

packed

together

with

this

printer:

1.

Daily

Wheel

2.

Multi-strike

film

ribbon

(installed

to

the

carriage)

3.

Acoustic

Hood

Acoustic

Hood

To

install

the

acoustic

hood

1.

Position

the

right

hand

hole

(a)

of

the

acoustic

hood

onto

the

right

hinge

pin

(b),

and

hold

the

acoustic hood

to

the

right

side.

2.

Insert

the

left

hinge

pin

(c)

into

the

left

hand

hole

(d)

of

the

acoustic

hood.

3.

Make

sure

that

the

acoustic

hood

can

rotate

smoothly.

To

remove

the

acoustic

hood

1.

Raise

the

left

side

of

the

acoustic

hood

while

pushing

it

to

the

right,

and

release

it

from

the

left

hinge

pin

(c).

2.

Release

the

acoustic

hood

from

the

right

hing

pin

(b).

Paper

Table

with

Paper

Support

(Option)

The

paper

table

is

used

to

support

the

paper

when

inserting

it

or

while

printing.

Install

the

paper

table

in

inserting

the

two

extentions

of

the

paper

table

into

the

slots

on

the

upper

cover

on

the

rear

side

of

the

printer.

3

Carriage

The

carriage

prints

on

the

paper

while

moving

in

parallel

with

the

platen.

The

following

print

elements

are

attached

to

the

carriage.

1.

Ribbon

2.

Daisy

wheel

To

replace

the

ribbon

(Multi-strike

film

ribbon

is

provided

with

the

printer.)

1.

Raise

the

top

cover

(a).

2.

Hold

the

ribbon

with

both

hands

and

lift

it

up,

first

from

the

ribbon

tape

side,

while

pulling

it

towards

you.

3.

Turn

the

ribbon

feed

disk

(b)

on

the

new

ribbon

in

the

arrow

direction

and

keep

the

ribbon

tape

(c)

tight.

4.

Position

the

recess

(d)

of

the

cassette

at

the

ribbon

cassette

retainer

(e)

on

the

carriage.

5.

Push

down

the

cassette

until

it

clicks

into

position

with

ribbon

tape

put

between

the

daisy wheel

and

the

platen.

6.

Turn

the

ribbon

feed

disk

2

or

3

times

in

the

arrow

direction

and

keep

the

ribbon

tape

tight.

7.

Close

the

top

cover.

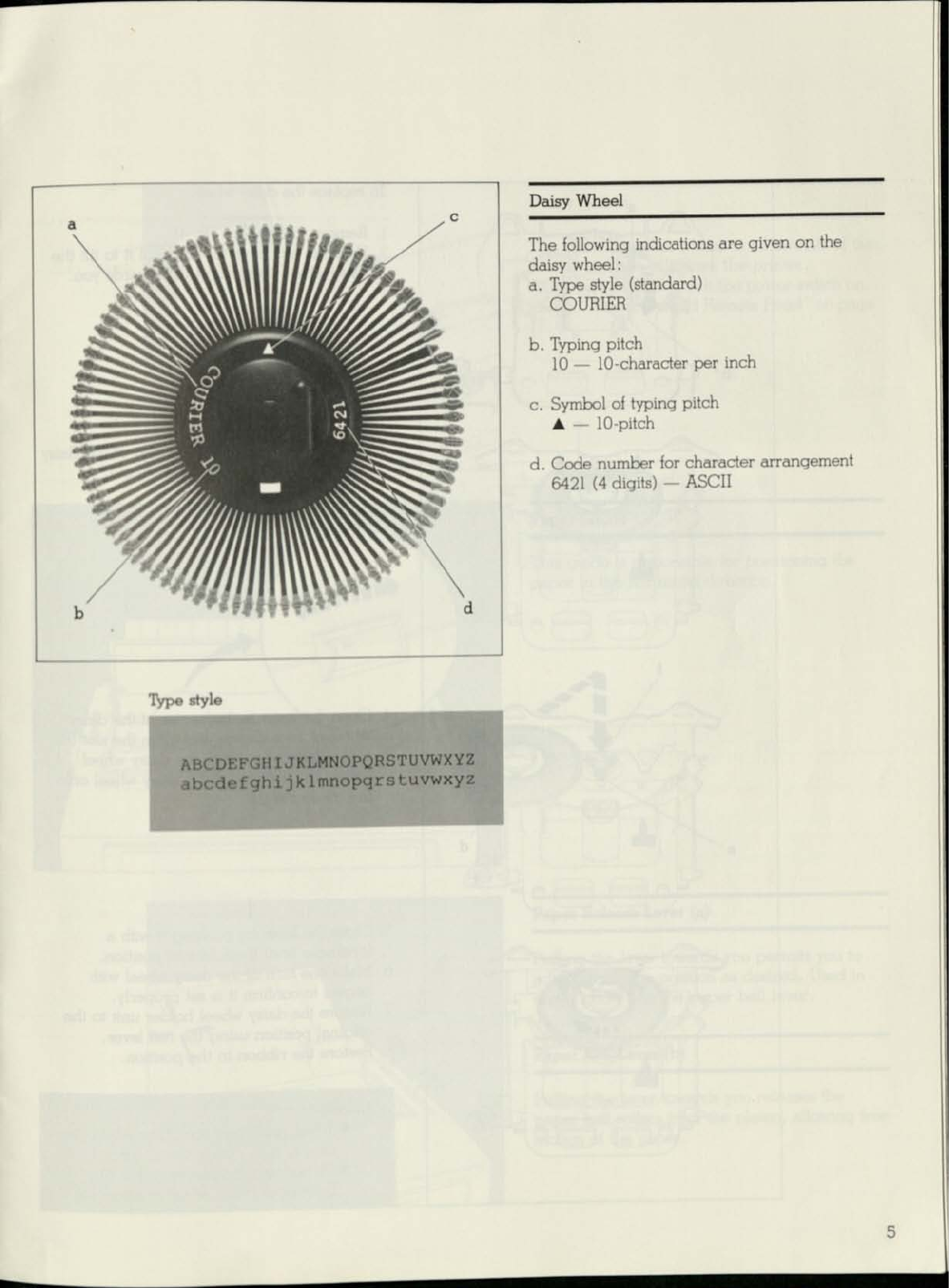

Daisy

Wheel

The

following

indications

are

given

on

the

daisy

wheel:

a.

Type

style

(standard)

COURIER

b.

Typing

pitch

10

—

10-character

per

inch

c.

Symbol

of

typing

pitch

•

—

10-pitch

d.

Code

number

for

character

arrangement

6421

(4

digits)

—

ASCII

Type

style

ABCDEFGHIJKLMNOPQRSTUVWXYZ

abcdefghijklmnopqrstuvwxyz

5

To

replace

the

daisy

wheel

1.

Remove

the

ribbon.

(P.

4)

2.

Hold

the

red

lever

(a)

and

pull

it

to

tilt

the

daisy wheel

holder

unit

(b)

towards

you.

3.

Open

the

lever

(c)

in

the

center

of

the

daisy

wheel

until

it

clicks,

and

take

it

out.

4.

Open

the

lever

in

the

center

of

the

daisy

wheel

of

your

choice

and

align

the

slot

(d)

of

the

daisy

wheel

with

the

daisy

wheel

holder

(e)

and

mount

the

daisy

wheel

onto

the

guide

pin

(f).

5.

Close

the

lever

by

pushing

it

with

a

forefinger

until

it

clicks

into

position.

6.

Make

one

turn

of

the

daisy

wheel

with

fingers

to

confirm

it

is

set

properly.

7.

Restore

the

daisy

wheel

holder

unit

to

the

original

position

using

the

red

lever.

8.

Restore

the

ribbon

in

the

position.

Notes:

•

When

replacing

the

daisy

wheel,

be

sure

to

turn

power

switch

off.

•

Do

not

turn

the

power

switch

on

before

the

daisy

wheel

is

mounted.

Power

Switch

This

switch

supplies

power

to

all

circuits

of

the

printer

and

also

initializes

the

printer.

As

to

re-initialization

with

the

power

switch

on,

refer

to

"Power

On

and

Remote

Reset"

on

page

17.

Paper

Guide

This

guide

is

responsible

for

positioning

the

paper

in

the

horizontal

direction.

Paper

Release

Lever

(a)

Pulling

the

lever

towards

you

permits

you

to

adjust

the

paper

position

as

desired.

Used

in

conjunction

with

the

paper

bail

lever.

Paper

Bail

Lever

(b)

'ulling

the

lever

towards

you

releases

the

>aper

bail

rollers

from

the

platen,

allowing

free

notion

of

the

paper.

Platen

Variable

The

platen

can

rotate

freely

and

be

set

at

any

line

regardless

of

the

line spacing

by

turning

the

platen

knob

left

while

pushing

it

to

the

right.

Paper

Injector

Set

the

paper

in

the

back

of

the

platen,

and

pulling

the

paper

injector

(c)

feeds

the

paper

automatically

until

the

printing

position

is

ap-

proximately

1.0

inch

(25mm)

from

the

top

of

the

paper.

|

j

8

l
