Silverline H10260 015 Bedienungsanleitung
1
H10260 015
H10290 015
EN SERVİCE MANUAL
2
Contents
1. Safety Procedures/Information, Warnings…………………………………………..3
2. Recommendation for Product Installation and Dimensions .............................4
3. Indication of the Serial Number Plate Location..................................................5
4. Explanation of the Characters in the Serial Number..........................................6
5. Product Specifications......................................................................................... 7
6. Control Panel and Operation ............................................................................... 8
7. Troubleshooting - Measurement of Component Values...................................10
8. Fault Flow Chart ..................................................................................................17
9. Disassembly Manual ...........................................................................................18
10. Cleaning Recommendations...............................................................................25
11. Wiring Diagram (For All Boards)……………………………………………………..26
3
1. Safety Procedures/Information, Warnings
CAUTION !!
Before servicing, disconnect the unit
from power to prevent power from
being switched on accidentally
1. Usage voltage of your product is 220-230 Volt~50 Hz.
2. Power cord of your product is fitted with a grounded plug. This cord must be plugged into a
grounded outlet.
3. The whole electrical wiring must be installed by a qualified electrician.
This is the safety alert symbol. This symbol alerts you to hazards that can kill or hurt you and
others.
4
2. Recommendation for Product
Installation and Dimensions
APPLIANCE POSITION
After completing the installation of hood, the minimum distance must be 65 cm between the product
and any electric cooker; and 75 cm between it and any gas ranges or cookers burning other fuels.
5
3. Indication of the Serial Number Label Location
Picture : Product name plate is affixed on the area shown with a red circle in the photograph.
6
4. Explanation of the Characters in the Serial Number
7
5. Product Specifications
Size (cm)
60-90
90
Max Volume Level (db)
70
69
Lighting
Led
Led
Use Version
Motorized
Motorized
Total Power (W)
216
216
Air Outlet Connection (mm)
120/150
120/150
Material
Inox
Inox
Filter
Aluminium Cartridge Filter
Aluminium Cartridge Filter
Air Flow at Maximum Speed
(m3/h)
570
642
Control
Rectangular Digital
Rectangular Digital
Motor
3 Speed S35
3 Speed A700 S40
8

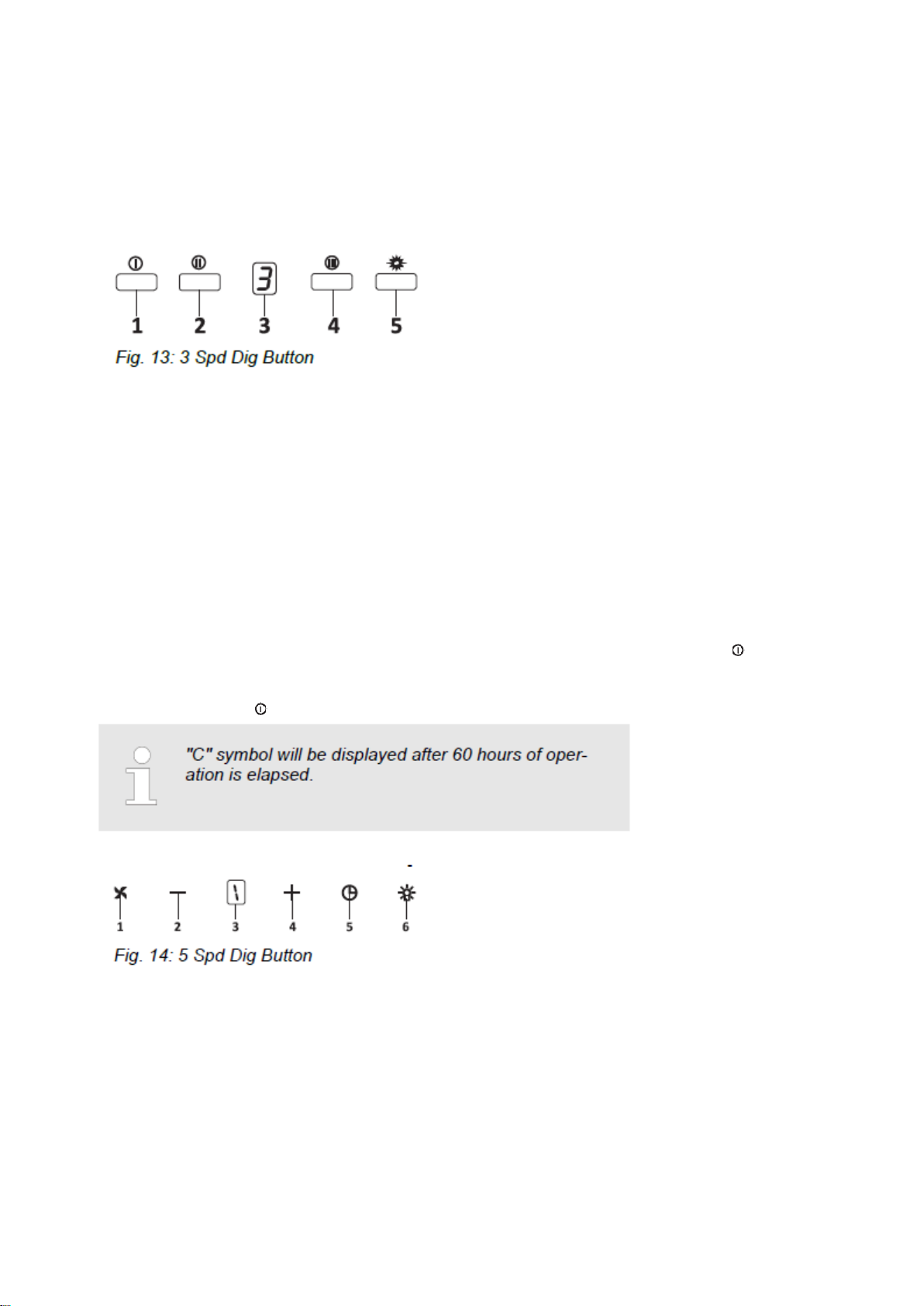

6. Control Panel and Operation
Button Usage
1. Press this button to turn on the product. Product will also run on 1st speed level when this button
is pressed. Fig. 13
2. Product will run on 2nd speed level when this button is pressed Fig. 13
3. Dig display You can follow which speed the product is currently working on this display. Fig. 13
4. Product will run on 3rd speed level when this button is
pressed. Fig. 13
5. Press this button to turn on and off the lamp. Fig. 13
6. Pressing and holding any of the motor operation buttons for more than 2 seconds will initiate a
timer function of 15 minutes. A signal will be Displayed once the timer starts and the motor will stop
automatically after 15 minutes. Fig. 13
Cleaning Periods for Metal Filters:
Filters should be cleaned when "C" signal appears on the Display or (due to usage) every 2 or 3
weeks. To delete "C" signal after the filters are cleaned and replaced, press and hold ( ) button more
than 3 secs (when device is off). Letter "E" will appear on the Display and it will switch to normal
operation. If operation before deleting the "C" signal is required, active motor speed will appear for 1
sec when you press ( ) button and then the motor will resume running.
How to use 5 Spd Dig Touch Control Product
1. Press this button to turn on the product. Fig. 14
2. Press this button to decrease the motor speed. Fig. 14
3. Dig display You can follow which speed the product is currentlyworking on this display. Fig. 14
4. Press this button to increase the motor speed. Fig. 14
5. When timer button is pressed, a 15-minute timer function will be activated; display will give a
signal once the timer starts and the motor will stop automatically after 15 minutes. Fig. 14
6. Press this button to turn on and off the lamp. Fig. 14
9
Cleaning Periods for Metal Filters
Filters should be cleaned when "C" signal appears on the Display or (due to usage) every 2 or 3
weeks. To delete "C" signal after the filters are cleaned and replaced, press and hold ( ) button more
than 3 secs (when device is off). Letter "E" will appear on the Display and it will switch to normal
operation. If operation before deleting the "C" signal is required, active motor speed will appear for 1
sec when you press ( ) button and then the motor will resume running.
10
7. Troubleshooting - Measurement of Component Values
A. COMPONENT LIST
The components used in the product are as follows.
1. Circuit: 4. Switch:
2. Motor: 5. Lamp:
3. Power Cord 6. Receptacle Cord
