Sim-Lab PUSH/PULL SHIFTER Bedienungsanleitung

PUSH/PULL SHIFTER

VERSION 1.0

Last updated:07-04-2023

INSTRUCTION MANUAL

2|2 8

BEFORE YOU START:

Thank you for your purchase. In this manual we will provide you with the means to

get started using your new shifter!

Allowing you to shift rally style, you always know where your shifter is in relation to

your wheel. Thanks to the quick disconnect lever it is easy to make adjustments. The

quick disconnect lever allows for a very rigid solution while really locking down your

preferred conﬁguration.

PUSH/PULL SHIFTER

Features:

Rally style shifting

Support for different hardware

Adjustable in length and angle

Aluminum construction

Hall-sensor activated

Carbon ﬁber paddles

Quick disconnect lever

USB

| |38 8

Preparation

Depending on your hardware; Fanatec (A3) or Simucube/ALPHA/MIGE (A4), a

different mounting plate must be ﬁtted.

Mounting such a plate is very straightforward and uses four countersunk bolts.

4|4 8

Installation

The installation of the Push/Pull Shifter (PPS) is fairly straight forward. Loosen existing

bolts on your motor and mount, use these to attach the adapter plate to your front

mount.

For Fanatec users, appropriate bolts (A9) are supplied.

| |58 8

Conﬁguration

Depending on your setup, there might some conﬁguration needed to make the PPS

ﬁt your setup. We included 3 different ams to be able to adjust the positioning of the

paddle in relation to your wheel.

If arms (F) ﬁtted out of the box need to be swapped, ﬁrst rotate the lever (L) upwards

and loosen the nut (N). Now you can disconnect the complete shifter body along with

the arms and swap them with your preferred arms (A5/6).

With the new arms in place, some tweaking is still possible to suit your needs. When

re-assembling, don’t tighten the nut (N) completely, the lever (L) will clamp down on

the system to tighten everything. When there is still play after you have clamped

down the lever, release the lever and adjust the tension of the nut and try again.

6|6 8

There are different means of adjustment possible, depending on the part.

Most adjustments can be made loosening the bolts which hold the arms and rotating

the locking lever upwards. Be sure to tighten bolts securely and double check after

the ﬁrst use if they are still tight. Here is how we achieved our setup to work with a

deep dish wheel.

| |78 8

Initial calibration

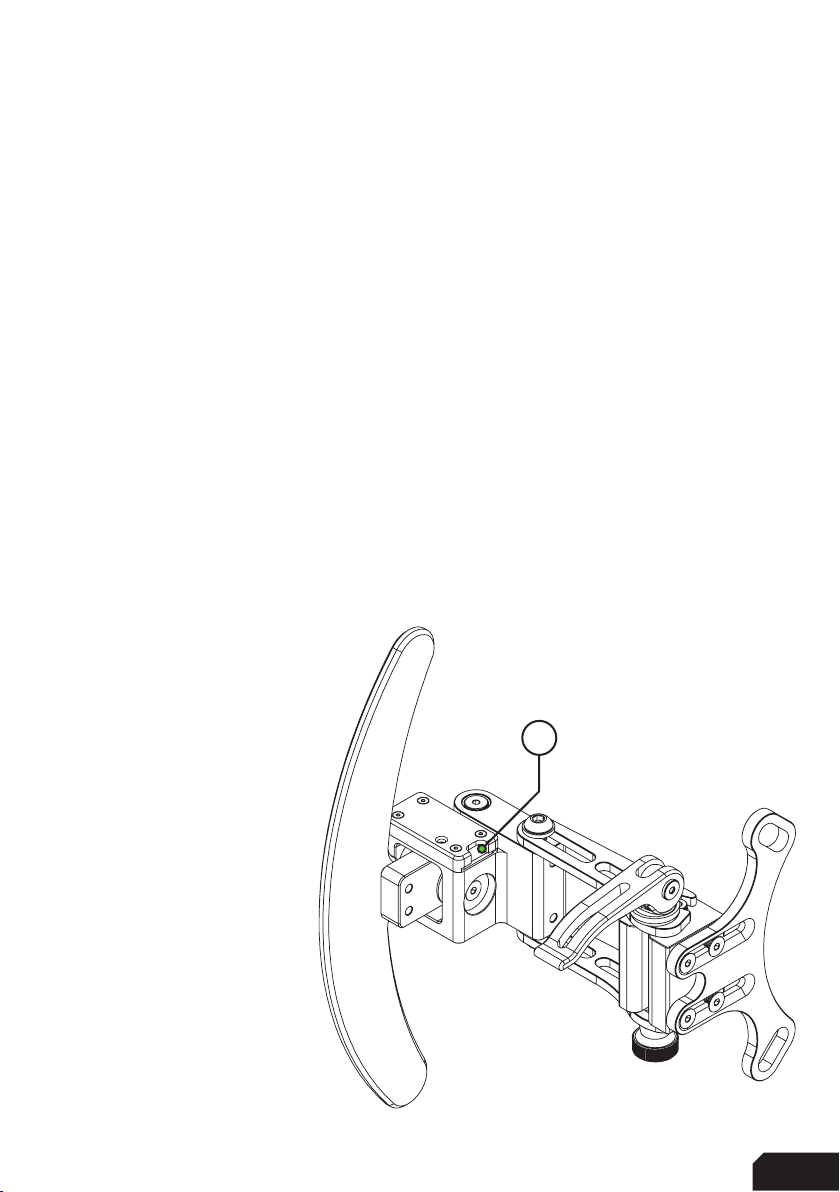

Press and hold the calibration button (C) until its LED starts blinking. Now the unit is

in calibration mode. Shift up (pull) and down (push) a couple of times. When you are

done, press the calibration button (C) one last time. Now the device has been

calibrated and ready for use.

8|8 8

Bill of materials

More information

If you still have some questions regarding assembly of this product or about the

manual itself, please refer to our support department. They can be reached at:

[email protected]

Alternatively, we now have Discord servers where you can hang out or ask for help.

www.sim-lab.eu/discord / www.gridbysimlab.com/discord

Product page on the

GRID by Sim-Lab website:

IN THE BOX

#Part QTY Note

A1 Push/Pull Shifter 1

A2 USB-micro cable 1

A3 Fanatec mount 1

A4 Simucube/Alpha/MIGE mount 1

A5 Mount Arm M75-125 2

A6 Mount Arm M185-1225 2

A7 Bolt M8 X 35 DIN 912 2

A8 Bolt M4 X 10 DIN 7991 4

A9 Bolt M6 X 12 DIN 7380 2 Use to mount unit to Fanatec.

A10 Bolt M4 X 10 DIN 7380 2 Use to mount paddle.

A11 Nut M8 2

A12 Washer M8 DIN 125-A 2 To use with A8 and/or A11.

A13 Toolkit 1
