User manual

TIMER

SLC 94

•Firmware: v.1.12 or higher

•Input type: pulse

•Function of time counting and totalizer

Read the user's manual carefully before starting to use the unit or software.

Producer reserves the right to implement changes without prior notice.

2012.08. 1 SLC-94_INSSXEN_v.1.11.000

User manual for - TIMER SLC-94
SPIS TREŚCI
BASIC REQUIREMENTS AND USER SAFETY........................................................................................3
GENERAL CHARACTERISTICS................................................................................................................4
 TECHNICAL DATA.....................................................................................................................................4
DEVICE INSTALLATION............................................................................................................................6
1. UNPACKING.......................................................................................................................................6
2. ASSEMBLY........................................................................................................................................6
3. CONNECTION METHOD...................................................................................................................8
4. MAINTENANCE................................................................................................................................13
FRONT PANEL DESCRIPTION................................................................................................................13
PRINCIPLE OF OPERATION...................................................................................................................14
1. COUNTING MODE...........................................................................................................................14
2. CONTROL OF RELAY OUTPUTS...................................................................................................16
DEVICE PROGRAMMING.........................................................................................................................16
1. PROGRAMMING MENU..................................................................................................................16
1.1. pa amete s edition...................................................................................................................17
1.2. Nume ic pa amete s (digit change mode)...............................................................................17
1.3. Nume ic pa amete s (slide change mode)..............................................................................18
1.4. Switch pa amete s (“LIST” type).............................................................................................18
2. MENU DESCRIPTION.....................................................................................................................19
2.1. “ ELAy1” ÷ “ ELAy2” menu .....................................................................................................19
2.2. „StA t” pa amete .....................................................................................................................20
2.3.  „StoP” pa amete ....................................................................................................................20
2.4. “ ESEt” pa amete ...................................................................................................................20
2.5. Menu “diSPL”..........................................................................................................................20
2.6. ”PuSH” menu...........................................................................................................................21
2.7. ” S-485” menu.........................................................................................................................22
2.8. ”b iGHt” pa amete ..................................................................................................................22
2.9. “SEtcod” pa amete .................................................................................................................23
2.10. ”Edit t” pa amete ..................................................................................................................23
2.11. ”dEFS” pa amete ..................................................................................................................23
3. MENU STRUCTURE........................................................................................................................24
 . EXAMPLES OF TIME COUNTER CONFIGURATION.............................................................................25
1. EXAMPLE 1 - CONTROLING  BY TRANSIENTS ON {START} LINE ...........................................26
2. EXAMPLE  2 - CONTROLLING BY STATE OF {START} LINE......................................................26
3. EXAMPLE  3 - CONTROL USING THREE SOURCES...................................................................27
THE MODBUS PROTOCOL HANDLING.................................................................................................2
1. LIST OF REGISTERS......................................................................................................................28
2. TRANSMISSION ERRORS DESCRIPTION....................................................................................31
3. EXAMPLES OF QUERY/ANSWER FRAMES.................................................................................31
DEFAULT AND USER'S SETTINGS LIST.............................................................................................34
2

User manual for - TIMER SLC-94

Explanation of symbols used in the manual:

- This symbol denotes especially impo tant guidelines conce ning the installation and

ope ation of the device. Not complying with the guidelines denoted by this symbol

may cause an accident, damage o equipment dest uction.

IF THE DEVICE IS NOT USED ACCORDING TO THE MANUAL THE USER IS

RESPONSIBLE FOR POSSIBLE DAMAGES.

- This symbol denotes especially impo tant cha acte istics of the unit.

Read any info mation ega ding this symbol ca efully

1. BASIC REQUIREMENTS AND USE R SAFETY

- The manufacturer is not responsible for any damages caused by

inappropriate installation, not maintaining the proper environmental

conditions and using the unit contrary to its assignment.

- Installation should be conducted by qualified personnel . During installation all

available safety requirements should be considered. The fitter is responsible for

executing the installation according to this manual, local safety and EMC

regulations.

- GND input of device should be connected to PE wire;

- The unit must be properly set-up, according to the application. Incorrect

configuration can cause defective operation, which can lead to unit damage or

an accident.

- If in the case of a unit malfunction there is a risk of a serious threat to the

safety of people or property additional, independent systems and

solutions to prevent such a threat must be used.

- The unit uses dangerous voltage that can cause a lethal accident. The unit

must be switched off and disconnected from the power supply prior to

starting installation of troubleshooting (in the case of malfunction).

- Neighbouring and connected equipment must meet the appropriate standards

and regulations concerning safety and be equipped with adequate overvoltage

and interference filters.

- Do not attempt to disassemble, repair or modify the unit yourself. The unit

has no user serviceable parts. Defective units must be disconnected and

submitted for repairs at an authorized service centre.

- In order to minimize fire or electric shock hazard, the unit must be protected

against atmospheric precipitation and excessive humidity.

- Do not use the unit in areas threatened with excessive shocks, vibrations, dust,

humidity, corrosive gasses and oils.

- Do not use the unit in areas where there is risk of explosions.

User manual for - TIMER SLC-94

- Do not use the unit in areas with significant temperature variations, exposure to

condensation or ice.

- Do not use the unit in areas exposed to direct sunlight.

- Make sure that the ambient temperature (e.g. inside the control box) does not

exceed the recommended values. In such cases forced cooling of the unit must

be considered (e.g. by using a ventilator).

The unit is designed for operation in an industrial environment and must

not be used in a household environment or similar.

2. GENERAL CHARACTERISTICS

LC-94 is designed for precision time (period) measurements, e.g. duration of time

interval and mesurements of machine's operating time. Signals from push-buttons or

contactors of control devices are connected to the terminals placed on back side of the

counter. Properly programmed counter allows to measure time period between { START } and

{ STOP } signals. Other configuration allows to measure the activity time of { START } signal

( line { STOP } is then unused). In addition the measure can be started, stopped and cleared

using local keyboard (on front of the device) or via RS-485 interface.

Apart from basic function of time counting, totalizer is also available. Both counters, main

timer and totalizer are triggered and stopped simultaneously. Time counting is realised in

range 0 ms to 99 999.9 hours (maximum possible value). The device ensures a wide range of

precision and presentation formats of timer and totalizer.

Build in two relay outputs allow use of this counter for control in many time depend processes.

Build in RS-485 interface allows full control and programming of the device.

3. TECHNICAL DATA

Power supply voltage

(depending on version)

External fuse (required)

Power consumption

85...230...260V AC/DC; 50 ÷ 60 Hz (separated)

19...24...50V DC and 16...24... 5V AC (separated)

T - type, max. 2 A

max. 4,5 VA @ 85 ÷ 260V AC/DC

max. 4,5 VA @ 16V ÷ 5V AC

max. 4,5 W @ 19V ÷ 50V DC

Pulse inputs

(galvanic isolated)

START input

STOP input

RESET input

COM

counting enable (terminal no. 17)

counting stop (terminal no. 18)

clear counter (terminal no. 19)

common terminal (terminal no. 20)

Input levels

low:

high:

0 V ÷ V

10 V ÷ 0 V

Inputs sampling frequency > 10kHz

User manual for - TIMER SLC-94

Minimum time between input

signals edges 500µs

Outputs

relay:

or OC-type:

sensor power supply:

2 NO 1A/250V AC (cos ϕ = 1)

2 max. 0mA / 0VDC / 100mW

24V +5% -10% / max. 100 mA, stabilized

Displaying values range depending on display format

main timer:

max. from 0 ms to 999 99.9 hours

totalizer:

max. from 0 sec. to 999 99.9 hours

Precision ± 0,005 % of displayed value (at 25°C)

Temperature stability ± 0,005 % (at 0°C to +50°C)

Resolution 1 ms

Communication interface

Baud rate

RS 485, 8N1 / Modbus RTU, not separated

1200 bit/s ÷ 115200 bit/s

Display LED, 4 digit, 20mm height, red

Protection level IP 65 (from front, after using waterproof cover)

IP 40 (from front)

IP 20 (housing and connection clips)

Housing type

Housing material

Housing dimensions

Panel cutout

Assembly depth

Panel thickness

panel

NORYL - GFN2S E1

96 x 48 x 100 mm

90,5 x 4 mm

102 mm

max. 5 mm

Operating temperature

Storage temperature

Humidity

Altitude

0°C to +50°C

-10°C to +70°C

5 to 90% no condensation

up to 2000 meters above sea level

Screws tightening max. torque 0,5 Nm

Max. connection leads diameter 2,5 mm2

Safety requirements according to: PN-EN 61010-1

installation category: II

pollution degree: 2

voltage in relation to ground: 00V AC

insulation resistance: >20MΩ

insulation strength between power supply and

input/output terminal: 1min. @ 2 00V

insulation strength between relays terminal: 1min. @

1 50V

EMC PN-EN 61 26-1

User manual for - TIMER SLC-94

This is a class A unit. In housing or a similar area it can cause radio

frequency interference. In such cases the user can be requested to use

appropriate preventive measures.

4. DEVICE INSTALLATION

The unit has been designed and manufactured in a way assuring a high level of user

safety and resistance to interference occurring in a typical industrial environment. In order to

take full advantage of these characteristics installation of the unit must be conducted correctly

and according to the local regulations.

- Read the basic safety requirements on page prior to starting the installation.

- Ensure that the power supply network voltage corresponds to the nominal

voltage stated on the unit’s identification label.

- The load must correspond to the requirements listed in the technical data.

- All installation works must be conducted with a disconnected power supply.

- Protecting the power supply clamps against unauthorized persons must be

taken into consideration.

4.1. UNPACKING

After removing the unit from the protective packaging, check for transportation damage.

Any transportation damage must be immediately reported to the carrier. Also, write down the

unit serial number on the housing and report the damage to the manufacturer.

Attached with the unit please find:

- assembly brackets - 2 pieces,

- warranty,

- user’s manual for LC-94 unit (device)

4.2. ASSEMBLY

- The unit is designed for mounting inside housings (control panel, switchboard)

insuring appropriate protection against surges and interference. Metal housings

must be connected to ground in a way that complies with the governing

regulations.

- Disconnect the power supply prior to starting assembly.

- Check the connections are wired correctly prior to switching the unit on.

User manual for - TIMER SLC-94

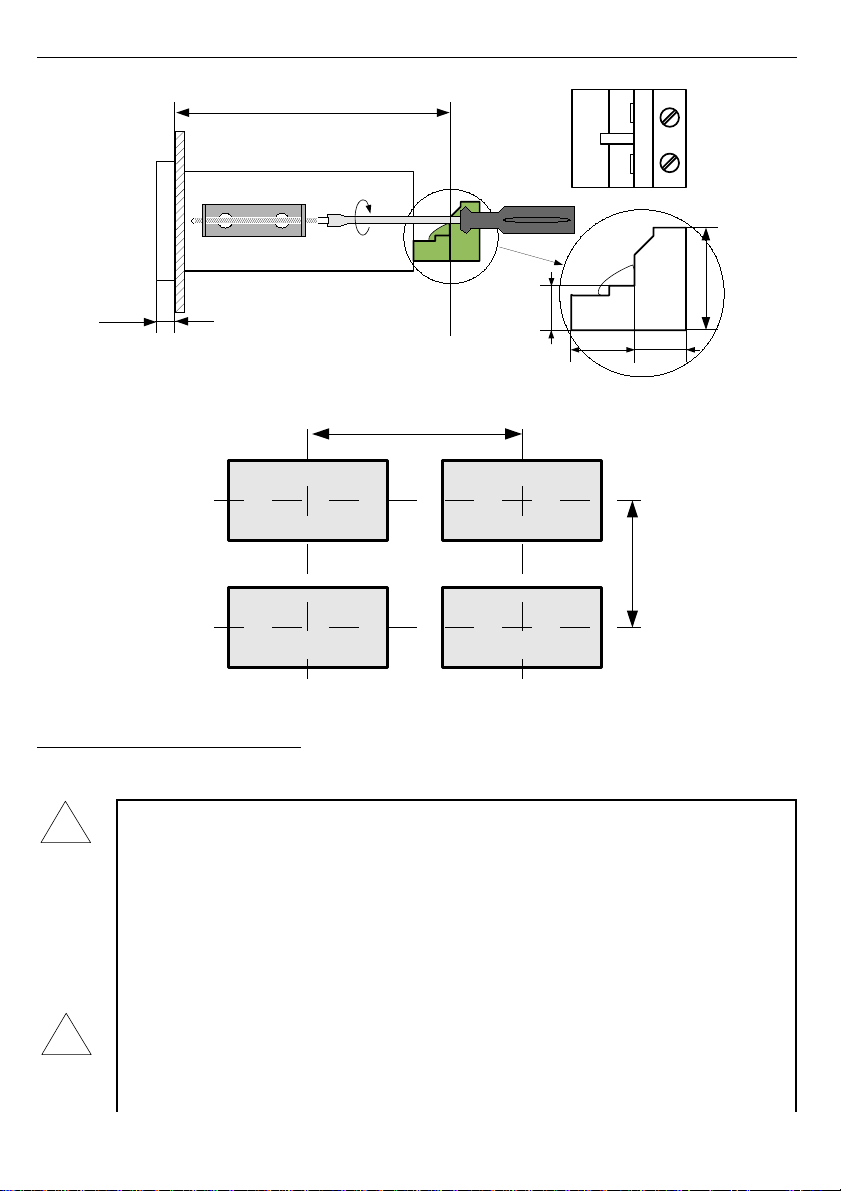

In order to install the unit, a 90.5 x 4 mm mounting hole (Figure 4.1, 4.2) must be

prepared. The thickness of the material of which the panel is made must not exceed

5mm. When preparing the mounting hole take the grooves for catches located on

both sides of the housing into consideration (Figure 4.1, 4.2). Place the unit in the

mounting hole inserting it from the front side of the panel, and then fix it using the

brackets (Figure 4. ). The minimum distances between the centre points of multiple

units - due to the thermal and mechanical conditions of operation - are 115 mm x

67mm (Figure 4.4).

Figu e 4.1. Recommended mounting hole dimensions

Figu e 4.2. Allowable mounting hole dimensions

90,5 mm

1 mm

8 mm

1 mm

1 mm max. 5 mm

4 mm

1 mm

92 mm

max. 5 mm

4 mm

User manual for - TIMER SLC-94

Figu e 4.3. Installing of b ackets, and dimensions of connecto s.

Figu e 4.4. Minimum distances when assembly of a numbe of units

4.3. CONNECTION METHOD

Caution

- Installation should be conducted by qualified personnel . During installation all

available safety requirements should be considered. The fitter is responsible for

executing the installation according to this manual, local safety and EMC

regulations.

- The unit is not equipped with an internal fuse or power supply circuit breaker.

Because of this an external time-delay cut-out fuse with minimal possible nominal

current value must be used (recommended bipolar, max. 2A) and a power supply

circuit-breaker located near the unit. In the case of using a monopolar fuse it must

be mounted on the phase cable (L).

- The power supply network cable diameter must be selected in such a way that in

the case of a short circuit of the cable from the side of the unit the cable shall be

protected against destruction with an electrical installation fuse.

- Wiring must meet appropriate standards and local regulations and laws.

115 mm

67 mm

92 mm

5 mm

12 mm 10 mm

8,5 mm

16 mm

User manual for - TIMER SLC-94

- In order to secure against accidental short circuit the connection cables must be

terminated with appropriate insulated cable tips.

- Tighten the clamping screws. The recommended tightening torque is 0.5 Nm.

Loose screws can cause fire or defective operation. Over tightening can lead to

damaging the connections inside the units and breaking the thread.

- In the case of the unit being fitted with separable clamps they should be inserted

into appropriate connectors in the unit, even if they are not used for any

connections.

- Unused clamps (marked as n.c.) must not be used for connecting any

connecting cables (e.g. as bridges), because this can cause damage to the

equipment or electric shock.

- If the unit is equipped with housing, covers and sealing packing, protecting

against water intrusion, pay special attention to their correct tightening or clamping.

In the case of any doubt consider using additional preventive measures (covers,

roofing, seals, etc.). Carelessly executed assembly can increase the risk of electric

shock.

- After the installation is completed do not touch the unit’s connections when it is

switched on, because it carries the risk of electrical shock.

Due to possible significant interference in industrial installations appropriate measures

assuring correct operation of the unit must be applied. To avoid the unit of improper

indications keep recommendations listed below.

-Avoid common (parallel) leading of signal cables and transmission cables together with

power supply cables and cables controlling induction loads (e.g. contactors). Such cables

should cross at a right angle.

-Contactor coils and induction loads should be equipped with anti-interference protection

systems, e.g. RC-type.

-Use of screened signal cables is recommended. Signal cable screens should be

connected to the earthing only at one of the ends of the screened cable.

-In the case of magnetically induced interference the use of twisted couples of signal

cables (so-called “spirals”) is recommended. The spiral (best if shielded) must be used

with RS-485 serial transmission connections.

-In the case of measurement or control signals are longer than 0m or go outside of the

building then additional safety circuits are required.

-In the case of interference from the power supply side the use of appropriate anti-

interference filters is recommended. Bear in mind that the connection between the filter

and the unit should be as short as possible and the metal housing of the filter must be

connected to the earthing with largest possible surface. The cables connected to the filter

output must not run in parallel with cables with interference (e.g. circuits controlling relays

or contactors).

User manual for - TIMER SLC-94

Connections of power supply voltage and measurement signals are executed using the screw

connections on the back of the unit’s housing (Figure 4.5 - 4.6).

Figu e 4.5. Method of cable insulation eplacing and cable te minals

All connections must be made while power supply is disconnected !

Double numeration means, that depending on device version, particular terminal

can be marked according to the top or bottom number.

Figu e 4.6. Te minals desc iption ( elay outputs)

Description of input terminals

{ TART } - counting enable;

{ TOP } - counting stop (without clearing the counter value);

{ RE ET } - counter clearing;

{ COM } - common te minal

6-7 mm

max. 2 mm

5 6 7 8 9

GND DATA+

DATA-

R - 485

n.c.

TART

RE ET

COM - common inp.

TOP

+ Uo -

+24V (+5% -10%)

Imax = 100mA

1 2

Power

supply

(depending on version)

10 11 12 13

R1 R2

14 15

n.c. n.c.

Inhaltsverzeichnis

Beliebte Timer Handbücher anderer Marken

Intermatic

Intermatic P1131 Bedienungsanleitung

Learning Resources

Learning Resources Time Tracker mini Bedienungsanleitung

CEBEK

CEBEK I-215 Bedienungsanleitung

Somogyi

Somogyi home TS MD 5 Bedienungsanleitung

Profile

Profile 010200280 Bedienungsanleitung

Gizmo

Gizmo T4 Bedienungsanleitung

Tekmar

Tekmar Timer 031 Bedienungsanleitung

Daikin

Daikin DST301B61 Bedienungsanleitung

sisel

sisel ENDA ETM2432 Bedienungsanleitung

B&Q

B&Q TE103 Bedienungs- und Wartungshandbuch

Hozelock

Hozelock AC Plus 2700 Bedienungsanleitung

GIC

GIC Eliro V7DDSS3Eliro V7DFTS3 Bedienungsanleitung

Tork

Tork TU40 Bedienungsanleitung

Emos

Emos EMT400F Bedienungsanleitung

FarmTek

FarmTek Polaris Bedienungsanleitung

Maximum

Maximum CRONUS Bedienungsanleitung

Uberhaus

Uberhaus TD133B Bedienungsanleitung

Clas Ohlson

Clas Ohlson 31-3766 Bedienungsanleitung
