Attachment

Illustrated

Parts List

Rev. 01/2007

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

. No. Descri

tion

Attachment

1694401 Deluxe Hard Snow Cab

1731934

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Additive Parts Group ............................................................................................................................................ 4

Electrical Controls Group ..................................................................................................................................... 6

Frame Group ........................................................................................................................................................ 8

Front Windshield Group ....................................................................................................................................... 10

Glass Door Group ................................................................................................................................................ 12

Rear Windshield Group ........................................................................................................................................ 14

Roof Group ........................................................................................................................................................... 16

Additive Parts Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1\4281apg

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Additive Parts Group

Footnotes

Strut right1 1732678SM 1

Strut left2 1732677SM 1

Cross-stay below3 1732690SM 1

Hexagon head screw M10x304 1732639SM 8

Shim disk M105 1732657SM 16

Stop nut M106 1732649SM 8

Shim disk M87 1732656SM 8

Retainer ring M88 1732661SM 8

Hexagon head screw M8x259 1732638SM 8

Hexagon head screw M12x4510 1732631SM 6

Shim disk M1211 1732658SM 36

Stop nut M1212 1732650SM 18

Spoiler right13 1732680SM 1

Spoiler left14 1732679SM 1

Shim disk M615 1732655SM 4

Stop nut M616 1732647SM 2

Hexagon head screw M6x1617 1732635SM 2

Sticker18 1732682SM 1

Stop nut M519 1732646SM 8

Shim disk M520 1732654SM 16

Hexagon head screw M5x2021 1732634SM 8

Tube profile22 1721316SM 0.3m

Edge-protection small23 1732713SM 1m

Blind rivet 4x1224 1732663SM 4

Sheet metal screw 4.8x1625 1721415SM 2

Brake pedal cover26 1732692SM 1

Strip27 1732686SM 1

Screw-on plate28 1732685SM 1

Attachment bracket29 1732681SM 1

Spacer30 1732709SM 2

Hexagon head screw M12x4031 1732633SM 8

Hexagon head screw M12x10032 1732632SM 4

Bracket front left33 1732675SM 1

Bracket front right34 1732676SM 1

Mounting fuse box35 1732687SM 1

Fuse box36 1732707SM 1

Cable loom37 1732683SM 1

Safety belt fastening38 1732691SM 2

Mounting front-loader locking device39 1732688SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

Electrical Controls Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1\4281ecg

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Electrical Controls Group

Footnotes

Frame cover panel front top1 1732684SM 1

Cable loom2 1732683SM 1

Switch wiper-washer system3 1732708SM 1

Blind cover4 1732715SM 2

Blind plug 12mm5 1721319SM 3

Sun blind6 1732599SM 1

Nipple with screw7 1721438SM 1

Cap nut M48 1721437SM 1

Oval countersunk head screw M4x159 1732641SM 2

Shim disk M410 1732653SM 2

Nut M411 1732645SM 2

Sheet metal screw 4.8x1612 1721415SM 10

Frame cover panel rear top13 1732666SM 1

Sheet metal screw 3.5x1614 1732643SM 2

Switch (13.350) 1-stage15 1732714SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

Frame Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1\4281fg

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Frame Group

Footnotes

Side frame left1 1732671SM 1

Side frame right2 1722672 1

Impact nipple H1 d=6mm3 1732662SM 4

Glass SH left4 1732703SM 1

Glass SH right5 1732689SM 1

Activator 30ml6* 1

Adhesive for panel (Sikadrive)7* 1

Locking pin 13mm8 1721434SM 2

Washer9 1732597SM 2

Slide-off strap10 1732696SM 2

Threaded plate11 1732695SM 2

Door push-out12 1721391SM 2

Countersunk head screw M8x2013 1732640SM 2

Stop nut M814 1732648SM 2

Cable loom15 1732683SM 1

Stop nut M616 1732647SM 8

Blind plug 18mm17 1732664SM 4

Coat hook18 1732700SM 1

Sheet metal screw 3.9x1319 1732642SM 1

Pneumatic spring sleeve l=22mm / 2x M820 1721313SM 2

Shim disk M821 1732656SM 25

Oval head screw M6x16 cross-recessed22 1732644SM 8

Locking device23 1732710SM 4

Cross-strut front above24 1732669SM 1

Cross-strut rear above25 1732670SM 1

Front panel26 1732673SM 1

Tube profile27 1721316SM 3.9m

Rear panel28 1732674SM 1

Hexagon head screw M8x2029 1732637SM 18

Retainer ring30 1732661SM 23

Mirror left complete 602001 (Includes Ref. No. 36)31 1732699SM 1

Mirror left complete 602001 (Includes Ref. No. 36)32 1732698SM 1

Hexagon head screw M6x1633 1732635SM 6

Shim disk M634 1732655SM 10

Cover cap d=6mm35 1732717SM 4

Mirror36 ** 1

Compriband A20/1537 1721323SM 3.4m

Hexagon head screw M8x1238 1732636SM 5

Expansion rivet39 1732712SM 1

Velour band40 1732665SM 0.3m

Distance plate hinge t=8mm41 1732711SM 8

NOTE* Not a serviceable part.

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

Front Windshield Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

1\4281fwg

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694401 - Deluxe Hard Snow Cab

TP 400-4281-00-AT-SMA

Inhaltsverzeichnis

Andere Simplicity Rasen- und Gartengeräte Handbücher

Simplicity

Simplicity 4561 Einrichtungshandbuch

Simplicity

Simplicity 1694543 Einrichtungshandbuch

Simplicity

Simplicity 1694874 Einrichtungshandbuch

Simplicity

Simplicity 1694924 Bedienungsanleitung

Simplicity

Simplicity 4546 Einrichtungshandbuch

Simplicity

Simplicity 50” Mulch Kit Bedienungsanleitung

Simplicity

Simplicity 1691688 Bedienungsanleitung

Simplicity

Simplicity 4534 Einrichtungshandbuch

Simplicity

Simplicity 1010 Bedienungsanleitung

Simplicity

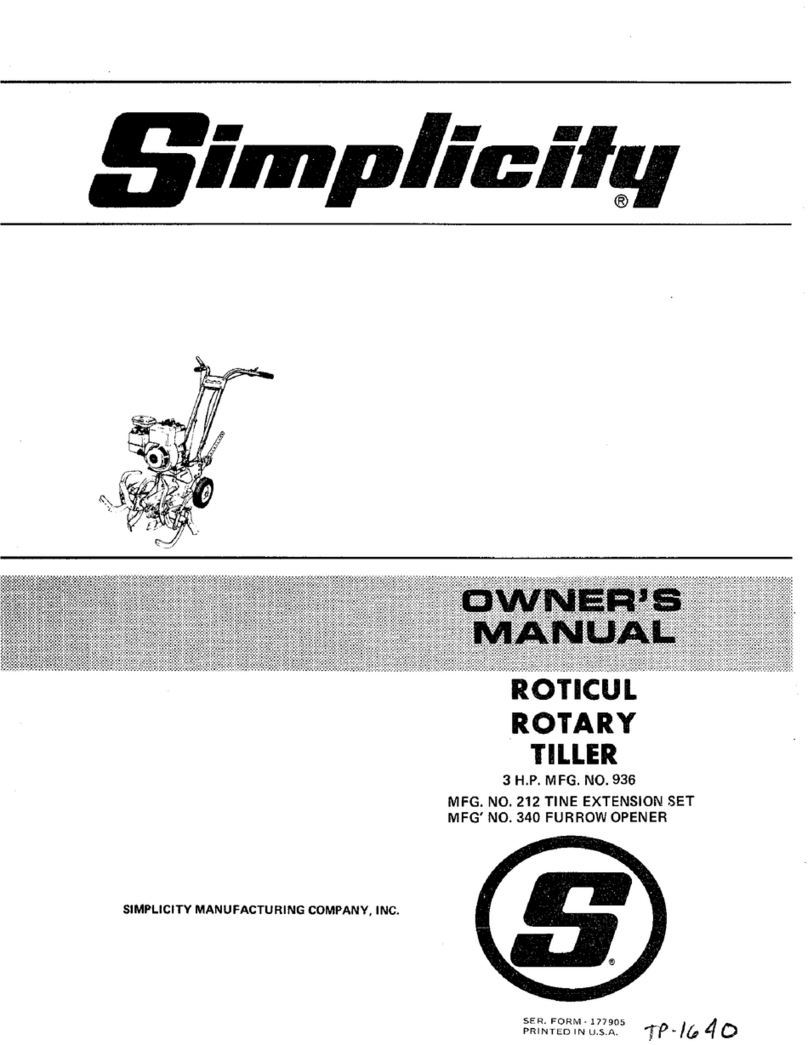

Simplicity 212 Bedienungsanleitung
