Simplicity SNAPPER 250 Z Bedienungsanleitung

Installation

Instructions

44”Mulch Kit

Mfg. No. 1695055

For Javelin / 250Z Series

Figure 1. Contents

Kit Contents:

Ref. Part No. Qty. Description

1 1716696 3 BLADES, Mower

2 1726578 1 PLATE, Mounting

3 1732198A 1 BAFFLE ASSEMBLY

4 2171600 1 STRAP, Rubber

5 1933988 8 NUT, Push, 5/16

6 1960096 1 WASHER

7 1960393 1 SCREW, Phillips, #10-24 x 1

8 1933896 1 NUT, Hex, Nylock, #10-24

9 1927557 10 NUT, Hex, Flange Lock, 5/16-18

10 1931332 10 CARRIAGE BOLT, 5/16-18 x 5/8

11 1732432A 1 BAFFLE & DEFLECTOR, LH

12 1732435A 1 BAFFLE & DEFLECTOR, RH

13 1933988 1 CARRIAGE BOLT, 1/4-20 x 1-1/2

14 1920397 1 NUT, Hex, Nylock, 1/4-20 12

INSTALLATION

1. Remove the mower deck. Refer to Operator’s

Manual (see Mower Deck Removal & Installation).

2. See Figure 2. Remove the blades. Use a block of

wood to prevent blade rotation while loosening the

blade nut by turning it counterclockwise.

Before beginning any service work turn off the

PTO, set the parking brake, turn off the ignition,

remove the key, and disconnect the spark plug

wire(s).

WARNING

LOOSEN

Figure 2. Blade Removal

Installation Instructions Mulch Kit

Figure 3. Blade Installation

A. 4x4 Wood Block

B. Spring Washer

C. Blade Nut

D. Blade W/Lift Wings

3. Remove the blade nut (C, Figure 3), spring washers

(B), and blade (D).

4. Reinstall the new blades with the lift wings (D, Figure

3) pointing up toward the mower deck as shown.

5. Reinstall the spring washers (B, Figure 3) and blade

nut (C). Use a wooden block (A) to prevent blade

rotation while tightening the blade nut (C) to 70-80 ft.

lbs. (95-108 Nm). Turn blade nut clockwise to tight-

en.

6. Remove and discard short blowout baffle (C, Figure

4), carriage bolts (B) and locknuts (D) from mower

deck (A).

7. Remove and retain1/4-20 locknut (A, Figure 5) and

1/4 washer (B). Remove and discard 1/4-20 x 1 car-

riage bolt (C).

8. Install 1/4-20x 1-1/2 carriage bolt (C, Figure 6) secur-

ing with 1/4 washer (B) and one 1/4-20 locknut (A) as

shown. Connect second 1/4-20 locknut (A) to car-

riage bolt (C) until the top of the locknut (A) is flush to

the top of carriage bolt (C).

Figure 4. Baffle Removal

A. Mower Deck

B. Carriage Bolts,5/16-18 x 3/4

C. Blowout Baffle, Short

D. Nut, Whizlock, 5/16-18 x 3/4

Figure 5. Carriage Bolt Removal

A. Nut, Lock, 1/4-20

B. Washer, 1/4

C. Carriage Bolt, 1/4-20 x 1

Figure 6. Carriage Bolt Installation

A. Nuts, Lock, 1/4-20

B. Washer, 1/4

C. Carriage Bolt, 1/4-20 x 1-1/2

Mulch Kit Installation Instructions

Figure 7. Baffle Installation

Figure 8. Mulch Cover Installation

A. Baffle Assembly

B. Mounting Plate

C. Locknut

D. Discharge Deflector

E. Rubber Strap

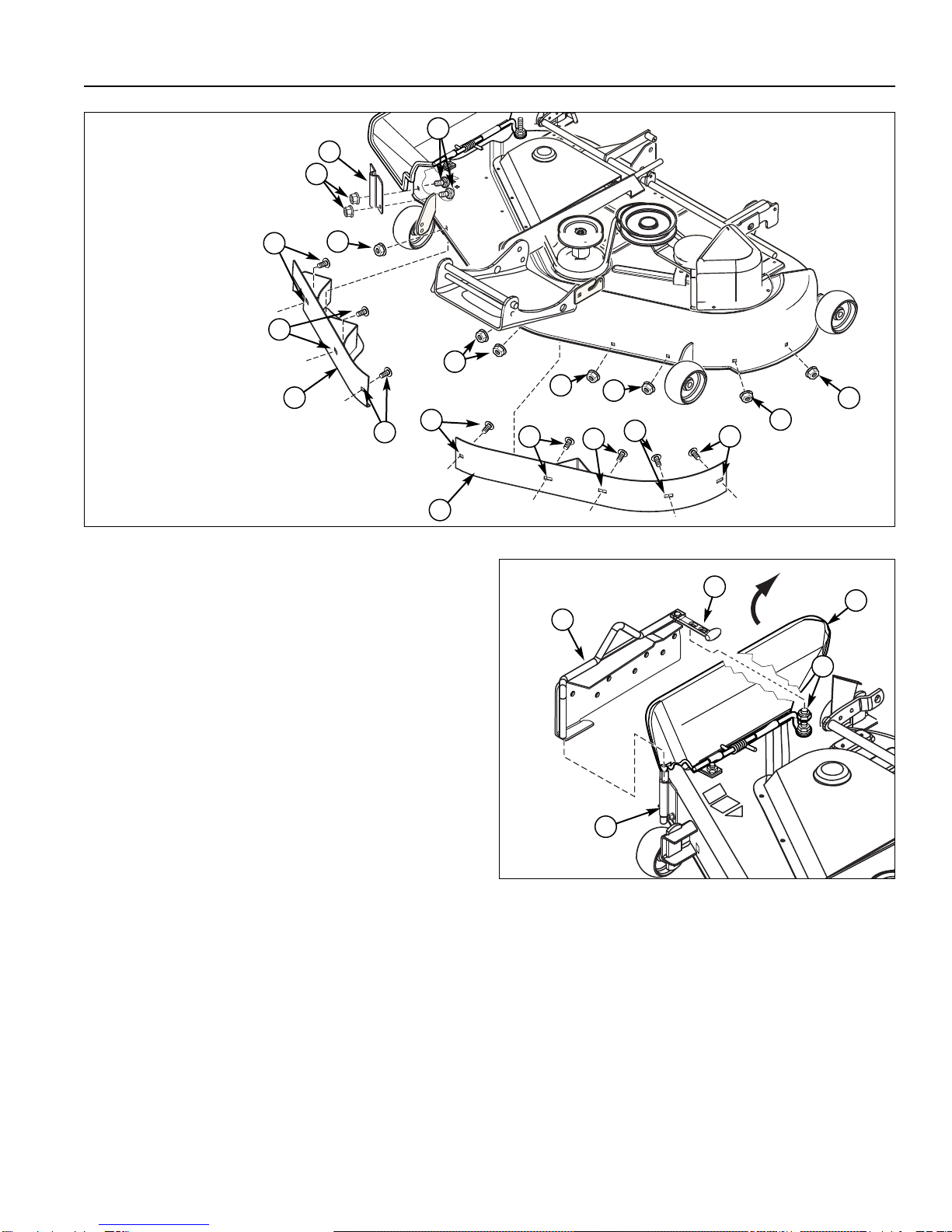

9. Install RH baffle (E) and secure with carriage bolts &

push nuts (B) and nuts (C).

Note: The carriage bolt & push nuts are combined to

hold carriage bolt in place and aid in ease of installation.

10.Install mounting plate (A, Figure 7) to mower deck

securing with 5/16-18 x 5/8 carriage bolts (F), and

nuts (C).

11.Install LH baffle (D) and secure with carriage bolts &

push nuts (B) and nuts (C).

12.Install the mower deck. Refer to the Operator’s

Manual (see Mower Deck Removal & Installation)

13.Lift discharge deflector up (D, Figure 8).

14.Insert mulch baffle assembly (A) into mounting plate

(B).

15.Pull rubber strap (E) below discharge deflector and

secure by placing strap (using second hole in strap)

completely over locknut (C).

Note: The new mulching blades DO NOT need to be

removed or changed for side discharge. For use with a

bagger the mulching/side discharge blade will need to be

replaced with a bagging blade.

A. Mounting Plate

B. Carriage Bolts & Push Nuts

C. Nut, Flange Lock, 5/16-18

D. Baffle, LH

E. Baffle, RH

F. Carriage Bolts, 5/16-18 x 5/8

BBBBBB

Installation Instructions Mulch Kit

Form No. 1732622-03

Rev. 11/2006

TP 200-4264-03-AT-SMAN

MANUFACTURING, INC.

500 N Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA
