Instruction Manual
96861 SIMPRD 342-1-513 Cover 9/6/04 4:01 PM Page 2
ELECTRIC UNDERBENCH AND SEPARATE GRILL WALL OVEN
Read the following safety information to avoid accidents.
General Warnings
• This appliance is not suitable for use by young children or infirm persons, without supervision.
• Young children should be supervised to ensure they do not play with this appliance.
• During use, this appliance becomes hot. Care should be taken to avoid touching hot surfaces.
• This appliance must not be used as a space heater.
• In order to avoid a fire, the appliance must be kept clean and vents kept unobstructed.
• Do not spray aerosols in the vicinity of the appliance when it is in operation.
• Do not store flammable materials in or under the appliance, e.g. Aerosols.
• Accessible parts will become hot when in use. To avoid burns & scalds children should be kept away.
• If the supply cord is damaged it must be replaced by a qualified person.
Grill
• Always turn the grill off immediately after use as fat left there may catch fire.
• Do not cover the insert with foil, as fat left there may catch fire.
• Always keep the grill dish clean as any fat left may catch fire.
• Do not leave the grill on unattended.
• To avoid a fire, ensure that grill trays and fittings are always inserted into the appliance in accordance
with the instructions.
• Do not place thick portions of food under the grill. Foods may curl, catch and ignite.
• Do not store flammable materials in the grill.
Oven
• During use the appliance becomes hot. Care should be taken to avoid touching the heating element
inside the oven.
• Switch the appliance off before removing the oven light glass for globe replacement.
• To avoid an accident, ensure that oven shelves and fittings are always inserted into the appliance in
accordance with the instructions.
• Do not use the door as a shelf.
• Do not push down on the open oven door.
• Do not line bottom of oven with foil or place cookware on oven base.
Installation, Cleaning and Servicing
• An authorised person must install this appliance. (Certificate of Compliance to be retained)
• Before using the appliance, ensure that all packing materials are removed from the appliance.
• In order to avoid any potential hazard, the enclosed installation instructions must be followed.
• Ensure that all specified vents, openings and airspaces are not blocked.
• Where the appliance is built into a cabinet, the cabinet material must be capable of withstanding
85 deg C.
• Only authorised personnel should carry out servicing. (Certificate of Compliance to be retained)
• Always ensure the appliance is switched off before cleaning or replacing parts.
• This appliance contains aluminum fittings. Do not use caustic based cleaners.
• Do not use steam cleaners, as this may cause moisture build up.
• Always clean the appliance immediately after any food spillage.
• To maintain safe operation, it is recommended that the product be inspected every five years by an
authorised serviceperson.
•This appliance must be earthed.
Models Looking at range & controls 4
Understanding your oven 9
Cooking Understanding the functions 12
Using the Timer and Clock 15
Using the Oven 17
Using the Grill 18
Cooking Guide 20
Handling baking & grilling problems 21
Maintenance Cleaning and caring for your oven 22
Catalytic self cleaning panels 26
Solving problems 27
Installation Installation Points 28
Installing your: underbench oven 29
separate grill oven 30
Preparing your Appliance for the first time 31
Service & Warranty 32
1
2
34
4
MODELS (Note: Check your model number on the control panel)

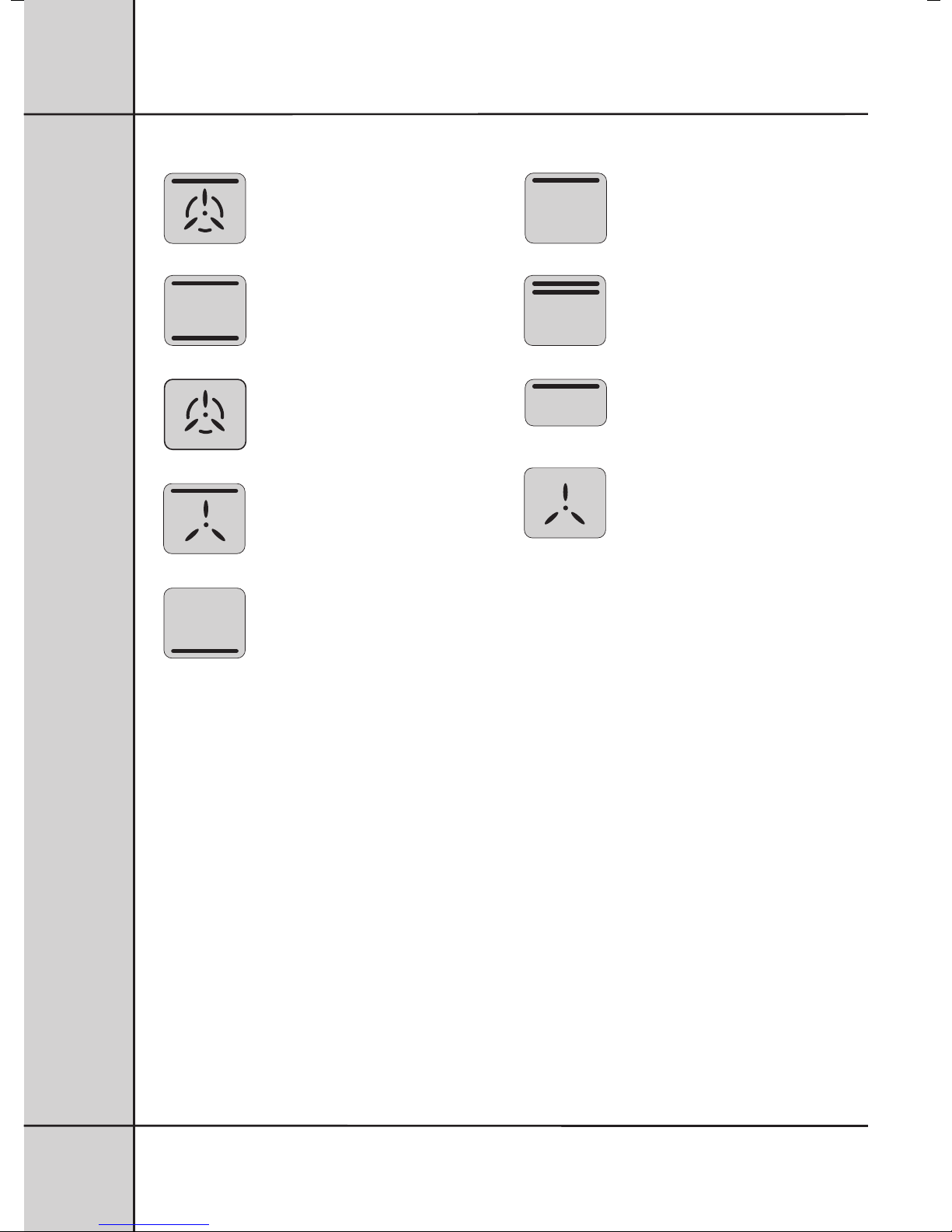

Cooking Guide Symbols (to help you understand our instructions more easily)
Fan Bake
WARNING:
• This appliance is not intended for use by young children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with this appliance.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements
inside the oven.
Rapid Heat
Fan Grill
Maxi Grill - In Oven
Base Heat (Multifunction)
Bake (Conventional)
Grill - In Oven
Defrost
Grill - Separate
Bake/Pizza
1
5
1. Oven/Grill Knob
• Turns oven light on.
• Sets baking temperature (see page 12).
• Turns grill on (see page 13).
2. Oven Indicator Lamp
• Comes on when you are baking or grilling.
• Cycles on and off automatically during baking.
3. 60 Minute Ringer Timer
• Sets baking or grilling reminder time
(see page 15).
Accessory Pack
• Oven shelf.
• Slide out grill dish.
• Smokeless grill insert.

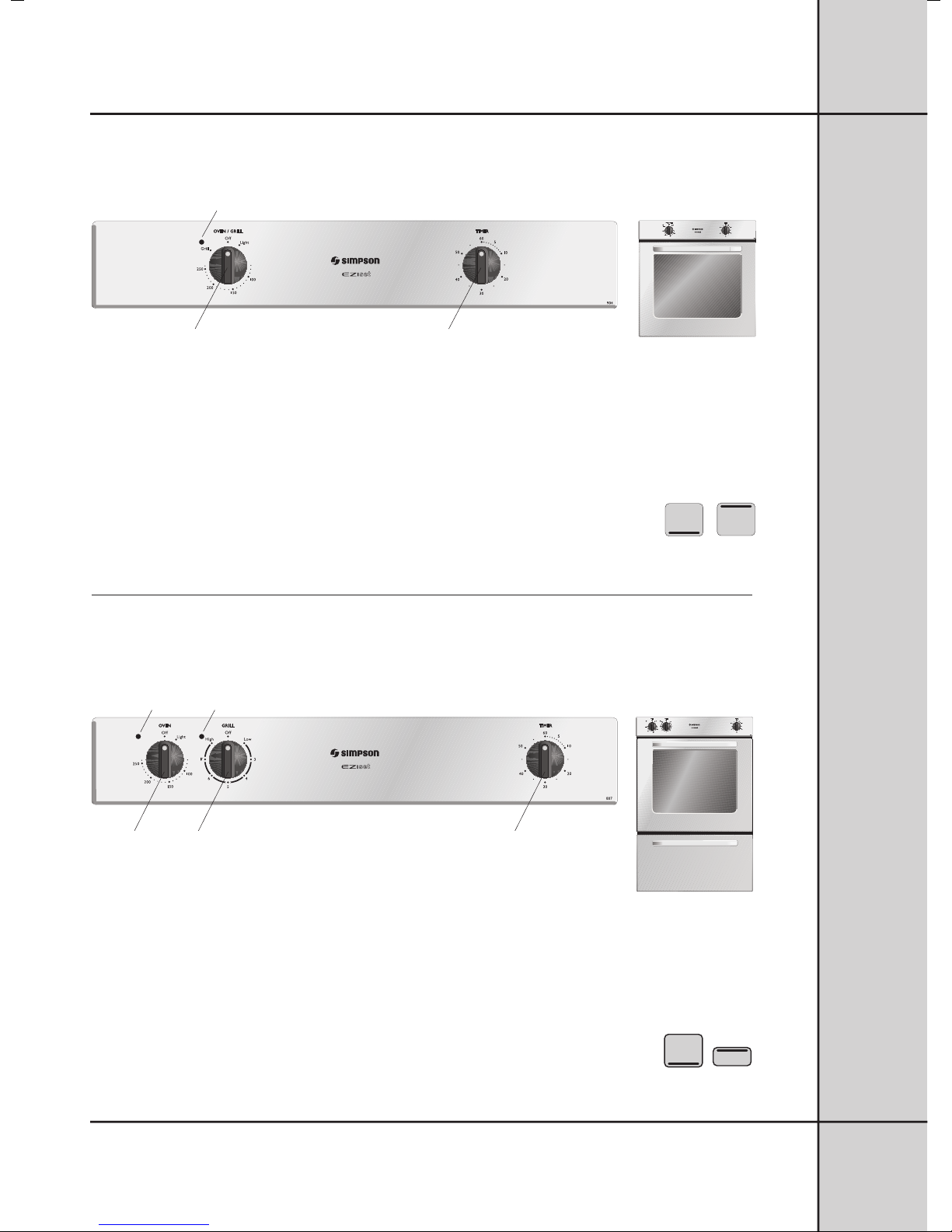

Electric Grill - In - Oven (Conventional)
Model No. 904
1. 3.
2.
2.
1. Oven Knob
• Turns oven light on.
• Sets baking temperature (see page 12).
2. Oven Indicator Lamp
• Comes on when you are baking.
• Cycles on and off automatically during baking.
3. Grill Knob
• Sets grilling temperature for separate grill
(see page 14).
4. Grill Indicator Lamp
• Comes on when grilling.
5. 60 Minute Ringer Timer
• Sets baking or grilling reminder time
(see page 15 ).
Accessory Pack
• 2 Oven shelves.
• Slide out grill dish.
• Smokeless grill insert.
1. 5.
Electric Separate Grill Oven (Conventional)
Model No. 807
4.
3.
1
6

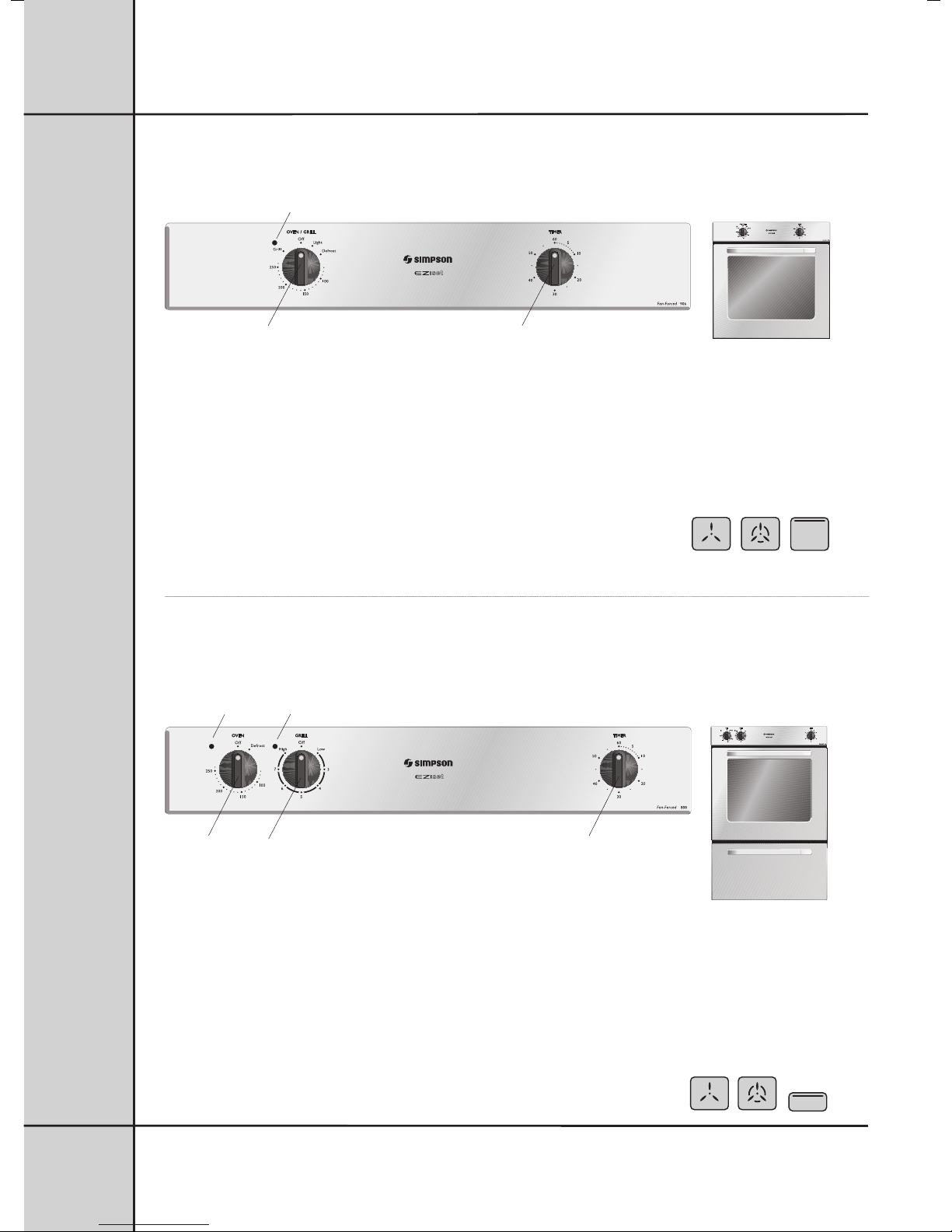

MODELS (Note: Check your model number on the control panel)
Electric Grill - In - Oven (Fan Forced)
Model No. 906
1. 3.
2.
1. Oven/Grill Knob
• Turns oven light on.
• Turns defrost function on (see page 12).
• Sets baking temperature (see page 12).
• Turns grill on (see page 13).
2. Oven Indicator Lamp
• Comes on when baking or grilling.
• Cycles on and off automatically during baking.
3. 60 Minute Ringer Timer
• Sets baking or grilling reminder time
(see page 15).
Accessory Pack
• 2 Oven shelves.
• Slide out grill dish.
• Smokeless grill insert.
1. 5.
2.
Electric Separate Grill Oven (Fan Forced)
Model No. 808
4. Grill Indicator Lamp
• Comes on when grilling.
5. 60 Minute Ringer Timer
• Sets baking or grilling reminder time
(see page 15).
Accessory Pack
• 2 Oven shelves.
• Slide out grill dish.
• Smokeless grill insert.
1. Oven Knob
• Turns defrost function on (see page 12).
• Sets baking temperature (see page 12).
2. Oven Indicator Lamp
• Comes on when baking.
• Cycles on and off automatically during baking.
3. Grill Knob
• Sets grilling temperature for separate grill
(see page 14 ).
4.
3.
1
7
1. Oven Knob
• Turns defrost function on (see page 12).
• Sets baking temperature (see page 12).
2. Oven Indicator Lamp
• Comes on when baking.
• Cycles on and off automatically during baking.
3. Grill Knob
• Sets grilling temperature for separate grill
(see page 14 ).
4. Grill Indicator Lamp
•Comes on when griller is turned on.
5. 60 Min Ringer Timer
•Sets baking or grilling reminder time (see
page 15).
Accessory Pack
• 2 Oven shelves.
• Slide out grill dish.
• Smokeless grill insert.

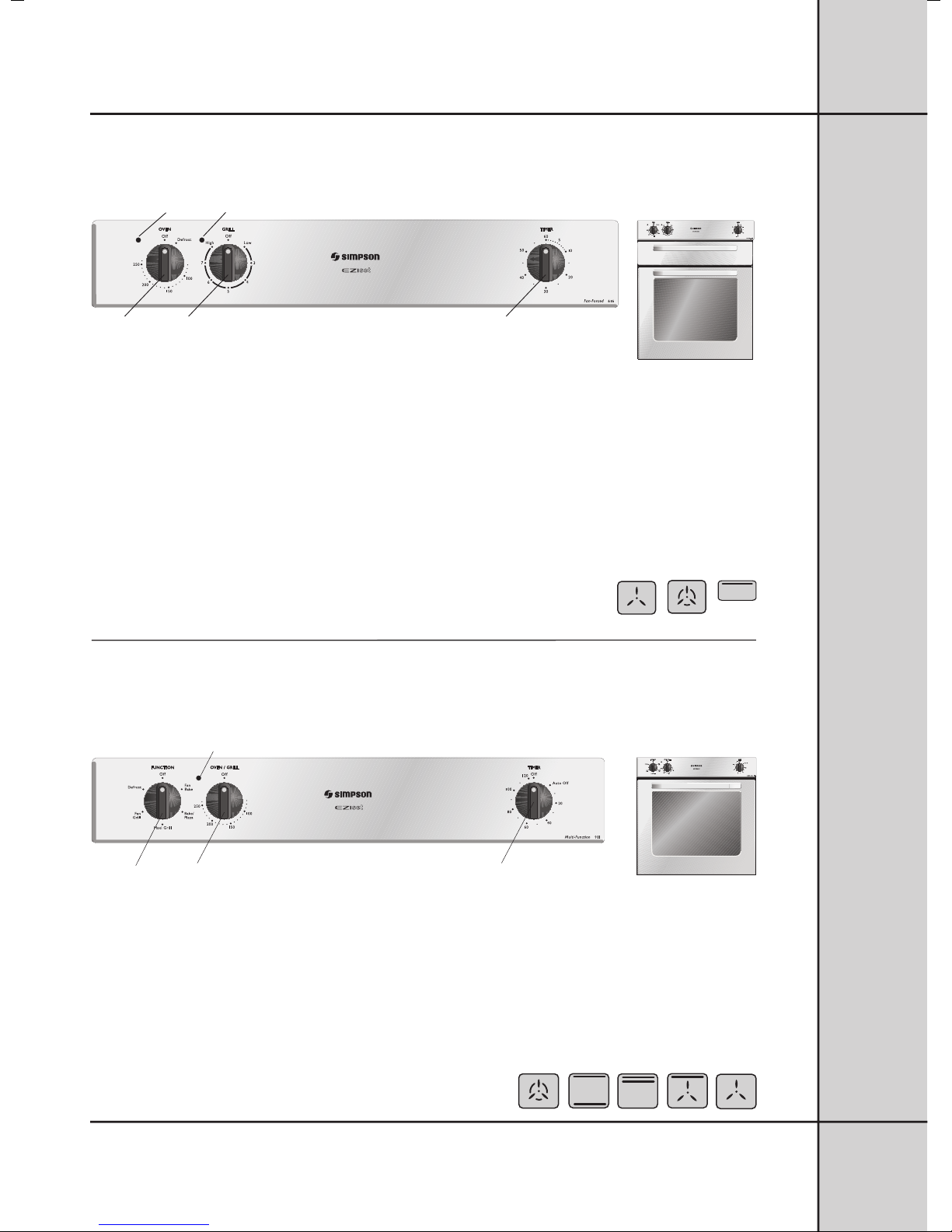

Electric Separate Grill Underbench Oven (Fan Forced)
Model No. 616
2. 4.
1. 3. 5.
4. Two Hour Timer
• Allows the oven to be set for a desired period
(see page 15).
Accessory Pack
• 2 Oven shelves.
• Slide out grill dish.
• Smokeless grill insert.
Electric Multifunction 5 Oven
Model No. 911
4.
1. Function Knob
• Sets the function you want.
Note: Select desired cooking function before you
set the temperature.
2. Oven Indicator Lamp
• Comes on when you operate the
oven/grill knob.
• Cycles on and off automatically.
3. Oven/Grill Knob
• Sets temperature for all functions except defrost.
1.
2.
3.
1
8
MODELS (Note: Check your model number on the control panel)

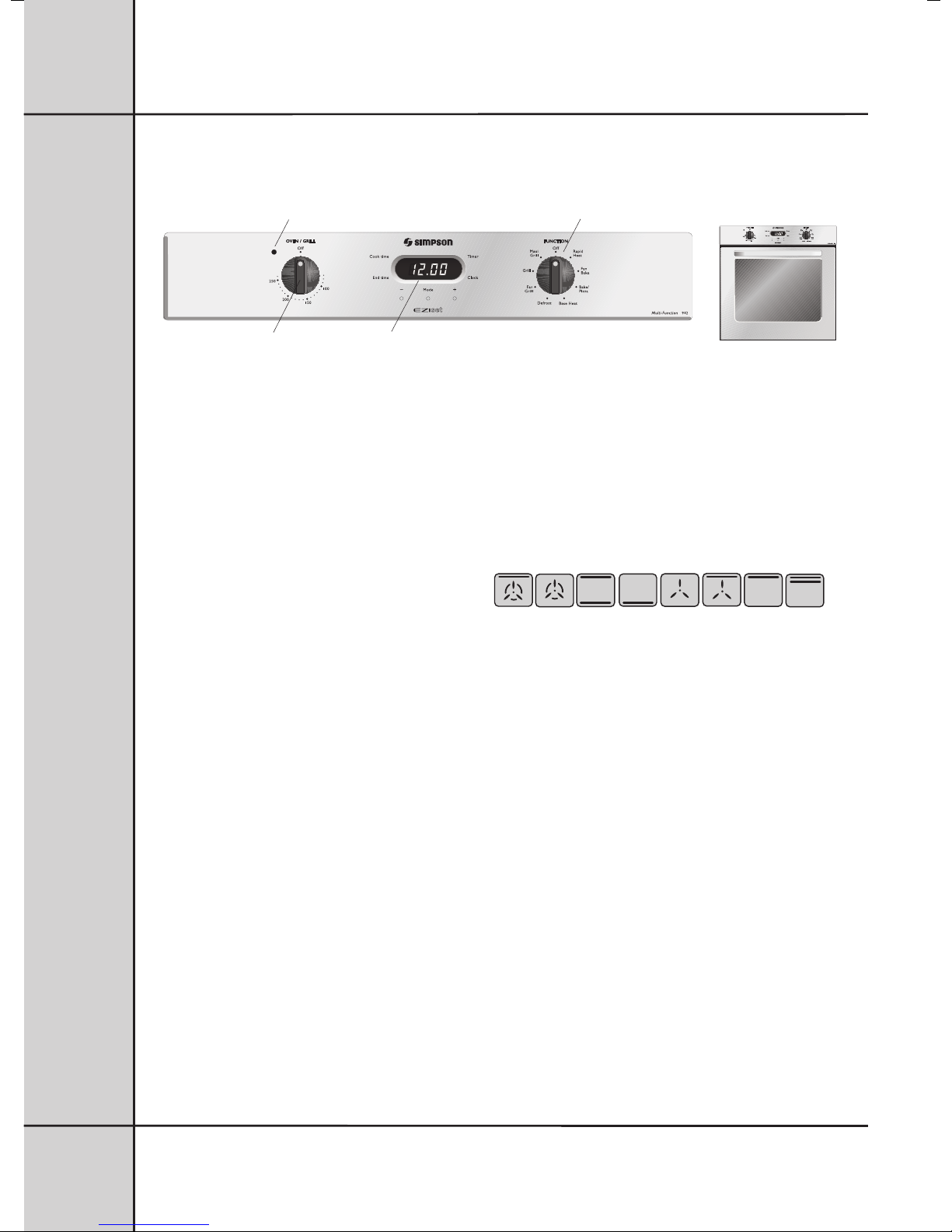

Electric Multifunction 8 Oven
Model No. 912
1. Oven/Grill Knob
• Sets temperature for all functions except defrost.
2. Oven Indicator Lamp
• Comes on when you operate the
oven/grill knob.
• Cycles on and off automatically.
3.Three Button Electronic Timer
• Shows time of day.
• Sets automatic cooking duration and
start time (see page 15).
4. Function Knob
• Sets the function you want.
Note: Select desired cooking function before you
set the temperature.
Accessory Pack
• 2 Oven shelves.
• Slide out grill dish.
• Smokeless grill insert.
1.
2.
3.
4.
1
9

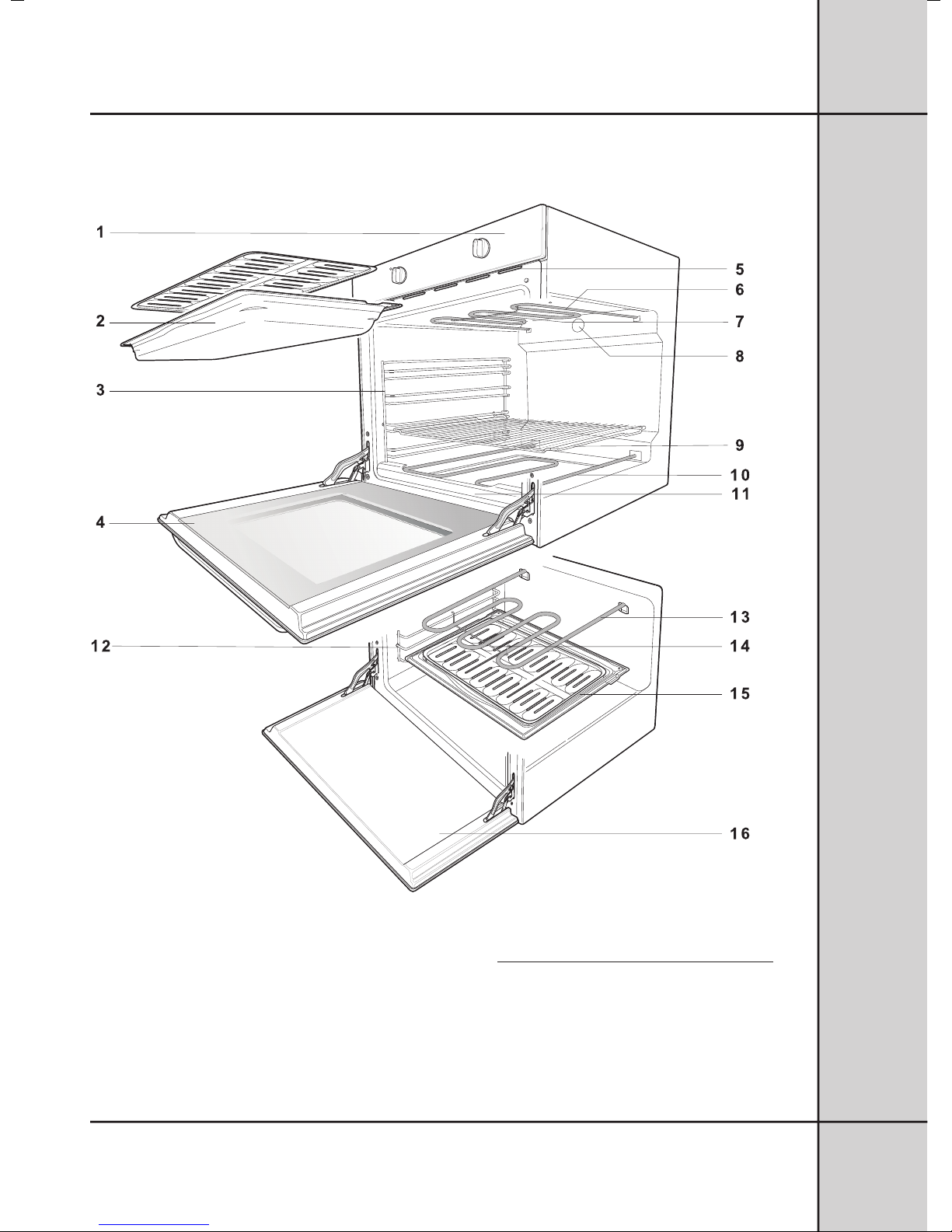

Conventional Underbench & Separate Grill Ovens
This section talks about different parts of your wall oven.The main ones you need to know are shown
on the following diagrams
UNDERSTANDING YOUR OVEN
1. Control Panel
2. Full Width Grill Dish & “Smokeless” Grill Insert
(underbench models only)
3. Grill Dish & Shelf Support
(removable - see page 23).
4. Oven Door (removable - see page 22).
5. Cooling Fan Vents
6. Upper Element (underbench models only)
7. Upper Element Support Clip (underbench models only)
8. Oven Light
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
9. Shelf
10. Lower Element
11. Element shield
12. Grill Dish Support
(removable see page 23)
13. Grill Element
14. Grill Element Support Clip
15. Full Width Grill Dish & “Smokeless
Grill Insert”
16. Grill Door (removable see page 22)
1
10

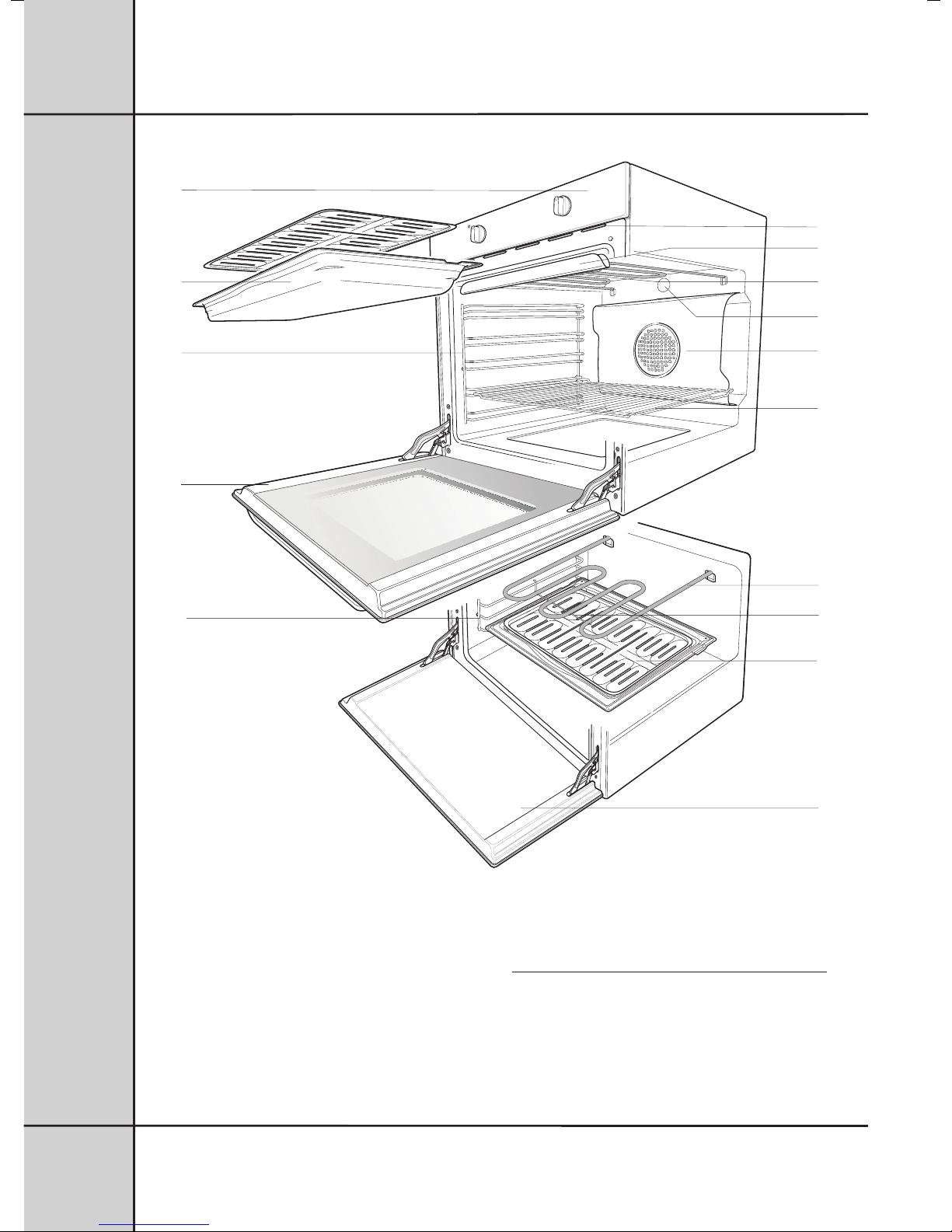

Fan Forced and Multifunction Underbench & Separate Grill Ovens
UNDERSTANDING YOUR OVEN (Continued)
1. Control Panel
2. Full Width Grill Dish & Rack
3. Grill Dish & Shelf Support
(removable - see page 23).
4. Oven Door (removable - see page 22).
5. Cooling Fan Vents
6. Upper Element Shield
7. Upper Element
8. Oven Light
9. Fan Cover (removable - see page 25)
10. Shelf
11. Grill Dish Support (removable - see page 23)
12. Grill Element
13. Grill Element Support Clip
14. Full Width Grill Dish & Rack
15. Grill Door (removable - see page 22)
1
1.
2.
3.
4.
11.
15.
14.
13.
12.
10.
7.
6.
5.
9.
8.
