ENGLISH

TP10, TP22, TP32

User Guide

simrad-yachting.com

| 1

Preface| TP10, TP22 & TP32 User Guide

Preface

As Navico is continuously improving this product, we retain the

right to make changes to the product at any time which may not be

reﬂected in this version of the manual. Please contact your nearest

distributor if you require any further assistance.

It is the owner’s sole responsibility to install and use the equipment

in a manner that will not cause accidents, personal injury or

property damage. The user of this product is solely responsible for

observing safe boating practices.

NAVICO HOLDING AS AND ITS SUBSIDIARIES, BRANCHES AND

AFFILIATES DISCLAIM ALL LIABILITY FOR ANY USE OF THIS PRODUCT

IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE OR THAT MAY

VIOLATE THE LAW.

Governing Language: This statement, any instruction manuals,

user guides and other information relating to the product

(Documentation) may be translated to, or has been translated from,

another language (Translation). In the event of any conﬂict between

any Translation of the Documentation, the English language

version of the Documentation will be the oﬃcial version of the

Documentation.

This manual represents the product as at the time of printing.

Navico Holding AS and its subsidiaries, branches and aﬃliates

reserve the right to make changes to speciﬁcations without notice.

Warranty

The warranty card is supplied as a separate document.

In case of any queries, refer to the our web site:

www.simrad-yachting.com

2 | Preface | TP10, TP22 & TP32 User Guide

Contents

3 General

3 Introduction

4 The SimNet network system

5 Operation

5 General

5 Autopilot mode

5 Adjusting course

6 Autotack

7 Advanced Features

7 Nav mode

7 Steer To Wind

8 Using an external compass

9 Conguration

9 Porthand mounting

9 Calibration mode

11 Autotrim

12 Installation

12 Fitting the Tillerpilot

14 Electrical installation

16 Interfacing via SimNet

17 Conﬁguring the TP on the SimNet bus

18 Interfacing via NMEA

19 Electronic interference suppression

19 Auto compass calibration

21 Appendix

21 Advice on operation

22 Troubleshooting

24 NMEA sentences received

25 Spares & accessories

25 Mounting accessories

26 Dimensions

26 Speciﬁcation

| 3

General | TP10, TP22 & TP32 User Guide

General

Introduction

The TP10, TP22, and TP32 Tillerpilots from Simrad are suitable for a

wide variety of tiller-steered sailing yachts up to 12 m (39ft) overall

length.

Combining highly sophisticated electronics with advanced software

and a powerful mechanical drive, they are capable of providing

reliable and accurate steering performance under a variety of

diﬀerent conditions with minimal current consumption.

The Tillerpilots have been designed so that, while they represent the

state-of-the-art in marine autopilots with many advanced features,

they remain very simple to operate, using only ﬁve keys to access all

functions.

Sophisticated functions of the TP22 and TP32 include Steer To Wind

mode and Nav mode (Steer To GPS) using external equipment

linked directly to the Tillerpilots via the SimNet high-speed bus, or

through the built-in NMEA 0183 interface. There is also the option to

operate the Tillerpilots remotely using a remote controller. For more

details please refer to our website: www.simrad-yachting.com.

To ensure the best results from your Tillerpilot, it is essential that the

unit is installed correctly. Please read this manual thoroughly before

installation.

NAV

STBY

TACK

STBY

AUTO

4 | General | TP10, TP22 & TP32 User Guide

The SimNet network system

The SimNet system is built around a high-speed bus networking

system, that allows the TP22 and TP32 to be easily interconnected to

Simrad instruments and navigation equipment.

Units are interconnected and powered using a standard single

cable.

Typical SimNet system

The Tillerpilot can receive navigational information from the

chartplotter for Steer To GPS (Nav mode).

It will also accept wind angle data from the wind transducer for

Steer To Wind mode, boat speed data from the Speed instrument,

and heading data from the compass transducer.

Additionally, heading data from the Tillerpilot’s built-in ﬂuxgate

compass can be displayed on any instrument displays capable of

showing compass information.

¼Note: Heading data from the Tillerpilot will only be shown on

instrument displays if there is no external compass transducer

present on the network. Priority is always given to external compass

transducers for heading data.

| 5

Operation | TP10, TP22 & TP32 User Guide

Operation

General

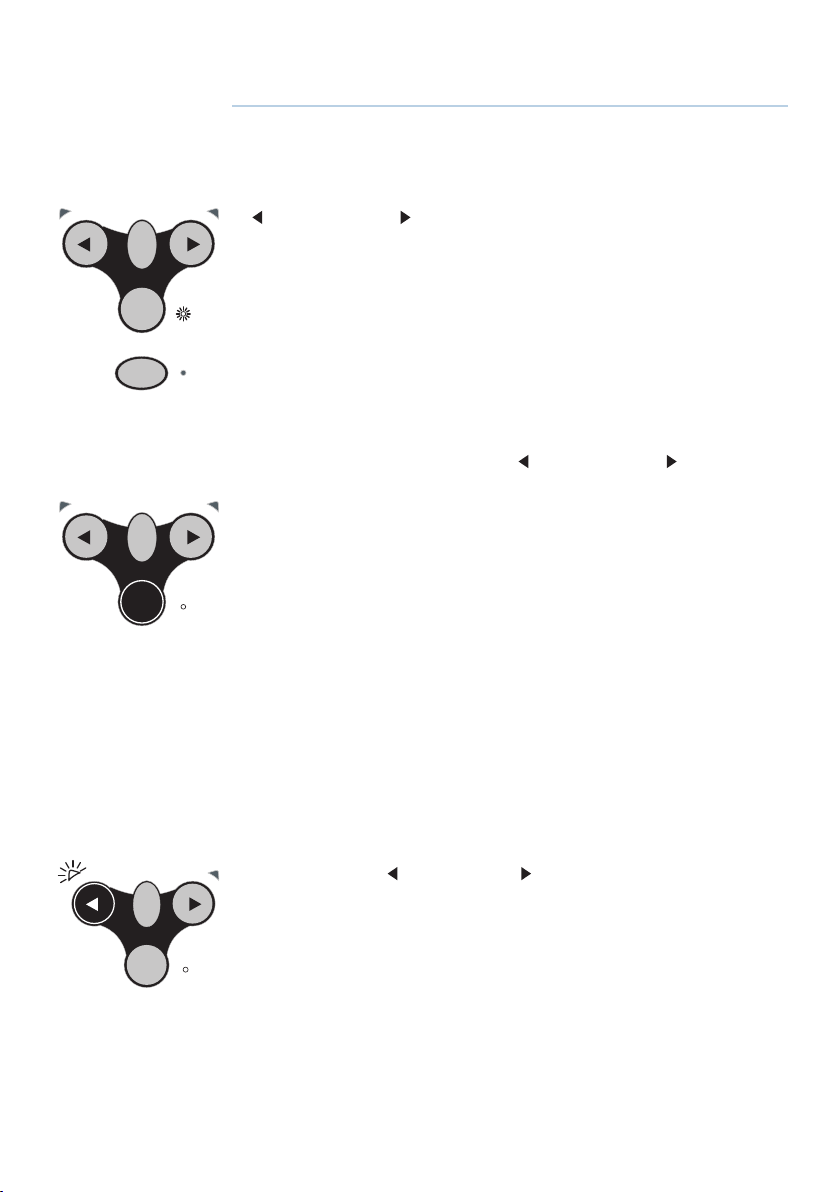

The unit powers up in Standby mode indicated by a ﬂashing LED

next to the STBY/AUTO key. The two direction LEDs above the Port

( ) and Starboard ( ) keys are always dimly lit, which provides

night illumination for the keypad. All functions are conﬁrmed

audibly by a “beep”and visually by the LEDs, so the status of the unit

can always be conﬁrmed at a glance.

¼Note: The NAV key on the TP22 and TP32 is labeled CAL on the

TP10. Both keys are referenced where applicable.

Autopilot mode

While in Standby mode, the pushrod can be manually driven in and

out by pressing the arrowed Port ( ) and Starboard ( ) keys, which

allows “power steering” of the vessel.

To engage Autopilot mode, press the STBY/AUTO key and the

Tillerpilot will lock onto the current course. The LED next to this key

will stop ﬂashing and remain permanently lit as long as the pilot is

in Autopilot mode.

To lock the pilot onto the desired course, either steer the correct

course and then engage the autopilot, or engage the autopilot and

then adjust the heading until the correct course is being sailed (see

“Adjusting course”on page 5).

If the STBY/AUTO key is pressed and held, the pilot will beep a

second time and lock onto the previously used heading (this feature

will not be available if the unit has just been switched on).

Adjusting course

In Autopilot mode, precise course adjustments can be easily made:

- Press the Port ( ) or Starboard ( ) key once and a 1º course

adjustment will be made in the speciﬁed direction. This is

conﬁrmed by a single beep and the Port or Starboard LED will

ﬂash once.

- Press and hold either key and a 10º course adjustment will be

made, conﬁrmed by a double beep and a double ﬂash of the Port

or Starboard LED.

¼Note: Following any course adjustment in Nav mode (see “Nav

mode” on page 7), the Tillerpilot will gradually return to the

navigation track.

STBY

NAV

TACK

STBY

AUTO

STBY

NAV

TACK

STBY

AUTO

STBY

NAV

TACK

STBY

AUTO

6 | Operation | TP10, TP22 & TP32 User Guide

Autotack

The Tillerpilot has a built-in autotack facility, allowing easy tacking

of the vessel when single- or short-handed. An autotack is only

possible in Autopilot mode.

To initiate autotack, press and hold the TACK key, then short press

the Port ( ) or Starboard ( ) key whilst keeping the tack key held

down until both LEDS illuminate and you hear a beep. To conﬁrm

the autotack press the Port ( ) or Starboard ( ) key depending on

which direction you wish to tack.

The operation of the Tillerpilot will diﬀer during an autotack,

depending on whether the pilot is in Steer To Compass or Steer To

Wind mode:

Autotacking in Compass mode

If in Compass mode (default), the Tillerpilot will tack the vessel in the

selected direction through a tack angle of 100º.

Autotacking in Wind mode

The Tillerpilot will tack the vessel through to the same apparent

wind angle, but on the opposite tack.

¼Note: As a safety feature the Tillerpilot will only allow an autotack if

the apparent wind is less than 90º – i.e. autotack is disabled when

sailing downwind.

¼Note: The Tillerpilot automatically prevents tacking in the wrong

direction – if on Port tack, only an autotack onto Starboard tack will

be possible.

Autotacking in Nav mode

As the Tillerpilot will be steering directly to a waypoint, the autotack

facility is disabled while in Nav mode.

If it is necessary to perform an autotack, disengage Nav mode by

pressing the NAV key then perform the autotack.

Warning: Ensure that the boat is on the correct tack before

re-engaging Nav mode.

STBY

TACK

STBY

AUTO

STBY

TACK

STBY

AUTO

| 7

Advanced Features | TP10, TP22 & TP32 User Guide

Advanced Features

The TP22 and TP32 Tillerpilots contain many advanced features,

including the ability to accept course data from a variety of sources

other than the internal ﬂuxgate compass. Such sources include

SimNet- and NMEA-compatible navigational receivers (GPS/

chartplotters, etc.), wind vanes, and compass heading transducers.

Nav mode

The TP22 and TP32 Tillerpilots can interface directly with compatible

Simrad chartplotters via the SimNet high-speed data bus. They also

have an inbuilt NMEA interface, which allows connection to NMEA

0183-compatible GPS and chartplotters.

Once interfaced with a GPS or chartplotter, the Tillerpilot can steer

using data from this source in addition to the internal compass,

allowing it to steer to a waypoint with great accuracy.

To activate Nav mode, the unit must be in Auto mode (press STBY/

AUTO). Simply activate a waypoint or route programmed into the

GPS/chartplotter and press the NAV key. The LED next to the NAV

key will light and the Tillerpilot will steer to the ﬁrst waypoint using

Cross Track Error and Bearing To Waypoint information from the

navigational receiver to maintain an accurate course.

On arrival at the target waypoint an intermittent alarm will sound.

As a safety feature, to avoid an unexpected course change, the next

waypoint will not be automatically loaded until the NAV key is

pressed. When the vessel reaches the ﬁnal waypoint, the Tillerpilot

will continue its current course under Compass (Auto) mode.

¼Note : Some of the standard key stroke functions may have a

diﬀerent eﬀect in Nav mode than in Compass mode (see “Adjusting

course” on page 5 and “Autotacking in Nav mode” on page 6).

Steer To Wind

The TP22 and TP32 Tillerpilots can sail to the apparent wind angle

rather than a compass course using wind data via NMEA interfaces

or SimNet. Due to the faster data rate, the use of a SimNet windvane

is recommended – priority will be given to SimNet Wind data over

NMEA Wind data received by the Tillerpilot.

¼Note: If no wind information is present, the Tillerpilot will not enter

Steer To Wind mode.

STBY

TACK

STBY

AUTO

NAV

8 | Advanced Features | TP10, TP22 & TP32 User Guide

To select Steer To Wind mode, the unit must be in Auto mode (press

STBY/AUTO). Press and hold the PORT ( ) and STARBOARD ( )

keys together until a double beep is heard.

Both the Port and Starboard LEDs will ﬂash simultaneously while the

pilot is in Steer To Wind mode. To switch back to Compass mode,

simply press and hold the and keys together again until a

second beep is heard.

While in Steer To Wind mode, the Tillerpilot will lock onto the current

apparent wind angle being sailed. Any course adjustments made

will be relative to the apparent wind angle, rather than the compass

heading as when in Compass mode.

Initiating an autotack will turn the boat onto the same apparent

wind angle on the opposite tack. As a safety feature, autotack is

disabled when sailing downwind.

¼Note: Nav mode cannot be selected while in Steer To Wind mode –

to activate, return to Compass mode ﬁrst.

Using an external compass

The TP22 and TP32 Tillerpilots will preferentially steer to external

compass heading whenever such information is interfaced via the

SimNet bus.

The use of an external compass is particularly important on a

ferrous-hulled boat (i.e. steel, ferro cement, etc.), as the hull will

aﬀect the bearing read by the internal ﬂuxgate compass.

On a steel- or ferro-hulled boat,

the correct location for the

external compass would be

on the mast, between 1 and 2

meters above the deck. On a

non-ferrous-hulled boat, the

compass should be situated

low down, as near the center

point of the boat as possible,

but away from any sources of

magnetic interference such as

speakers, etc.

SimNet

compass

Tiller-

pilot

STBY

NAV

TACK

STBY

AUTO

Andere Handbücher für TP10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Simrad Schiffsausrüstung Handbücher

Simrad

Simrad IS42J Bedienungsanleitung

Simrad

Simrad NSO-II Bedienungsanleitung

Simrad

Simrad MX610 Bedienungsanleitung

Simrad

Simrad IS40 Bedienungsanleitung

Simrad

Simrad ITI TRAWL EYE - REV D Bedienungsanleitung

Simrad

Simrad Pump-1 Bedienungsanleitung

Simrad

Simrad IS20 Combi Bedienungsanleitung

Simrad

Simrad EK80 Bedienungsanleitung

Simrad

Simrad IS80 Heading Repeater HR80 Bedienungsanleitung

Simrad

Simrad NSS evo2 Kurzanleitung

Simrad

Simrad IS20 Combi Bedienungsanleitung

Simrad

Simrad ES60 - DATASHEET REV A Bedienungsanleitung

Simrad

Simrad AP20 Bedienungsanleitung

Simrad

Simrad EY500 Bedienungsanleitung

Simrad

Simrad ED162 Bedienungsanleitung

Simrad

Simrad GC80 EXPANDED Bedienungsanleitung

Simrad

Simrad FS70 - REV 3 Bedienungsanleitung

Simrad

Simrad CS90 Bedienungsanleitung

Simrad

Simrad ES70 - REV A Bedienungsanleitung

Simrad

Simrad IS40 Bedienungsanleitung

Simrad

Simrad PI HBU - REV A Bedienungsanleitung

Simrad

Simrad SimNet Kurzanleitung

Simrad

Simrad ES70 - REV A Bedienungsanleitung

Simrad

Simrad RS25-E Bedienungsanleitung

Beliebte Schiffsausrüstung Handbücher anderer Marken

Clarion

Clarion CMS2 Reparaturanleitung

EBS

EBS M7000 Bedienungsanleitung

Kongsberg

Kongsberg M3 Bathy Bedienungsanleitung

NPK

NPK SCS-1002 Bedienungsanleitung

Furuno

Furuno FE-800 Bedienungsanleitung

Harken

Harken 1561 Bedienungsanleitung

Notifier

Notifier FS-BSO Bedienungsanleitung

Raymarine

Raymarine ST40 Bedienungsanleitung

E2S

E2S E2XS112UL Bedienungsanleitung

R2Sonic

R2Sonic 2026 Bedienungsanleitung

COBHAM

COBHAM SAILOR 6000 Bedienungsanleitung

Clarion

Clarion GR10BT Reparaturanleitung

Raymarine

Raymarine Maxiview ST80 Benutzerhandbuch

GUIDANCE MARINE

GUIDANCE MARINE 20- Series Montageanleitung

Raymarine

Raymarine ST60 Tridata Benutzerhandbuch

olympia electronics

olympia electronics ΒS-531/1/MAR Bedienungsanleitung

Sonic

Sonic 2024 Bedienungsanleitung

Quicksilver

Quicksilver 88688A25 Handbuch
