Your quick and easy step-by-step
guide to setting up your
Fibre Broadband at home.
POWERED BY ASKEY
AP5690W WiFi
Singtel Wi-Fi 6 Mesh Extender
What’s in the box Overview
Quick Installation Guide x 1
Quick
Installation
Guide
POWERED BY AS KEY
AP5690W WiFi
SingtelWi-Fi 6 Mesh Extender
Quick
Installation
Guide
Power Cable x 1 Ethernet Cable x 1
Ethernet Cable For
Connecting Device
to Router
Power LED
WPS Button
LAN Ports
Reset Button
ON / OFF
Power
LAN LED
Mesh LED
FRONT VIEW BACK VIEW
Mesh Extender x 1
1506-0HNR000
White Flashing Mesh Pairing
LED
Power
White ON
Red ON
Red Flashing
Off
White/Red alt. Flashing
White Flashing
White ON
Off
White ON
Red ON
Off
Mesh device is ready
System failure
Mesh is booting up
Power off
Firmware upgrade
Factory Reset
Ethernet connection established
No LAN connection on the port
Good signal strength in wireless mesh network
(SNR > 25dB) / Wired backhaul
Weak signal strength in wireless mesh network
No mesh connectivity
LAN
Mesh
LED behaviour Device status
connectivity issues
LED Indicator
1. Turn off and turn on your Wi-Fi on your handphone
or device to reset the Wi-Fi connection.
2. If issue persists, reboot the router.
Scan here for
detailed instructions.
(You do not currently have any Mesh Extender installed.)
1. Use the Ethernet Cable to connect the LAN port (port
1-4) on the ONR to any LAN port at the back of a unit of
Mesh Extender.
2. Insert the Power Adapter into the Mesh Extender’s
Power Port and plug it into the power outlet. Depress
the power button on the back of the device if the device
does not turn on.
3. The POWER LED light will start flashing in red. Once
they turn a solid white, you're set!
4. Connect your Computer or mobile device to the Mesh
Extender via WiFi using the Username and Password
printed on the device label or use the ethernet cable
to connect your computer to the Mesh Extender's
LAN port.
(You already have a Wi-Fi 6 Mesh Extender installed.)
1. Connect your new Mesh Extender to a power point
close to the installed Mesh and turn on. Depress the
power button on the back of the device if it does not
turn on.
2. Press and hold the WPS button at the back of your
installed Mesh for 2 seconds, then press and hold the
WPS button on one of the Mesh Extender and wait
up to 5 minutes for the Mesh LED to turn solid white on
both Mesh Extenders.
3. Re-position the new Mesh Extender to a location
in-between your original Router / Mesh Extender and
the area in your home with weak WiFi signal and
switch on.
Router
Mesh
Extender

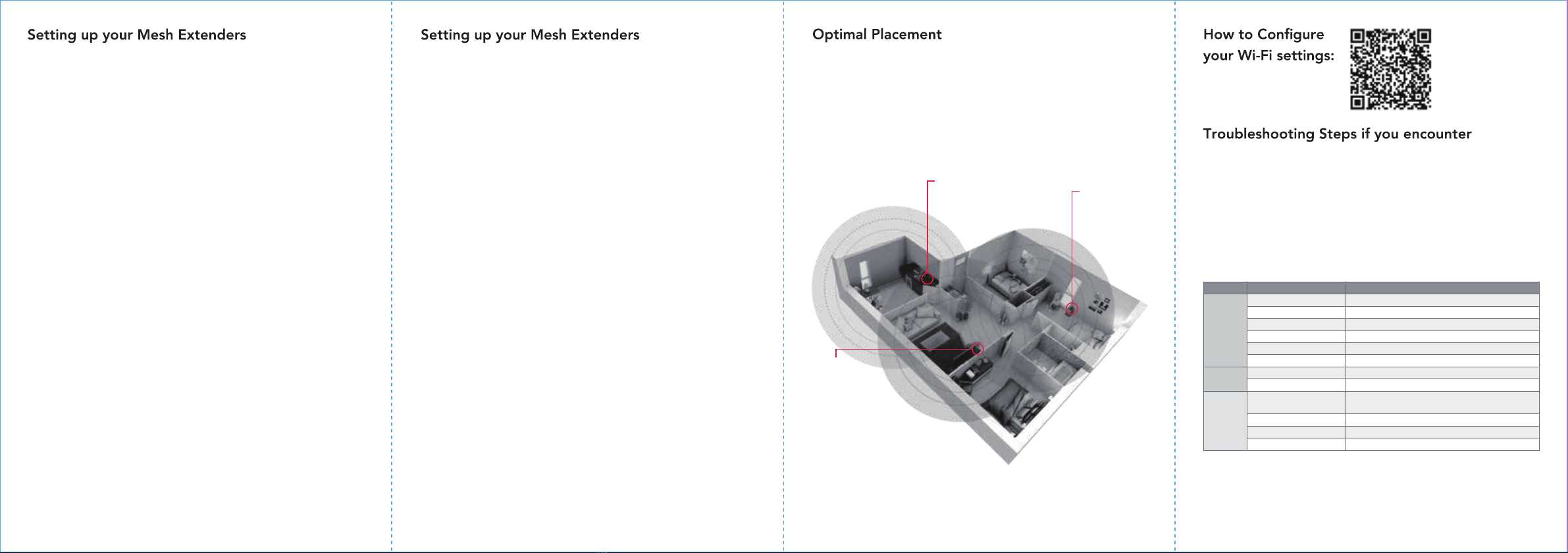

For optimal connection to eliminate WiFi deadspots,
the placement of each Mesh Extender device should be
within line of sight of the next closest device.
Mesh
Extender
(Optional)
