CX 220CX 220

CX 220CX 220

CX 220

//

//

/

260260

260260

260

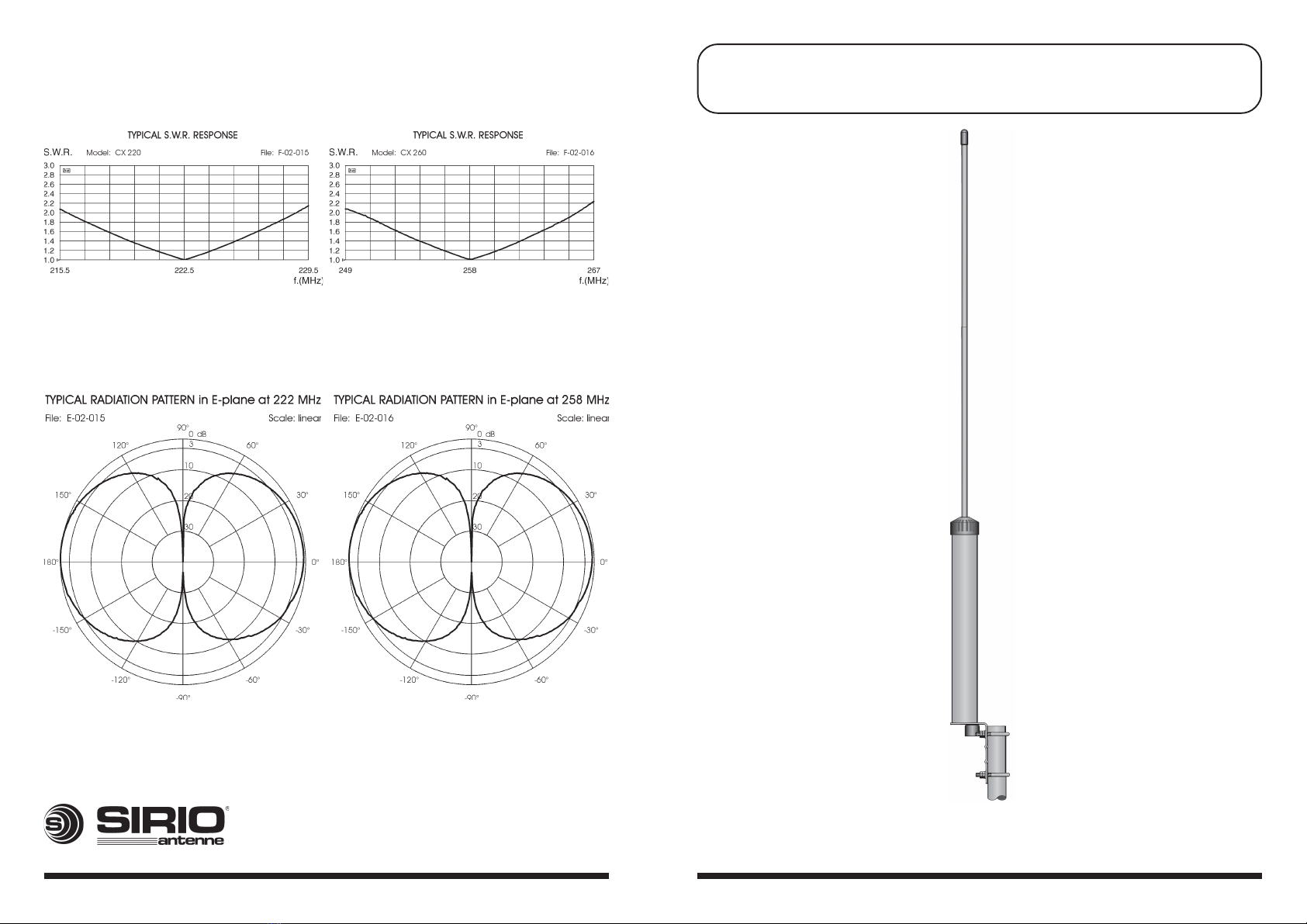

VHF Base Station Antennas 216-229VHF Base Station Antennas 216-229

VHF Base Station Antennas 216-229VHF Base Station Antennas 216-229

VHF Base Station Antennas 216-229

//

//

/

250-266 MHz250-266 MHz

250-266 MHz250-266 MHz

250-266 MHz

Installation ManualInstallation Manual

Installation ManualInstallation Manual

Installation Manual

BCopyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 02/12/2005 - Cod. ID137

HI-QUALITY ANTENNAS MADE IN ITALY

DESCRIPTION

3/4 λ VHF antenna for base station service made of high quality materials to get the best perfor-

mance and the maximun efficiency. It is completely manufactured with aluminium tubes and

nylon for its great robustness and it is supplied with a solid steel bracket for an easy and safe

installation. Its Gamma Match feed makes it earthed for a perfect protection against the static

discharges. In the mentioned range of frequencies, adjustments are not required. Simple and

strong, it is particularly recommended for a professional use.

SPECIFICATIONS

Electrical Data

Type : 3/4 λCoax. J-Pole

Frequency Range @ SWR ≤2.0 : CX 220 U/N 216-229 MHz

: CX 260 U/N 250-266 MHz

Impedance : 50 ΩUnbalanced

Radiation (H-Plane) : 360oOmnidirectional

Radiation (E-Plane) : Beamwidth at -3 dB = 60o

Radiation angle deg. : -2o

Polarization : Vertical

Gain : 2 dBd - 4.15 dBi

Bandwidth @ SWR 1.5 : CX 220 U/N ≥7.4 MHz

: CX 260 U/N ≥9.2 MHz

SWR @ res. freq. : ≤1.2

Max Power : 200 Watts

Feed System / Position : Gamma Match / Base

Connector : CX 220/260 U: UHF-Female

: CX 220/260 N: N-Female

Mechanical Data

Materials : Nylon, Brass, Steel, Aluminium

Wind Load / Resistance : 36 N at 150 Km/h / 180 Km/h

Wind Surface : 0.03 m2

Height (approx.) : CX 220 U/N 1100 mm

: CX 260 U/N 950 mm

Weight (approx.) : 600 gr

Mounting Mast : ∅35-42 mm

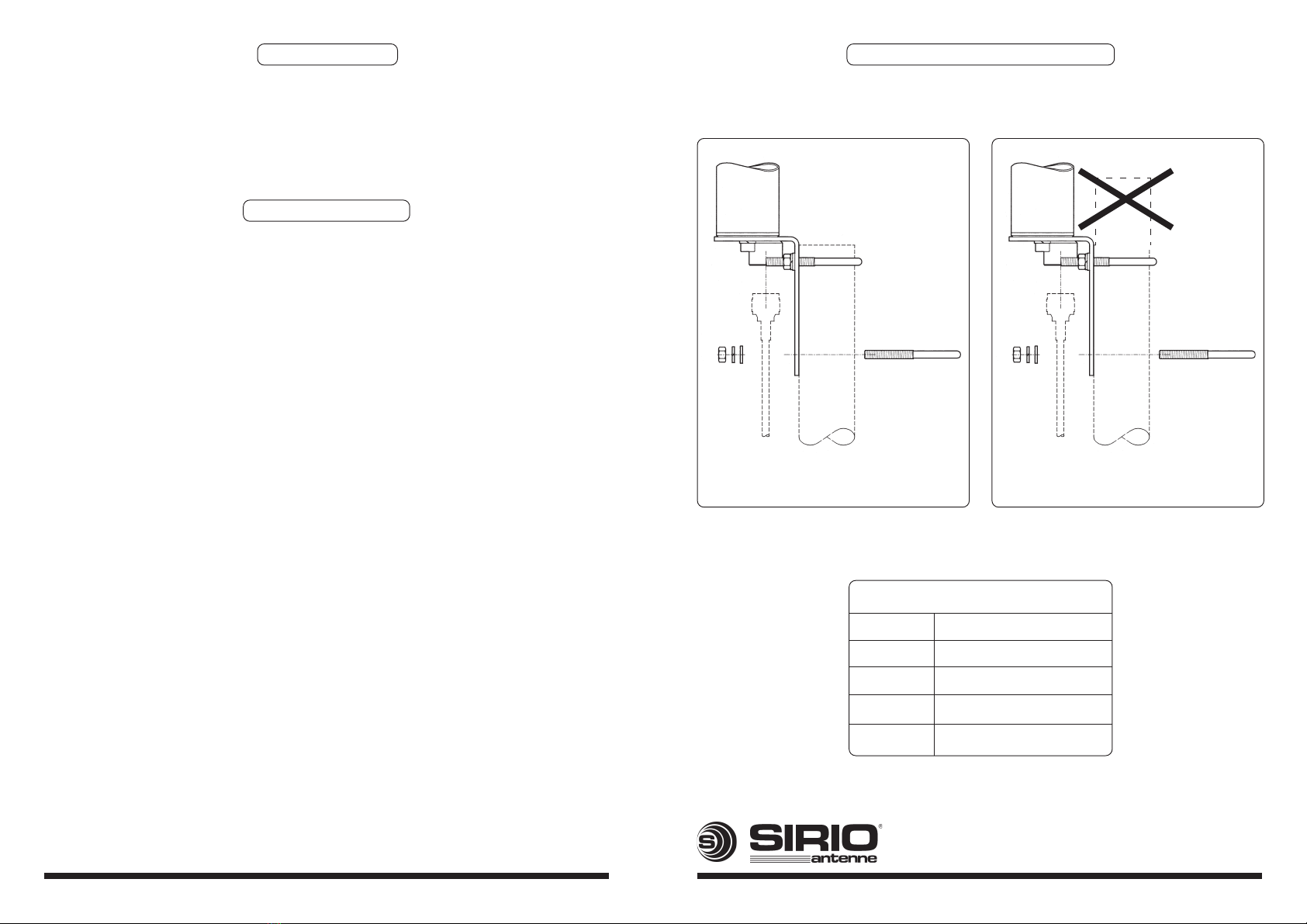

MOUNTING INSTRUCTIONS

ID137 HI-QUALITY ANTENNAS MADE IN ITALY

HARDWARE PARTS LIST

Qty Descriptions

n.2 U-bolts

n.4 M6 flat washer

n.4 M6 lock washer

n.4 M6 hex nut

Right mounting on mast Wrong mounting on mast
