Sirio Antenne HP 7000 Bedienungsanleitung

HP 7000 HP 7000 CHP 7000 HP 7000 C

HP 7000 HP 7000 C

UHF 70cm Radialless Mobile AntennasUHF 70cm Radialless Mobile Antennas

UHF 70cm Radialless Mobile Antennas

Installation ManualInstallation Manual

Installation Manual

BCopyright SIRIO antenne - Technical Data are subjected to change - Printed in ITALY - Rev. 14/01/2009 - Cod. ID102&USA

HP 7000 HP 7000 C

HP-AC/U angular connector:

Frequency Range: from DC to 500 MHz

Overall Size: Ø 41 mm

Mounting Hole: Ø 16 mm

Materials: Brass nichel plated, Teflon

insulator, Gold plated pin

Cable: 5m RG 58 C/U MIL-C-17F / FME-female

Adaptor: FME-male/ UHF-male (PL259)

Antenna connection: UHF-female

P/N 2510805.00 HP-AC/U

ALTERNATIVE MOUNT TYPE

HP MAG H 12 PL:

Frequency Range: from DC to 500 MHz

Overall Size: Ø92 mm

Materials: Ferrite magnet, Chromed Brass, Nylon,

Rubber protection, Teflon insulator,

Gold plated pin

Cable: 3.6 m RG 58 C/U MIL-C-17F / FME-female

Adaptor: FME-male / UHF-male (PL259)

Antenna connection: UHF-female

P/N 2511802.05 HP MAG H 12 PL

HP MAG 125 PL:

Frequency Range: from DC to 500 MHz

Overall Size: Ø 127 mm

Materials: Ferrite magnet, Chromed Brass, Nylon,

Rubber protection, Teflon insulator,

Gold plated pin

Cable: 3.6 m RG 58 C/U MIL-C-17F / FME-female

Adaptor: FME-male / UHF-male (PL259)

Antenna connection: UHF-female

P/N 2511202.05 HP MAG 125 PL

DESCRIPTION

UHF radialless vehicular antenna working on 70cm band. The very best materials have been

used to guarantee the maximum strength and the best performance. The whip, made of 17/7

PH stainless steel, has an inclination system that allows the 90otilting without using keys or tools.

Also a particular attention has been paid to the UHF-male connector with a gold plated center

pin, "Teflon" insulator and silicone rubber gasket for a perfect waterproofing.

SPECIFICATIONS

Electrical Data

Type : HP 7000 5/8 λ

: HP 7000 C 2 x 5/8 λ

Frequency Range : HP 7000 426 - 442 MHz @ SWR ≤2

: HP 7000 C 429 - 440 MHz @ SWR ≤2

: HP 7000 USA 437 - 453 MHz @ SWR ≤2

: HP 7000 C USA 439 - 451 MHz @ SWR ≤2

Impedance : 50 Ω

Radiation (H-plane) : 360°Omnidirectional

Polarization : Linear Vertical

Gain : HP 7000 2 dB ref. to λ/4 whip

: HP 7000 C 5 dB ref. to λ/4 whip

Max Power : 100 Watts (CW) @ 30°C

Grounding Protection: All metal parts are DC-grounded, the inner conductor is coupled

capacitively

Connector type : UHF-male (PL 259)

Mechanical Data

Materials : Stainless Steel 17/7 PH, Nylon, Chromed Brass

Height (approx.) : HP 7000 435 mm

: HP 7000 C 990 mm

Weight (approx.) : HP 7000 250 gr

: HP 7000 C 320 gr

ID102&USA

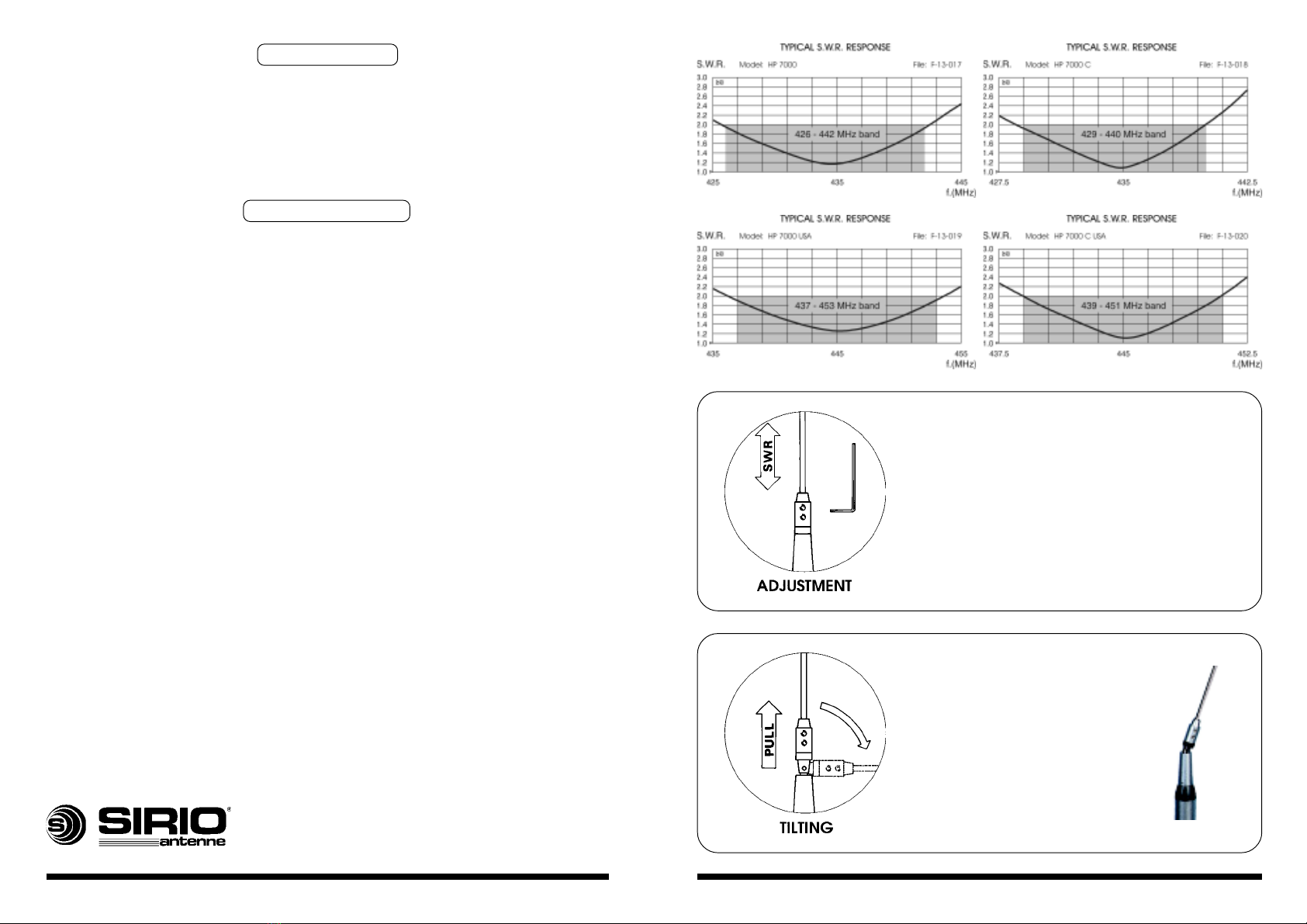

ADJUSTMENT: all SIRIO HP Antennas are factory

adjusted and no additional tuning is usually required.

However, if the center frequency needs to be changed,

please follow these simple directions:

1. Release the allan-screws on the whip using the supplied

key

2. Move the whip in or out as needed to obtain a low

SWR at your prefered frequency range.

3. After tuning, re-tighten the allan-screws to lock the

whip.

TILTING: all SIRIO HP Antennas have

an inclination system that allows the

90°tilting without use keys or special

tools.

HI-QUALITY ANTENNAS MADE ITALY
