SKF TMBH 1 Bedienungsanleitung

Instructions for use

Mode d’emploi

Bedienungsanleitung

Instrucciones de uso

Manuale d’instruzioni

Bruksanvisning

Gebruiksaanwijzing

Instrucções de utilização

Brugervejledning

Käyttöohje

Οδηγίες χρήσης

使用说明书

SKF TMBH 1

English Français Deutsch Español Italiano Svenska Nederlands Português Dansk Suomi Ελληνικά

English 2

Deutsch 18

Español 26

Italiano 34

Svenska 42

Nederlands 50

Dansk 66

Português 58

Suomi 74

Ελληνικά 82

Français  10

中文 90

中文

2 SKF TMBH 1

Table of contents

EC Declaration of conformity ....................................................................................3

Safety recommendations ..........................................................................................3

1. Introduction .....................................................................................................4

1.1 Principleofoperation.................................................................................................... 4

2 Technical data ..................................................................................................5

3. Operating instructions ......................................................................................6

3.1 Instructionsbeforeuse................................................................................................. 6

3.2 Keyboardfunctions........................................................................................................ 7

3.3 Demagnetization............................................................................................................ 8

4 Safety features .................................................................................................8

5 Maintenance.....................................................................................................8

5.1 Faultnding.................................................................................................................... 9

6 Spare parts list ................................................................................................9

3SKF TMBH 1

Safety recommendations

• Alwaysreadandfollowtheoperatinginstructions.

• Theunitissurroundedwithalowenergymagneticeldwhichmight

causeinterferencewithsensitiveelectronicequipmentsuchaspace-

makers,electronicthermometersandwristwatches.

• Makesurethesupplyvoltagedoesnotdeviatefromtheacceptable

rangeof100-240V,50-60Hz.

• Theequipmentshouldnotbeusedinareaswherethereisariskfor

explosion.

• Donotexposetheequipmenttohighhumidityordirectcontactwith

water.

• Neverheattotemperaturesabove200°C(392°F).

• Neverdisconnecttheheatingclampduringoperation.

• Nevermodifytheheater.

• AllrepairworkshouldbetakencareofbyanSKFrepairshop.

EC Declaration of conformity

We,SKFMaintenanceProducts,Kelvinbaan16,

3439MTNieuwegein,declarethatthe

SKF High Frequency Portable Induction Heater

TMBH 1

isdesignedandmanufacturedinaccordancewith:

EUROPEANLOWVOLTAGEDIRECTIVE73/23/EEC

EMCNORM89/336/EEC

TheNetherlands,1March2006

EbbeMalmstedt

ManagerProductDevelopmentandQuality

EnglishEnglish

4 SKF TMBH 1

1. Introduction

TheSKFBearingHeaterTMBH1isintendedforheatingrollingbearingswith

aninnerdiameterupto80to100mm(3-4in)andamaximumcorresponding

weightof4-5kg(9-11lb).

Otherring-shapedmetalcomponentsformingaclosedcircuitsuchasgears,

pulleys,bushingsandshrinkringscanalsobeheated.

Thisapparatususesapatentedmethodofheatingbasedonhighfrequency

induction.Thisnewconceptcatersforoptimizedefciencyandisatrulyportable

unit.

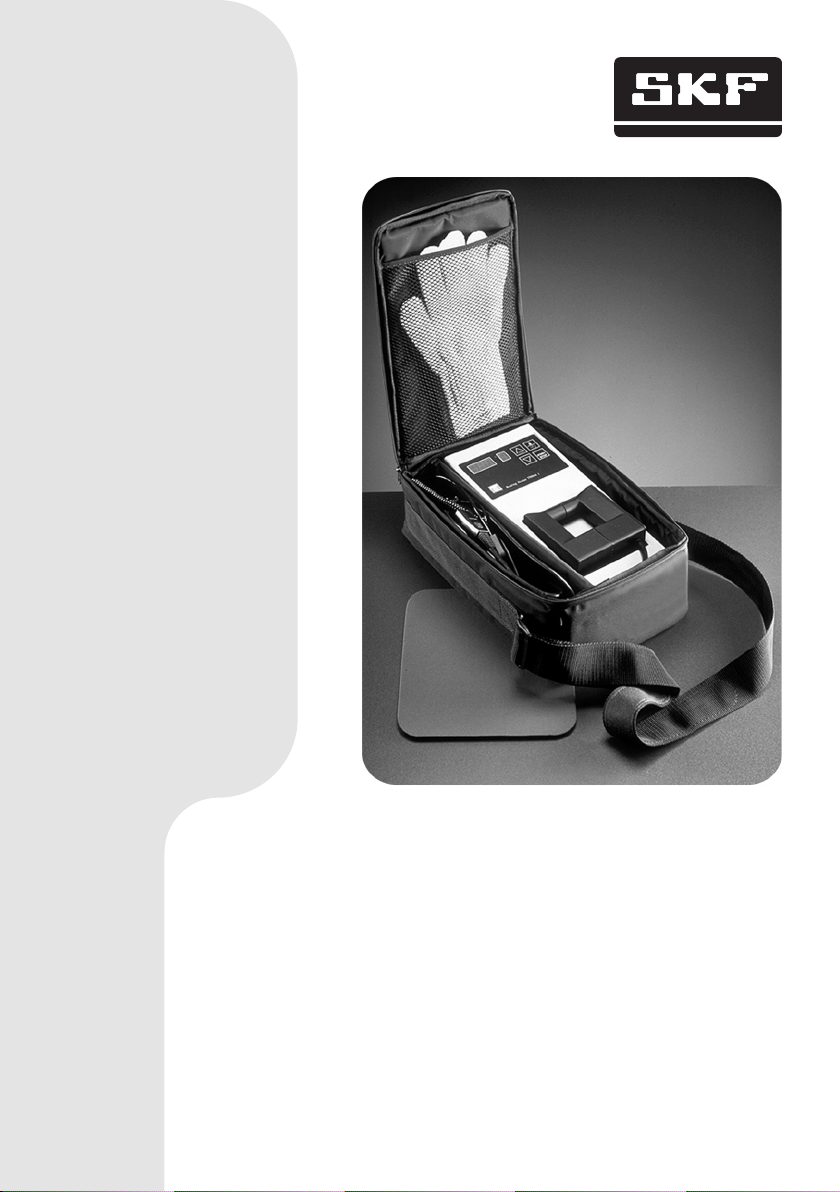

Theunitissuppliedwithheatingclamp,temperatureprobe,powercable(without

plug)andacarryingcaseasstandard.

1.1 Principle of operation

Aninductionheatercanbecomparedwithatransformerusingtheprincipleofaprimary

coilwithalargenumberofwindingsandasecondarycoilwithafewwindingsona

mutualcore.

Theinput/outputvoltageratioisequaltotheratioofthewindings,whiletheenergy

remainsthesame.InthecaseoftheSKFBearingHeaterTMBH1,theprimarycoil

isconnectedtoahighfrequencypowersupply.Thebearingactsasashort-circuited

single-turnsecondarycoilthroughwhichalowACvoltageowsathighamperage,

thusgeneratingalotofheat.Theheateritselfaswellastheclampremainatambient

temperature.

Duetodifferentphysicalproportionstheinnerringofabearingwillheatupfasterthan

theouterring,thusreducingtheradialinternalclearance.Aslongastherecommended

temperatureof110°Cisnotexceeded,thisdoesnotthreatentodamagethebearing.

Bothgreasedandsealedbearingscanbeheatedwithoutriskofdamage.

5SKF TMBH 1

2 Technical data

Designation

Power

Voltage

Power(maximum)

Cosineφ

Component size range

-innerdiameter

-width

-weight

Control functions

Timecontrol

Temperaturecontrol

Accuracytemperaturecontrol

Maximumtemperature

Dimensions

Controlbox

Heatingclamp

Operatingspaceheatingclamp

Completeunitincarryingcase

Lengthclampcable

Lengthpowercable

Lengthtemperatureprobecable

Weightcompleteunit

TMBH1

100-240V,50-60Hz

350Watt

>0,95

20...100mm(0,8...4in)

<50mm(2in)

uptoapproximately5kg(11lb)

0-60minutes

0-200°C(32-392°F)

±3°C(6°F)

200°C(392°F)

150x330x105mm(6x13x4in)

114x114mm(4,5x4,5in)

52x52mm(2,0x2,0in)

370x240x130mm(15x9x5in)

75cm(30in)

2m(80in)

100cm(40in)

4,5kg(10lbs)

English

6 SKF TMBH 1

3. Operating instructions

3.1 Instructions before use

A Makesurethelinevoltageiswithinthe

speciedrangeof100-240V,50-60Hz.

Properlyattachanapprovedcableplug

(notdeliveredwiththeunitduetolocal

variations).Connectthecabletotheheater

usingtheso-calledEuro-connector.

B Connecttheheatingclamptothecontrol

box.Neverconnectordisconnectthe

heatingclampduringoperation.

Ifthetemperaturemodeistobeused,

connectthetemperatureprobetothe

heater.Itisthenrecommendedtoattachthe

probetothehottestpartofthecomponent

whichingeneralisthepartclosesttothe

clamp.Incaseofheatingabearing,always

connecttheprobetotheinnerring.

Turnonthemainswitch.

EInserttheclampthroughtheboreofthe

componenttobeheated.Continueaccording

totheinstructionsinchapter3.2.

7SKF TMBH 1

3.2 Keyboard functions

Bearing Heater TMBH 1

3.2.1 Working with time control - TIME MODE

A. IfnecessaryswitchfromTEMPERATUREMODEtoTIMEMODEbypressing .

B.Selectthedesiredheatingtimebyusingthekeys and .

C.Press toactivatetheheatingcycle.Theremainingheatingtimewillbedisplayed.

Notethatthemaximumtemperaturetheclampcanwithstandis200°C(392°F).

D.Anacousticsignalwillindicatewhentheheatingcyclehasbeencompleted.

Thiswillswitchoffafter10signalsorwhenpressing .

E. Theheateristhenreadyforusewiththesamepreselectedtime.

3.2.2 Working with temperature control -TEMPERATURE MODE

A. IfnecessaryswitchfromTIMEMODEtoTEMPERATUREMODEbypressing .

WhentheTEMPERATUREMODEisselected,110°C(230°F)isautomaticallydisplayed

asthedefaultvaluewhichistherecommendedheatingtemperatureforbearings.

B.Selectthedesiredheatingtemperature(maximum200°C/392°F)byusingthekeys

and .

C. Press tostartheating.Theactualtemperatureofthecomponentbeingheatedwill

beshown.

D.Anacousticsignalwillindicatethatthepreselectedtemperaturehasbeenreached.This

willswitchoffafter10signalsorwhenpressing .

E.Iftheworkpieceisleftinposition,theheaterwillautomaticallystartagainassoon

asthetemperaturehasdroppedto10°C(10°F)belowtheselectedvalue.This

thermostaticfunctionisstoppedbypressing .

F. Theheaterisagainreadyforusewiththesamepreselectedtemperature.

English

8 SKF TMBH 1

Note:

• Makesuretheunitisswitchedoffbeforeyouopentheclamp

• Donotdisconnecttheclampduringoperation

• Neverusetwoheatersonthesamecomponent.

3.2.3 Thermometer mode

Whilenotinoperationtheunitwilldisplaytheactualtemperaturerecordedbytheprobe

when and arepressedsimultaneously.

Resetthisfunctionbypressinganyotherkey.

3.2.4 Change of temperature unit

Tochangefrom°Cto°Forviceversa,pressthebuttons and simultaneously.

3.3 Demagnetization

Thehighfrequencycurrentused,whichcreateslowuxdensityinthebearing,means

thatnomagnetizationwilltakeplace,thusavoidingthenecessityfordemagnetization.

4 Safety features

Thisbearingheaterisequippedwiththefollowingsafetyfeatures:

• Inputcurrentfusedat5A.

• Outputcurrentrestrictiontotheclampat1,2Aat380V.

• Internalthermaloverloadprotection(indicatedbyerrorcode03).

• IntheTEMPERATUREMODEtheheaterwillswitchoffifthetemperatureprobedoes

notregisteratemperatureincreaseof1degreeevery15seconds(indicatedbyerror

code05).

• Ashortcircuitontheclampwindingsorcablewillnotinictanyrisktotheuser.

5 Maintenance

Toensureoptimalperformanceandlifetimeoftheheaterprotecttheunitagainstphysical

misuse,highhumidityanddirectcontactwithwater.

Avoidimpactsagainsttheclamp.Theferritecoreespeciallyissensitivetothesetypesof

shocks.

Donotoverloadthespringmechanismontheclamp.

Makesurethetheferritepolesarecleanandthattheclampclosesperfectly.
