Version 1.0C SkyRC Technology Co., Ltd. 2010

INSTRUCTION MANUAL

- 01 -

TABLE OF CONTENTS

Introduction

Special Features

Lithium Polymer Balance Charge Program Connection Diagram

Warning and Safety Notes

Program Flow Chart

Initial Parameter Setup (Users Set Up)

Lithium (LiPo/Lilon/LiFe) program

Charging Lithium Battery in Charge Mode

Charging Lithium Battery in Balance Mode

Fast Charging of Lithium Battery

Charging Lithium Battery in the Fast Charge Mode

Storage Control of Lithium Battery

Charging Lithium Battery in the Storage Mode

Discharging of Lithium Battery

Voltage Balancing and Monitoring in the Discharge Process

Charging of NiCd/NiMH Battery

Charging NiCd/NiMH Battery in the Charge Mode

Discharge of NiCd/NiMH Battery

Charge/Discharge and Discharge/Charge Cycle of NiCd/NiMH Battery

Charging of the Pb Battery

Charging Pb (lead-acid) Battery in the Charge Mode

Discharging of the Pb Battery

Data Storage Program

Load Data Program

Various Information in the Program

Warning and Error Message

Specifications

Warranty and Service

TABLE OF CONTENTS

- 02 -

INTRODUCTION

Thank you for purchasing the e6680 LiPo Balance Charger by

SKYRC.This product is a rapid charger with a high performance

microprocessor and specialized operating software. Please read

this entire operating manual completely and attentively before

using this product, as it covers a wide range of information on

operating and safety or please do use this product in company

with a specialist!

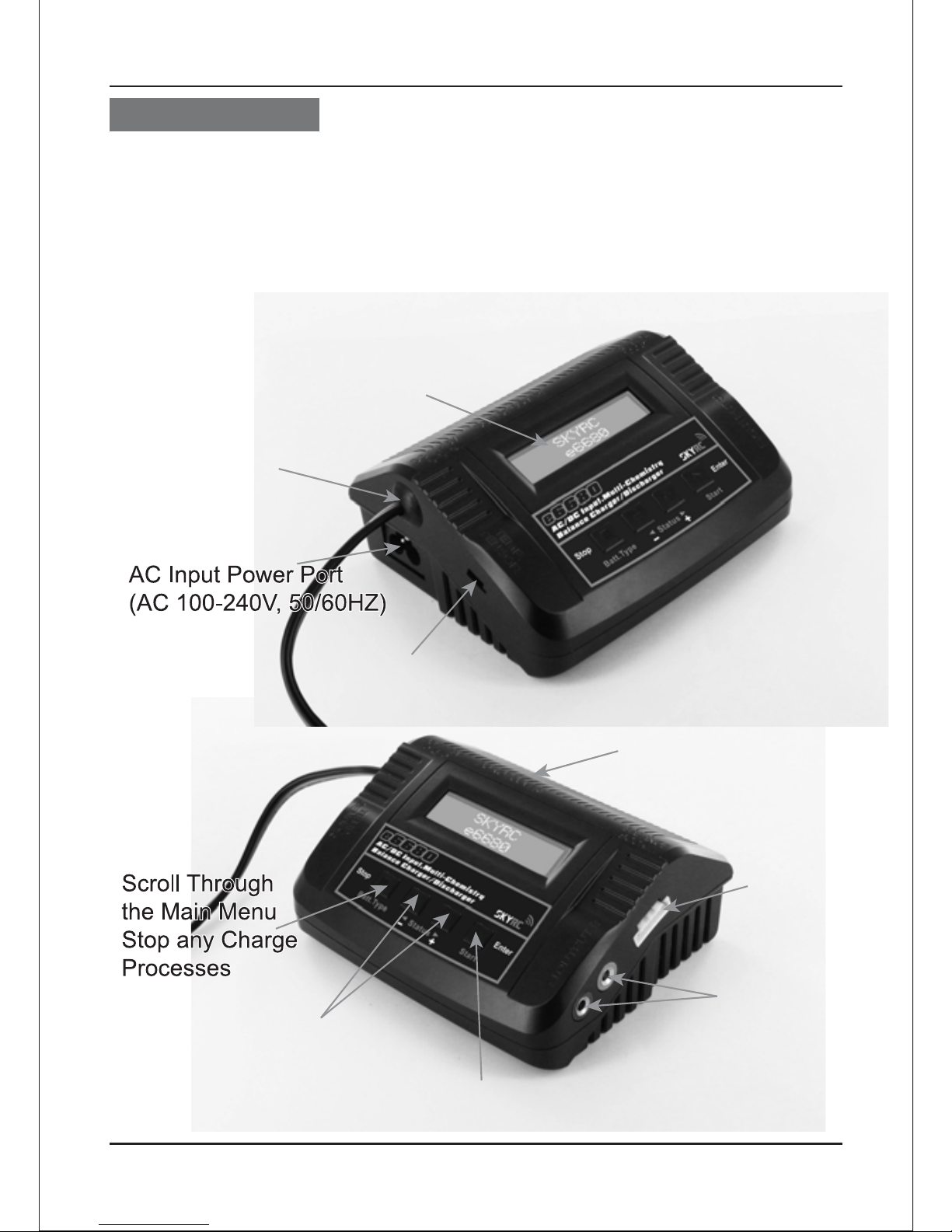

INTRODUCTION

DC Input Power Port

11-18V DC

LCD Display

(16 chr.* 2 lines)

Balance

Socket

Output

Charging

Alter Values Cells

in Balance Charge Mode

See the Status of Individual

Resume or Start Charge Processes

Confirm an Action

Temperature

Sensor Port

Temperature

Controlled Fan

AC Input Power Port

(AC 100-240V, 50/60HZ)

Scroll Through

the Main Menu

Stop any Charge

Processes

- 03 -

SPECIAL FEATURES

Optimized operating software

e6680 features the so-called AUTO function that set the feeding

current during the process of charging or discharging. Especially

for Lithium batteries, it can prevent the overcharging which may

lead to an explosion due to the user's fault. It can disconnect the

circuit automatically and alarm once detecting any malfunction.

All the programs of this product were controlled through two way

linkage and communication, to achieve the maximum safety and

minimize the trouble. All the settings can be configured by users!

SPECIAL FEATURES

Internal independent lithium battery balancer

e6680 employs an individual-cell-voltage balancer. It isn’t

necessary to connect an external balancer for balance charging.

Balancing individual cells battery discharging

During the process of discharging, e6680 can monitor and

balance each cell of the battery individually. Error message will

be indicated and the process will be ended automatically if the

voltage of any single one cell is abnormal.

Adaptable to various type of lithium battery

e6680 is adaptable to various types of Lithium batteries, such as

Li-ion, LiPo and the new LiFe series of batteries.

Fast and storage mode of lithium battery

Purposes to charge Lithium battery varies, ‘fast’ charge reduce

the duration of charging, whereas ‘store’ state can control the

final voltage of your battery, so as to store for a long time and

protect useful time of the battery.

Maximum safety

Delta-peak sensitivity: The automatic charge termination program

based on the principle of the Delta-peak voltage detection. When

the battery's voltage exceeds the threshold, the process will be

terminated automatically.

- 04 -

SPECIAL FEATURES

Automatic charging current limit

You can set up the upper limit of the charging current when

charging your NiCd or NiMH battery; it is useful for the NiMH

battery of low impedance and capacity in the 'AUTO' charging

mode.

Capacity limit

The charging capacity is always calculated as the charging

current multiplied by time. If the charging capacity exceeds the

limit, the process will be terminated automatically when you set

the maximum value.

Temperature threshold*

The battery’s internal chemical reaction will cause the temperature

of the battery to rise. If the temperature limit is reached, the

process will be terminated.

* This function is available by connecting optional temperature

probe, which is not included in this package.

Processing time limit:

You can also limit the maximum process time to avoid any

possible defect.

Input power monitoring

To protect the car battery used as DC input power from being

damaged, its voltage keeps being monitored. If it drops below

the lower limit, the process will be ended automatically.

Data store/load

The maximum five batteries’ data can be stored for users’

convenience. You can keep the data pertaining to program

setting of the battery of continuous charging or discharging.

Users can call out these data at any time without any special

program setting.

Cyclic charging/discharging

1 to 5 cyclic and continuous process of charge>discharge or

discharge>charge is operable for battery refreshing and Balancing

to stimulate the battery's activity.

- 05 -

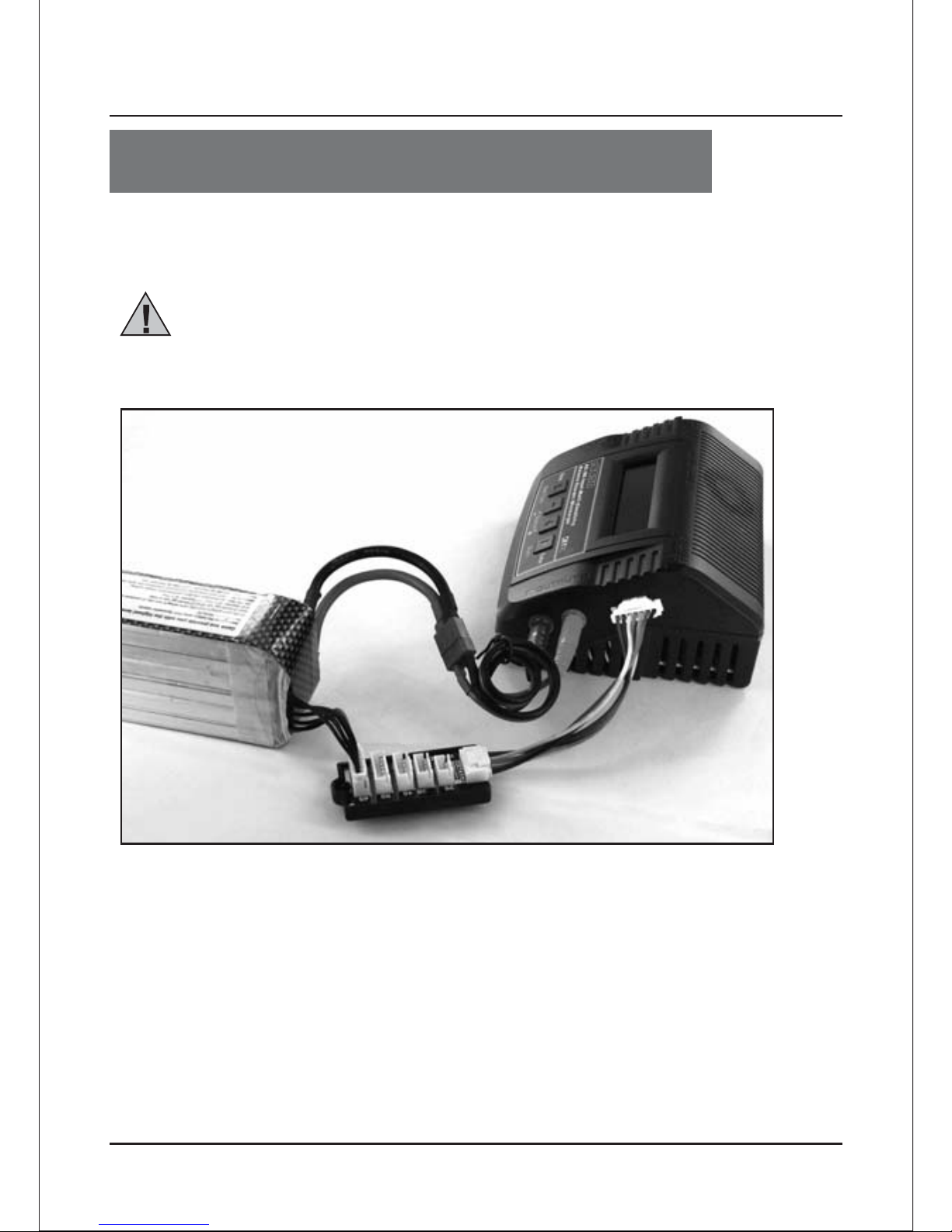

LITHIUM POLYMER BALANCE CHARGE PROGRAM

CONNECTION DIAGRAM

This diagram shows the correct way to connect your battery to

the e6680 charger while charging in the balance charge program

mode only.

LITHIUM POLYMER BALANCE CHARGE PROGRAM

CONNECTION DIAGRAM

WARNING:

Failure to connect as shown in this diagram will damage this

charger.

The main battery leads must be connected along with the balance

lead connector as shown before charging your battery .

- 06 -

WARNING AND SAFETY NOTES

These warnings and safety notes are particularly important.

Please follow the instructions for maximum safety; otherwise the

charger and the battery can be damaged or at worst it can cause

a fire.

WARNING AND SAFETY NOTES

Never leave the charger unattended when it is connected to its

power supply. If any malfunction is found, Terminate THE

PROCESS AT ONCE and refer to the operation manual.

Keep the charger well away from dust, damp, rain, heat, direct

sunshine and vibration. Never drop it.

The allowable input voltage is 11-18V DC/110-240V AC.

This charger and the battery should be put on a heat-resistant,

noninflammable and nonconductive surface. Never place them

on a car seat, carpet or similar. Keep all the inflammable

volatile materials away from operating area.

Make sure you know the specifications of the battery to be

charged or discharged to ensure it meets the requirements of

this charger. If the program is set up incorrectly, the battery

and charger may be damaged .It can cause fire or explosion

due to overcharging. This warranty is not valid for any damage

or subsequent damage arising as a result of a misuse or failure

to observe the procedures outlined in this manual.

- 07 -

WARNING AND SAFETY NOTES

NiCd/NiMH

- Voltage level: 1.2V/cell

- Allowable fast charge current: 1C-2C (depends on the

performance of cell)

- Discharge voltage cut off level: 0.85V/cell (NiCd),

1.0V/cell(NiMH)

Li-ion

- Voltage level: 3.6V/cell

- Max. charge voltage: 4.1V/cell

- Allowable fast charge current: 1C or less

- Min. discharge voltage cut off level: 2.5V/cell or higher

LiPo

- Voltage level: 3.7V/cell

- Max. charge voltage: 4.2V/cell

- Allowable fast charge current: 1C or less

- Discharge voltage cut off level: 3.0V/cell or higher

LiFe

- Voltage level: 3.3V/cell

- Max. charge voltage: 3.6V/cell

- Allowable fast charge current: 4C or less

- Discharge voltage cut off level: 2.0V/cell or higher

- Voltage level: 2.0V/cell

- (Lead-acid) Max. charge voltage: 2.46V/cell

- Allowable fast charge current: 0.4C or less

- Discharge voltage cut off level: 1.75V/cell or higher

- 08 -

WARNING AND SAFETY NOTES

To avoid short circuit between the charge lead always connect

the charge cable to the charger first, then connect the battery.

Reverse the sequence when disconnecting.

Do not connect more than one battery pack to this charger at

any one time.

Never attempt to charge or discharge the following types of

batteries.

A battery pack which consists of different types of cells

(including different manufacturers)

Batteries that are not expressly stated by the manufacturer to

be suitable for the currents the charger carries during the

charge process.

Batteries installed in a device or which are electrically linked to

other components.

A battery fitted with an integral charge circuit or a protection

circuit.

A faulty or damaged battery.

Batteries that require a different charge technique from NiCd,

NiMh, LiPo or Gel cell (Pb, Lead acid).

Non-rechargeable batteries (Explosion hazard).

A battery that is already fully charged or just slightly discharged.

Please bear in mind the following points before commencing

charging.

Did you select the appropriate program suitable for the type of

battery you are charging?

Have you checked the battery voltage? Lithium battery packs

can be wired in parallel and in series, i.e. a 2 cell pack can be

3.7V (in parallel) or 7.4V (in series).

Did you set up adequate current for charging or discharging?

- 09 -

WARNING AND SAFETY NOTES

Have you checked that all connections are firm and secure?

Make sure there are no intermittent contacts at any point in the

circuit.

Charging

During charge process, a specific quantity of electrical energy is

fed into the battery. The charge quantity is calculated by

multiplying charge current by charge time. The maximum

permissible charge current varies depending on the battery type

or its performance, and can be found in the information by the

battery manufacturer. Only batteries that are expressly stated to

be capable of quick-charge are allowed to be charged at rates

higher than the standard charge current.

Connect the battery to the terminal of the charger: red is positive

and black is negative. Due to the difference between resistance

of cable and connector, the charger can not detect resistance of

the battery pack, the essential requirement for the charger to

work properly is that the charge lead should be of adequate

conductor cross-section, and high quality connectors which are

normally gold-plated should be fitted to both ends.

Always refer to the manual by the battery manufacturer pertaining

to charging methods, recommended charging current and

charging time. Especially, the Lithium battery should be charged

according the charging instruction provided by the manufacturer

strictly.

Attention should be paid to the connection of Lithium battery

especially.

Do not attempt to disassemble the battery pack arbitrarily.

Inhaltsverzeichnis

Andere Skyrc Akkuladegerät Handbücher

Skyrc

Skyrc MC300 Bedienungsanleitung

Skyrc

Skyrc D100NEO Bedienungsanleitung

Skyrc

Skyrc T6755 Bedienungsanleitung

Skyrc

Skyrc eN18 NiMH Bedienungsanleitung

Skyrc

Skyrc NC2500 Bedienungsanleitung

Skyrc

Skyrc E6 Bedienungsanleitung

Skyrc

Skyrc e6 sk-100052 Bedienungsanleitung

Skyrc

Skyrc B6AC+ DUAL POWER Bedienungsanleitung

Skyrc

Skyrc SK-100051 Bedienungsanleitung

Skyrc

Skyrc SK-100079 Bedienungsanleitung

Skyrc

Skyrc E455 Bedienungsanleitung

Skyrc

Skyrc B6neo Bedienungsanleitung

Skyrc

Skyrc S60 Bedienungsanleitung

Skyrc

Skyrc T200 Bedienungsanleitung

Skyrc

Skyrc Ultimate 400W 20AMP Bedienungsanleitung

Skyrc

Skyrc IMAX B6 V2 Bedienungsanleitung

Skyrc

Skyrc iMAX B6 mini Bedienungsanleitung

Skyrc

Skyrc B6 Nex Bedienungsanleitung

Skyrc

Skyrc D100 V2 Bedienungsanleitung

Skyrc

Skyrc e4Q Bedienungsanleitung

Skyrc

Skyrc e3 Bedienungsanleitung

Skyrc

Skyrc Maestro T1000 Bedienungsanleitung

Skyrc

Skyrc NC1500 Bedienungsanleitung

Skyrc

Skyrc e4 Bedienungsanleitung

Beliebte Akkuladegerät Handbücher anderer Marken

AA Portable Power Corp

AA Portable Power Corp Universal Smart Charger Bedienungsanleitung

Enelion

Enelion Vertica Bedienungsanleitung

RCA

RCA CHU6 Bedienungsanleitung

ANSMANN

ANSMANN ALCT 6/24-10 Bedienungsanleitung

Hitachi

Hitachi UC 18YRSL Fehlerbehebungshandbuch

Olympus

Olympus B-20 LPC Bedienungsanleitung

Exibel

Exibel ZH1708143 Bedienungsanleitung

Lenmar

Lenmar Mach 1 Bedienungsanleitung

CTEK

CTEK MXS 5.0 Bedienungsanleitung

ABB

ABB HT842379 Bedienungsanleitung

Nitecore

Nitecore Superb Charger SC4 Bedienungsanleitung

Renogy

Renogy RBC2125DS-21W Bedienungsanleitung

Braun

Braun BWC02M Bedienungsanleitung

CTEK

CTEK MXS 3.6 Bedienungsanleitung

Black & Decker

Black & Decker BDV090 Bedienungsanleitung

Trinity

Trinity DPD Bedienungsanleitung

Hulkman

Hulkman Sigma 1 Bedienungsanleitung

IKEA

IKEA koppla Bedienungsanleitung

Skyrc e6680 Bedienungsanleitung

Beliebte Akkuladegerät Handbücher anderer Marken
