Slinex Unique Direct Series Bedienungsanleitung

{ Design. Uniqueness. Innovations }

SQ-04 4ʹʹ video door phone

Thank you for the

choice of our equipment

User manual

UNIQUE

DIRECT

SERIES

{ Design. Uniqueness. Innovations }

1Rev. 1.0 2

Attention!

As a result of continuous upgrades and functionality improvements, technical

characteristics of the device can be changed without any preliminary declaration.

This manual can contain some inaccuracy or misprint. The owner reserves the right to

make corrections to the information described in the user manual and device package.

The last revision of this manual is available on www.slinex.com

Safety instructions

Read and keep that manual.

The device installation process should be carried out by the qulied specialists.

Use the device from the –10 ˚C to +55 ˚C (14 ˚F to 131 ˚F), always keep it within that temperature range.

Installation surface should be free from vibration and impact inuence.

Keep this device far from open sources of heat, such as radiators, heaters, and ovens.

The device can be installed near other electronic equipment in case if the temperature of the environment

does not exceed previously mentioned range.

The device should be protected from the direct inuence of the natural phenomena, such as direct sunlight,

rain or snow.

Don’t use aggressive or abradant detergent for the device surface cleaning.

Use soft wet cloth or tissue to remove strong dirt.

Don’t overpower outlets. It can cause re or electric shock.

Nature protection

Don’t throw away the device with other industrial or nutritive trash if you see that

symbol. Some regions have separation and recycling systems for the electronic

equipment. Connect with local authorities to receive information about recycling of

electronic equipment for your region.

Rights and limitation of liability

languages or reproduced in any way including electronic or mechanical.

Document recording and copying is strictly denied without owner permission.

Table of contents

1. Package ............................................................................................................................................................................................3

2. Specication...................................................................................................................................................................................3

3. Description......................................................................................................................................................................................4

4. Installation.......................................................................................................................................................................................5

4.1 Cable requirements.......................................................................................................................................................5

4.2 Schematic diagram........................................................................................................................................................6

4.3 Unit mount .......................................................................................................................................................................7

5. Operation.........................................................................................................................................................................................8

5.1 Incoming call ...................................................................................................................................................................8

5.2 Outdoor panels image view.......................................................................................................................................9

6. Limited Warranty........................................................................................................................................................................10

UNIQUE

DIRECT

SERIES

{ Design. Uniqueness. Innovations }

3 4

Screen

Resolution

Video system

Audio type

Call time

Internal memory

Memory extension slot

Standby mode power consumption

Working mode power consumption

Power supply

Mounting type

Size

Working temperature

4,3”color TFT, 16:9

480×272 pixels

PAL/NTSC

Half duplex

120 seconds

1 W

6 W

Built-in power supply, AC100–240 V

Surface mount

119×175×21 mm (4.7×6.9×0.8 inch)

−10...+55 ˚C (14...131 ˚F)

1. Package

SQ-04 door monitor − 1 pc.

Wall mounting bracket − 1 pc.

Connection wires − 7 pcs.

Mounting screws and nuts − 1 pkg.

User manual − 1 pc.

2. Specication

3. Description

175 mm

(

6.9 inch)

19 mm (4.7 inch) 21mm

(0.8 inch)

3 4 5 6

Display

Power switch

«Monitor» button – door panel or camera image monitoring

«Answer» button – incoming call answer and start talking with the visitor

«Unlock» button – door unlocking

«Hang Up» – stop conversation with the visitor

Microphone

Settings joystick :

• push the joystick while monitoring or talking to enter

brightness/contrast/chroma settings. Change current parameter by

pushing joystick again;

• move joystick up or down to change current parameter value

Ring volume tuning slider . Slide up to increase ring volume or down to decrease it

Talking volume tuning slider. Slide up to increase talking volume or down to decrease it

UNIQUE

DIRECT

SERIES

{ Design. Uniqueness. Innovations }

5 6

4.2 Schematic diagram

SQ-04 door panels and locks connection.

Power

Audio

GND

Video

Power

Audio

GND

Video

Lock

Doorbell 1

Doorbell 2

Lock power

supply

Lock Lock power

supply

4. Installation

4.1 Cable requirements

Disconnect all power cables before device installation.

This device can be connected with such cable types depends on the distance between door monitor and

door panel:

) Use 4-wire cable with such parameters:

• distance up to 25 meters (80 ft.) use a cable with 0,22 mm square of one wire (AWG24);

• distance 25 to 50 meters (80 to 160 ft.) use a cable with 0,41 mm square of one wire (AWG21);

• distance 50 to 100 (160 to 330 ft.) meters use a cable with 0,75 mm square of one wire (AWG18).

b) If the distance between door monitor and door panel is between 80 and 100 meters (260 and 330 ft.) then

use a 3-wire cable with 0,75 mmsquare of one wire (AWG18) and RG-59 or RG-6 coaxial cable for the video

signal.

c) Shielded or non-shielded twisted pair (not recommended):

• distance up to 25 meters (80 ft.) non-shielded twisted pair can be used;

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

0 - 50 m 0 - 160 ft

Shield

50 - 80 m

80-100 m

RG-59 or RG-6

0 - 25 m

25 - 50 m

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Power

Audio

Ground

Video

Shield Shield

UNIQUE

DIRECT

SERIES

SQ-04

GND

+13,5 V

Door 1 Door 2

Power

Notes:

* Use «Power»connector on the monitor to connect external power

supply +13,5 V. While use external power supply please keep main power

cord ~100-240 V disconnected from the outlet, otherwise it can damage

monitor circuits.

** Door panels, power supplys and locks described on the scheme are

optional devices and aren’t included into monitors kit.

160 - 260 ft

260-330 ft

0-80 ft

80-160 ft

{ Design. Uniqueness. Innovations }

7 8

4.3 Unit mount

1) Take the surface mount bracket from the kit and place it 150-160 cm (approx. 5 ft.) from the oor line.

2) Mark and drill four halls in the wall.

3) Take four wall anchors from the kit and hammer them into the drilled halls.

4) Fix surface mount bracket on the wall by four screws from the kit.

5) Connect all communication wires and x the monitor on the surface mount bracket.

UNIQUE

DIRECT

SERIES

5. Operation

5.1 Incoming call

Standby mode

Melody is ringing on the

monitor and door panel,

image from the door panel

appears on the monitor screen

Visitor presses call button

on the rst door panel

Visitor presses call button

on the second door panel

Press «Answer» button to start

conversation with the visitor

Melody stops ringing and

conversation starts,

talking time is 120 seconds

Press «Hang up» button to

stop conversation or

incoming call

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

Notes:

1) Monitor will be automatically switched into standby mode if the user doesn’t answer incoming call

during 60 seconds;

2) Image and sound from the door panel will be active during 20 seconds after the moment user presses

button. It let the user know if the visitor passed through the door.

20 seconds

{ Design. Uniqueness. Innovations }

9 10

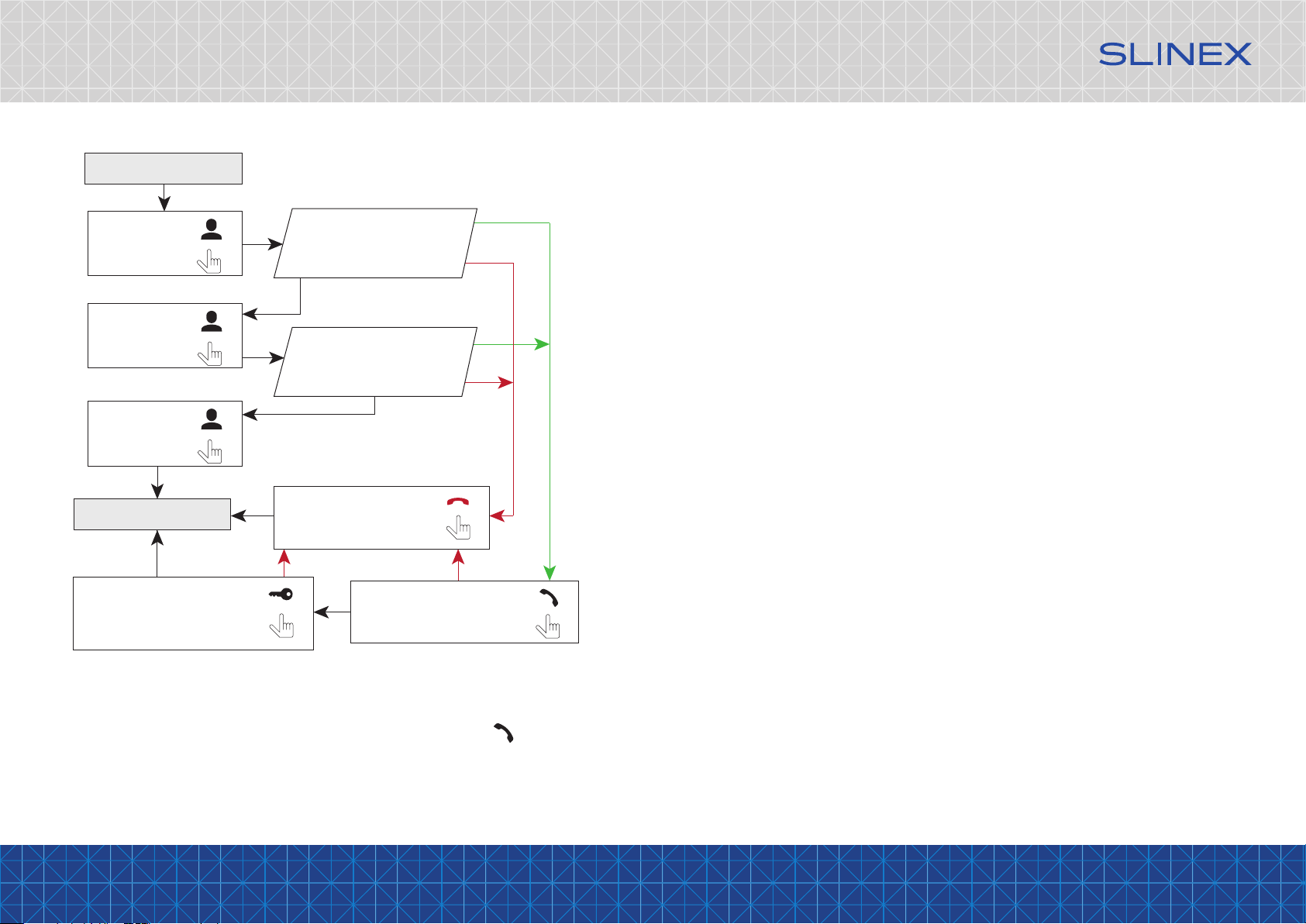

5.2 Outdoor panels image view

Standby mode

Monitor will display

the image from the

rst door panel

(monitoring time – 60 seconds)

Monitor will display

the image from the

second door panel

(monitoring time – 60 seconds)

Press «Monitor»

button on the

monitor

20 seconds

Standby mode

Press «Monitor»

button on the

monitor again

Press «Monitor»

button on the

monitor again

Press «Hang up» button to

stop monitoring or

conversation

Press «Answer» button to start

conversation with the visitor

Press «Unlock» button to open

lock connected to the current

door panel, relay built into the

panel will open the lock

UNIQUE

DIRECT

SERIES

6. Limited warranty

Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety

instructions described in that manual.

Warranty period is 12 months from the moment of the product purchasing (warranty period could be

extended up to 24 months or more, depending on the local regulations).

Warranty period allows user to make guarantee repair in cases when normal functioning of the product was

violated by the fault of manufacturer and the user haven’t oend transporting, installation and working

conditions.

This limited warranty does not cover any damage to the product that results from improper installation,

accident, abuse, misuse, natural disaster, insucient or excessive electrical supply, abnormal mechanical or

environmental conditions, or any unauthorized disassembly, repair or modication.

Warranty void in such cases:

• the product was damaged by the fault of the customer;

• the product wasn’t properly installed according reccomendations from the manual;

• the sticker on the backside of the product was broken;

• the product was not used for its intended function.

This limited warranty covers only repair, replacement, refund or credit for defective products, as provided

above. Manufacturer is not liable for, and does not cover under warranty, any damages or losses of any kind

whatsoever resulting from loss of, damage to, or corruption of, content or data or any costs associated with

determining the source of system problems or removing, servicing or installing products. This warranty

excludes third party software, connected equipment or stored data. Manufacturer is therefore not liable for

any losses or damage attributable to third party software, connected equipment or stored data.

In the event a product has been discontinued, manufacturer shall either repair the product, oer to replace

it with a comparable product or provide a refund at the lesser of the purchase price or the product’s current

value.

Repaired or replacement products will continue to be covered by this limited warranty for the remainder of

the original warranty term.

Notes:

If someone press call button on the door panel while monitoring is active then the image from this door

panel appears on the monitor screen and call melody starts. Press «Answer» button to start

conversation.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Slinex Gegensprechanlage Handbücher

Slinex

Slinex SONIK 7 Cloud Bedienungsanleitung

Slinex

Slinex VR-16 Bedienungsanleitung

Slinex

Slinex SM-07MHD Bedienungsanleitung

Slinex

Slinex SL-07MHD Bedienungsanleitung

Slinex

Slinex ML-16HD Bedienungsanleitung

Slinex

Slinex SL-07IP HD Bedienungsanleitung

Slinex

Slinex RD-30 Bedienungsanleitung

Slinex

Slinex SQ-07MT HD Bedienungsanleitung

Slinex

Slinex SL-10N Cloud Bedienungsanleitung

Slinex

Slinex SM-07 Bedienungsanleitung

Slinex

Slinex UNIQUE DIRECT IP Series Handbuch

Slinex

Slinex Design Direct Series Bedienungsanleitung

Slinex

Slinex ML-20CRHD Bedienungsanleitung

Slinex

Slinex Innovation Direct Series Bedienungsanleitung

Slinex

Slinex SQ-07MT HD Bedienungsanleitung

Slinex

Slinex SL-10M Bedienungsanleitung

Slinex

Slinex ML-20HR Bedienungsanleitung

Slinex

Slinex UNIQUE DIRECT Series Bedienungsanleitung

Slinex

Slinex MS-04 Bedienungsanleitung

Slinex

Slinex SM-04M Bedienungsanleitung

Slinex

Slinex Innovation Direct Series Bedienungsanleitung

Slinex

Slinex Tabo Bedienungsanleitung

Slinex

Slinex SM-07MN Bedienungsanleitung

Slinex

Slinex Design Direct Series Bedienungsanleitung

Beliebte Gegensprechanlage Handbücher anderer Marken

Bticino

Bticino LINEA 3000 Bedienungsanleitung

MSI

MSI MSI-140 Bedienungsanleitung

golmar

golmar Stadio Plus Bedienungsanleitung

CyberData

CyberData 011211 series Handbuch

Vidos

Vidos duo M1021 Bedienungsanleitung

Vimar

Vimar ELVOX 7539/E Bedienungsanleitung

SSS Siedle

SSS Siedle BTSV 850-03 Bedienungsanleitung

Dahua

Dahua VTO Series Bedienungsanleitung

Elvox

Elvox 5651 Bedienungsanleitung

Videx

Videx VIDEOKIT Series Bedienungsanleitung

Rocom

Rocom Doortello Business FW T2.05W2.04 Bedienungsanleitung

Viking

Viking E-35-EWP Bedienungsanleitung

Safeguard Supply

Safeguard Supply LRA-EX1000 Bedienungsanleitung

SSS Siedle

SSS Siedle BFCV 850 Series Bedienungsanleitung

GRD

GRD MAX V2 Bedienungsanleitung

Alecto

Alecto ADI-250 Bedienungsanleitung

Aiphone

Aiphone IE-8MD Bedienungsanleitung

Perel

Perel EDB4 Bedienungsanleitung
