Installation Guide for 701912-C1I75, 701912-L1C1I75, 701912-35C2I75, 701912-L135C2I75
PAGE 1 OF 5
Tools and Accessories Recommended
Tools and connections shown are for secondary connections: Safety glasses, at and Phillips head screwdrivers, screws, drill,
measuring tape, electrical tape, wire strippers, twist-on or push-in UL Listed wire connectors, tie-wraps, chalk line, junction-box, and
18 AWG UL Listed PLTC cable.
Items Provided
1. Power Supply 2. Wire Nut Housing 3. Dimming Controller 4. Motion Sensor 5. Mounting Clip 6. 4 ft (1.2 m) HighLINER 2
7. 1 ft (0.30 m) HighLINER 2
(optional) (optional)
7
6
54321
HighLINER 2 is intended for linear lighting in storerooms, walk-in coolers, indoor and outdoor sots, outdoor canopies, car washes, and
a variety of other lighting applications. Do not mount completely or partially submerged in water. HighLINER 2 luminaires should only be
used with SloanLED 100 Watt 24 VDC Power Supply. To clean HighLINER 2 luminaire use a damp cloth and mild cleaning agent only.
General Information:
• Read and observe all NOTES, CAUTIONS, and WARNINGS
shown throughout these instructions
• Installation of power supplies to be performed by
licensed electrician only
• Safety glasses or goggles should be worn
while performing installation
• This product is UL and ETL listed for dry, damp,
and wet locations
• Electrical Specications: Maximum 0.600 A,
24 VDC, Class 2 circuit
• Install to national, local, and state regulations
FOR YOUR SAFETY
• Lire et observer toutes les NOTES, MISES EN GARDE
et AVERTISSEMENTS montré tout au long de ces instructions
• L’installation des alimentations doit être eectuée
par électricien agréé
• Il faut porter des lunettes de sécurité ou des lunettes
à coques lors de l’installation
• Ce produit est homologué UL et ETL pour les
environnements sec, humide, et endroits humides
• Spécications électriques: Maximum 0.600 A,
24 VDC, circuit de classe 2
• Installer conformément aux réglementations nationales,
locales et nationales
POUR VOTRE SÉCURITÉ
HighLINER 2
Installation Guide for 701912-C1I75, 701912-L1C1I75, 701912-35C2I75, 701912-L135C2I75
PAGE 2 OF 5
Preparation for Installation

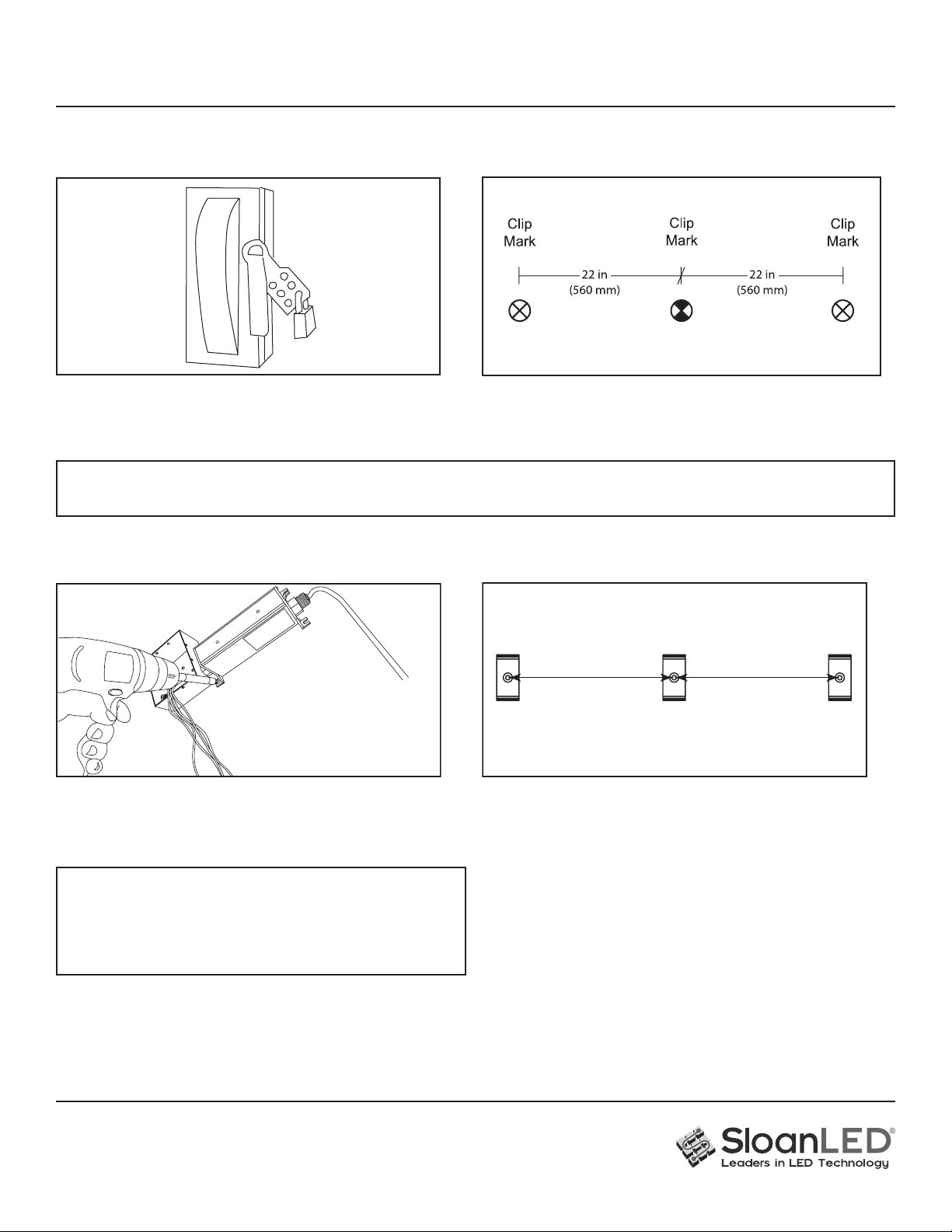

Mark clip locations: Snap a chalk line on surface. Measure
22" (560 mm) o center to left and to right determine
clip location.
WARNING: Risk of electrical shock. AVERTISSEMENT: Risque
de choc électrique. Locate main circuit breaker panel, de-energize,
and perform lockout/tagout prior to installing light xtures. All primary
wiring must be done by a licensed electrician.
CAUTION: Power supplies should not be mounted near any other heat generating element. Mount power supply with two self drilling/self
tapping screws through tabs in both end caps. ATTENTION: Les blocs d’alimentation ne doivent pas être montés à proximité d’un autre
élément générateur de chaleur. Montez l’alimentation avec deux vis autoperceuses / autotaraudeuses dans les languettes des deux embouts.
Installation
CAUTION: All primary connections including grounding must comply
with national, local, and state regulations. Have a licensed electrician
connect primary wires. ATTENTION: toutes les connexions
principales, y compris la mise à la terre, doivent être conformes aux
réglementations nationales, locales et nationales. Faites appel à un
électricien agréé pour connecter les câbles primaires.
1. Install junction box and power supply:
Follow power supply instructions for installing secondary
side. Use UL listed twist-on, push-in, wire connectors for
connections. Follow connector manufacturer’s instructions.
2. Attach mounting clips as shown in diagram: Three
mounting clips per luminaire. Use screw of appropriate
length and thread type for mounting surface, #8 or #10
(4 mm or 5 mm), pan or hex head screws. Stainless steel
screws are recommended.
44.00 in (1120 mm) Center-to-Center
22 in (560 mm) 22 in (560 mm)
44 in (1120 mm) Center-to-Center
HighLINER 2
Installation Guide for 701912-C1I75, 701912-L1C1I75, 701912-35C2I75, 701912-L135C2I75
PAGE 3 OF 5

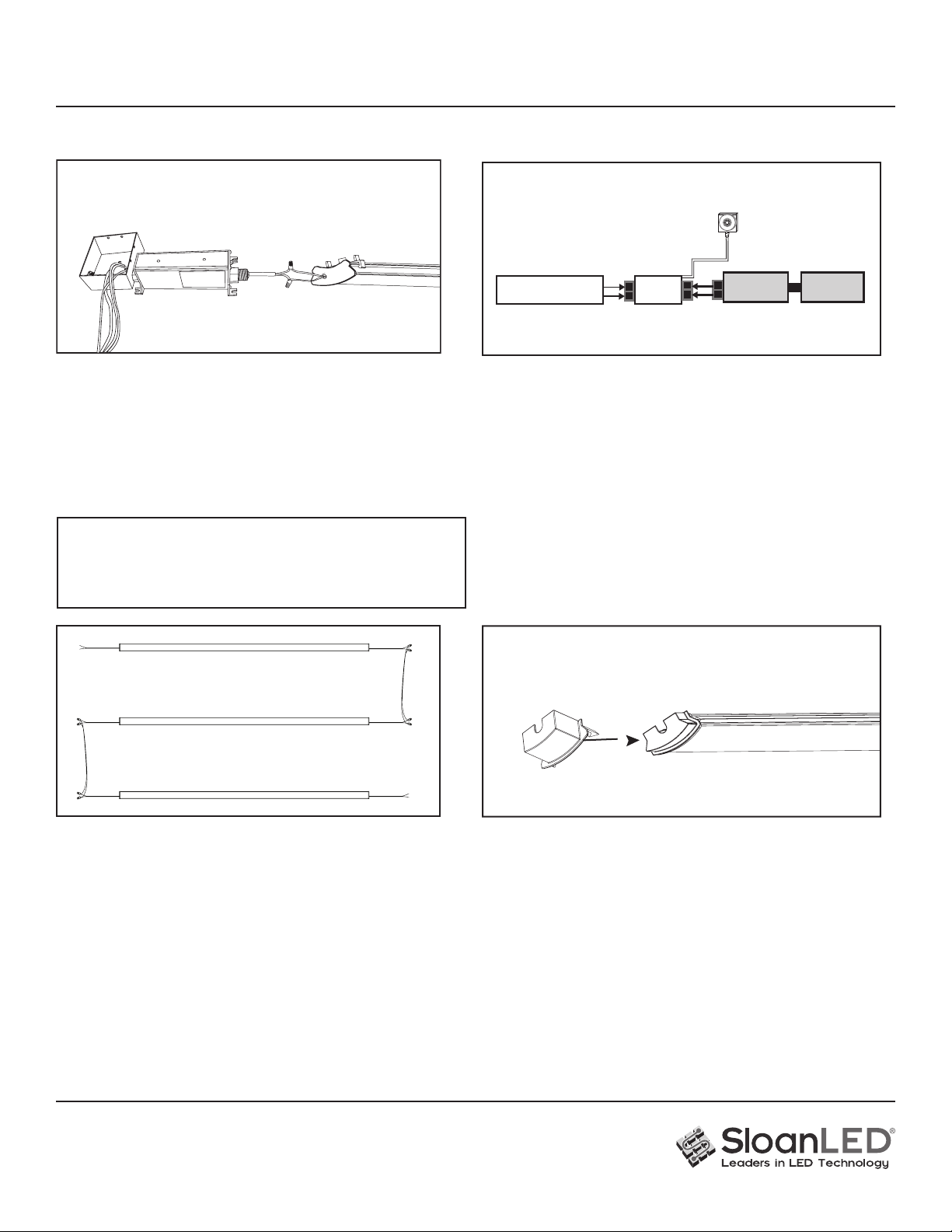

3. Install luminaire: Orient luminaire so that lead wires face
towards power supply and junction box. Snap luminaire
into mounting clips. Attach wires to power supply using UL
Listed twist-on or push-in wire connectors or equivalent. If
mounted outdoors or exposed to moisture, ensure all wire
connections are waterproof.
NOTE: If multiple luminaires are being attached to same
power supply refer to step 5 for daisy chain instructions.
WARNING: Check polarity. All connections must be RED-TO-RED (+) and BLACK-
TO-BLACK (-). Reverse polarity connections may damage LEDs and will void
product warranty. AVERTISSEMENT: Vériez la polarité. Toutes les connexions
doivent être ROUGE À ROUGE (+) et NOIR À NOIR (-). Des connexions inversées
peuvent endommager les DEL et annuler la garantie du produit.
4.
Install Dimming Controller and Motion Sensor
(optional): Connect Dimming Controller to secondary side
of power supply. Ensure Motion Sensor is aimed at primary
task area. Cat 5 cable may be concealed as required.
Junction
Box
Sensor
PS
DM
HighLINER 2
5. Daisy chain as required: Up to six luminaires can be
attached to a single power supply. Multiple luminaires
can be connected at same locations using 18 AWG UL
Listed PLTC cable and UL Listed twist-on or push-in or
equivalent wire connector. Length will be determined by
luminaire placement.
6. Wire Nut Housing: Conceal twist-on wire connectors using
provided Wire Nut Housing. When properly installed,
Wire Nut Housing sits ush with prole of luminaire.
HighLINER 2
Installation Guide for 701912-C1I75, 701912-L1C1I75, 701912-35C2I75, 701912-L135C2I75
PAGE 4 OF 5

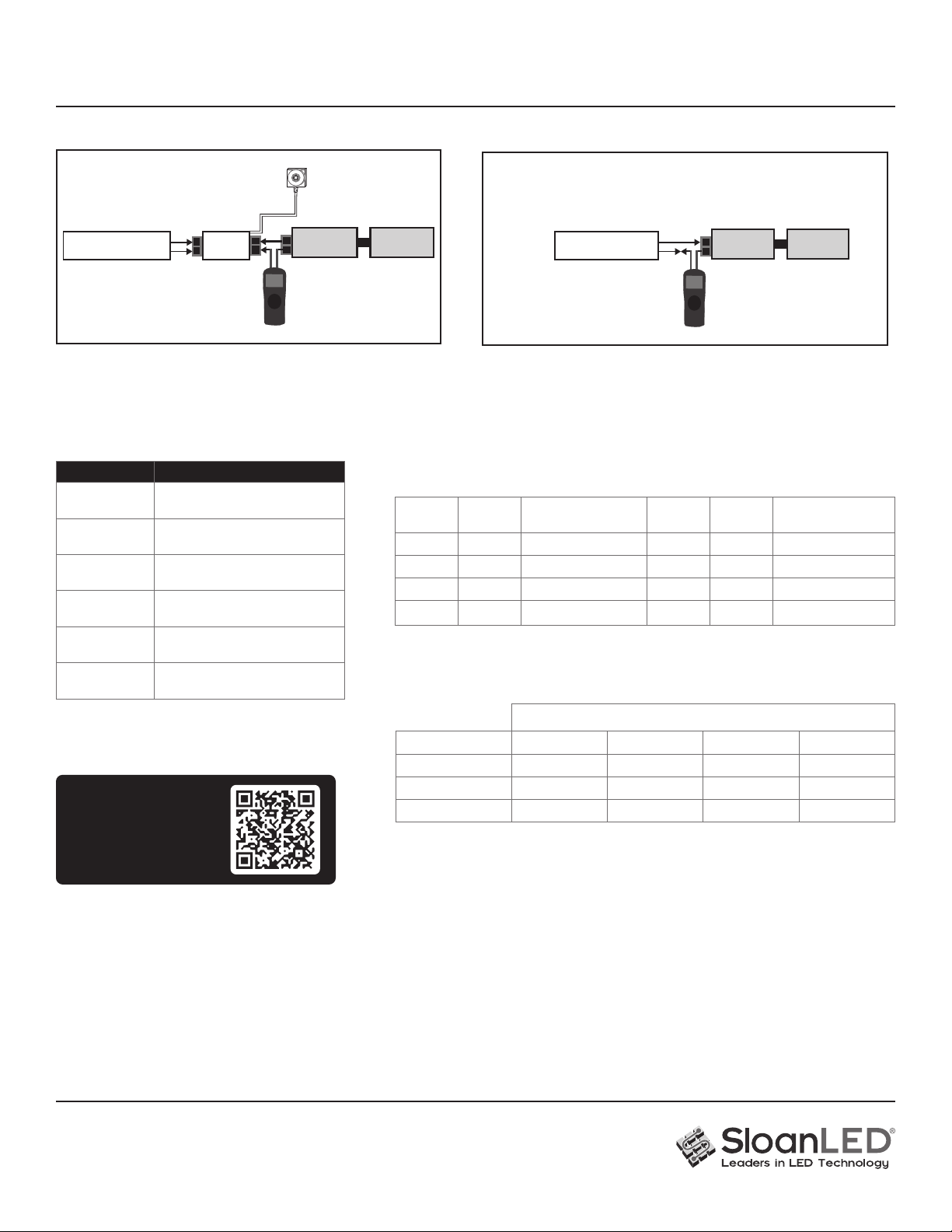

7.
Turn on system: Re-energize power circuit after installation
is complete. Check secondary current of each power supply
to ensure it is not overloaded per rating on label.
Junction
Box
Sensor
PS
DM
HighLINER 2
Dimming applications Non-dimming applications
Junction
Box
PS
HighLINER 2
Power output
Maximum number of 4' (1.2 m) luminaires
30 W
(EU/ROW ONLY) 1
60 W 3
96 W 6
3 x 96 W 3 X6
100 W 6
150 W
(EU/ROW ONLY) 9
24 VDC Power Supply Capacity Chart Dimming Controller settings
Switches 1 and 2 adjust brightness level
Switches 3 and 4 adjust dim mode brightness
Switch
1
Switch
2Brightness level
Switch
3
Switch
4
Percent of
full brightness
O O NA O O 0.0%
On O Energy Saver On O 12.5%
O On Standard O On 25.0%
On On MerchandiserMax On On 50.0%
Number of luminaires required per 100 square-feet
(9.29 square-meters) for open, continuously lit areas.
Minimum illumination intensities* (lux)†
Ceiling height 300 lx 400 lx 500 lx 600 lx
8 ft (2.4 m) 2 3 3 4
10 ft (3.0 m) 2 3 3 4
12 ft (3.7 m) 2 3 4 4
* Intensity measured at standard tabletop height (30 in (760 mm) from ground)
†100 lux = 9.29 foot-candela
For complete workplace lighting requirements, see OSHA requirements
- Code of Federal Regulations Title 29, Section 1926.56.
Visit www.osha.gov for more information.
Capacities based on 90% of power supply output.
NOTE: Refer to "SloanLED Power Supply Guide for Sign
Products" for appropriate 24 V power supply models.
Scan QR code to
download SloanLED
Power Supply Guide
for Sign Products
https://sloanled.com/downloads/SloanLEDPowerSupplyGuideForSignProducts.pdf
HighLINER 2
Installation Guide for 701912-C1I75, 701912-L1C1I75, 701912-35C2I75, 701912-L135C2I75
PAGE 5 OF 5
SloanLED Headquarters
5725 Olivas Park Drive, Ventura, CA, USA
888.747.4LED (888.747.4533) • info@SloanLED.com
SloanLED.com
SloanLED Europe b.v.
Argonstraat 110, 2718 SN Zoetermeer, NL
+31 88 12 44 900 • Europe@SloanLED.com
P/N 401264 Rev I 2021-08-20
Customer service and technical support
Troubleshooting
Luminaire won’t turn on.
1. Most likely a connector or connection problem. Check connections and voltage at connector. It could be a loose
connection, wire, or connector.
2. Ensure lockout/tagout removed and main circuit breaker energized.
3. Ensure all connections are secure and no shorts to ground.
4. Verify proper operation of power supply with multi-meter. Measure power supply output 24 +/- 10% VDC and if 24 VDC
present, replace luminaire.
5. If no output voltage, have certied electrician measure input voltage to power supply 90-240 VAC. If voltage present
within range, replace power supply.
6. Check to ensure total number of lights does not exceed power supply capacity. If proper number of lights per power
supply, ensure proper wire sizing for minimal voltage drop based on length of wire run.
NSF/ANSI 2
5000 K only 5000 K only
