Smart-Bus SB-DN-D0403 Bedienungsanleitung

SB-DN-D0403

Leading Edge Dimmer 4Ch 3A

Instruction Manual

Features

4 x 3A Leading Edge Dimming

Suitable for use with incandescent

lamps and most types of dimmable

electronic transformers, Total box Load

is 10 A

Single Phase Input 85-260 VAC

1 phase at 10A

Frequency 50/60 HZ

Suitable for 220 / 110 VAC Lighting

Surge Protection

Each module has capacitors and

voltage-sensitive resistors for surge

protection power line

Over Heat Protection

Big Heat sink with Built in temp sensor

when temp exceed 81±2 C, module will

limit output to 80% of original

Green Product

Bus enabled , Powered by 15-32 VDC

Consumption 30mA/24VDC

Overload Protection

Each channel is protected by a

replaceable 4 A time delay fuse.

Data line Short Protection

Protection for Bus Power Polarity

Change, or connect to data terminal

Emergency bypass switch

4 Momentary Button to switch each channel

ON/OFF

Broadcast Address Button

To broadcast the Module Address to

the Programming software

LED Indicator

To Indicate the Channel statues ON or

OFF

Life statues LED

LED Indicator, blinking to indicate that

Module powered and bus connected

Simple Installation

Din Rail Mount, Standard 35mm guide

rail mounting , with Elegant Plastic

Labeling Tag for Module Name

Areas and Scenes

Up to 4 independent areas, each with

up to 12 scenes, with Fade time of 0

seconds to 60 minutes

Sequence Feature

Up to 6 Sequence of 12 steps each 1.0

to 60 minutes With Optional steps times,

and Running modes.

Channel Maximum Level

Low threshold, high threshold and

maximum threshold available to suite

different loads of each channel.

Restore Function

Device restored to previous scene or

Specific scene after Power Restore to

the Module

Layout description

1- 1-4: 4 channel output terminal to connect to the Lights Load

2- L / N: is input terminal of AC 85V – 260 V

3- Com, Data-, Data +, DC 24 V 485 S-bus connection terminal.

4- Keystroke and indicator light bypass switch to control. 1-4 channels.

5- Module broadcast address keystroke and Life statues LED.

6- Heat sink

7- Temperate Sensor for Over heat Protection

8- Labeling Plastic place

Important Notice:

- Safety warning: Please Power

OFF before any installation.

- Installation Place: in a dry,

well-ventilated damp-proof,

shake-proof, and dust-proof

location. Controllers may emit

some mechanical noise. Take

this into account when deciding

the mounting location.,

- Input Power: module Load

power must be connected via

suitable breaker of 10A.

- Output Circuits: The load on a

circuit should not exceed the

specified per channel capacity of

3 Amps.

- Bus connection Use stranded

RS485 data cable with four

twisted pairs. Connect devices in

a ‘daisy chain’ or “Star”. A data

cable that is connected to an

energized device is live. Do not

cut or terminate live data cables.

- Power Sources – This device

should only be operated from the

S-Bus Power supply.

- Regularly check: test the

circuitry and other related circuit

or cables and replace the

disqualified on time.

- For Maintenance: Please

contact Qualified Person.

Installation Steps

1. Mount the device on a DIN rail inside an approved enclosure.

2. Calculate loads to ensure any channels are not overloaded, and then connect loads

to the output channels. The maximum loading of this device is as follows: - Maximum

channel load: 3 Amps - Maximum device load: 10 Amps

3. It is recommended to Put Fast Fuse Extra Protection of 4 A between the Load and

the channel output.

4. Connect a single phase 10A with suitable breaker to feed to the supply terminals.

5. Connect data cables to the device as per diagrams below.

6. Insert the Labeling Sticker of Module Name on the Plastic Labeling Place

7. This device will only operate in basic modes unless programmed via a computer..

Once the data cable is connected to the devices, the factory default settings will allow

any control panel to operate all channels in all controllers, If programming is required,

contact your local agent for details, or see the S-Bus Lighting Motor and HVAC

Programming Guide e-Book for more Details.

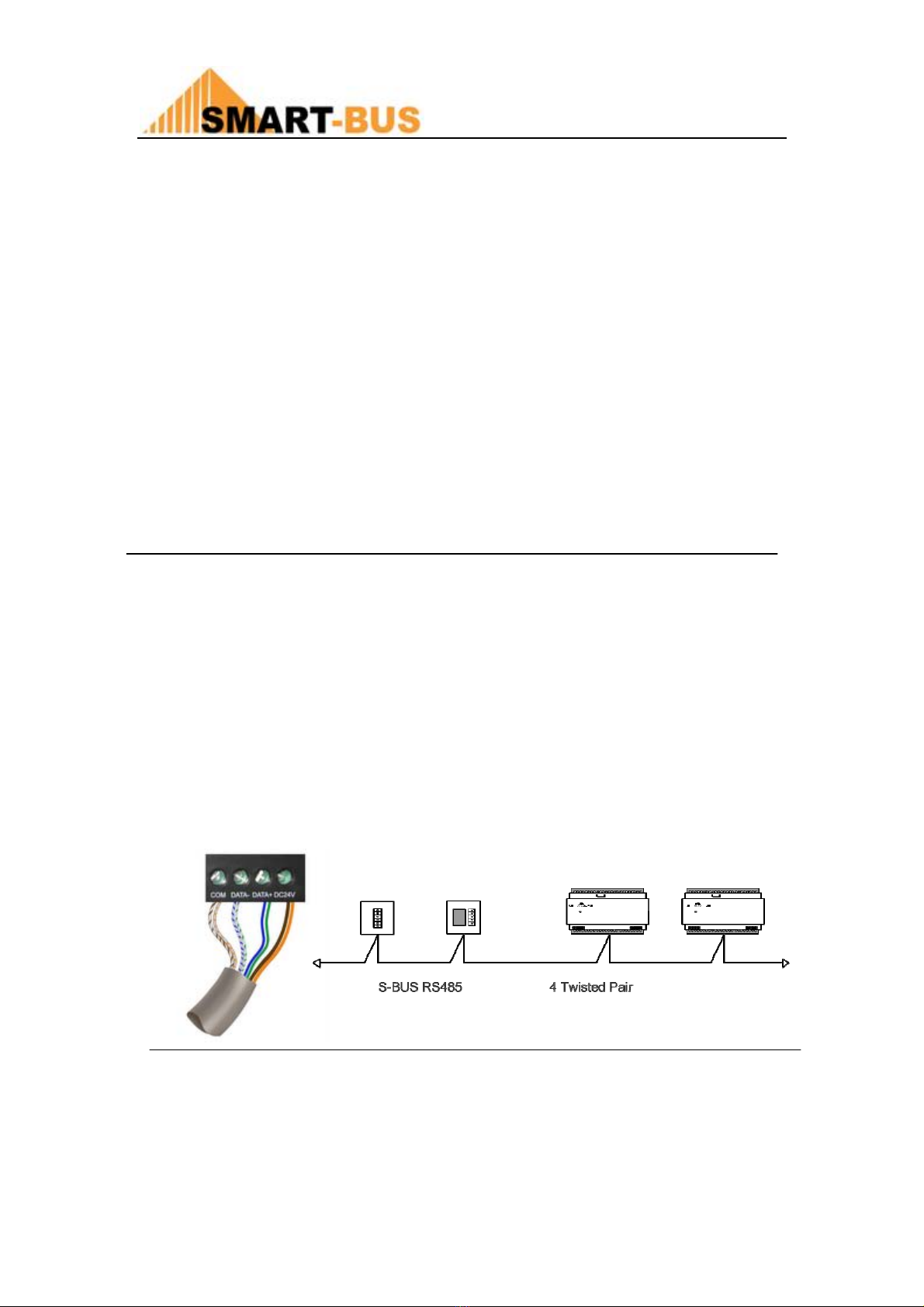

Recommended Wiring:

- Module power input cable: 2.5mm2Electrical copper wire

- Load output wire: 2.5mm2 Electrical copper wire

- 485 BUS connection cable: Cat5e

Recommended cable color coding

COM →Brown white、Orange white

Data －→Blue white、Green white

Data ＋→Blue、Green

DC24V →Brown、Orange

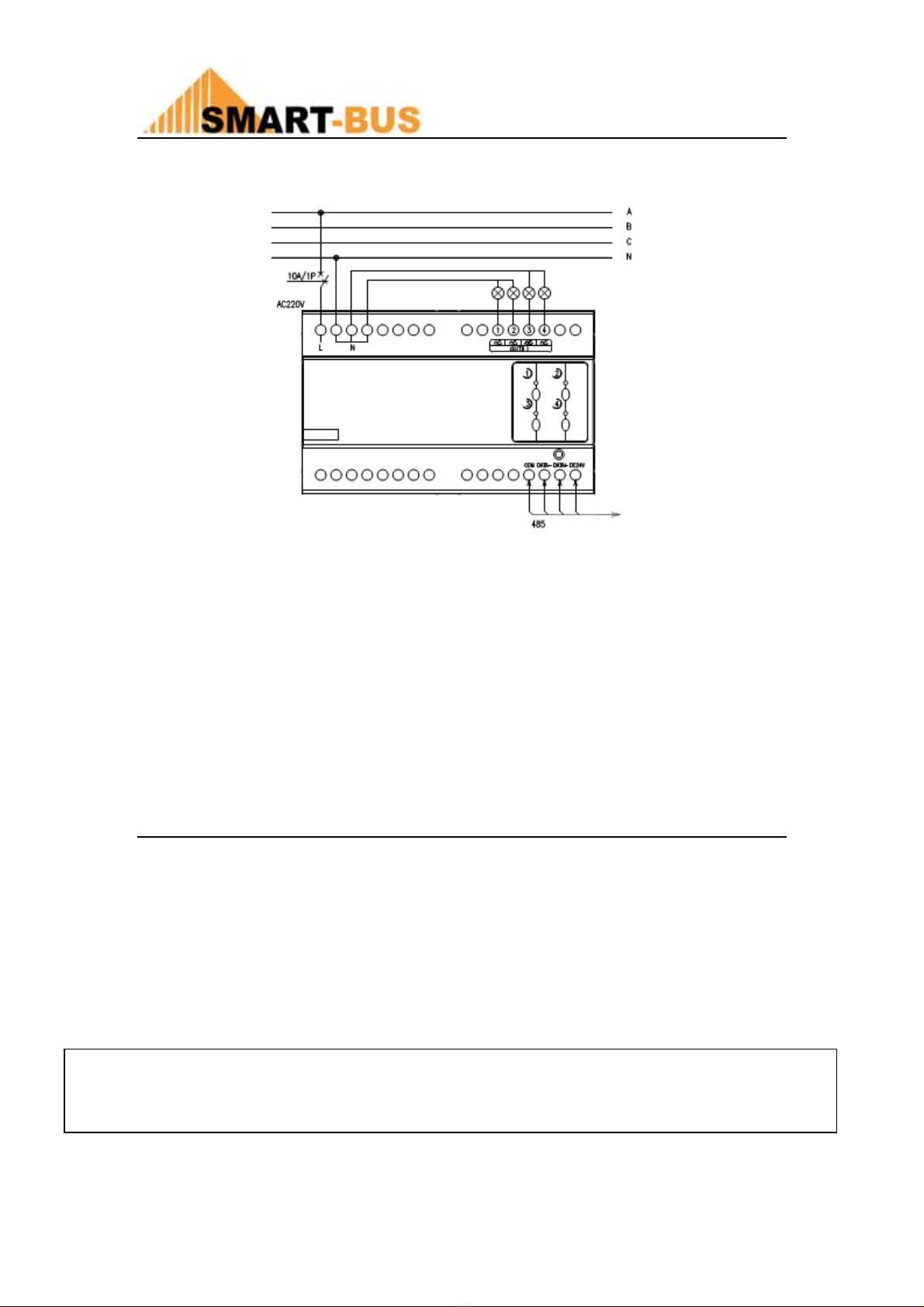

Load Connection

Product specifications

Load Supply input: 85 - 260V 50/60Hz Single Phase at 10A

Power consumption: 30mA/24V

Control Outputs: 4 x Leading Edge dimmed outputs at 3A. Maximum device load of10A

Overload Protection: Each channel protected by a 4A time delay fuse

Control Inputs: 1 x RS485 S-Bus, Module Powered by Bus connection

Working Ambient Temperature: -10° to 45°C, Ambient Humidity, 20% to 85% RH

Storage Temperature: -20° to 60°C, Ambient Humidity, 20% to 90% RH

Dimensions: W144mm× H 88mm× D 66mm

Packed Weight: 0.56Kg
