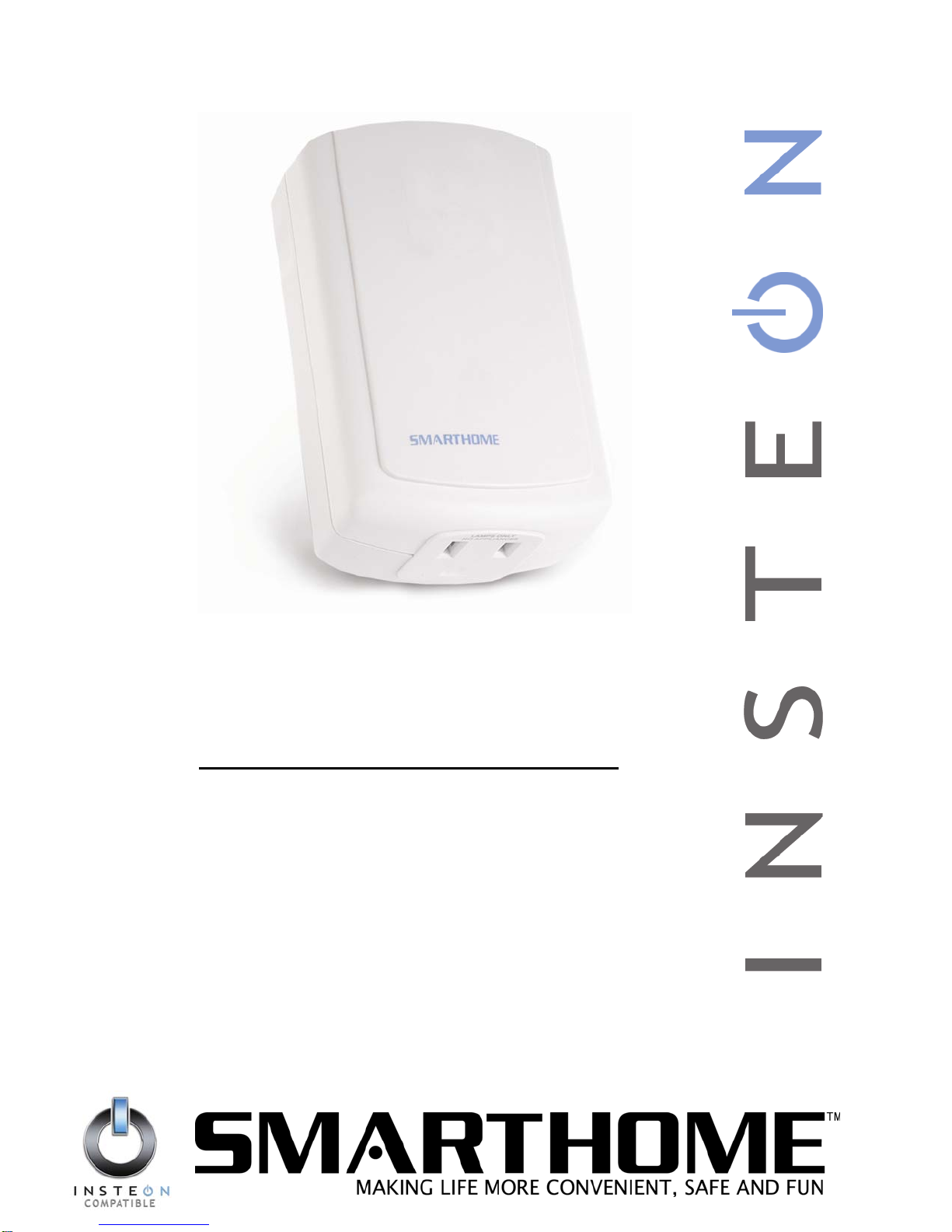

Smart home INSTEON 2856D2 Bedienungsanleitung

ICON

Lamp Dimmer

Lamp Dimmer Module with INSTEON™

Technology

For model(s):

#2856D2/2856D2B Icon Lamp Dimmer

Icon Lamp Dimmer User’s Guide

TABLE OF CONTENTS

ABOUT ICON LAMP DIMMER.....................................................................................................................3

What is INSTEON?....................................................................................................................................3

Key Icon Lamp Dimmer Features..............................................................................................................3

HOW TO INSTALL ICON LAMP DIMMER..................................................................................................4

Icon Lamp Dimmer Installation Tips..........................................................................................................4

Installing Icon Lamp Dimmer.....................................................................................................................4

HOW TO SET UP ICON LAMP DIMMER ....................................................................................................5

Linking Icon Lamp Dimmer to an INSTEON Controller.............................................................................5

Unlinking Icon Lamp Dimmer from an INSTEON Controller.....................................................................6

HOW TO SET UP ON-LEVELS (Optional)..................................................................................................7

CREATING AN INSTEON SCENE...............................................................................................................8

ADVANCED FEATURES OF ICON LAMP DIMMER ..................................................................................9

Restoring Power to Icon Lamp Dimmer ....................................................................................................9

Resetting Icon Lamp Dimmer to Its Factory Default Settings ...................................................................9

X10 PROGRAMMING OPTIONS...............................................................................................................10

Setting the X10 Primary Address............................................................................................................10

Removing the X10 Primary Address.......................................................................................................10

Enabling or Disabling Local Control........................................................................................................10

Setting the X10 On-Level for the X10 Primary Address..........................................................................10

Enabling X10 Resume Dim.....................................................................................................................11

ADVANCED X10 PROGRAMMING OPTIONS..........................................................................................12

Remotely Setting the On-Level for the X10 Primary Address.................................................................12

ABOUT INSTEON ......................................................................................................................................13

Understanding Why an INSTEON Network Is Reliable...........................................................................13

Further Enhancing Reliability ..................................................................................................................13

Using Icon RF Signal Extenders To Upgrade Your INSTEON Network.................................................13

About INSTEON and X10........................................................................................................................14

TROUBLESHOOTING................................................................................................................................15

SPECIFICATIONS......................................................................................................................................17

Icon Lamp Dimmer Specifications...........................................................................................................17

Certification..............................................................................................................................................18

Limited Warranty .....................................................................................................................................18

Icon Lamp Dimmer User’s Guide

ABOUT ICON LAMP DIMMER

Congratulations on purchasing the Icon Lamp Dimmer. Your new Icon Lamp Dimmer allows you to dim

and remotely control any lamp in your home at the touch of a button.

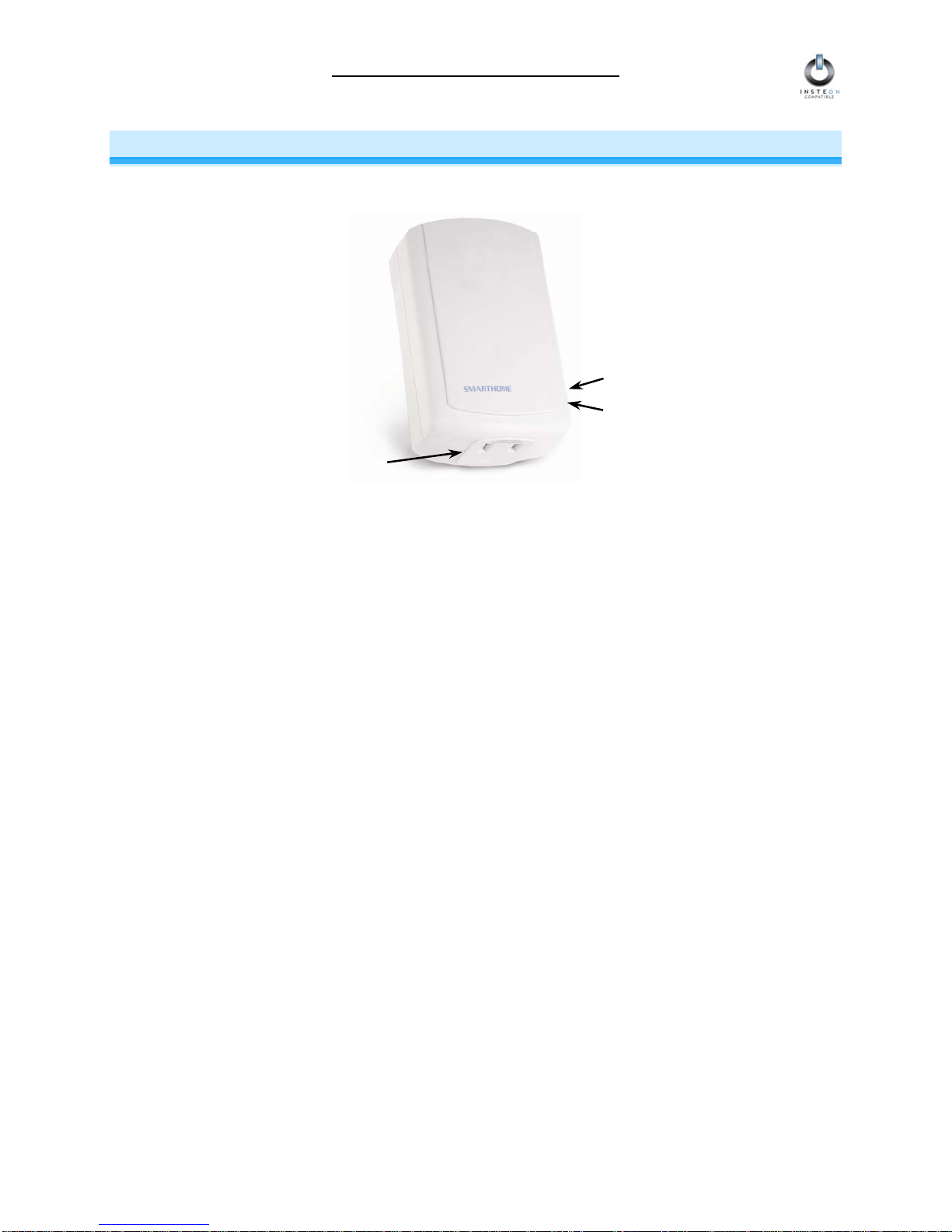

SET Button

Status LED

Controlled

Out

What is INSTEON?

INSTEON is a simple, reliable, and affordable breakthrough in home control. Simple, because Plug-n-

Tap™setup is a breeze, and there are no wires to add – INSTEON uses existing powerline wiring as well

as radio-frequency for communication. Reliable, because every INSTEON device is a two-way repeater.

And affordable, not just because of low cost, but because INSTEON also works with legacy X10 devices.

An INSTEON home grows in value with every INSTEON device you add, making life more convenient,

safe and fun.

Key Icon Lamp Dimmer Features

• Setup is easy – Icon Lamp Dimmer installs in minutes

• Controls all standard incandescent lamps, up to 150 watts

• Dims lamps to 32 brightness levels

• Responds to commands from X10 controllers

• Shows INSTEON activity with a green status LED

• Stores setup state in memory, even while unplugged

• Warranted for one year

Page 3 of 18

Icon Lamp Dimmer User’s Guide

HOW TO INSTALL ICON LAMP DIMMER

on Lamp Dimmer Installation Tips

outlet controlled by a switch, because if the switch is

• orescent lights, or motors. These are

• g Icon Lamp Dimmer into a filtered power strip or AC line filter.

tch on the lamp itself is in the

• eing controlled by Icon Lamp Dimmer already has its own built in dimmer, turn that

stalling Icon Lamp Dimmer

rmance, be sure you have properly installed at least two Icon RF

2. mmer into an unswitched wall receptacle. The green Status LED on the side will

3. want to control into the controlled outlet on the bottom of

4. ed in will turn on. If the lamp does not turn on, turn it on

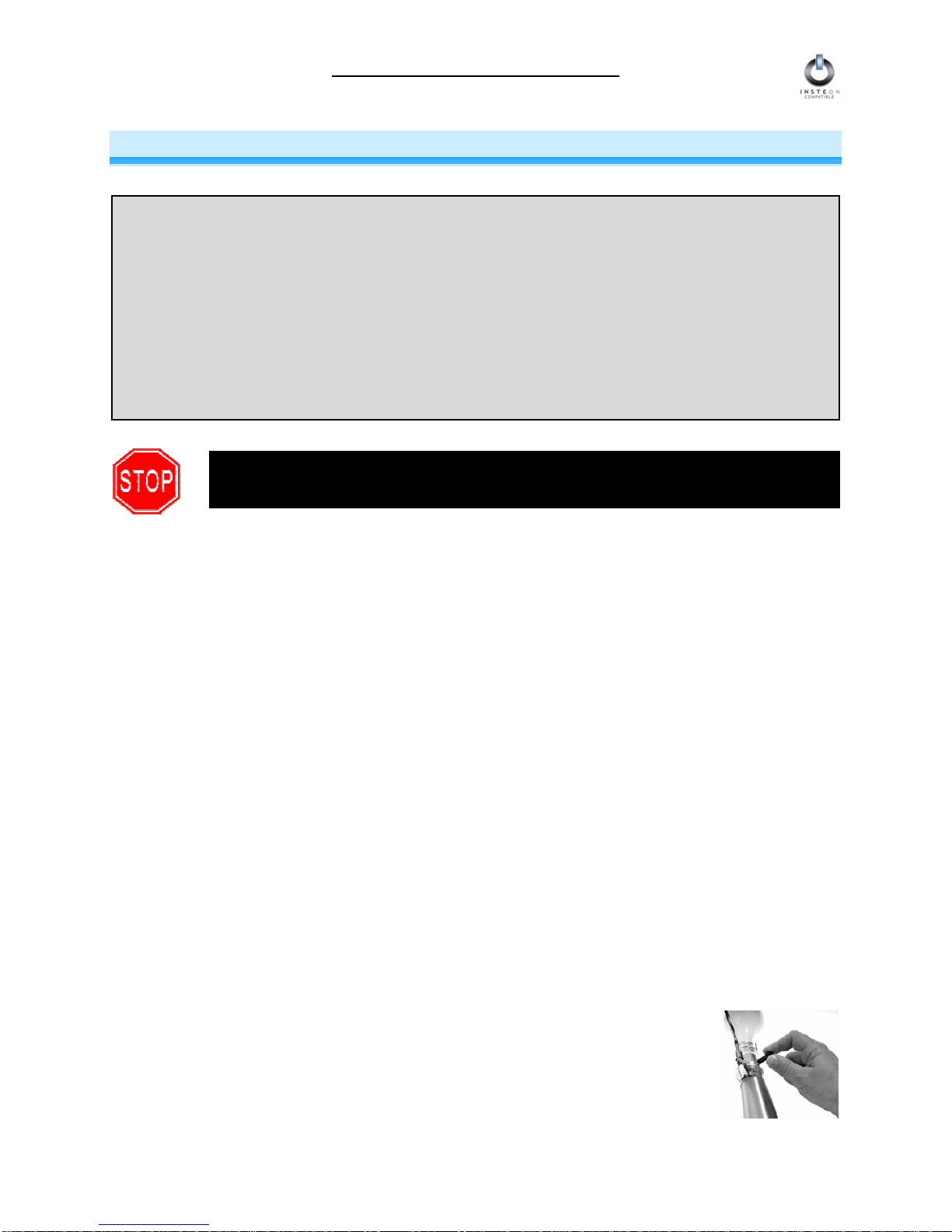

Caution

Read and understand these instructions before installing, and retain them for future reference.

Icon Lamp Dimmer is intended for installation in accordance with the National Electric Code and local regulations in the

United States, or the Canadian Electrical Code and local regulations in Canada. Use indoors only. Icon Lamp Dimme

is not designed nor approved for use on power lines other than 120V 60Hz, single phase. Attempting to use Icon Lamp

Dimmer on non-approved powerlines may have hazardous consequences.

To reduce the risk of overheating and possible damage to other equipment, use Icon Lamp Dimmer to control 110

incandescent lamps only. Dimming an inductive load, such as a fan or transformer, could cause damage to the dimmer,

the load device, or both. If the manufacturer of the load device does not recommend dimming, DO NOT use Icon Lamp

Dimmer’s dimming capabilities or else use a non-dimming INSTEON module. USER ASSUMES ALL RISKS

SSOCIATED WITH DIMMING AN INDUCTIVE LOAD.

Proper installation of at least two Icon RF Signal Extenders is required prior to

installing and using other INSTEON devices.

• Don’t plug Icon Lamp Dimmer into an

inadvertently turned off, Icon Lamp Dimmer won’t have power.

Don’t use Icon Lamp Dimmer to control low-voltage lighting, flu

inductive loads, which Icon Lamp Dimmer is not designed to control. Use an Icon Appliance Adapter

instead.

Don’t plu

• Be sure the lamp you want to control is working and that the manual swi

ON position.

If the lamp b

dimmer to full on and allow Icon Lamp Dimmer to control the lamp’s brightness.

1. For best INSTEON Network perfo

Signal Extenders.

Plug Icon Lamp Di

illuminate steadily.

Plug the lamp you

Icon Lamp Dimmer.

The lamp you plugg

manually using the switch on the lamp itself.

Page 4 of 18

Icon Lamp Dimmer User’s Guide

HOW TO SET UP ICON LAMP DIMMER

Linking Icon Lamp Dimmer to an INSTEON Controller

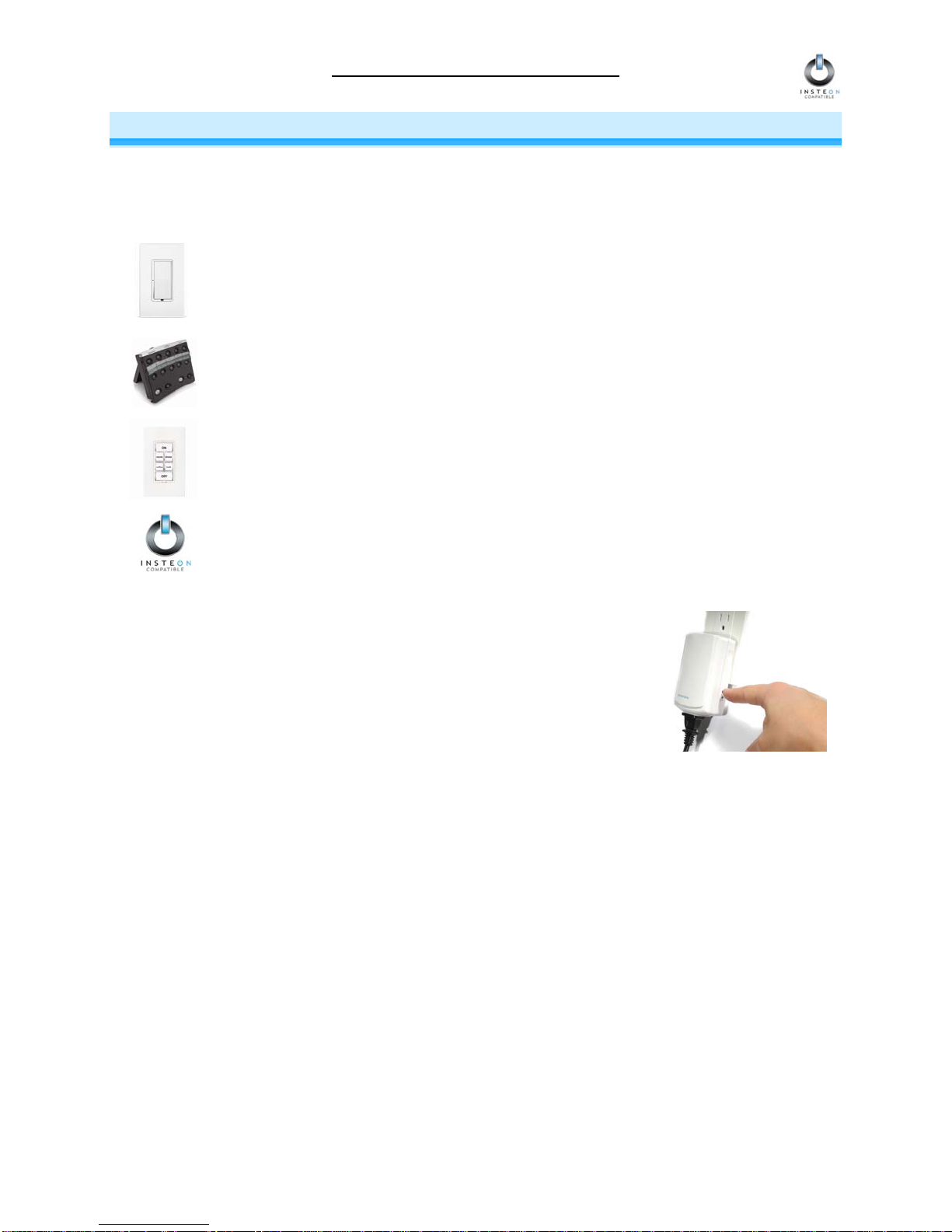

1. Select your INSTEON Controller from the list below and follow the method shown to put it into

lease. To confirm that it is in Linking Mode, Icon Dimmer Switch will

B. you want to use for

controlling Icon Lamp Dimmer. Press and hold the ON Button of the pair for 10

C. er – Choose the ON Button you want to use for controlling Icon

Lamp Dimmer. Press and hold the ON Button for 10 seconds. To confirm that it is in

D. STEON Controller’s User’s Guide.

2. Press and

seconds. Both the lamp you are controlling and Icon Lamp

Linking Mode.

A. Icon Dimmer Switch – Press and hold Icon Dimmer Switch’s Paddle Top for 10

seconds, then re

flash the light that it is wired to once and begin blinking its LED.

Icon Tabletop Controller – Choose the ON/OFF Button Pair

seconds. To confirm that it is in Linking Mode, Icon Tabpletop Controller’s Status LED

will begin blinking.

Icon Keypad Dimm

Linking Mode, Icon Keypad Dimmer will flash the light that it is wired to once and begin

blinking the ON Button that you pushed.

Other INSTEON Controllers – See the IN

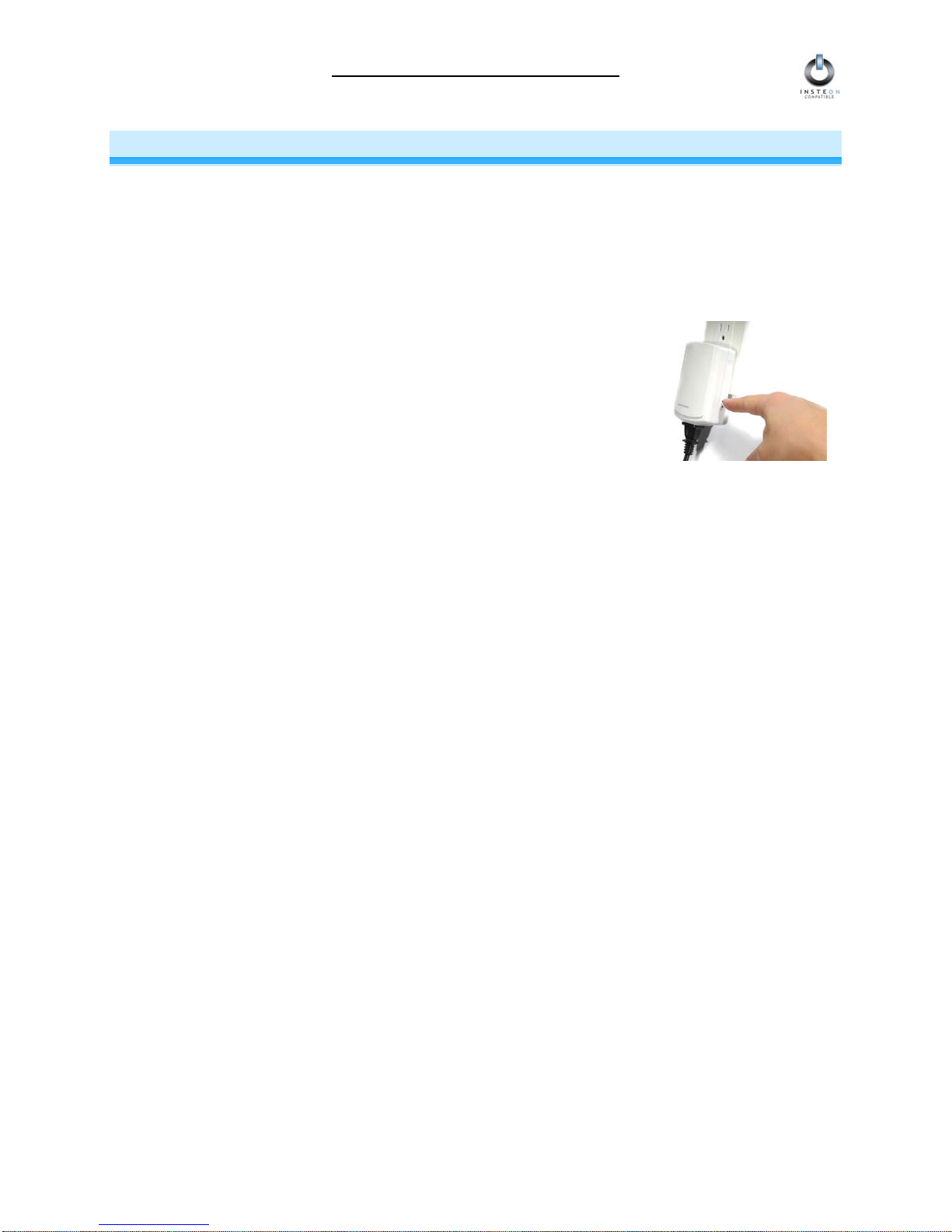

hold the black SET Button on Icon Lamp Dimmer for 3

Dimmer’s Status LED will blink to confirm linking. Depending on

the INSTEON Controller, you have about 4 minutes to perform

this step before Linking Mode times out automatically.

Page 5 of 18

Icon Lamp Dimmer User’s Guide

Unlinking Icon Lamp Dimmer from an INSTEON Controller

If you are no longer going to use an Icon Lamp Dimmer that has previously been linked to an INSTEON

Controller, it is very important that you unlink it, because otherwise the controller will retry any commands

intended for the unused module, thus slowing down your system.

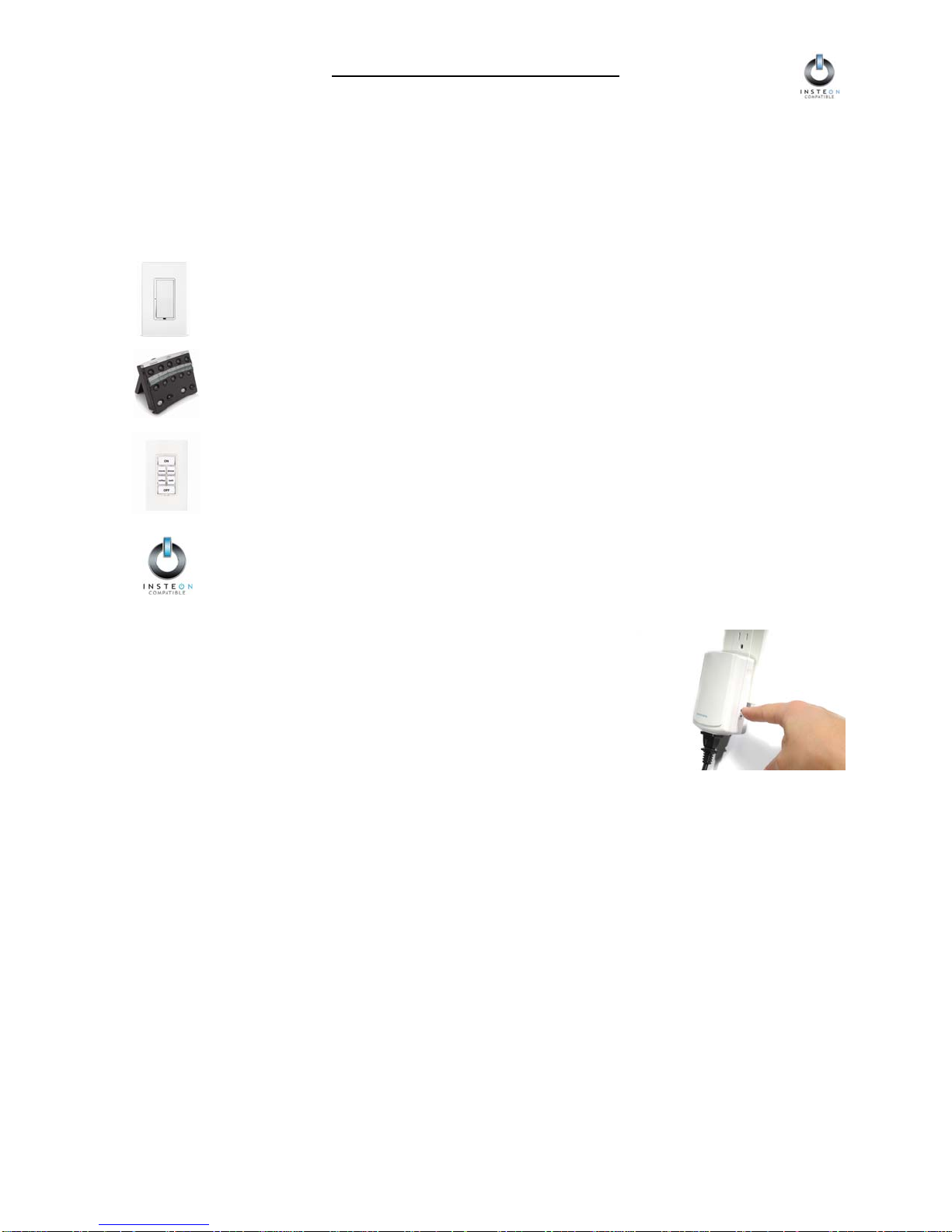

1. Select your INSTEON Controller from the list below and follow the method shown to put it into

Unlinking Mode.

A. Icon Dimmer Switch – Press and hold Icon Dimmer Switch’s Paddle Top for 10

seconds TWICE. To confirm that it is in Unlinking Mode, Icon Dimmer Switch will flash

the light that it is wired to once for each paddle press and begin blinking its LED.

B. Icon Tabletop Controller – Press and hold the OFF Button of the ON/OFF Button

Pair you used for controlling Icon Lamp Dimmer for 10 seconds. To confirm that it is in

Unlinking Mode, Icon Tabletop Controller’s Status LED will begin blinking.

C. Icon Keypad Dimmer– Press and hold for 10 seconds the Button you used for

controlling Icon Lamp Dimmer, then press and hold the same Button for 10 seconds

again. To confirm that it is in Unlinking Mode, Icon Keypad Dimmer will flash the light

that it is wired to once and begin blinking the ON Button that you pushed.

D. Other INSTEON Controllers – See the INSTEON Controller’s User’s Guide.

2. Press and hold the black SET Button on Icon Lamp Dimmer for 3

seconds. Both the lamp you are controlling and Icon Lamp

Dimmer’s Status LED will blink to confirm unlinking. Depending on

the INSTEON Controller, you have about 4 minutes to perform this

step before Unlinking Mode times out automatically.

Page 6 of 18

Icon Lamp Dimmer User’s Guide

HOW TO SET UP ON-LEVELS (Optional)

The On-Level is the brightness that the lamp you are controlling will go to when you turn it on using an

INSTEON Controller. The On-Level is adjustable from OFF to 100% brightness. The default is 100%.

1. Using the ON/OFF Button Pair that you already linked Icon Lamp Dimmer to, set the INSTEON

Controller to Linking Mode by pressing and holding the ON Button of the pair for 10 seconds.

2. Using the BRIGHT or DIM Buttons on the INSTEON Controller, adjust the brightness of the lamp

you are controlling to the desired On-Level and tap the SET Button on Icon Lamp Dimmer ONCE.

3. Press and hold the black SET Button on Icon Lamp Dimmer for 3

seconds. Both the lamp you are controlling and Icon Lamp

Dimmer’s Status LED will blink to confirm the On-Level setting.

Page 7 of 18

Icon Lamp Dimmer User’s Guide

CREATING AN INSTEON SCENE

INSTEON Scenes let you activate dramatic lighting moods with the press of just one button. INSTEON

Scenes are very easy to set up – just link more than one INSTEON module to an ON/OFF Button Pair on

an INSTEON Controller. Then, when you press either the ON or the OFF Button on the INSTEON

Controller, all of the INSTEON modules linked in the scene will respond as a group. You can link multiple

Icon Lamp Dimmers or other INSTEON modules to multiple INSTEON Controllers.

To add an additional Icon Lamp Dimmer to a scene controlled by an ON/OFF Button Pair on an

INSTEON Controller, simply follow the same procedure that you used for linking the first Icon Lamp

Dimmer. See Linking Icon Lamp Dimmer to an INSTEON Controller, above. To adjust the On-Level by

itself, see HOW TO SET UP ON-LEVELS To remove an Icon Lamp Dimmer from a scene, see Unlinking

Icon Lamp Dimmer from an INSTEON Controller.

TIP

With some INSTEON Controllers, you can avoid having to hold a button down for 10 seconds for each

setup step by placing the Controller in Scene Setup Mode, also called Multilink Mode. Refer to you

INSTEON Controller’s User’s Guide for detailed instructions on how to set it to Scene Setup Mode.

The following will work for an Icon Tabletop Controller.

1. Set the Icon Tabletop Controller to Scene Setup Mode for the ON/OFF Button Pair you want to

use for controlling the scene by pressing and holding the ON Button of the pair for 10 seconds,

then tapping the same ON Button again. Icon Tabletop Controller’s Status LED will blink slowly.

2. Press and hold the black SET Button on Icon Lamp Dimmer for 3 seconds. The lamp you are

controlling will blink to confirm linking. Icon Tabletop Controller will beep to confirm linking, and its

Status LED will continue to blink slowly.

3. If you want to adjust the On-Level, you can do so by following the steps above in the section

HOW TO SET UP ON-LEVELS (don’t press the On-Button for 10 seconds when adjusting On-

Level while you’re in Scene Setup Mode).

4. Continue Steps 2 and 3 for any additional INSTEON modules you want to link to the scene.

5. When you are finished linking INSTEON modules to the desired ON/OFF Button, complete Scene

Setup by pressing the ON Button. Icon Tabletop Controller’s Status LED will stop blinking and

remain steadily on. You have about 4 minutes of inactivity before Scene Setup Mode times ou

automatically.

Page 8 of 18

Icon Lamp Dimmer User’s Guide

ADVANCED FEATURES OF ICON LAMP DIMMER

Restoring Power to Icon Lamp Dimmer

Icon Lamp Dimmer stores all of its settings in memory, even when unplugged. In the event of a power

loss, Icon Lamp Dimmer will automatically return the lamp being controlled to the brightness level it had

before the power was interrupted. Similarly, if Icon Lamp Dimmer is plugged into an outlet controlled by a

wall switch and you turn the switch off, Icon Lamp Dimmer will turn the lamp back on to its prior

brightness when you turn the wall switch back on.

Resetting Icon Lamp Dimmer to Its Factory Default Settings

The factory reset procedure can be used to clear Icon Lamp Dimmer’s memory and restore its factory

default settings. This procedure will clear the unit of all INSTEON Links, any programmed On-Levels or

the X10 Primary Address.

1. Before resetting a Icon Lamp Dimmer that has been linked to an INSTEON Controller, be sure to

unlink it from the Controller first. See Unlinking Icon Lamp Dimmer from an INSTEON Controller,

above.

2. Unplug Icon Lamp Dimmer for about 10 seconds.

3. While holding down the black SET Button on Icon Lamp Dimmer, plug Icon Lamp Dimmer back in.

4. After plugging Icon Lamp Dimmer back in, continue to hold down the black SET Button for 3 seconds.

5. Release the black SET Button.

6. After several seconds, Icon Lamp Dimmer’s Status LED will turn on and the lamp you plugged in will

come on to full brightness, indicating that the factory reset is complete. Icon Lamp Dimmer is now

reset to all the default settings and ready for fresh programming and use.

Page 9 of 18

Icon Lamp Dimmer User’s Guide

X10 PROGRAMMING OPTIONS

Icon Lamp Dimmer is backward-compatible with X10, meaning that it can respond to X10 commands from

an X10 Controller. However, to operate Icon Lamp Dimmer in X10 mode, you must first set up an

X10 Primary Address. As It ships from the factory, or after a factory reset procedure, Icon Lamp

Dimmer will have no X10 Primary Address set up.

Setting the X10 Primary Address

You must do this before Icon Lamp Dimmer will respond to X10 commands. You can use any of the

256 possible X10 addresses for the X10 Primary Address.

1. Press and hold the black SET Button on Icon Lamp Dimmer for 3 seconds. The green Status LED

will begin flashing and the lamp you are controlling will blink to confirm that you are setting up an X10

Primary Address.

2. Use an X10 Controller to send an X10 ON command THREE TIMES (e.g. A1 ON A1 ON A1 ON).

You have about 30 seconds to perform this step before setup mode expires. (NOTE: If you send an

X10 OFF command during this step, Local Control will be disabled. See the next section for an

explanation.)

3. Once Icon Lamp Dimmer has received the X10 Address and X10 ON or X10 OFF THREE TIMES, the

Status LED on Icon Lamp Dimmer will stop flashing and the X10 Primary Address will be set.

Removing the X10 Primary Address

1. Press and hold the black SET Button on Icon Lamp Dimmer for 3 seconds. The green Status LED

will begin flashing and the lamp you are controlling will blink to confirm that you are setting up an X10

Primary Address.

2. Press and hold the black SET Button on Icon Lamp Dimmer for 3 seconds again and send any X10

address THREE TIMES (e.g. A1 ON A1 ON A1 ON). The green Status LED will stop flashing and the

lamp you are controlling will blink again to confirm that you have removed the X10 Primary Address.

Enabling or Disabling Local Control

Local Control allows you to manually turn on the lamp you plugged into Icon Lamp Dimmer by using the

switch on the lamp itself, without sending a command from an X10 or INSTEON Controller. By default,

Local Control is enabled. You can disable Local Control by setting the X10 Primary Address using an

X10 OFF command in Step 2 above. Remember that if the switch on the lamp itself is turned off, Icon

Lamp Dimmer will not be able to control the lamp.

Setting the X10 On-Level for the X10 Primary Address

The X10 On-Level is the brightness that the lamp you are controlling will go to when you turn it on using

an X10 Controller. The X10 On-Level can be adjusted from OFF to 100% brightness. The default is

100%

1. Using the BRIGHT, DIM, ON, or OFF Buttons on any Controller, adjust the brightness of the lamp

you are controlling to the desired On-Level.

2. Tap the SET Button on Icon Lamp Dimmer ONCE. The lamp you are controlling will blink to confirm

the X10 On-Level setting.

Page 10 of 18

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere smart home Dimmer Handbücher

smart home

smart home ICON Bedienungsanleitung

smart home

smart home 2380W Bedienungsanleitung

smart home

smart home X10 Bedienungsanleitung

smart home

smart home INSTEON KeypadLinc V2 Dimmer Bedienungsanleitung

smart home

smart home SwitchLinc 2387W Bedienungsanleitung

Beliebte Dimmer Handbücher anderer Marken

ZooZ

ZooZ ZEN54 LR Bedienungsanleitung

Lex

Lex 6KW Bedienungsanleitung

DIODE LED

DIODE LED TOUCHDIAL Mini Bedienungsanleitung

Viessmann

Viessmann 5590 Bedienungsanleitung

American DJ

American DJ DP-8A Bedienungsanleitung

Teleco

Teleco TVSTICK868RGB29 Bedienungsanleitung

INSTEON

INSTEON LampLinc 2457D2 Bedienungsanleitung

LEGRAND

LEGRAND WattStopper RH703PTU Bedienungsanleitung

ADB

ADB EURODIM TWIN TECH Bedienungsanleitung

Sinope

Sinope DM2550ZB-C4 Bedienungsanleitung

SkyLink

SkyLink SK7 Bedienungsanleitung

Makel

Makel RC Bedienungsanleitung

Lightronics

Lightronics XC-62 Bedienungsanleitung

Triton Blue

Triton Blue DM-1225 Bedienungsanleitung

ETC

ETC ES750 Betriebsanleitung

NA OMEGA + Bedienungsanleitung

GE ZB3001 Bedienungsanleitung

LSC

LSC DP-1210 Bedienungsanleitung

smart home INSTEON 2856D2 Bedienungsanleitung

Beliebte Dimmer Handbücher anderer Marken
