Smart Solar AquaNura Kurzanleitung

AquaNura Solar Birdbath Kit

0°C /32°F





Configuration and Assembly

In strong sunlight or windy conditions, the water may spray outside of the birdbath.

We recommend the water be regularly topped off and changed to ensure it remains

clean and free from debris. Shallow birdbaths require more frequent filling due to

evaporation or the pump will run dry, which may cause damage

Frost causes damage and is not covered by warranty. Empty water and store product

inside during cold weather. For safety, we recommend doing this when the weather is

going to dip below 40°F.

Unit includes:

Solar panel housing x1

Support ring (attached) x1

Pump x1

Fountain head set x1

1” Extension tube x1

The AquaNura can be configured to allow use with a variety of birdbaths.

Below are some suggestions. You may need to adjust the components based

upon your birdbath. You must have a minimum of 1.5” of water to work correctly.

Deep Birdbath

(2+ inches) with Flat Bowl

Shallow Birdbath

with Flat Bowl

Shallow Birdbath with

Curved Bowl

• Use with support ring attached

• Connect pump tube directly into

bottom of solar panel

• Solar panel will not be effected

if submerged underwater

• Remove support ring

• Connect pump tube directly

into bottom of solar panel

• Remove the support ring

• Add 1” tube between the

underside of solar panel and

pump. This will lower the pump

closer to bottom of bowl.

See next page for instructions on how to attach pump and remove support ring.

* Birdbath not included

Warning! Important! Read Me!

1” Extension tube

Pump

1” Extension tube

Fountain head set

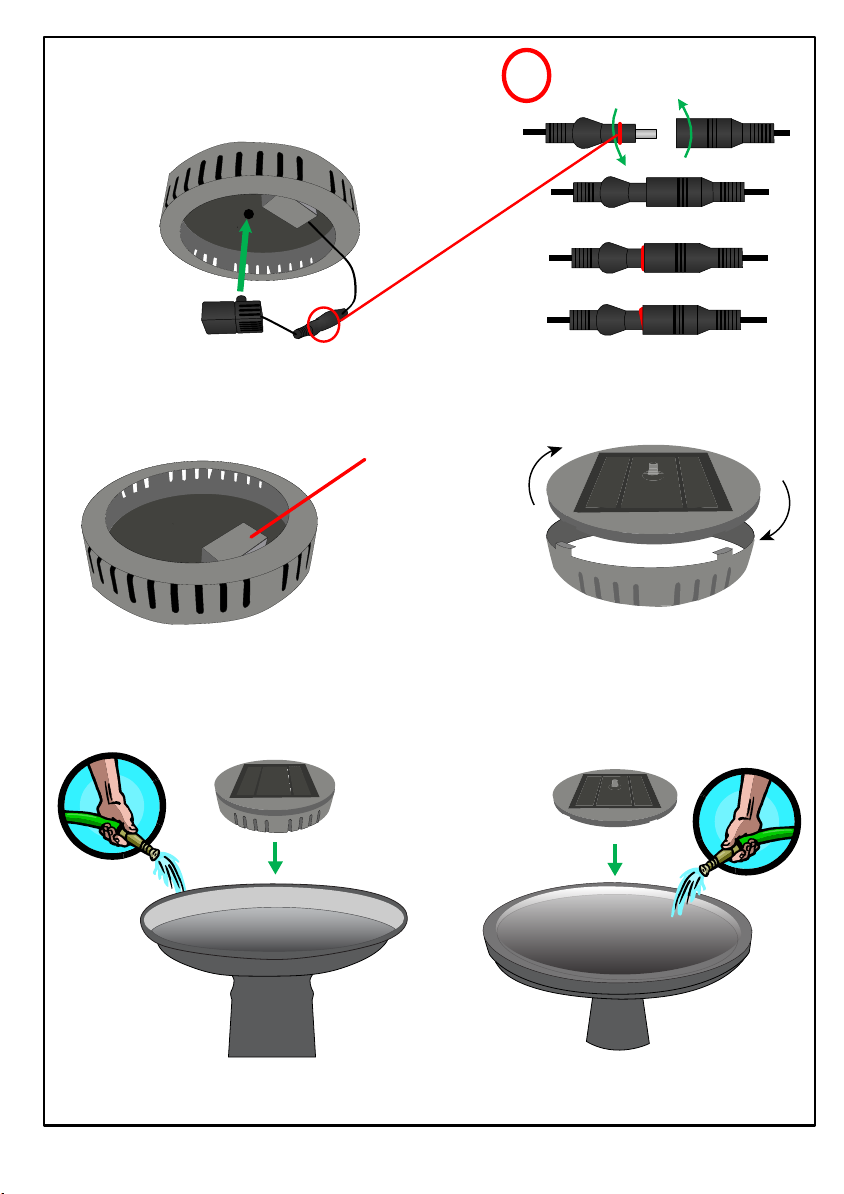

In order to remove the support ring, turn the solar panel housing upside down. Hold the circuit

box with one hand, and with your other hand turn the support ring to the right to unlock.

Fill your birdbath with water and place the AquaNura into the birdbath.

Attach the fountain head of your choice.





Important

BEFORE USE: Connect the tube on the pump to the hole

in the underside of the solar panel. Connect the cables,

ensure the connections are water tight.

Circuit box

Performance

This product is designed primarily to operate in summer months but will also work in spring and autumn

provided there is strong direct sunlight. Performance is directly related to the amount and strength of

sunlight received. The 360˚fountain head will work effectively in strong direct sunlight. The short bubbler

fountain head may need to be removed in strong direct sunlight to avoid splashing.

Pump Cleaning / Manual Pump Start

Filter cover can simply

be pulled apart as

shown.

Turn impeller cover to

release as shown,

impeller can be

easily removed

Remove filter

material and rinse in

water.

Rinse all parts

thoroughly in

water.

If the pump is not working immediately, try the following for a

manual start. Remove the pump cover. Remove the impeller

cover, face the panel to the sun, and start manually spinning

the impeller clockwise, this can take 1-3 minutes.

  







In bright direct sunlight your pump will work well with a

consistent fountain height and flow rate.

In slightly cloudy conditions your pump will work

however fountain height and flow will vary as clouds

pass in front of the sun.

In overcast conditions the solar panel does not

generate enough power to run the pump and it will

NOT work.

At night the solar panel does not generate power and

your pump will NOT work.

Position

Position your AquaNura so that

receives direct sunlight. The

fountain will NOT work if the solar

panel is in a shaded area.

Smart Living Home & Garden warranties your solar panel, pump and battery (for Solar-on-Demand units) for

one (1) year from the original date of purchase from authorized distributors and retailers. The warranty covers

parts that are properly installed and regularly maintained. If the product fails due to a defect in material or

workmanship, Smart Living will replace the defective parts free of charge. Your fountain is designed for outdoor

use and with proper care will last for many years. If over time your fountain develops scratches or minor wear

from normal use, you can contact our customer service department for easy to apply one step touch up paint.

Please unpack and inspect the entire product upon receipt. Report any broken or missing pieces within five (5)

business days of receipt to our customer service department and we will provide replacement parts free of

charge. Please do not discard any damaged parts until instructed to do so by our customer service department.

Thank you for purchasing this Smart Solar fountain.

https://smartlivinghg.com/wp/customer-service/product-registration/

FAQs are available online along with step by step video tutorials to help you with pump

cleaning and solar kit assembly.

Visit: https://smartlivinghg.com/wp/customer-service/faq/

Smart Solar is a Smart Living Home & Garden brand

Telephone: + 1 813 343 5775

Email: [email protected]

Web: www.smartlivinghg.com

US Patent 7484671, EU Patent 1648620

Maintenance

To maintain optimum performance, regularly clean

the solar panel using water or glass cleaner with a

non-abrasive sponge or cloth.

If the fountain head, nozzle, or tubes become

blocked, rinse through with water.

•Ensure the cables from the pump to the solar panel are connected properly.

•Ensure the pump tube is connected to the underside of the solar panel.

•Check water level in birdbath to ensure pump is fully submerged.

•Remove and clean impeller from the pump (see pump cleaning section).

•If dirty, clean glass on solar panel housing. Remove any hard water scale/build up.

•Try Manual Pump Start (see pump cleaning section).

•There may be an air bubble in the tube. Try pouring water down the tube to force out the

air bubble.

Troubleshooting Tips
