Smarteh LPC-2.CR1 Bedienungsanleitung

USER MANUAL

Longo programmable controller

LPC-2.CR1

Card Reader module

Version 5

SMARTEH d.o.o. / Poljubinj 114 / 5220 Tolmin / Slovenia / Tel.: +3 6(0)5 3 44 00 / e-mail: info@smarteh.si / www.smarteh.si

Longo programmable controller LPC-2.CR1

Written by SMARTE d.o.o.

User Manual

Document Version: 005

June, 2016

Longo programmable controller LPC-2.CR1

STANDARDS AND PROVISIONS: Standards, recommendations,

regulations and provisions of the country in which the devices will

operate, must be considered while planning and setting up electrical

devices. Work on 230 V AC network is allowed for authorized

personnel only.

DANGER WARNINGS: Devices or modules must be protected from

moisture, dirt and damage during transport, storing and operation.

WARRANTY CONDITIONS: For all modules LONGO LPC-2 – if no

modifications are performed upon and are correctly connected by

authorized personnel – in consideration of maximum allowed

connecting power, we offer warranty for 24 months from date of sale

to end buyer. In case of claims within warranty time, which are based

on material malfunctions the producer offers free replacement. The

method of return of malfunctioned module, together with description,

can be arranged with our authorized representative. Warranty does

not include damage due to transport or because of unconsidered

corresponding regulations of the country, where the module is

installed.

This device must be connected properly by the provided connection

scheme in this manual. Misconnections may result in device damage,

fire or personal injury.

azardous voltage in the device can cause electric shock and may

result in personal injury or death.

NEVER SERVICE T IS PRODUCT YOURSELF!

This device must not be installed in the systems critical for life (e.g.

medical devices, aircrafts, etc.).

If the device is used in a manner not specified by the manufacturer,

the degree of protection provided by the equipment may be impaired.

Waste electrical and electronic equipment (WEEE) must be collected

separately!

LONGO LPC-2 complies to the following standards:

•EMC:EN 61000-6-2 (EN 50082), EN 61000-6-4 (EN 50081)

•LVD: IEC 61131-2

•Vibrations and climatic-mechanical: EN 60068-2-6, EN 60068-2-27,

EN 60068-2-29

Smarteh d.o.o. operates a policy of continuous development.

Therefore we reserve the right to make changes and improvements to

any of the products described in this manual without any prior notice.

MANUFACTURER:

SMARTE d.o.o.

Poljubinj 114

5220 Tolmin

Slovenia

Longo programmable controller LPC-2.CR1

1 ABBREVIATIONS................................................................................1

2 DESCRIPTION...................................................................................2

3 FEATURES.......................................................................................3

4 OPERATION.....................................................................................4

4.1 Parameters..............................................................................4

5 INSTALLATION..................................................................................5

5.1 Connection scheme....................................................................5

5.2 Mounting instructions.................................................................7

5.3 Module labeling........................................................................8

6 TEC NICAL SPECIFICATIONS.................................................................9

7 SPARE PARTS..................................................................................10

8 C ANGES .....................................................................................11

9 NOTES..........................................................................................12

iii

Longo programmable controller LPC-2.CR1

1 A REVIATIONS

Sorted by order of appeareance in document:

RFID Radio frequency identification

SOS Emergency call

LED Light emitting diode

DIP Dual in-line package

ID Identity

MCU Main control unit

Longo programmable controller LPC-2.CR1

2 DESCRIPTION

LPC-2.CR1 RFID reader is intended to be used as an identity verification device for room, office or

other indoor entrance.

When RFID tag (key-card) is approached to the reader and its code is successfully read out, the

green LED blinks and a short beep is generated. In case key-card for correspondent room is valid, the

green LED blinks again and a short beep is generated. Other devices can be activated at this event

like door lock opening, turning light on... If key-card number is not valid, the red LED blinks and a

longer beep is generated.

Functionalities are controlled from MCU. Controller is accompanied with Smarteh IDE application. It

is a tool, where various modules can be put together to a configuration, based on number and type

of electrical signals needed. Smarteh IDE takes care for proper modules position. Latest Smarteh IDE

setup can be downloaded from Smarteh web page support section:

www.smarteh.si/Support/Downloads/Software/Development_tools

LPC-2.CR1 module can be modified on customer request: custom front label, push buttons added,

LEDs added. For more information please contact manufacturer.

Longo programmable controller LPC-2.CR1

3 FEATURES

Figure 1: LPC-2.CR1 module.

Table 1: Technical data

RFID reader

OK “ √ ” LED

Fault “ X ” LED

Power LED

Internal fault LED

Internal built-in buzzer

Black or white glass possibility

Longo programmable controller LPC-2.CR1

4 OPERATION

Operation of the CR1 module is also dependent on parameters received on RS-485 communication

channel.

Reader RFID field is active always when module is powered up. If tag is put inside RFID field, reader

tries to resolve RFID tag code. If code is read successfully, module activates status iIDNew,

generates a short beep, OK LED1 blinks and code is transmitted in iIDW1 - iIDW3 status fields. In

MCU application this code can be read out and authenticated. If code has appropriate rights, MCU

should activate oOK command. If code is not authorized, MCU application should activate oFault

command. Regarding command received, following action are triggered on module:

oOK --> OK LED2 blink, short beep.

oFault --> Fault LED1 blink, long beep.

Either command is received or no command is received within 10 sec, module clears iIDNew status

and waits for next RFID tag. While CR1 module is waiting for authorization response, new RFID tags

can not be read.

4.1 Parameters

If parameter is set to logical “1”, is considered to be active, enabled or set. If parameter has

logical value “0” is considered to be inactive, disabled, or cleared.

Parameter can be feedback or command. Parameter as feedback means that CR1 module is sending

information to MCU. On the other hand, command represents request from MCU to module.

Command:

ID Fault [oFault]: Command for rejecting authorization of RFID code.

ID OK [oOk]: Command for authorization of RFID code.

uzzer [oBuzz]: While this command is active, buzzer is active.

'Fault' ID LED [oFaultLD]: While this command is active, fault LED1 is set.

'OK' ID LED [oOkLD]: While this command is active, OK LED2 is set.

Card Type Select [oSelTyp]: 0 Emarine; 1 hitag.→ →

Feedback:

RFID ID Word1 [iDW1]: Upper (most significant) third of RFID code.

RFID ID Word2 [iDW2]: Middle third of RFID code.

RFID ID Word3 [iDW3]: Lower (least significant) third of RFID code.

New ID [iIDNew]: When new RFID tag is recognized, this status is set active for 10sec or till

authorization command is received (oOK or oFault).

Communication [iComm]: Normal state is “0”. If set, there is communication error or no

communication established.

'Up-right' T [iUp TB]: signal from button located up-right corner (this button is disabled

by default and can be enable in EPROM).

'Up-left' T [iUpLTB]: signal from button located up-left corner (this button is disabled by

default and can be enable in EPROM).

Longo programmable controller LPC-2.CR1

5 INSTALLATION

5.1 Connection scheme

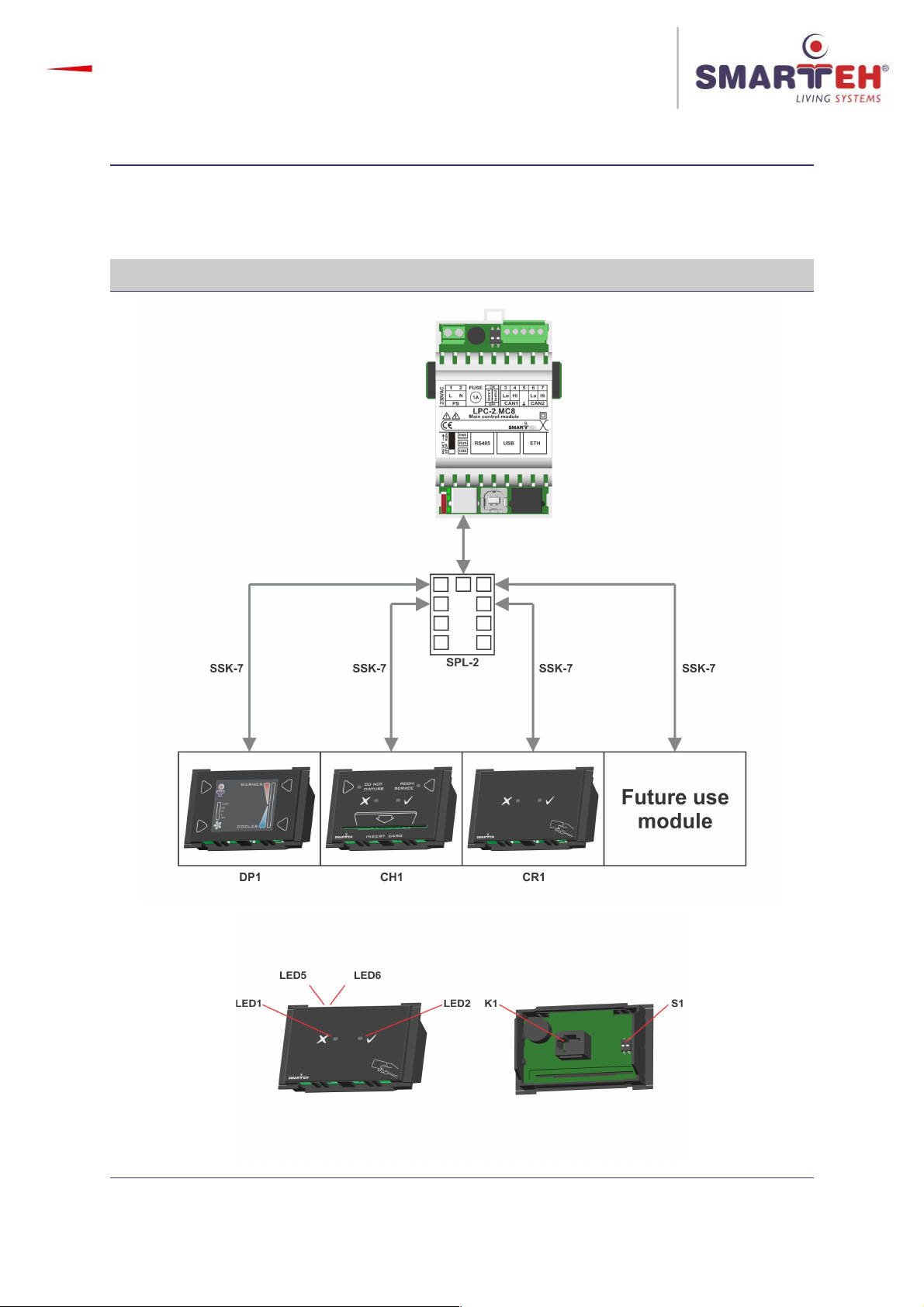

Figure 2: Connection scheme

Longo programmable controller LPC-2.CR1

Table 2: K1

K1.1 GND Ground

K1.2 10 .. 24 V DC Power supply input

K1.3 RS-485 A Data receive/send line A

K1.4 RS-485 B Data receive/send line B

Table 3: LEDs & uttons

LED1: red Fault “ X ” ON: RFID key standard NOK or ID card number wrong

OFF: No tag in proximity

LED2: green OK “ √ ”ON: RFID key standard OK and ID card number valid

OFF: No tag in proximity

LED5: red Communication ON: RS-485 communication fault

OFF: RS-485 communication OK

LED6: green Power supply ON: power supply OK

OFF: power supply missing or power off

Table 4: S1

RS-485 ADDRESS Switch 1 Switch 2

0 OFF OFF

1 OFF ON

2 ON OFF

3 ON ON
