Attaching device to the Home Area Network (HAN)
The ZOE-RE must be joined to the HAN so it can communicate with the electric utility to receive load events and price
information. Ensure the device is powered and that the HAN coordinator or a router is open for joining. Then proceed as
follows:
1. Once the ZOE-RE is plugged in and reset, it will begin searching for a an open network. LED is ashing rapidly.
2. After the device completes the joining process, the Status LED will be lit solid unless the coordinator (ESP or Smart
Meter) requests the device to open permit join. The LED will remain ashing fast if the device is unable to join the
HAN. (Refer to LED pattern chart on pg.2)
(949) 429-3303
Technical Support
Smartenit.com

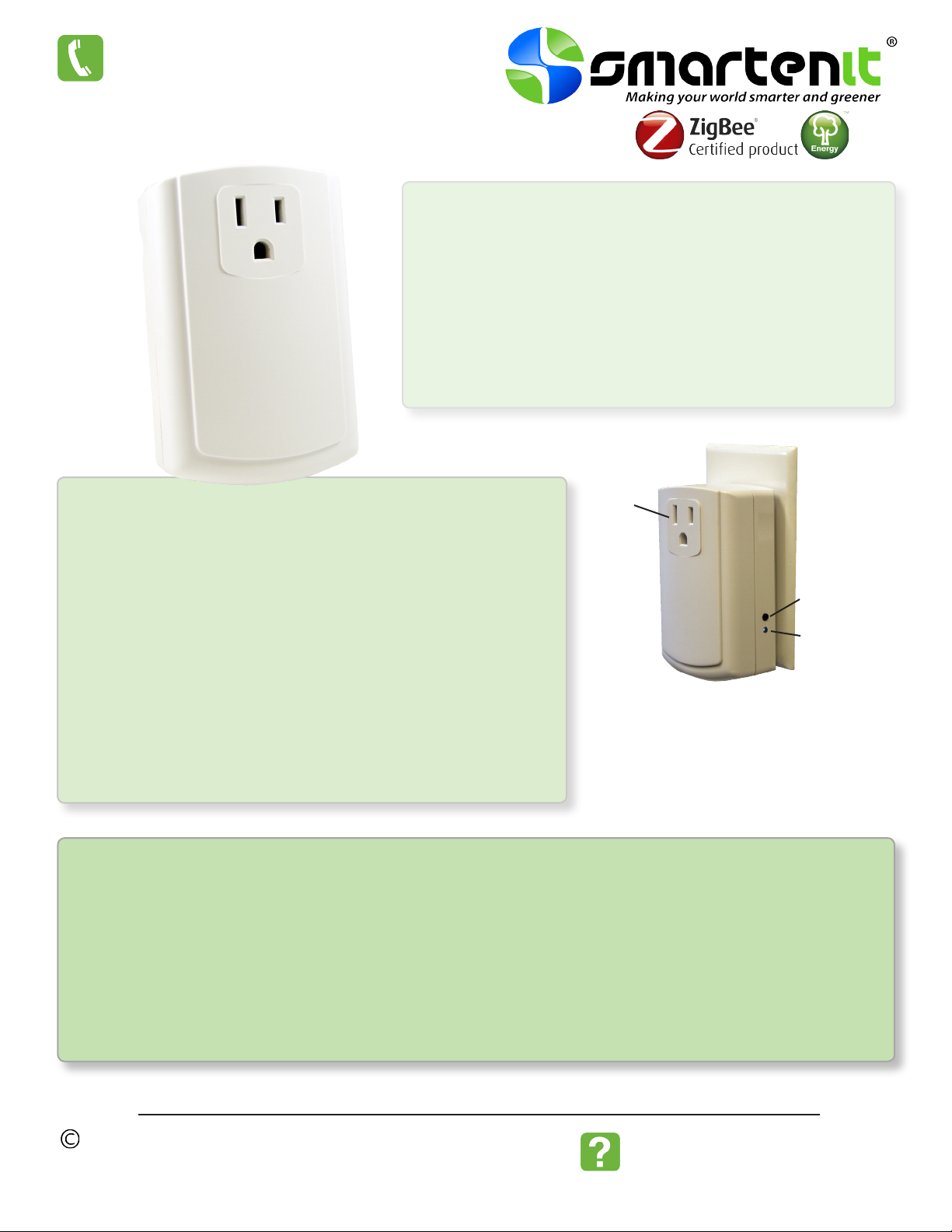

Quick Start Guide - ZOE®-RE Model # 5010R
Product Brief
Installation
Set-up
For more information, please visit our Wiki
http://wiki.smartenit.com
Smart Energy HAN Range Extender
1. Register ZOE-RE with Utility
• Register the device with your electric utility using the included
installation code and the instructions provided by the utility.
Each code is unique to a particular controller, so please ensure
the provided numbers are entered correctly.
2. Reset to Factory Defaults
• Press and hold the Program Button while plugging the ZOE-RE into
a 120V* AC receptacle and release after 1-2 seconds.
• The Status LED will blink rapidly indicating the ZOE-RE has been
reset and is searching for an open SE network to join.
(*240VAC input is acceptable, but the unit is equipped for North American receptacles)
The ZOE-RE provides the means to easily extend the range of your
ZigBee®Smart Energy devices as well as increase the strength of your
ZigBee SE wireless network.
The built-in high power ZigBee SE certied radio joins the SE network
as a ZigBee Pro router and then facilitates the joining of devices that
may not be within range of the Energy Service Portal (ESP-usually
the smart meter.) Use of the ZigBee SE Prole ensures compatibility
with the emerging standards for smart homes/buildings being deployed
around the world.
Always ON
Outlet
Program
Button
Status LED
The ZOE-RE must be installed indoors or in a weather proof enclosure
