Wireless Barricade

Plus

Quick Start Guide

SMC7004WFW

V1.0

Table of Contents

Chapter 1 Introduction

Chapter 2 Indicator LEDs

Chapter 3 Configuring your Computer

Chapter 4 Configuring your Barricade

Chapter 5 About SMC

For wireless operation of the SMC7004WFW please refer to the Full Manual

found on CD-rom (included in this package) or on www.smc-europe.com. Also

refer to the documentation provided with your wireless PCI or PCMCIA cards.

For VPN configuration please refer to the Full Manual found on CD-rom

(included in this package). For additional information visit www.smc-

europe.com.

For Full Manuals in other languages please refer either to the included CD-rom

or to www.smc-europe.com.

Chapter 1. Introduction

The SMC Barricade is a Broadband Router designed to share Internet

Access, provide security, and to network multiple devices for a variety

of users. The Barricade’s simple installation and setup can be carried

out by the least experienced of users, while providing networking

professionals with easy to configure advanced features. Please read

the User Guide for advanced features of this product.

This Package Contains

•One SMC Barricade

•One Power Adapter

•This Quick Installation Guide

•One CD with Complete Documentation

•One Category 5 Fast Ethernet Cable

Confirm That You Meet Installation Requirements

Before proceeding with the installation of your Barricade, please be

sure you have the following:

•A computer with an Ethernet network card installed

•Your Windows CD, if your computer is running Win 95, 98, or ME

•An Internet connection through a cable or xDSL modem

•An additional Ethernet network cable

•A Web browser such as Internet Explorer or Netscape

Chapter 2. Indicator LEDs

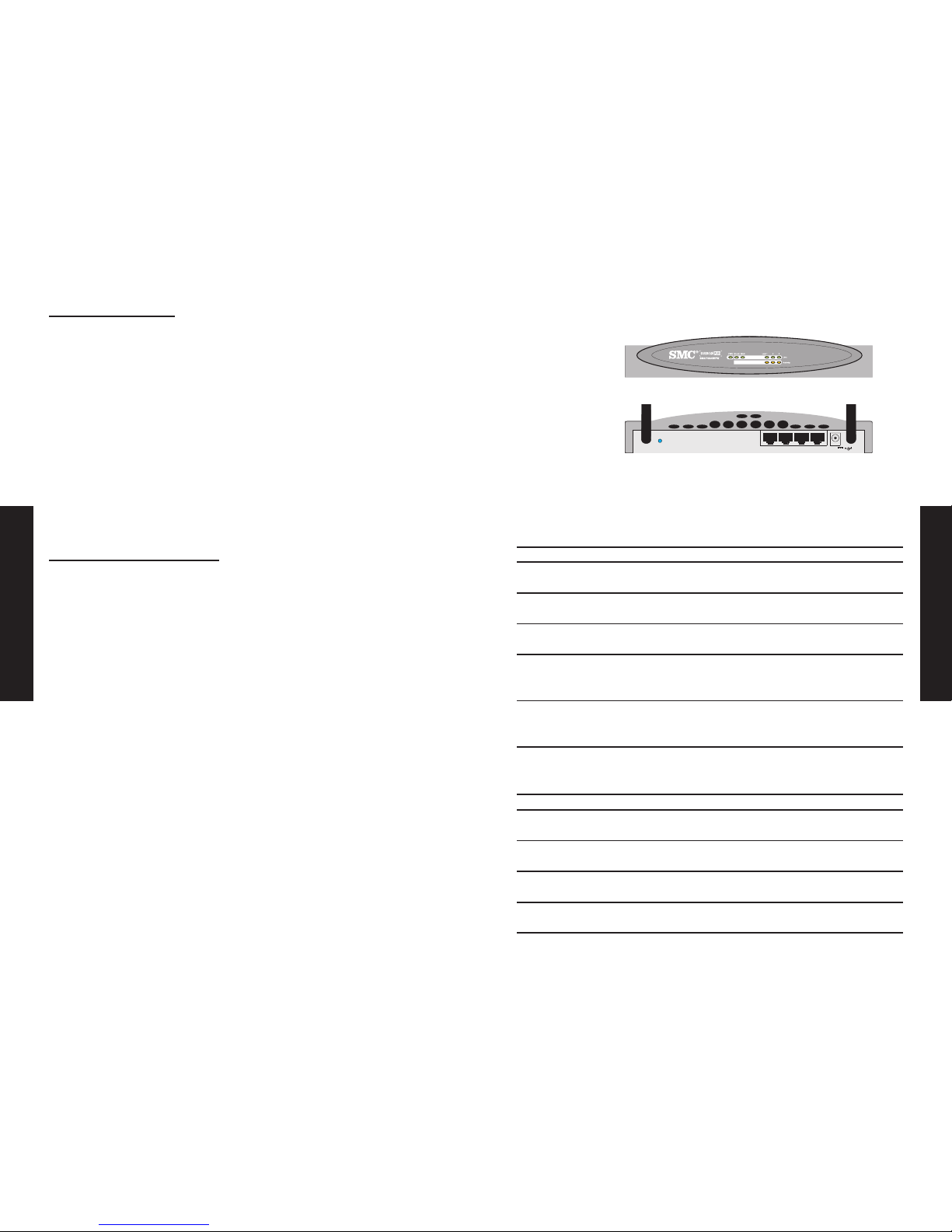

Front Panel

Rear Panel

The front panel of the Barricade provides indicator LEDs (Light

Emitting Diodes) for easy monitoring. The following table defines

the function of each LED.

Item Description

LEDs Power, WLAN, WAN and LAN port status indicators.

Wireless Dual antennas provide optimal reception by dynamically

Antennas choosing the best antenna for each client.

Reset Use this button to reset the power and restore the default

Button factory settings.

WAN Port WAN port (RJ-45). Connect your Cable modem, xDSL modem,

or an Ethernet router to this port.

LAN Ports Fast Ethernet ports (RJ-45). Connect devices on your

local area network to these ports (such as a PC, hub

or switch).

Power Inlet Connect the included power adapter to this inlet.

Warning: Using the wrong type of power adapter may

cause damage.

LED Condition Status

Power (Green) On Wireless Barricade Plus is receiving power.

WLAN (Green) On The Wireless Barricade Plus has

established a valid wireless connection.

WAN (Green) On The WAN port has established a valid

network connection.

LAN Link (Green) On The indicated LAN port has established a

valid network connection.

Activity (Amber) Flashing The indicated LAN port is transmitting

or receiving traffic.

English

RESET 9V

2A MAX

WAN 123

RESET

2A MAX

N12 3

known as a static IP address. How your ISP assigns your IP address

determines how you will configure your computer.

Here is what to do:

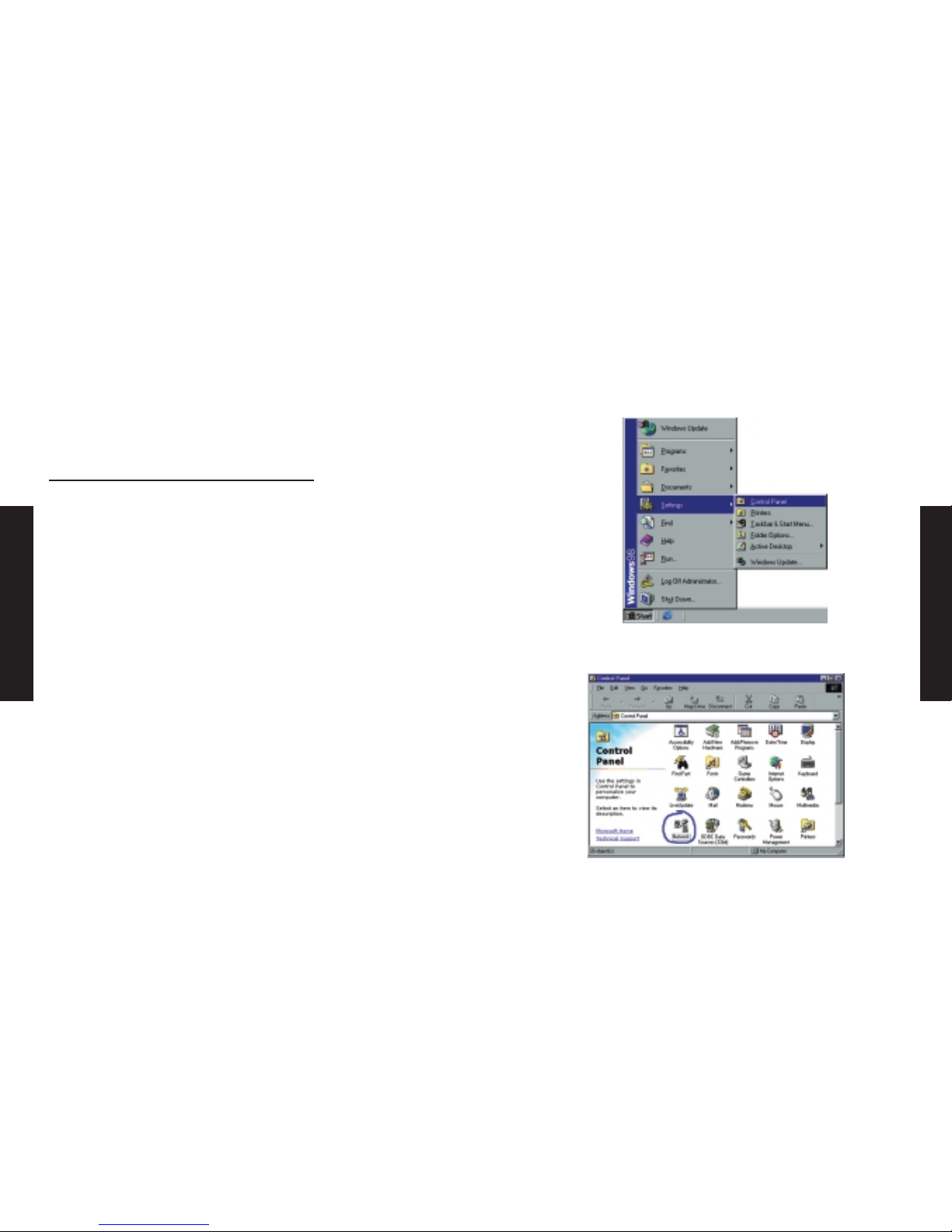

1. From the Windows desktop, click the "Start" button. Choose

"Settings," then click "Control Panel."

2. From "Control Panel," double-click the "Network" icon.

English

1. Connecting Computers: Connect computers directly to the

Barricade on ports 1-3 on the rear panel. If you have more than 3

computers to plug in, connect a hub or a switch (using its uplink

port) and connect additional computers to that device.

2. Connecting a Cable Modem or DSL Modem: Connect your Cable or

DSL modem to the WAN port on the rear panel.

3. Power: Plug the power cord into the power jack.

Chapter 3. Configuring Your Computer

This Quick Installation Guide provides configuration instructions for

Windows 95, 98, ME, NT 4.0, 2000 and XP, and for Macintosh OS 7.x

and above. Please be sure that you are following the proper

instruction set for your operating system.

•Configuring Your Computer with Windows 95/98/Me.

•Configuring Your Computer with Windows 2000.

•Configuring Your Computer with Windows XP.

•Configuring Your Computer with Windows NT 4.0.

•Configuring Your Macintosh Computer.

Configuring Your Computer in Windows 95/98/Millennium Edition

You may find that the instructions here do not exactly match your

version of Windows. This is because these steps and screenshots were

created from Windows 98. Windows 95 and Windows Me are very

similar, but not identical, to Windows 98.

Step 1. Configure TCP/IP Settings

After you have completed the hardware setup by connecting your

devices, you need to configure your computer to connect to your

Barricade. You need to determine how your ISP issues your IP

address. Many ISPs issue these numbers automatically using a

networking technology known as Dynamic Host Configuration

Protocol, or DHCP. Other ISPs will specify your IP address and

associated numbers, which you must enter manually. This is also

3. In the "Network" window, under the "Configuration" tab, double-

click the "TCP/IP" entry that is listed with your network card.

4. Select the "IP Address" tab.

If "Obtain an IP address automatically" is already selected, your

computer is already configured for DHCP. Click "Cancel" to close each

window, and skip to Step 2. Disable HTTP Proxy.

5. Locate your IP address and Subnet Mask. Record them in the

spaces provided after step 9 in this section.

6. Click the "Gateway" tab and record the numbers listed under

"Installed gateways."

7. Click the "DNS Configuration" tab. Locate the DNS servers listed

under "DNS Server Search Order." Record the listed addresses.

English

8. After writing down your settings, check to make sure you have

recorded them correctly. Click the "IP Address" tab and then

click "Obtain an IP address automatically." Click OK.

9. Windows may need your Windows 95/98/ME CD to copy some files.

After it finishes copying, it will then prompt you to restart your

system. Click "Yes" and your computer will shut down and restart.

TCP/IP Configuration Setting

IP Address ____.____.____.____

Subnet Mask ____.____.____.____

Primary DNS Server ____.____.____.____

Secondary DNS Server ____.____.____.____

Default Gateway ____.____.____.____

Step 2. Disable HTTP Proxy

You will need to verify that the "HTTP Proxy" feature of your Web

browser is disabled. This is so that your Web browser will be able

to view the configuration pages inside your Barricade. The

following steps are for Internet Explorer and for Netscape.

Determine which browser you use and follow the appropriate steps.

Internet Explorer

1. Open Internet Explorer and click the stop button. Click

"Tools," then "Internet Options."

English

2. In the "Internet Options" window click the "Connections" tab.

Next, click the "LAN Settings…" button.

3. Clear all the checkboxes.

4. Click "OK," and then click "OK" again to close the "Internet

Options" window.

Netscape

1. Open Netscape and click the stop button. Click "Edit," then

click "Preferences…"

2. In the "Preferences" window, under "Category" double-click

"Advanced," then click "Proxies." Select "Direct connection to

the Internet." Click "OK."

3. Repeat these steps for each Windows 95/98/Me computer

connected to your Barricade.

Step 3. Obtain IP Settings from Your Barricade

Now that you have configured your computer to connect to your

Barricade, it needs to obtain new network settings. By releasing

any old IP settings and renewing them with settings from your

Barricade, you will also verify that you have configured your

computer correctly.

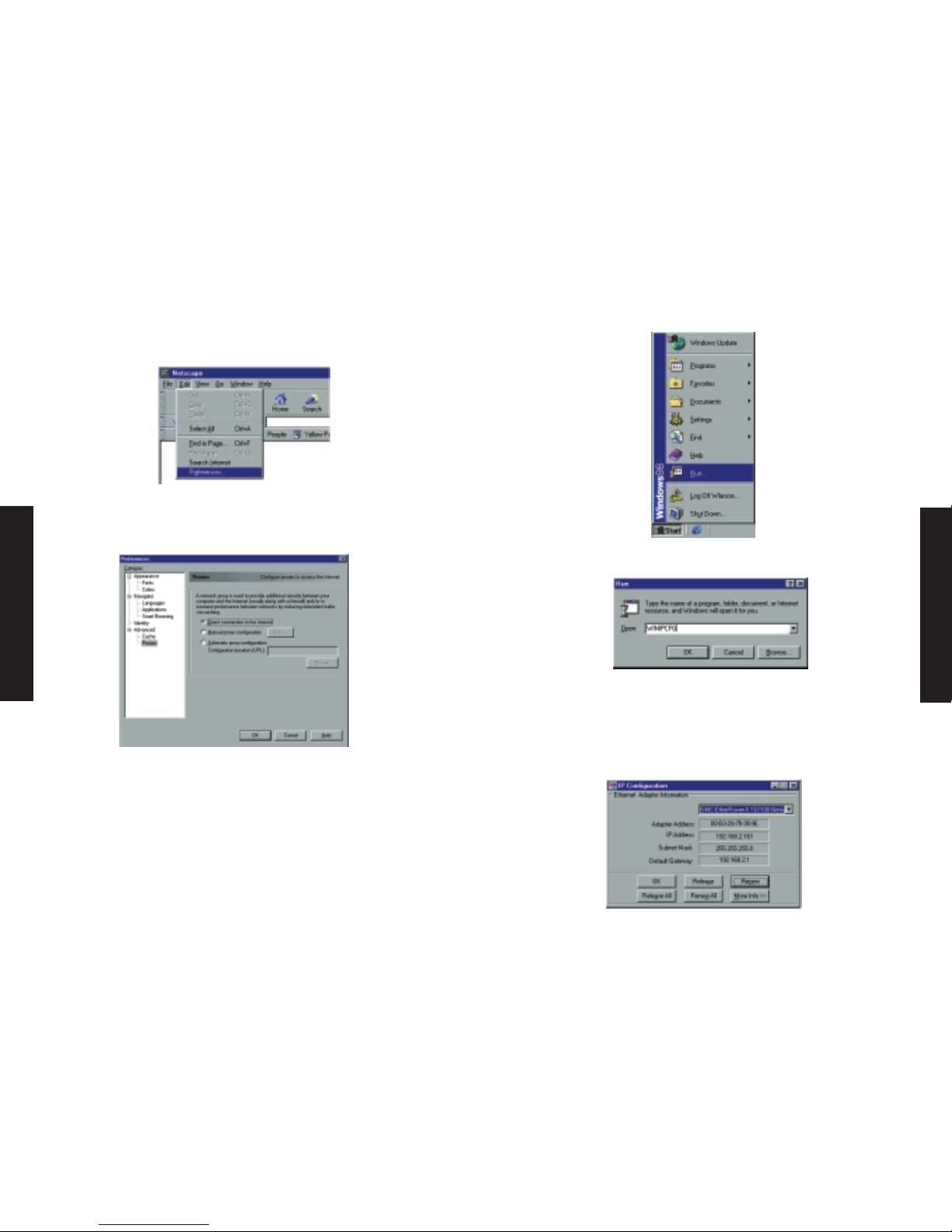

1. Click "Start," then "Run…"

2. Type "WINIPCFG" and click "OK." It may take a minute or two

for the "IP Configuration" window to appear.

3. From the drop-down menu, select your network card. Click

"Release" and then "Renew." Verify that your IP address is now

192.168.2.xxx, your Subnet Mask is 255.255.255.0 and your

Default Gateway is 192.168. 2.1. These values confirm that your

Barricade is functioning. Click "OK" to close the "IP

Configuration" window.

Now that your computer is configured to connect to your

Barricade, please skip to "Configuring Your Barricade".

English

Configuring Your Computer with Windows 2000

Step 1. Configure TCP/IP Settings

After you have completed the hardware setup, you need to

configure your computer to connect to your Barricade. You also need

to determine how your ISP issues your IP address. Many ISPs issue

these numbers automatically, using a networking technology known

as Dynamic Host Control Protocol, or DHCP. Other ISPs will specify

your IP address and associated numbers, which you must enter

manually. This is also known as a static IP address. How your ISP

assigns your IP address determines how you will configure your

computer.

Here is what to do:

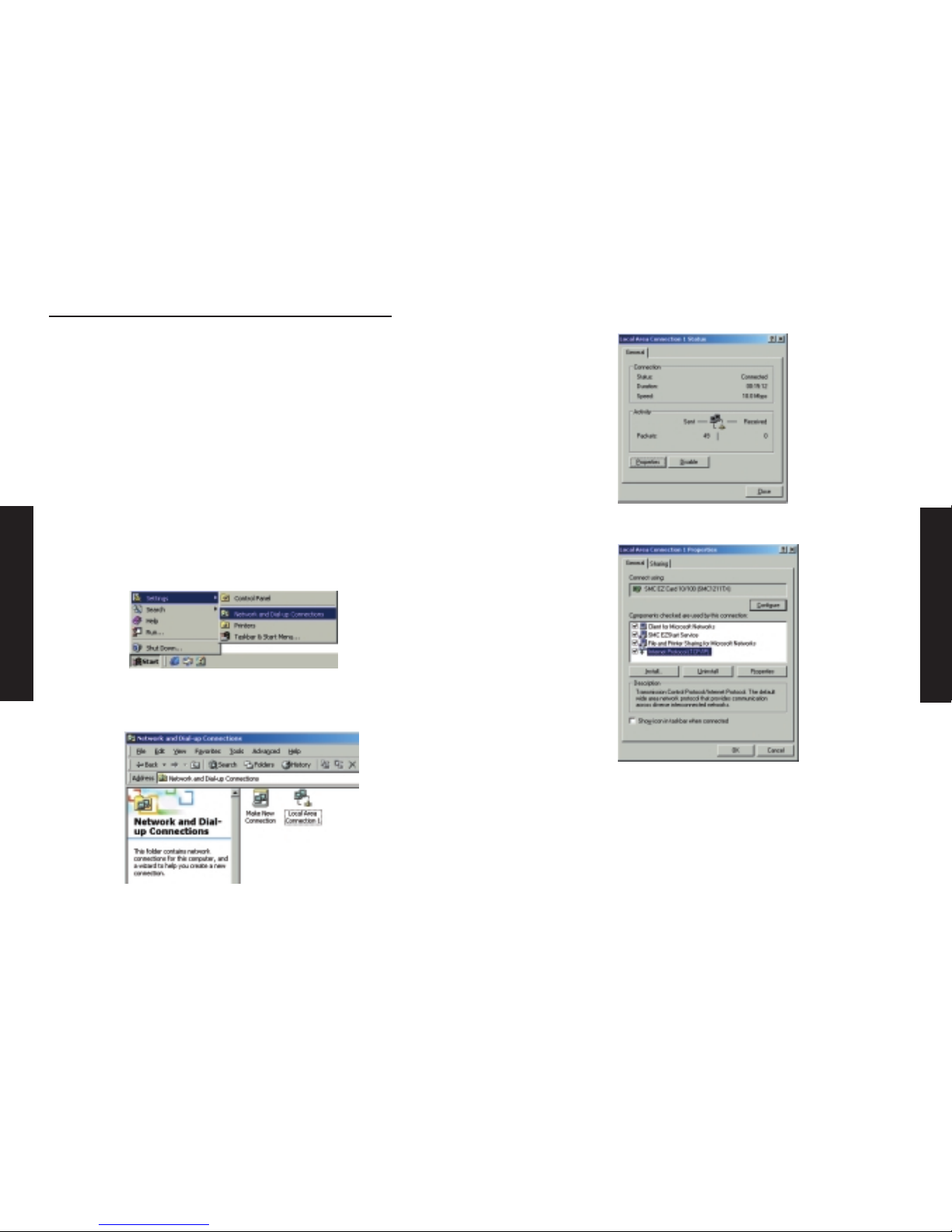

1. From the Windows desktop, click the "Start" button. Choose

"Settings," then click "Network and Dial-Up Connections" icon.

2. Double-click the icon that corresponds to the connection to

your Barricade.

3. Click "Properties."

4. Double-click "Internet Protocol (TCP/IP).

5. All the information that you need to record is on the "Internet

Protocol (TCP/IP) Properties" dialog box. Use the spaces below

to record the information.

If "Obtain an IP address automatically" and "Obtain DNS server

address automatically" are already selected, your computer is

already configured for DHCP. Click "Cancel" to close each window,

and skip to to Step 2. Disable HTTP Proxy.

English

6. Select "Obtain an IP address automatically" and then select

"Obtain DNS server address automatically." Click "OK" or "Close"

to close each window

TCP/IP Configuration Setting

IP Address ____.____.____.____

Subnet Mask ____.____.____.____

Primary DNS Server ____.____.____.____

Secondary DNS Server ____.____.____.____

Default Gateway ____.____.____.____

Step 2. Disable HTTP Proxy

You will need to verify that the "HTTP Proxy" feature of your Web

browser is disabled. This is so that your Web browser will be able

to view the configuration pages inside your Barricade. The

following steps are for Internet Explorer and for Netscape.

Determine which browser you use and follow the appropriate steps.

Internet Explorer

1. Open Internet Explorer and click the stop button. Click "Tools,"

then "Internet Options."

2. In the "Internet Options" window click the "Connections" tab.

Next, click the "LAN Settings…" button.

3. Clear all the checkboxes.

English

4. Click "OK," and then click "OK" again to close the "Internet

Options" window.

Netscape

1. Open Netscape and click the stop button. Click "Edit," then

click "Preferences…"

2. In the "Preferences" window, under "Category" double-click

"Advanced," then click "Proxies." Select "Direct connection to

the Internet." Click "OK."

Step 3. Obtain IP Settings From Your Barricade

Now that you have configured your computer to connect to your

Barricade, it needs to obtain new network settings. By releasing

any old IP settings and renewing them with settings from your

Barricade, you will also verify that you have configured your

computer correctly.

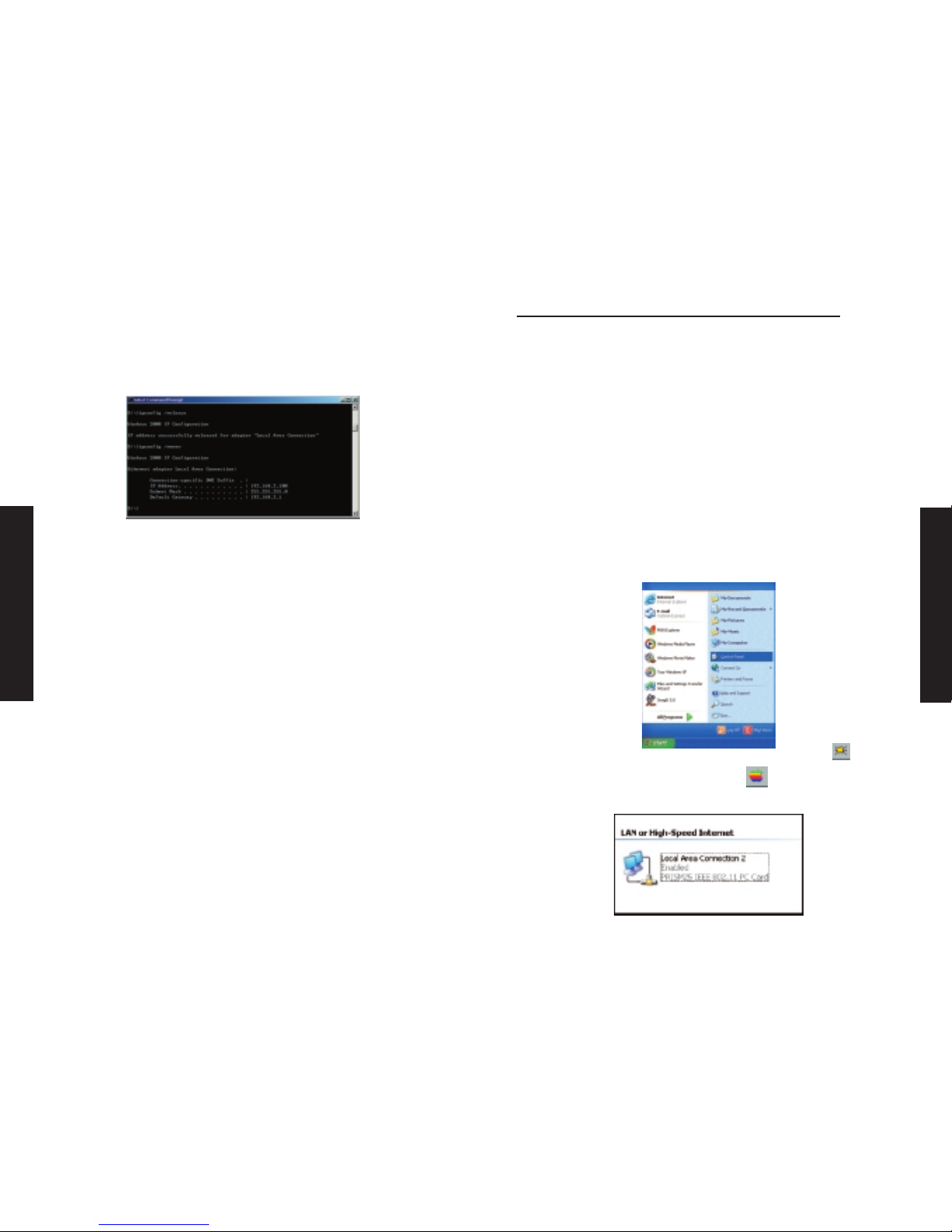

1. From the Windows desktop, click the "Start" button, then

"Programs," then "Accessories," and then click "Command Prompt."

2. In the "Command Prompt" window, type "IPCONFIG /RELEASE"

and press the <ENTER> key.

English

3. Type "IPCONFIG /RENEW" and press the <ENTER> key. Verify that

your IP address is now 192.168.2.xxx (2-254), your Subnet Mask

is 255.255.255.0 and your Default Gateway is 192.168.2.1.

These values confirm that your Barricade is functioning.

4. Type "EXIT" and press <ENTER> to close the "Command Prompt"

window.

Now that your computer is configured to connect to your

Barricade, please skip "Configuring Your Barricade".

Configuring Your Computer with Windows XP

Step 1. Configure TCP/IP Settings

After you have completed the hardware setup, you need to configure

your computer to connect to your Barricade. You also need to

determine how your ISP issues your IP address. Many ISPs issue these

numbers automatically, using a networking technology known as

Dynamic Host Configuration Protocol, or DHCP. Other ISPs will specify

your IP address and associated numbers, which you must enter

manually. This is also known as a static IP address. How your ISP

assigns your IP address determines how you will configure your

computer.

Here is what to do:

1. From the Windows desktop, click the "start" button. Choose

"Control Panel."

2. Select the "Network and Internet Connections" icon ,then

click the "Network Connections" icon ,and and double-click

on the adapter you will use for this connection.

English

Andere Handbücher für SMC7004WFW

Dieses Handbuch passt für folgende Modelle

Andere SMC Networks WLAN-Router Handbücher

SMC Networks

SMC Networks WBR14-G2 - FICHE TECHNIQUE Installationsanleitung

SMC Networks

SMC Networks SMC Barricade N Draft 11n Wireless 4-port Broadband Router... Bedienungsanleitung

SMC Networks

SMC Networks Barricade SMC7908VoWBRA Bedienungsanleitung

SMC Networks

SMC Networks WBR14-3GN FICHE Bedienungsanleitung

SMC Networks

SMC Networks barricade SMCWBR14-G2 Bedienungsanleitung

SMC Networks

SMC Networks WBR14-GM Bedienungsanleitung

SMC Networks

SMC Networks Barricade SMCWBR14-N2 Bedienungsanleitung

SMC Networks

SMC Networks EZ-Stream SMC2304WBR-AG Bedienungsanleitung

SMC Networks

SMC Networks SMCWBR14-3GN Bedienungsanleitung

SMC Networks

SMC Networks SMCWBR14S-N5 Bedienungsanleitung

SMC Networks

SMC Networks THE BARRICADE SMCWBR14S-N4 Bedienungsanleitung

SMC Networks

SMC Networks Barricade SMCWBR14-G Bedienungsanleitung

SMC Networks

SMC Networks SMCWCBT-G Bedienungsanleitung

SMC Networks

SMC Networks Barricade SMCWGBR14-N Bedienungsanleitung

SMC Networks

SMC Networks SMCWPCI-GM Bedienungsanleitung

SMC Networks

SMC Networks barricade SMCWBR14-G2 Bedienungsanleitung

SMC Networks

SMC Networks THE BARRICADE SMCWBR14S-N4 Bedienungsanleitung

SMC Networks

SMC Networks Barricade SMC7904WBRB2 Produktinformationsblatt

SMC Networks

SMC Networks Barricade SMC7004VBR Bedienungsanleitung

SMC Networks

SMC Networks Barricade SMC7904BRB2 Bedienungsanleitung

SMC Networks

SMC Networks BR18VPN Bedienungsanleitung

SMC Networks

SMC Networks SMC7904WBRA4 Bedienungs- und Sicherheitshinweise

SMC Networks

SMC Networks Barricade g SMC7804WBRA Bedienungsanleitung

SMC Networks

SMC Networks WBR14-GM Bedienungsanleitung

Beliebte WLAN-Router Handbücher anderer Marken

Milesight

Milesight UG67 Bedienungsanleitung

Airlogic

Airlogic AirSync Class 1 Betriebsanleitung

Samsung

Samsung WCH730B Bedienungsanleitung

TELEFONICA

TELEFONICA USB Adapter Bedienungsanleitung

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Bedienungsanleitung

Askey

Askey RAC2V1K Bedienungsanleitung

Alloy

Alloy WLF2454AP-S Bedienungsanleitung

TP-Link

TP-Link TL-WR542G Bedienungsanleitung

NETGEAR

NETGEAR WNR2000v4 Bedienungsanleitung

Hama

Hama 53120 Bedienungsanleitung

Intellinet

Intellinet 524582 Bedienungsanleitung

Asus

Asus RT-N10P Bedienungsanleitung

D-Link

D-Link DIR-506L Bedienungsanleitung

Sapido

Sapido GR297n Bedienungsanleitung

Asus

Asus DSL-N55U Bedienungsanleitung

AMTC

AMTC WR7502 Bedienungsanleitung

Compaq

Compaq CP-2W - iPAQ Connection Point Bedienungsanleitung

Draytek

Draytek Vigor2120 Series Bedienungsanleitung
