Smeg UKS3L090P1 Bedienungsanleitung
UKS3L090P1
User Manual
Refrigerator
Istruzioni per
l’uso
Frigorifero
CONTENTS
Safety information 2
Safety instructions 3
Operation 5
Daily use 5
Hints and tips 6
Care and cleaning 7
Troubleshooting 8
Installation 11
Technical data 12
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the result of
incorrect installation or usage. Always keep the instructions
in a safe and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Do not let children play with the appliance.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
•Keep all packaging away from children and dispose of it
appropriately.
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–Farm houses; staff kitchen areas in shops, offices and
other working environments
–By clients in hotels, motels, bed and breakfast and other
residential type environments
•Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
2
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
•Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
SAFETY INSTRUCTIONS
Installation
WARNING! Only a qualified
person must install this
appliance.
• Remove all the packaging and the
transit bolts.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate around
the appliance.
• At first installation or after reversing the
door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Before carrying out any operations on
the appliance (e.g. reversing the door),
remove the plug from the power socket.
• Do not install the appliance close to
radiators or cookers, ovens or hobs.
• Do not install the appliance where there
is direct sunlight.
• Do not install this appliance in areas
that are too humid or too cold, such as
the construction appendices, garages
or wine cellars.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
Electrical connection
WARNING! Risk of fire and
electric shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
3
Authorised Service Centre or an
electrician to change the electrical
components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
Use
WARNING! Risk of injury,
burns, electric shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by the
manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level
of environmental compatibility. This gas
is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
Internal light
WARNING! Risk of electric
shock.
• The type of lamp used for this
appliance is for household appliances
only. Do not use it for house lighting.
Care and cleaning
WARNING! Risk of injury or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
Disposal
WARNING! Risk of injury or
suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains
flammable gas. Contact your municipal
authority for information on how to
discard the appliance correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat
exchanger.
4
OPERATION
Switching on
1. Insert the plug into the wall socket.
2. Turn the Temperature regulator
clockwise to a medium setting.
Switching off
To turn off the appliance, turn the
temperature regulator to the "O" position.
Temperature regulation
The temperature is regulated
automatically.
1. Turn the Temperature regulator toward
lower settings to obtain the minimum
coldness.
2. Turn the Temperature regulator toward
higher settings to obtain the maximum
coldness.
A medium setting is generally
the most suitable.
However, the exact setting
should be chosen keeping in
mind that the temperature
inside the appliance depends
on:
• room temperature,
• how often the door is
opened,
• the quantity of food stored,
• the location of the appliance.
CAUTION! If the ambient
temperature is high or the
appliance is fully loaded, and
the appliance is set to the
lowest temperatures, it may run
continuously causing frost to
form on the rear wall. In this
case the dial must be set to a
higher temperature to allow
automatic defrosting and
therefore reduced energy
consumption.
DAILY USE
WARNING! Refer to Safety
chapters.

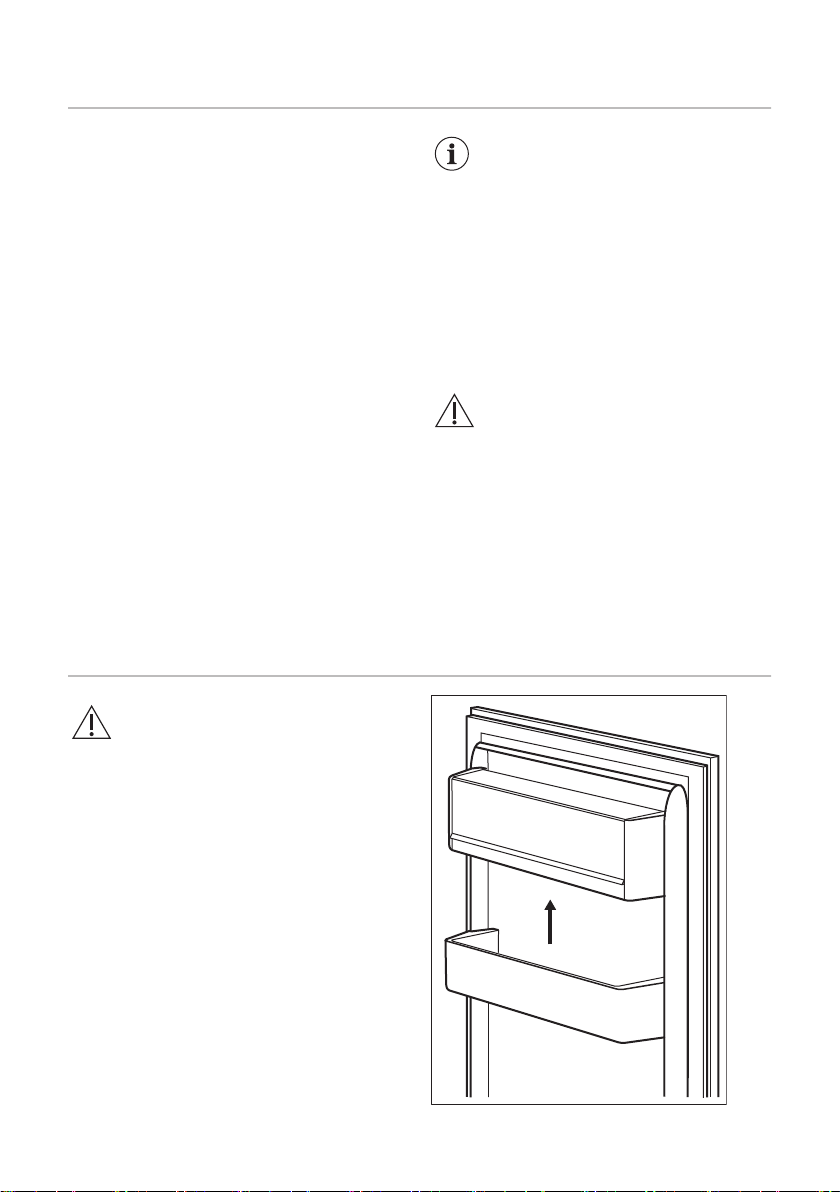

Positioning the door shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
1. Gradually pull the shelf in the direction
of the arrows until it comes free.
2. Reposition as required.
5
Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the
shelves can be positioned as desired.
Do not move the glass shelf
above the vegetable drawer to
ensure correct air circulation.

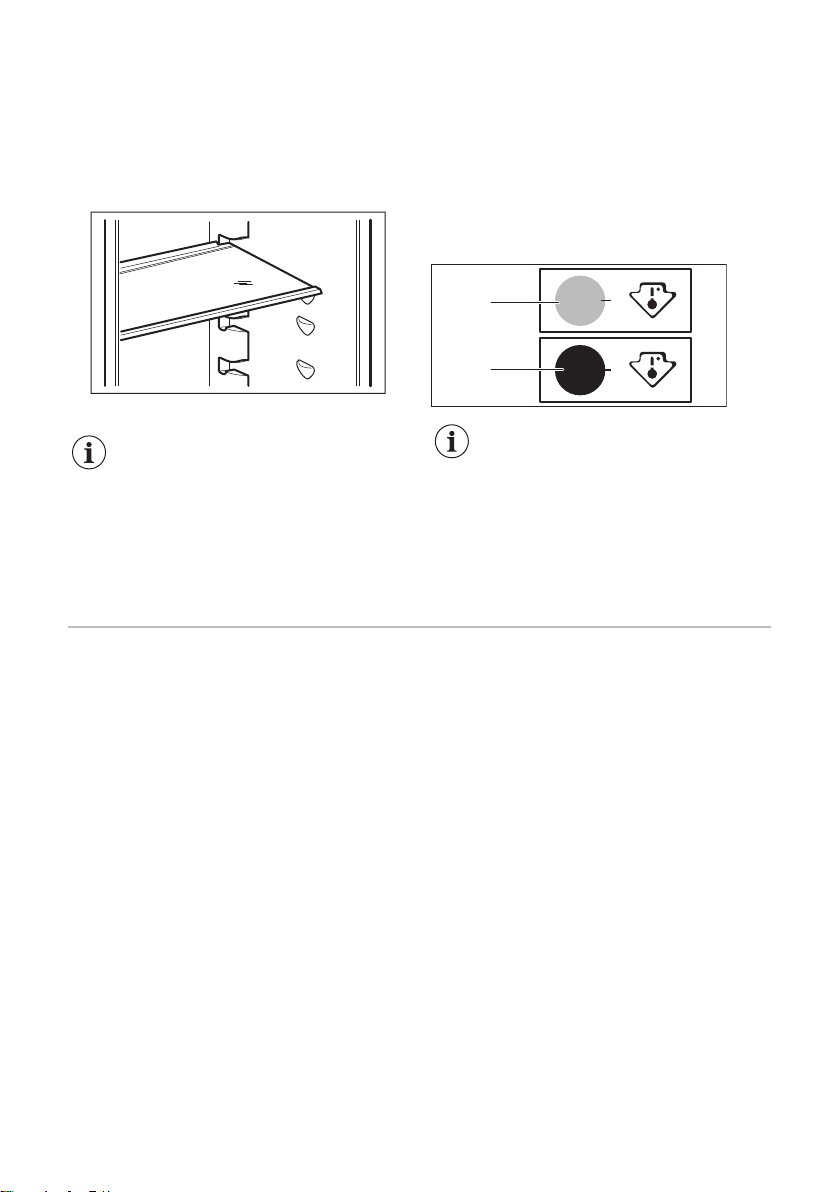

Temperature indicator
For proper storage of food the refrigerator
is equipped with the temperature indicator.
The symbol on the side wall of the
appliance indicates the coldest area in the
refrigerator.
If OK is displayed (A), put fresh food into
area indicated by symbol, if not (B), adjust
the temperature controller to a colder
setting and wait 12 hours before checking
the temperature indicator again.
OK
OK
A
B
After putting fresh food into the
appliance or after opening the
door repeatedly or for a long
period, it is normal for the
indicator not to show OK. Wait
at least 12 hours before
readjusting the temperature
controller.
HINTS AND TIPS
Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
• A faint click noise from the temperature
regulator when the compressor
switches on or off.
Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
• If the ambient temperature is high and
the Temperature Regulator is set to low
temperature and the appliance is fully
loaded, the compressor may run
continuously, causing frost or ice on the
evaporator. If this happens, set the
Temperature Regulator toward warmer
settings to allow automatic defrosting
and so a saving in electricity
consumption.
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly if
it has a strong flavour
• position food so that air can circulate
freely around it
Hints for refrigeration
Useful hints:
6
• Meat (all types): wrap in a suitable
packaging and place it on the glass
shelf above the vegetable drawer.
Store meat for at most 1-2 days.
• Cooked foods, cold dishes: cover and
place on any shelf.
• Fruit and vegetables: clean thoroughly
and place in a special drawer.
Bananas, potatoes, onions and garlic
must not be kept in the refrigerator if
not packed.
• Butter and cheese: place in a special
airtight container or wrap in an
aluminium foil or a polythene bag to
exclude as much air as possible.
• Bottles: close with a cap and place on
the door bottle shelf, or (if available) on
the bottle rack.
CARE AND CLEANING
WARNING! Refer to Safety
chapters.
General warnings
CAUTION! Unplug the
appliance before carrying out
any maintenance operation.
This appliance contains
hydrocarbons in its cooling unit;
maintenance and recharging
must therefore only be carried
out by authorized technicians.
The accessories and parts of
the appliance are not suitable
for washing in a dishwasher.
Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap to
remove the typical smell of a brand-new
product, then dried thoroughly.
CAUTION! Do not use
detergents, abrasive powders,
chlorine or oil-based cleaners
as they will damage the finish.
Periodic cleaning
CAUTION! Do not pull, move
or damage any pipes and/or
cables inside the cabinet.
CAUTION! Take care of not to
damage the cooling system.
CAUTION! When moving the
cabinet, lift it by the front edge
to avoid scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral
soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and
the compressor at the back of the
appliance with a brush.
This operation will improve the
performance of the appliance and save
electricity consumption.
Defrosting of the refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator compartment
every time the motor compressor stops,
during normal use. The defrost water
drains out through a trough into a special
container at the back of the appliance,
over the motor compressor, where it
evaporates.
7

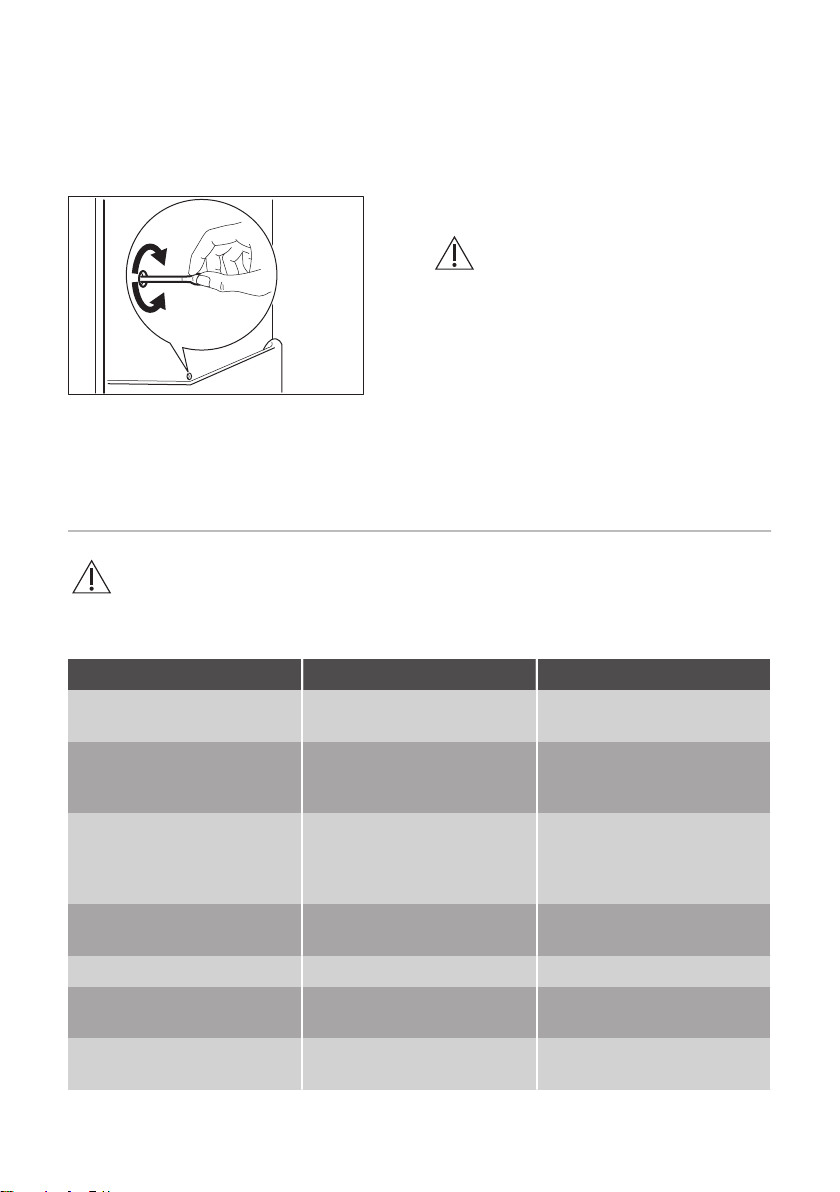

It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and dripping
onto the food inside.
Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to prevent
unpleasant smells.
WARNING! If you want to keep
the appliance switched on, ask
somebody to check it once in a
while to prevent the food inside
from spoiling in case of a
power failure.
TROUBLESHOOTING
WARNING! Refer to Safety
chapters.
What to do if...
Problem Possible cause Solution
The appliance does not op‐
erate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con‐
nected to the mains socket
correctly.
Connect the mains plug to
the mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains sock‐
et. Contact a qualified elec‐
trician.
The appliance is noisy. The appliance is not suppor‐
ted properly.
Check if the appliance
stands stable.
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp is defective. Refer to "Replacing the
lamp".
The compressor operates
continually.
Temperature is set incor‐
rectly.
Refer to "Operation" chap‐
ter.
8
Problem Possible cause Solution
Many food products to be
frozen were put in at the
same time.
Wait a few hours and then
check the temperature
again.
The room temperature is too
high.
Refer to climate class chart
on the rating plate.
Food products placed in the
appliance were too warm.
Allow food products to cool
to room temperature before
storing.
The door is not closed cor‐
rectly.
Refer to "Closing the door".
Water flows on the rear plate
of the refrigerator.
During the automatic de‐
frosting process, frost melts
on the rear plate.
This is correct.
Water flows into the refriger‐
ator.
The water outlet is clogged. Clean the water outlet.
Food products prevent that
water flows into the water
collector.
Make sure that food prod‐
ucts do not touch the rear
plate.
Water flows on the floor. The melting water outlet is
not connected to the evapo‐
rative tray above the com‐
pressor.
Attach the melting water out‐
let to the evaporative tray.
The temperature in the ap‐
pliance is too low/too high.
The temperature regulator is
not set correctly.
Set a higher/lower tempera‐
ture.
The door is not closed cor‐
rectly.
Refer to "Closing the door".
The food products' tempera‐
ture is too high.
Let the food products tem‐
perature decrease to room
temperature before storage.
Many food products are
stored at the same time.
Store less food products at
the same time.
The door has been opened
often.
Open the door only if neces‐
sary.
There is no cold air circula‐
tion in the appliance.
Make sure that there is cold
air circulation in the appli‐
ance.
There is too much con‐
densed water on the rear
wall of the refrigerator.
Door was opened too fre‐
quently.
Open the door only when
necessary.
9
Problem Possible cause Solution
Door was not closed com‐
pletely.
Make sure the door is
closed completely.
Stored food was not wrap‐
ped.
Wrap food in suitable pack‐
aging before storing it in the
appliance.
Door does not open easily. You attempted to re-open
the door immediately after
closing.
Wait a few seconds between
closing and re-opening of
the door.
If the advice does not lead to
the desired result, call the
nearest Authorized Service
Centre.
Replacing the lamp
The appliance is equipped with
a long-life LED interior light.
It is strongly recommended to
use original spare parts only.
Use LED bulbs (E14 base)
only. The maximum power is
shown on the lamp unit.
CAUTION! Disconnect the plug
from the mains socket.
1. With your fingers, spread slightly both
sides of the transparent cover to
unhook them and detach the cover
pulling it in the direction of the arrows.
1
2
1
2. Replace the lamp with the one that has
identical characteristics and is
specifically designed for household
appliances.
3. Reassemble the lamp cover.
4. Connect the plug to the mains socket.
5. Open the door.
Make sure that the light switches on.
Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
assembly instructions.
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
10
Inhaltsverzeichnis
Sprachen:
Andere Smeg Kühlschrank Handbücher
Smeg
Smeg FT41DXE Bedienungsanleitung
Smeg
Smeg FAB28RDBB5 Bedienungsanleitung
Smeg
Smeg 914773118 Bedienungsanleitung
Smeg
Smeg FR315P Bedienungsanleitung
Smeg
Smeg FAB30RWH5 Bedienungsanleitung
Smeg
Smeg FQ60BDF Bedienungsanleitung
Smeg
Smeg FQ50UFXE Bedienungsanleitung
Smeg
Smeg CW380A Bedienungsanleitung
Smeg
Smeg FAB30LRD5 Bedienungsanleitung
Smeg
Smeg CR324P1 Bedienungsanleitung
Smeg
Smeg FC18EN1 Bedienungsanleitung
Smeg
Smeg FR132A Bedienungsanleitung
Smeg
Smeg CV260PNF Bedienungsanleitung
Smeg
Smeg FD54PXNFE Bedienungsanleitung
Smeg
Smeg FC200UXE Bedienungs- und Wartungshandbuch
Smeg
Smeg FR165SE Kurzanleitung
Smeg
Smeg FD43PXNF1 Bedienungsanleitung
Smeg
Smeg UKS3C090P1 Bedienungsanleitung
Smeg
Smeg FR315A Bedienungsanleitung
Smeg
Smeg FAB28UROR Bedienungsanleitung
Beliebte Kühlschrank Handbücher anderer Marken
Bonnet Neve
Bonnet Neve SKYVIEW PLUS Bedienungsanleitung
Zanussi Electrolux
Zanussi Electrolux ZERB 8441 Bedienungsanleitung
Sharp
Sharp SJ-BA31IEXW2-EU Bedienungsanleitung
CORBERO
CORBERO CC2300MCW Bedienungsanleitung
KitchenAid
KitchenAid 2205264 Bedienungsanleitung
Stengel
Stengel KU 1101 A++ Bedienungsanleitung
