Smeg KV26 Bedienungsanleitung

ANGLED HOOD

Instructions booklet

Contents

PRECAUTIONS

INSTALLATION - 4

USE - 6

MAINTENANCE - 7

CONFIGURATION - 8

INSTALLATION INSTRUCTIONS - 9

AIR CONNECTION SYSTEMS - 19

FILTER VERSION - 19

EXTRACTION VERSION - 20

INSTRUCTIONS FOR USE -22

CONTROL UNIT - 22

CLEANING AND MAINTENANCE -32

EXTERNAL CLEANING - 32

CLEANING METAL FILTERS - 32

REPLACING ODOUR FILTERS - 33

REPLACING THE LAMPS - 36

TREATMENT OF WEEE - 38

Installation

WARNING!

Read this manual carefully before installing and/or using the hood.

•The manufacturer will not be held liable for damage resulting

from incorrect or improper installation.

•Installation and adjustments should be carried out by qualified

personnel.

•Check the integrity of the hood once it has been removed from

the packaging. If the product is damaged, do not use it. Contact

the SMEG assistance service.

•Before connecting the appliance, make sure that the mains

voltage is the same as the voltage indicated on the technical data

label inside the appliance.

•For Class I appliances, make sure that the domestic power supply

is suitably earthed.

•The minimum distance between the lower surface of the hood

and the hob must be at least 650 mm for gas appliances and 450

mm for electric or induction appliances.

•The air that is extracted must not be conveyed into a duct that is

used for extracting fumes from appliances powered by gas or

other fuels.

•Connect the air outlet from the hood to fume extraction ducts

that have an adequate internal diameter, not less than 120 mm.

•There must be adequate aeration in the room when the hood

and gas appliances are operating at the same time.

•If the power cable is damaged, it should be replaced by the

manufacturer or by his technical assistance service or anyway by

a similarly qualified person in order to prevent possible hazards.

Installation

WARNING!

Read this manual carefully before installing and/or using the hood.

•Comply with the legal requirements regarding the discharge of

extracted air when the hood is in operation.

•Caution: Failure to install the screws or fixing devices in

accordance with these instructions may result in electrical

hazards

•For Australia and New Zealand: Range hoods and other cooking

fume extractors may adversely affect the safe operation of

appliances burning gas or other fuels (including those in other

rooms) due to the back flow of combustion gases. These gases

can potentially result in carbon monoxide poisoning. After

installation of a range hood or other cooking fume extractor,

the operation of flued gas appliances should be tested by a

competent person to ensure that back flow of combustion

gases does not occur.

(AS/NZS 60335.2.31:2020)

Use

•Do not cook or fry in a way that creates strong flames that may

be drawn by the hood while it is in operation and cause a fire.

•Do not flambé foods under the hood: Risk of fire.

•This appliance may be used by children under 8 years of age

and by persons with reduced physical, sensory or mental

abilities or who lack experience or the necessary knowledge if

they are supervised or after they have been given instructions

on the safe use of the appliance and understand the hazards

involved.

•Children should be supervised to make sure they do not play

with the appliance.

•The front panel should only be opened for carrying out

maintenance; it must remain closed during use.

CAUTION: accessible parts may become very hot when used with

cooking appliances.

Maintenance

•Disconnect the appliance from the power supply before

carrying out cleaning or maintenance.

•Maintain the filters carefully and regularly according to the

schedule recommended by the manufacturer.

•Clean the surfaces of the hood using a damp cloth and a neutral

liquid detergent.

•There is a risk of fire if cleaning is not carried out according to

the instructions

•Cleaning and maintenance intended to be carried out by the

user must not be performed by children unless they are

supervised.

•Always wear work gloves when carrying out installation and

maintenance.

•The hood must NEVER be used as a support surface unless

specifically indicated.

•Do not use or leave the hood without the lamps correctly

installed due to the possible risk of electric shock.

THE MANUFACTURER DECLINES ANY LIABILITY IF THE ABOVE

INSTRUCTIONS ARE NOT FOLLOWED.

Configuration

This appliance has been designed to be used as an EXTRACTOR

hood (extraction of air to the outside) or as a FILTER hood (air is

recirculated indoors).

EXTRACTION VERSION

To configure the hood as the extraction version, connect the motor

outlet using a rigid or flexible pipe having an internal diameter of

not less than 120 mm, directly to the external steam and odour

extraction system.

Note Remove any activated carbon filters.

FILTER VERSION

If it is not possible to discharge the steam and odours to the

outside, the hood can be used as a filter. In this configuration, the

air and vapours are cleaned by the odour filters and recirculated

into the room via the ventilation grids on the side of the duct cover.

Note: using the hood in the filter version may increase the

perceived noise level.

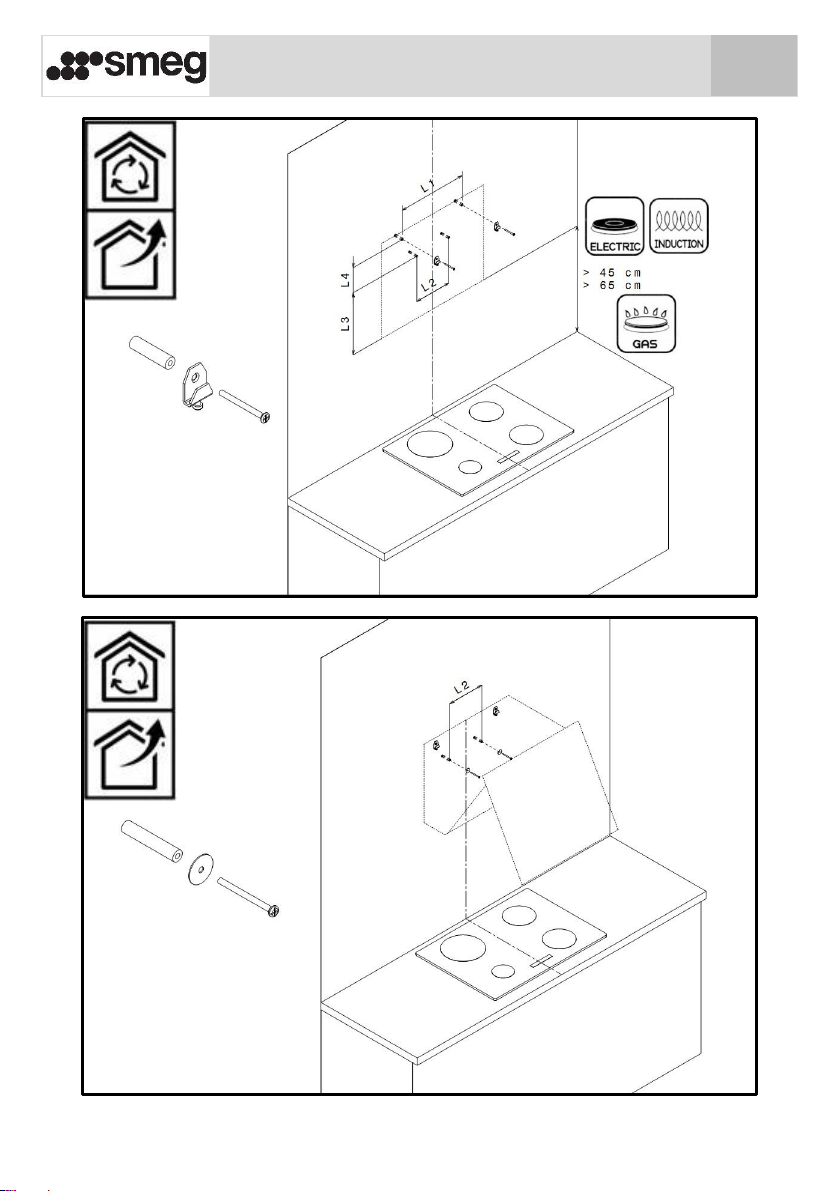

Installation instructions
