Smeg PUM601X Bedienerhandbuch

User Instruction Manual

PUM601X

PUM901X

CONTENTS

1) WARNING

2) INSTALLATION INSTRUCTIONS

3) OPERATION

4) LIGHT REPLACEMENT

5) CHARCOAL FILTER INSTALLATION

6) MAINTENANCE

7) ATTENTION

8) TROUBLESHOOTING

1. WARNING

Young children should be supervised to ensure that they do not play with

the appliance.

The appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervised or instruction

concerning use of the appliance by a responsible person for their safely.

Your cooker hood is for domestic use only, not suitable for barbecue, fast -

food shops, and other commercial use.

Any installation work must be carried out by a qualified electrician or

competent person.

The cooker hood and its filter mesh should be cleaned regularly in order to

keep in good working order.

Before cleaning, always ensure that you have switched your cooker hood

off.

Do not flambé under the range hood.

Clean the cooker hood according to the instruction manual, and keep the

cooker hood away from the danger of flames.

If there is any fault with your cooker hood, please call the customer service

number in the Warranty Card.

Please keep the room adequately ventilated when your cooker hood and

gas hob are working.

Do not exhaust the gas from cooker hood through the same heated flue

which is for the gas from gas hob and other kitchen appliances.

Before installation and usage, read all the instructions and make sure that

the voltage (V) and the frequency (Hz) indicated on your cooker hood are

exactly the same as the voltage (V) and the frequency (Hz) in your home.

To ensure that you get the best Warranty experience for your cooker hood,

please provide copies of the Warranty Card and purchase receipt, when

booking warranty work with the Customer Service department.

2. INSTALLATION

Preparation

1. The cooker hood should be placed at a distance of 65-75cm (26-30inch)

from the cooking surface for the best effect.

2. Drill a hole in the cupboard, 570*265(mm) for model PUM601X and

865*265(mm) for model PUM901X. Make sure the distance between the

edge of the hole and the edge of the cupboard edge is at least 35mm.

3. Take off the filter and the two lamps. Remove the two screws on the panel.

And then take off the panel.

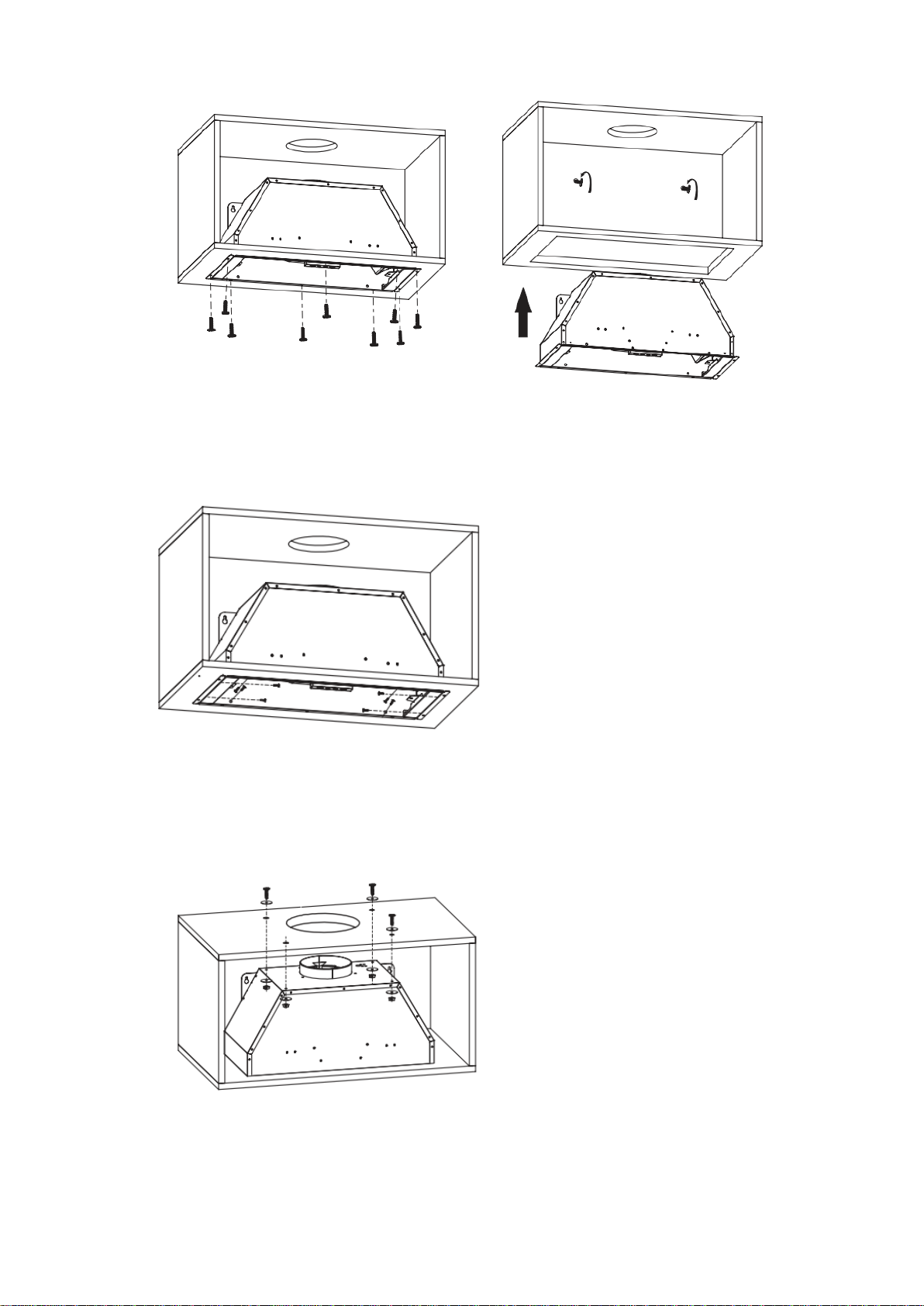

Installation

Method 1

1. Use four ST4*8mm screws to fix the mounting bracket onto the hood. Then

put two ST4*30mm screws into the wall. Hang the hood onto the wall.

2. Use ST4*14mm screws to tighten the hood to the cabinet. PUM601X needs

ten screws. PUM901X needs twelve screws.

Method 2

1. Use four ST4*8mm screws to fix the mounting bracket onto the hood. Then

put two ST4*30mm screws into the wall. Hang the hood onto the wall.

2. Use eight ST4*14mm screws to fix the hood onto the cabinet from the

sides.

Method 3

1. Use four ST4*8mm screws to fix the mounting bracket onto the hood. Then

put two ST4*30mm screws into the wall. Hang the hood onto the wall.

2. Use four M4*35mm screws, eight washers and four nuts to fix the hood

onto the cabinet from the top.

And then connect the ducting pipes to the outlet. Install the lamps and filter

back to the hood. 4

3. OPERATION:

1）Push the low button, indicated by a fan with 3 blades, and the motor will run

at a low speed. An indicator light will also illuminate. Push it again and the

motor will stop.

2）Push the medium button, indicated by a fan with 4 blades and the motor will

run at a medium speed.An indicator light will also illuminate. Push it again and

the motor will stop.

3）Push the high button, indicated by a fan with 5 blades and the motor will

run at a high speed. An indicator light will also illuminate. Push it again and the

motor will stop.

4) Push the light button; the indicating light on, and the two lighting lamps will

come on. Push it again and the lamps will turn off.

4. LIGHT REPLACEMENT

To change the light, press the lamp cup, take out the bulb counter-clockwise.

And then Insert a new lamp.

5. CHARCOAL FILTER INSTALLATION

To remove or install the charcoal filter, twist the charcoal filter in the direction

shown below:

6. MAINTENANCE

1．The rangehood and its filter mesh should be cleaned regularly in order to

keep in good working order. Because the grease filters are made of metal,

do not clean the filters with detergents that will corrode metal products.

Clean the filters as below:

Method one:

Put the filter in water (40℃-50℃), pour in some grease-loosening

detergent, soak it for about 2-3 minutes and then clean it with a soft

brush. Do not brush too hard, as it may damage the filter.

Method two:

You can also put the filter into the dishwasher with detergent for cleaning.

Set the temperature at around 60℃.

2. To protect the main body from corrosion over a long period of time, the

rangehood should be cleaned with hot water plus soap or non corrosive

detergent once a week. Do not use grinding detergent, or it will damage the

body.

3. Keep the motor and other spare parts free from water, as this will cause

damage to the appliance.

4. Disassembly and assembly the filter:

7. ATTENTION

·Rangehood uses 220-240V 50Hz power;

·Disconnect the power when you clean the rangehood;

·Do not detach the filter surround

·If the power cord or plug is damaged, contact service centre

PUM601X

Dimensional Drawing

PUM901X

Dimensional Drawing

8. TROUBLESHOOTING

Fault

Cause

Solution

Light on, but motor

does not work

The leaf blocked

Get rid of the blocking

The capacitor damaged

Replace capacitor

The motor jammed bearing

damaged

Replace motor

The internal with of motor off or a

bad smell from the motor

Replace motor

Light does not work,

motor does not work

Beside the above mentioned, check the following:

Light damaged

Replace lights

Power cord looses

Connect the wires as per

the electric diagram

Oil leakage

One way valve and the air

ventilation entrance are not

tightly sealed

Take down the one way

valve and seal with glue

Leakage from the connection of

U-shaped section and cover

Take U-shaped section

down and seal with soap or

paint

Shake of the body

The leaf damaged and causes

shaking

Replace the leaf

The motor is not tightly hanged

Lock the motor tightly

The body is not tightly hanged

Fixed the body tightly

Insufficient suction

The distance between the body

and the gas top too long

Readjust the distance

Too much ventilation from open

doors or windows

Choose a new place and

resemble the machine

The machine inclines

The fixing screw not tight

enough

Tighten the hanging screw

and make it horizontal

The hanging screw not tight

enough

Tighten the hanging screw

and make it horizontal
