USER’S GUIDE
IMpoRTANT SAFETY NoTE: When disconnecting the
battery from the charger, switch off or unplug the AC supply
to the charger rst. This precaution will eliminate any risk of
gas explosion due to arcing.
CHARGING
CHARGER opERATING INSTRUCTIoNS
This charger is suitable for use with all types of lead acid
batteries, including the new types of maintenance free and
gelled electrolyte batteries.
BAT-01
UBC-24
From AC
Battery
Under
Test
BAT-01
UBC-24
From AC
Battery
Under
Test

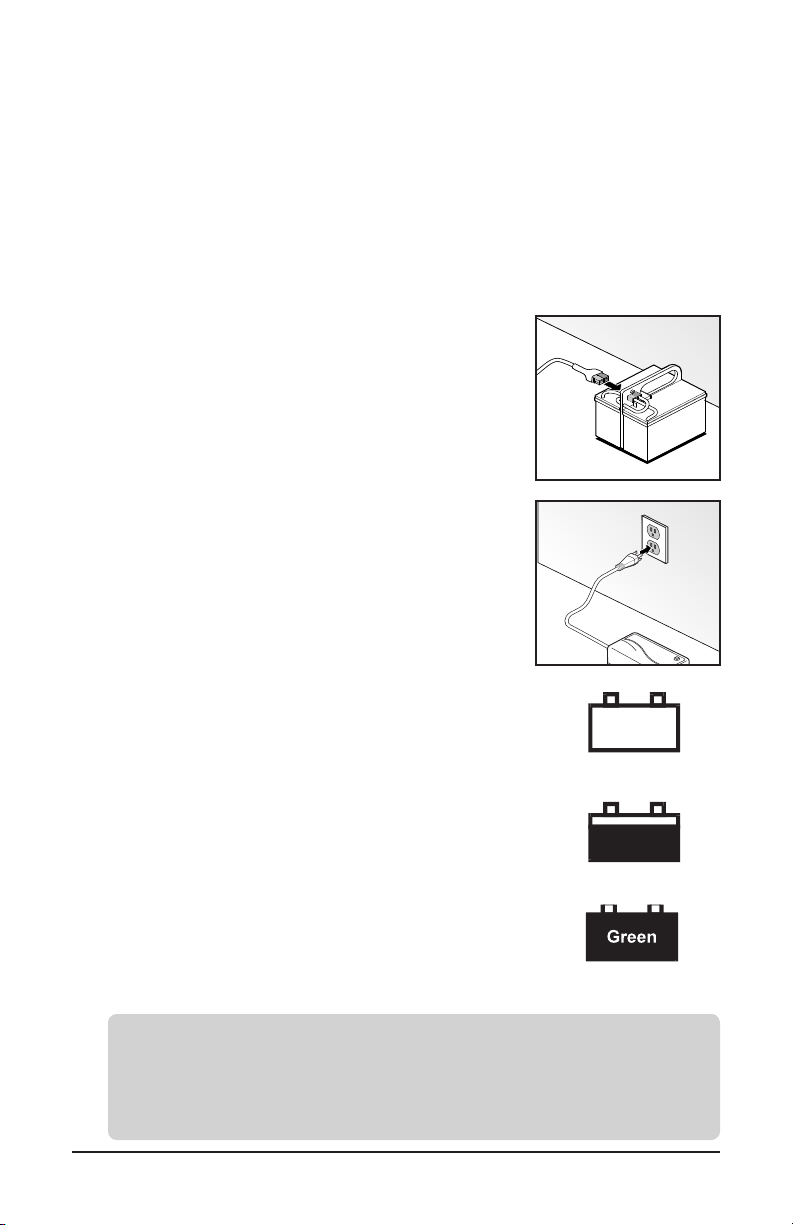

Connect charger to battery.1.
Connect the charger to the AC power2.
supply and switch on. The state of charge
is shown by the LED indicators on the
battery charger as follows. The red
“Charge” LED will light to indicate that
the battery is correctly connected and is
charging. The indicator LED will turn
green when the battery is fully charged.
The length of time needed for recharging3.
will depend on the size and depth of
discharge of the battery. A minimum of
one hour is needed and full charging of a
large battery may take up to 12 hours.
For best results, the charger should4.
be allowed to complete its full cycle
as indicated by the green LED, and
if possible, the battery should be left
connected and on-charge permanently
until it is required for immediate use.
There is no need to switch off the charger
to prevent over-charging.
Explosive gases can arise while charging. Avoid sparks and open flames. Verify
that there is adequate ventilation while charging. The charger should not be used
in the vicinity of flammable anesthesia gases. Avoid chargers with plastic casing
coming into contact with oils, grease, etc., as most types of plastic can be broken
down by chemicals and solvents.
Fast charge
The charger is in constant current mode.
Charge current is at its maximum.
Final charge
The charger is in constant voltage mode.
Charge current is less than its maximum.
The battery is normally 80-95% charged.
The charger stays in this mode until the charge current
decreases to charge termination level.
Float (Standby / Ready)
The charger is in standby mode.
The battery is fully charged. The LED changes to green.
The charge voltage is at standby level, which means the charger
can continue to be connected to the battery.
The charger can return to rapid charging if the battery is used.
WARNING
LED’s INDICATE FOLLOWING CHARGE STATUS

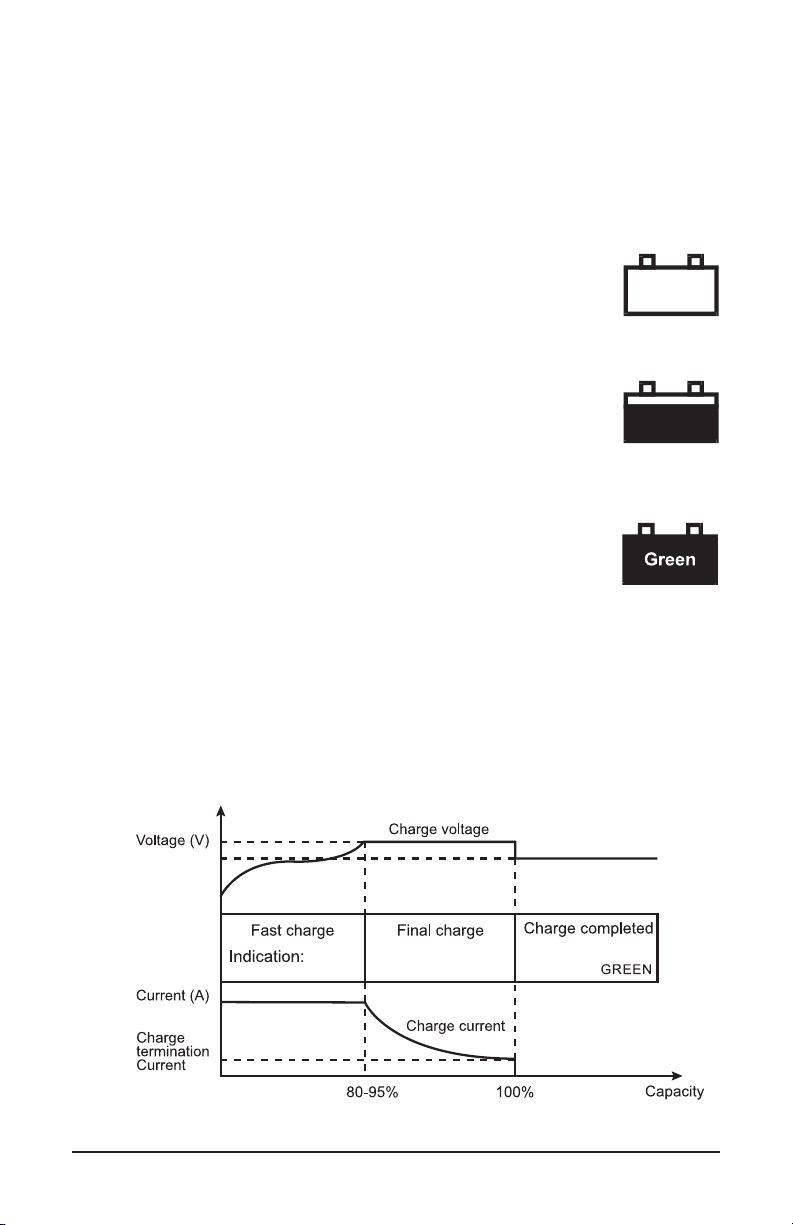

Charging diagram
RED RED
Red
Red
Explosive gases can arise while charging. Avoid sparks and open flames. Verify
that there is adequate ventilation while charging. The charger should not be used
in the vicinity of flammable anesthesia gases. Avoid chargers with plastic casing
coming into contact with oils, grease, etc., as most types of plastic can be broken
down by chemicals and solvents.
Fast charge
The charger is in constant current mode.
Charge current is at its maximum.
Final charge
The charger is in constant voltage mode.
Charge current is less than its maximum.
The battery is normally 80-95% charged.
The charger stays in this mode until the charge current
decreases to charge termination level.
Float (Standby / Ready)
The charger is in standby mode.
The battery is fully charged. The LED changes to green.
The charge voltage is at standby level, which means the charger
can continue to be connected to the battery.
The charger can return to rapid charging if the battery is used.
WARNING
LED’s INDICATE FOLLOWING CHARGE STATUS
Charging diagram
RED RED
Red
Red
Explosive gases can arise while charging. Avoid sparks and open flames. Verify
that there is adequate ventilation while charging. The charger should not be used
in the vicinity of flammable anesthesia gases. Avoid chargers with plastic casing
coming into contact with oils, grease, etc., as most types of plastic can be broken
down by chemicals and solvents.
Fast charge
The charger is in constant current mode.
Charge current is at its maximum.
Final charge
The charger is in constant voltage mode.
Charge current is less than its maximum.
The battery is normally 80-95% charged.
The charger stays in this mode until the charge current
decreases to charge termination level.
Float (Standby / Ready)
The charger is in standby mode.
The battery is fully charged. The LED changes to green.
The charge voltage is at standby level, which means the charger
can continue to be connected to the battery.
The charger can return to rapid charging if the battery is used.
WARNING
LED’s INDICATE FOLLOWING CHARGE STATUS
Charging diagram
RED RED
Red
Red
Beginning Charging
Charging
Fully Charged
