SmoothTalker Mobile Z650 Series Bedienungsanleitung

User Manual USA

In 2001 SmoothTalker produced the rst digital mobile cellular signal booster

in North America with FCC and ICAN approval. We continue to lead with the

most powerful and intelligent boosters in the world.

Our dynamic adaptive proprietary algorithms make them very network friendly.

We call it STEALTH TECH technology.

Smoothtalker.com

Boosts the outside signal into your vehicle

and the cell phone signal back to the tower.

6 BAND

Mobile Z6 4G LTE

50dB

Wireless Booster High Power

MULTI BAND

stealth

tech

Cellular

Signal Booster

RX/TX

MULTI BAND 50dB

50dB 6 BAND

GSM,HSPA,CDMA,LTE, LTE A

Wireless Booster High Power

Band 12,17

Band 13

Band 5

Band 4

Band 2,25

700MHz Upper

850MHz

1700/2100MHz

2G, 3G, 3G+, 4G, 4G+

1900MHz ext

700MHz Lower

Contents

All parts shown are not included in all kits.

Please check your model number for more details at smoothtalker.com

To comply with FCC rules, this booster must only be operated with cables, antennas

and coupling devices that have been approved for use with this equipment.

NOTE: It is normal for the booster to be quite warm while the phone is in use state.

outside antenna

Inside

antenna Cellular Booster

Optional Power Types

12 volt install

fused type

12 volt socket

CLA plug type

120 volt AC/DC

Installation

1) Connect the outside antenna to the side of the booster

marked as “outside antenna”

Connect the inside antenna to the side of the booster

marked as “inside antenna”

2) Placement

Place the outside antenna in the middle of the vehicle roof. If the vehicle has a

sunroof please place the antenna on the roof towards the back window.

Place the Patch (inside) antenna in desired location. For cars and trucks

the console between the front seats is recommended.

Connect the booster as shown in Fig.1 below.

Important: Use only the power supply included with the booster. Connecting any

other power supply at any time will result in damage to the booster and will void

the warranty. Do not turn on the power switch until ALL cables have been

screwed or plugged into the booster or you can cause damage to the booster.

Applications

Fig. 1

Mobile Wireless with 12 volt

socket CLA plug-in type

Understanding the lights

The “LEDS” on the face of the booster indicate operating gain state.

In any given frequency band there is a Green and Orange LED which indicate the

gain status of the band. When both of these LEDS are “SOLID ON”it means that the

booster is operating normally and with full gain (No attenuation) in that band.

If the booster has reduced its gain, one or both of the LEDS will indicate

by ashing. (Per the chart on pg. 4)

Any reduction of gain will be due to either:

A) High outside signal level (close to tower)

B) Loop Oscillation due to the inside antenna (Patch antenna)

and the outside antennas are located too close together.

When the booster is o it will be indicated as follows:

When inside and outside antennas are extremely close together the Green LED

will fast ash and the Orange LED will turn o indicating that the booster is

o due to loop oscillation.

Band 12, 17 700MHz Lower

Band Frequency

Band 13 700MHz Upper

Band 5 850MHz

Band 4 1700/2100MHz

Band 2, 25 1900MHz ext

RX High Power Attenuation

Oscillation Attenuation

Orange LED

Green LED

Hp Att

Osc Att

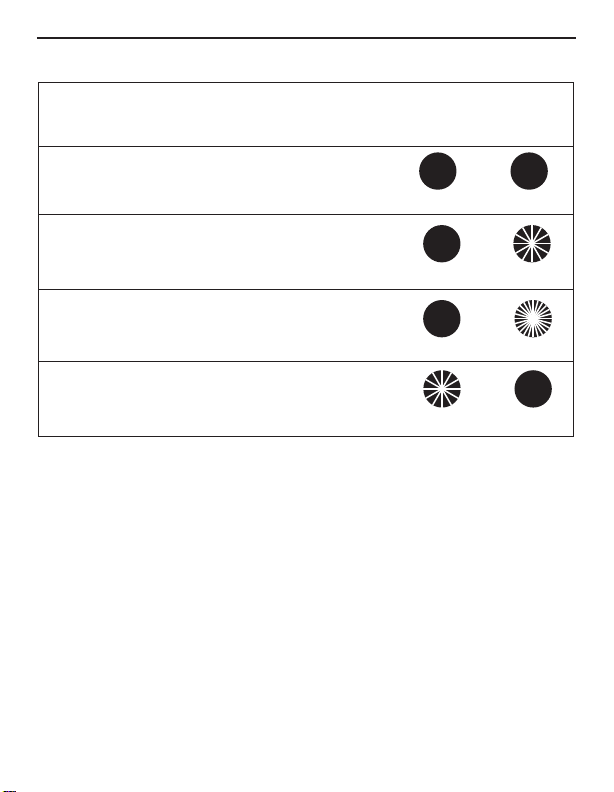

LED Lights Status Explanation

What do the LED ashes mean?

ON ON

SLOW FLASHING

SOLID ONSOLID ON

SLOW FLASHING

FAST FLASHING

OFF

ON/

OFF

ORANGE LED

RX High Power

GREEN LED

Oscilation

Attenuation (Att)

Orange Solid ON = Full Gain - Green Solid ON = Full Gain

Orange Solid ON & Green Slow Flashing = Oscillation Att

Orange O & Green Fast Flashing = Oscillation Shutdown

Orange Slow Flashing & Green Solid ON = RX High Power Att

Each ash indicates 3dB of gain reduction also known as gain attenuation.

For example: three ashes equals 9dB of attenuation.

Green LED indicates loop oscillation status. When ashing it means reduction of

gain. To improve you need to spread the distance between the inside and outside

antennas. If you spread them far enough away, the Green LED will become SOLID ON.

Orange LED indicates RX (outside signal strength) status. When ashing it means

reduction of gain also known as attenuation of gain. You cannot prevent this

condition. As you drive away from the nearby cell tower and get far enough away

the ashing Orange will automatically stop ashing which indicates that the

boooster is no longer attenuated. As you appproch another nearby cell tower the

Orange may begin ashing again and will stop ashing as you get farther away.

This is the normal operating process.

Each ash indicates 3dB of gain reduction also known as gain attenuation.

For example: three ashes equals 9dB of attenuation.

FREQUENCIES

OPERATIONAL BANDS

1900

MHz

1700/2100

MHz

850

MHz

700 MHz

upper

700 MHz

lower

Band 2/25Band 4Band 5Band 13Band 12/17

MODULATIONS 2G, 3G, 3G+, 4G, 4G+, GSM, HSPA, CDMA, LTE, LTE A

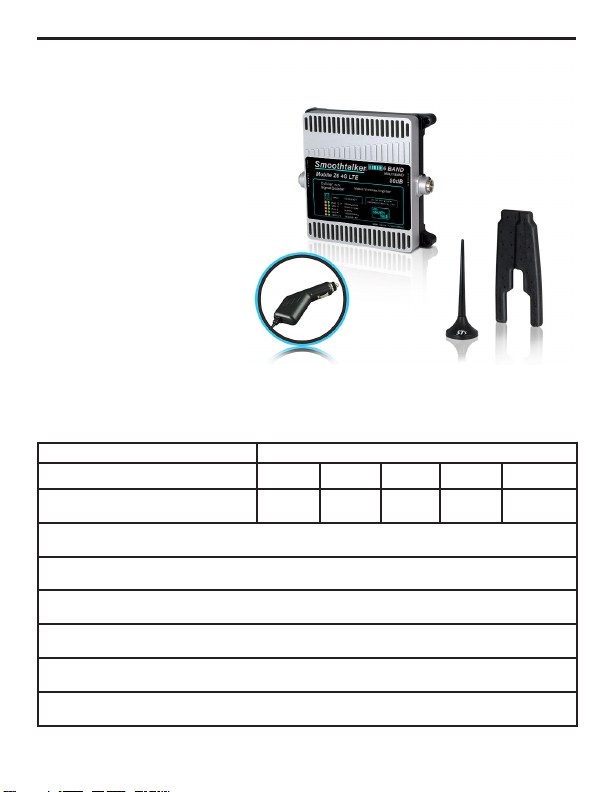

6 Band Wireless Kit High Power

Model shown

BMUZ650MSPC

TX POWER 24 dBm EIRP

GAIN 50 dB

POWER SUPPLY 12V DC CLA OR 12V DC fused or 120V AC/DC

OPERATING TEMP

-22 F TO + 185 F

DIMENSIONS L 4.56 xW 2.15 x H 1.25 (inch)

WEIGHT 1.2 lb

Typical Booster Kit

Specications Mobile Z650 Series 4G LTE

Approved Equipment List

For specications of any of the Smoothalker FCC approved part numbers

listed below visit smoothtalker.com

FCC requirements prohibit the use of unauthorized Antennas, Cables,

and/or Coupling devices.

ACX100

ACX900

CBXmaXfe10

CBXmaXfe20

CBXmaXfe30

CBXmaXfe40

CBXmaXfe50

CBXmaXfe60

SEMiniX1 SEM2M series

SEM11M series SEM14M series

SEM2LGM series SEM11LGM series

SEM14LGM series SEM26LGM series

SEM2LGML series SEM11LGML series

SEM14LGML series SEM26LGML series

SEMD1 series

SEMDA2 series

SEMO series

SEMDP1 series

SEM2TH series

SEM11TH series

SEM14TH series SEM26TH series

SEM2THL series SEM11THL series

SEM14THL series SEM26THL series

Antennas

Cables

SMRP1X SRMP1XL

Contact information for Booster registration:

Some providers have set up web-sites for booster registration. If you don’t see your provider

on this list, please contact your provider for information on how to register your booster.

AT&T: https://securec45.securewebsession.com/attsignalbooster.com/

Verizon: http://www.verizonwireless.com/solutions-and-services/accessories/

T-mobile: https://www.signalboosterregistration.com/

Sprint: https://www.sprint.com/legal/fcc_boosters.html

Us Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp

This is a CONSUMER device.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and

have your provider’s consent.

Most wireless providers consent to the use of signal boosters. Some providers

may not consent to the use of this device on their network. If you are unsure,

contact your provider.

You MUST operate this device with approved antennas and cables as specied by

the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any

person. You MUST cease operating this device immediately if requested by the

FCC or a licensed wireless service provider.

WARNING. E911 location information may not be provided or may be inaccurate

for calls served by using this device.

Operational description:

To comply with FCC NPS (Network Protection Standard) requirements: NPS and other

compliance/safeguard features for AGC and anti-oscillation have been implemented.

NPS and other compliance/safeguard features are defaulted to be“On”(in operation). NPS and

other compliance/safeguard features can not be eld recongured, disabled or removed.

This booster is not user programmable, does not need ne tuning or adjustment,

does not require professional installation.

Warranty:

2 Year on manufacturing defects. Does not include misuse or customer damage.

Original Bill of Sale is required for all Warranty Claims

info@smoothtalker.com

Tel: 1 877 726 3444

Smoothtalker.com

Made in

North

America

2 Year

Warranty

2 Year

Warranty

FCC

Approved stealth

tech

Automatic power

control protects the

Cellular Network
