SNAP DRILL SD42,4 Bedienungsanleitung
Connecting with Snapdrill
Hole Saw assembly
Hole cutting
Maintenance
Quick Guide
HEALTH AND SAFETY WARNING:
Keep hands away from hole saw and clamp..
Wear hearing protection, work gloves and
safety glasses during operation. Read full
techincal guide before use.
Snap Drill AS, Norway, 2021
Snapdrill connects directly to its drive unit
with the quick lock.
Turn and hold the locking nut counter
clockwise. Interlock the two with their
respective connective patterns.
It is easily done with Snapdrill already on the
pipe. Alternatively freehanded.
Connecting with Snapdrill
Snapdrill and the battery drill need to be
connected in order to insert hole saws.
Tighten the feed nut. Pull the trigger and let
the insert area come forward.
Hole Saw assembly
Remove the bolt. Use the included socket
and flex handle.
Clean the surface area.
Insert the hole saw, and assemble the bolt.
Tighten, and then give it a nudge.
Hole Saw assembly
Before drilling, make sure of the following.
The power tool is put in gear one
On max torque (drill symbol)
Has at least two dots on the battery.
Hole Cutting with Snapdrill
The hole saw needs to be in its starting
position.
Ensure this by tightening the feed nut and
reverse the rotation on the drill, check that
the hole saw will not go any further back.
Always return the feed nut before drilling.
Apply lubricant to the hole saw. Every 10th
hole is sufficient.
Hole Cutting with Snapdrill
For precise hole cutting:
Measure the diameter of the outer ring.
Mark the radius' distance from the holes
center.
Aim with the outer ring.
Hole Cutting with Snapdrill
Extend the foldable handles, open the clamp,
and tighten Snapdrill to the pipe.
(Fasten clockwise, loosen counter clockwise)
First with one hand, adjusting with according
to the spirit level
Then with two hands. Do not over tighten
Hole Cutting with Snapdrill
Put the drill in forward rotation.
Fully activate the trigger, drill continuously.
Start adjusting feed when the hole saw starts
cutting. More feed is faster, but will is also
wear down the hole saw quicker. A functional
Snapdrill and hole saw will finish the drilling
operation within 15 to 45 seconds.
Hole Cutting with Snapdrill

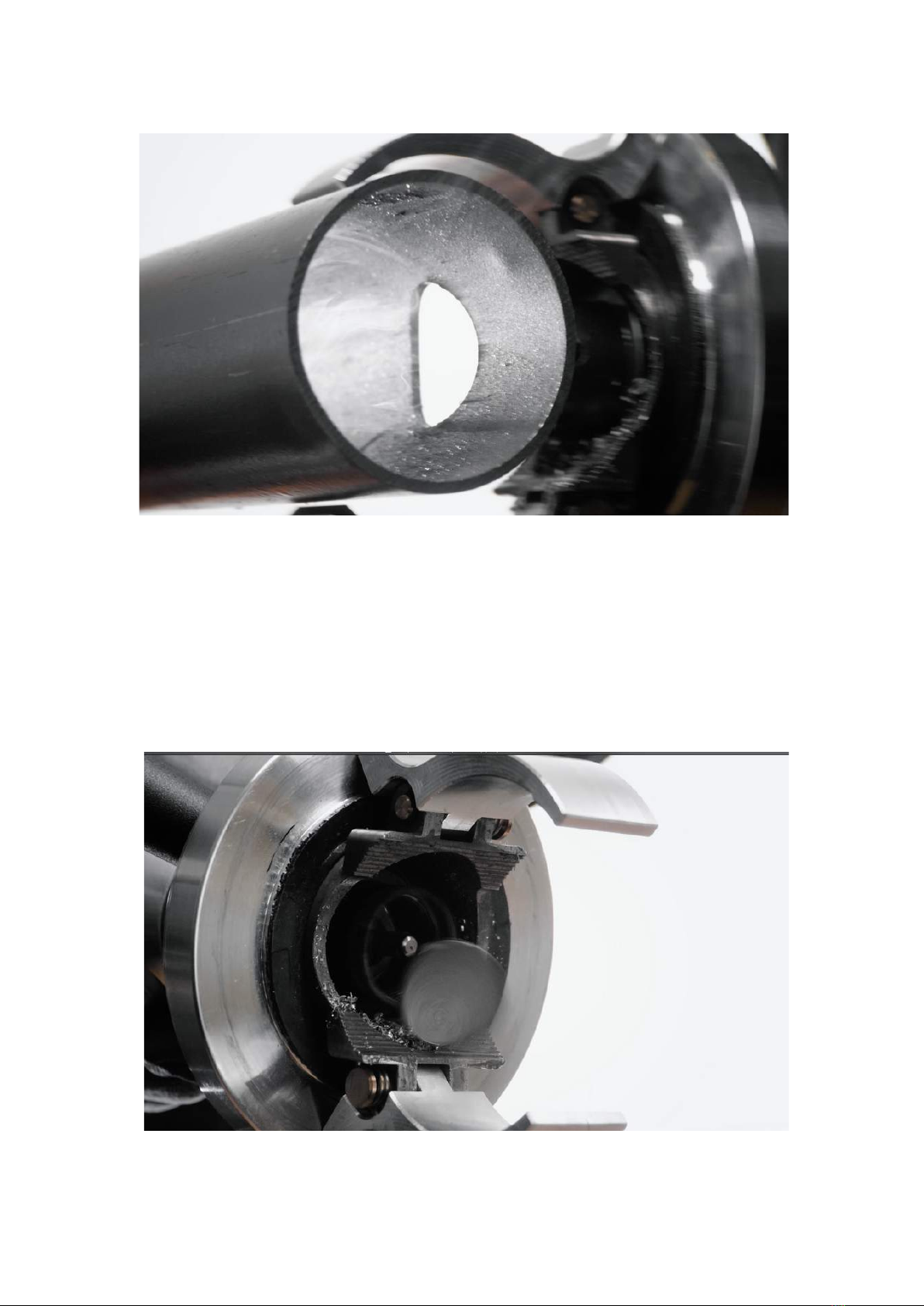

Once drilling is completed, do not yet return
the hole saw, loosen the handles. First with
two hands, then with one hand while holding
the battery drill with the other. Remove
Snapdrill from the pipe.
Tighten the feed nut for and return the hole
saw for removal of debris.
Hole Cutting with Snapdrill
