Parts Manual fo

Revision IR,

CLEAN SWEEP TWIN CATCHE

2005

McDonough, GA, 30253 U.S.A.

TP 400-5075-IR-AT-N

7/15/2005 Manual No. 1694498

SNAPPER PRODUCTS, INC.

MODEL

169449

Table Of Content

TP 400-5075-IR-AT-N

Manual No. 1694498CLEAN SWEEP TWIN CATCHER

PAGE GROUP

4Cover & Bag Group - Twin

8Front Weight Carrier Group

10 Mount Group

14 Tubes & Support Group - Twin

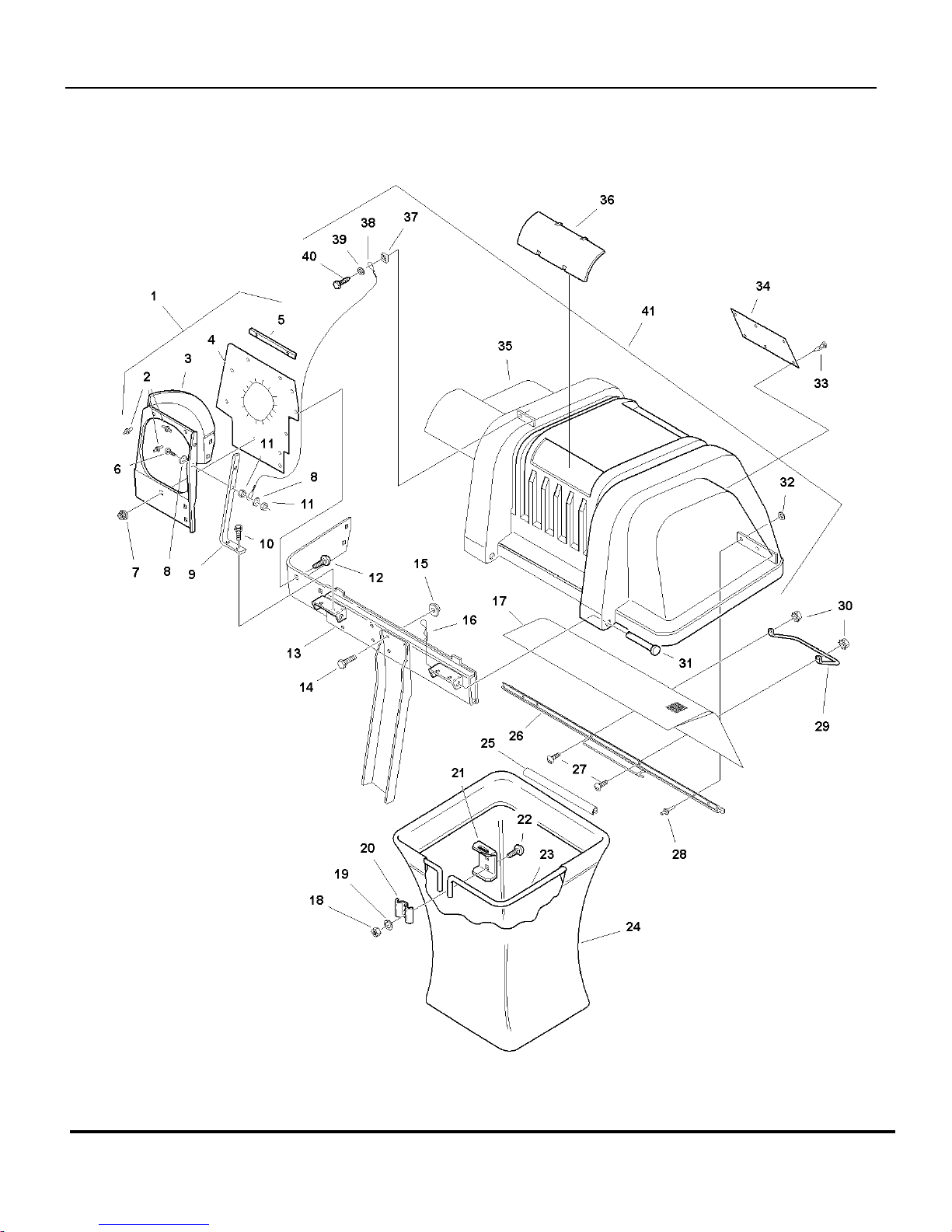

Cover & Bag Group - Twin

TP 400-5075-IR-AT-N

Manual No. 1694498 CLEAN SWEEP TWIN CATCHER

Cover & Bag Group - Twin

Footnotes

TP 400-5075-IR-AT-N

Manual No. 1694498CLEAN SWEEP TWIN CATCHER

Part No Descri

tionItem Qty Note

1 1704615 1 TUBE ASSEMBLY Support (Incl. Ref. Nos. 2, 3, 4, 5, 6, 8, 9

&11)

2 1960381 7 RIVET, Pop

3 1704075 1 SUPPORT, Tube

4 1704135 1 SEAL, Cover

5 1704508 3 BRACKET, Seal

6 1960399 1 SCREW, Round Head, #8-32 x 7/8

7 1930642 5 LOCKNUT, Flange, 1/4-20

8 1960096 2 WASHER

9 1704507 1 STRAP, Tube Support

10 1927428 2 SCREW, Taptite, 1/4-20 x 3/8

11 1960077 2 NUT, Hex, Lock, #8-32

12 1960252 5 CARRIAGE BOLT, 1/4-20 x 5/8

13 1703822 1 CROSS ASSEMBLY

14 1921966 4 CAPSCREW, Hex Head, 3/8-16 x 7/8

15 1928352 4 NUT, Hex, Whizlock, 3/8-16

16 1960221 2 CLIP, Hairpin

17 1703700 1 SCREEN

18 1917372 4 NUT, Hex, 5/16-18

19 1917356 4 LOCKWASHER, 5/16

20 1672023 2 CLAMP

21 1703807 2 HANGER

22 1931333 4 CARRIAGE BOLT, 5/16-18 x 3/4

23 1703855 2 HOOP, Bag

24 1703764 2 BAG, Grass

25 1675707 2 TUBE CLIP, Grass Bag

26 1704057 1 SEAL, Clip

27 1930531 2 SCREW, Truss Head, #10-32 x 1/2

28 1675043 4 RIVET, Pop

29 1703853 1 HANDLE, Latch

30 1928919 2 NUT, Hex, #10-32

31 2860367 2 PIN, Round Head

32 1910531 4 WASHER

33 1667248 6 CLIP, Canoe

34 1704405 1 DECAL, Safety

35 1704033 1 COVER

36 1704180 2 WINDOW

37 1933886 1 NUT, Speed

Cover & Bag Group - Twin

TP 400-5075-IR-AT-N

Manual No. 1694498 CLEAN SWEEP TWIN CATCHER

Cover & Bag Group - Twin

Footnotes

TP 400-5075-IR-AT-N

Manual No. 1694498CLEAN SWEEP TWIN CATCHER

Part No Descri

tionItem Qty Note

38 1705876 1 CABLE, Double Loop

39 1921319 1 WASHER, 1/4

40 1960400 1 SCREW, Self-tapping, #10-12 x 5/8

41 1704056 1 COVER ASSEMBLY (Incl. Ref. Nos. 17, 26, 28, 32, 37, 38, 39

& 40)

Front Weight Carrier Group

TP 400-5075-IR-AT-N

Manual No. 1694498 CLEAN SWEEP TWIN CATCHER

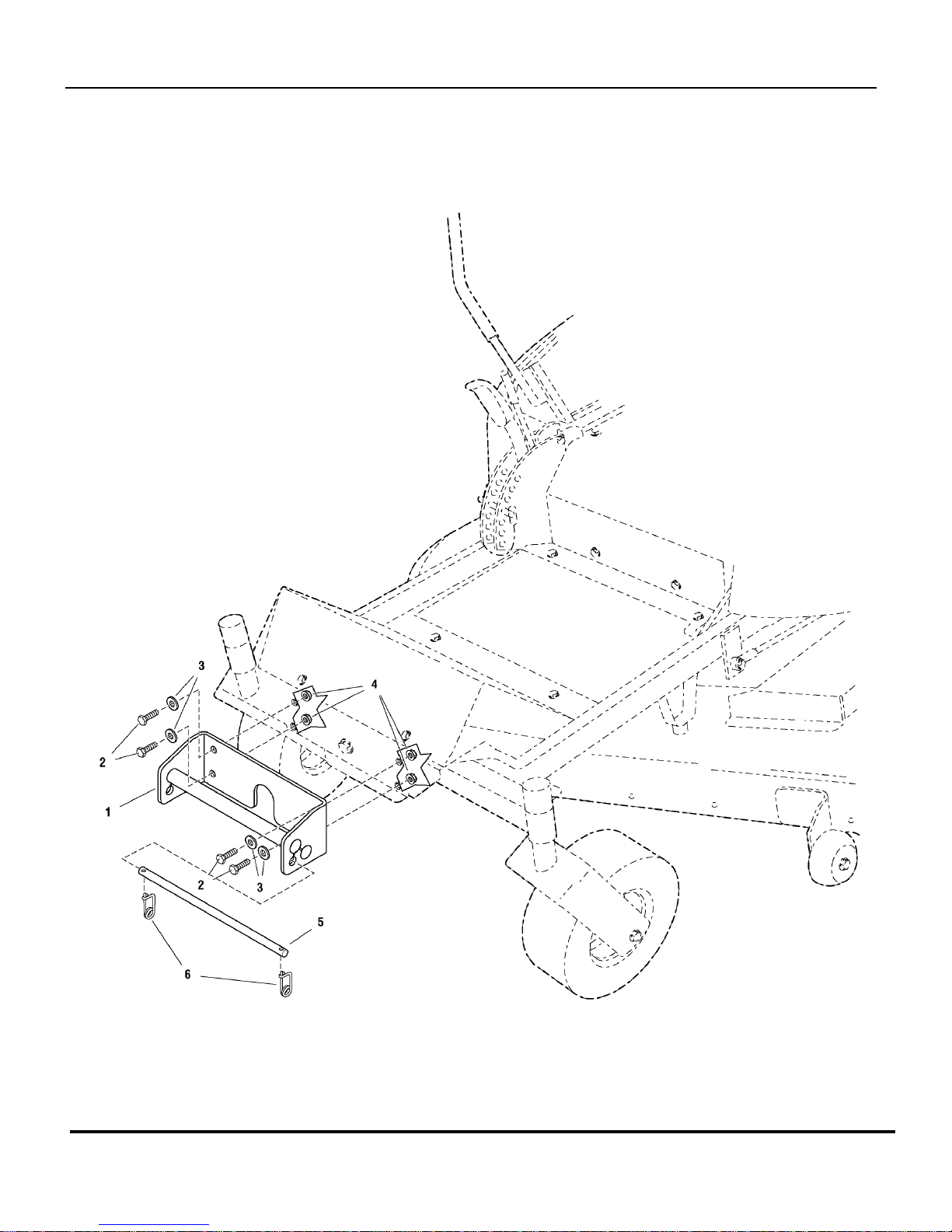

Front Weight Carrier Group

Footnotes

TP 400-5075-IR-AT-N

Manual No. 1694498CLEAN SWEEP TWIN CATCHER

Part No Descri

tionItem Qty Note

1 5049082 1 HOLDER ASSEMBL, Weight

2 1921333 4 CAPSCREW, Hex Head, 5/16-18 x 1 G5 Black

3 1919326 4 WASHER, 5/16 (0.34ID x 0.75OD x .06THK) Black

4 1927557 4 NUT, Hex Flange Whiz Lock, 5/16-18 Large Black

5 5049143 1 ROD, Retaining, 1/2 x 13-3/4LG

6 2176012 2 RETAINER, Pin, Spring

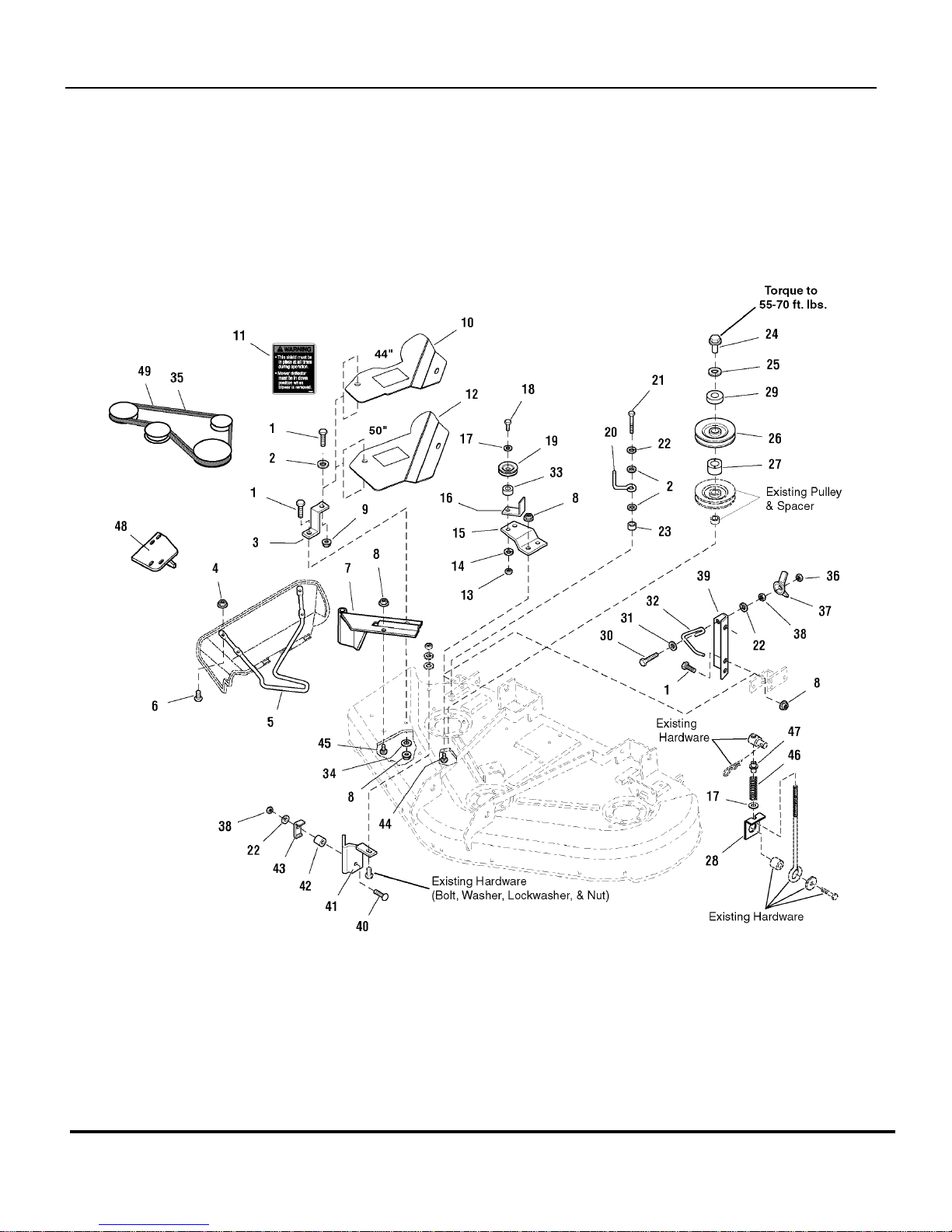

Mount Group

TP 400-5075-IR-AT-N

Manual No. 1694498 CLEAN SWEEP TWIN CATCHER
