Snell IW-K7 Bedienungsanleitung

IW-K7

IW-J7

IW-LCR7

IW-D7

IW-CR7

Owner’s Manual

SPECIFICATIONS

Frequency Response (±3dB)

Recommended Ampliﬁer

Nominal Impedance

Sensitivity (2V.83v at 1m)

Tweeter

Bass Driver

Crossover Point

Composite Bafﬂe

Grille

Dimensions

(HxWxD)

Rough Opening Cutout

(HxW)

Finish*

Weight

IW-CR7

80 Hz-20 kHz

50–150W

4 ohms

88dB SPL

1” Vifa silk dome,

ferroﬂuid cooling

2 - 4-inch (102mm)

treated paper cone with

butyl rubber surround,

5mm excursion

2.5kHz

Specialty adhesive

between two 1/4” layers

of HD ﬁberboard

Perforated metal,

53% open

17 x 101/2x 33/4inches

(432 x 267 x 95mm)

157/8x 93/8 inches

(403 x 238mm)

White trim, suitable

for painting

10 lbs (4.5kg) / each

* Custom paint and grilles are available for an extra charge

IW-K7

78 Hz–20 kHz

50–125W

8 ohms

87dB SPL

1” SEAS silk dome,

ferroﬂuid cooling

51/4-inch (132mm)

treated paper cone with

butyl rubber surround,

5mm excursion

2.5 khz

Specialty adhesive

between two 1/4” layers

of HD ﬁberboard

Perforated metal,

53% open

14 x 91/2x 33/4inches

(356 x 241 x 95mm)

127/8x 83/8 inches

(327 x 212mm)

White trim, suitable

for painting

6 lbs (2.7kg) / each

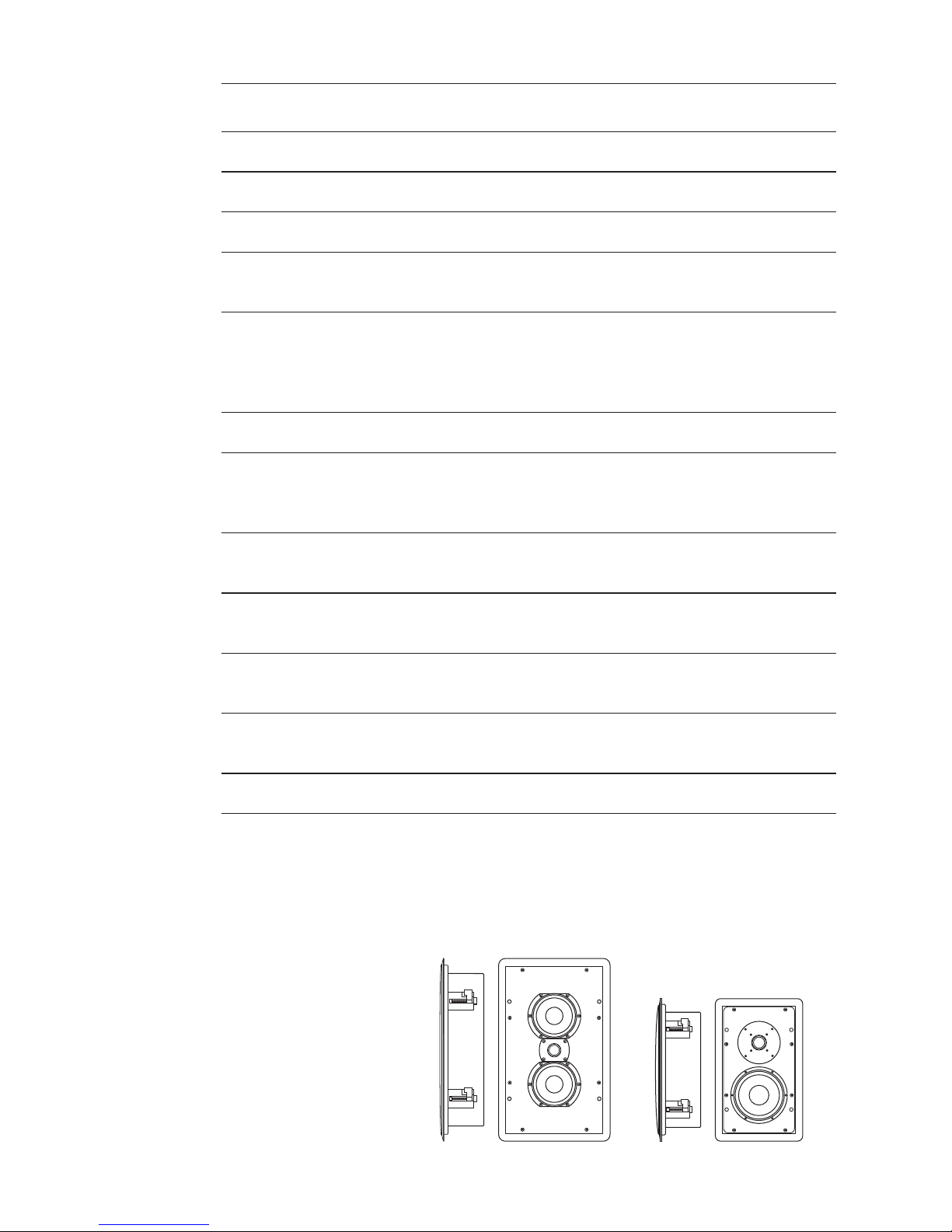

IW-CR7

IW-LCR7

70 Hz-20 kHz

50–250W

4 ohms

89dB SPL

1” SEAS silk dome,

ferroﬂuid cooling

2 - 51/4-inch (132mm)

treated paper cone with

butyl rubber surround,

5mm excursion

2kHz

Specialty adhesive

between two 1/4” layers

of HD ﬁberboard

Perforated metal,

53% open

231/4x 131/4x 33/4inches

(590 x 336 x 95mm)

22 x 12 inches

(559 x 305mm)

White trim, suitable

for painting

19 lbs (8.6kg) / each

IW-D7

62 Hz-20 kHz

50–250W

4 ohms

90dB SPL

1” SEAS silk dome,

ferroﬂuid cooling

2- 61/2-inch (165mm)

copolymer with butyl

rubber surround,

5mm excursion

2kHz

Specialty adhesive

between two 1/4” layers

of HD ﬁberboard

Perforated metal,

53% open

301/2x 101/2x 33/4inches

(775 x 267 x 95mm)

293/8x 93/8inches

(746 x 238mm)

White trim, suitable

for painting

19 lbs (8.6kg) / each

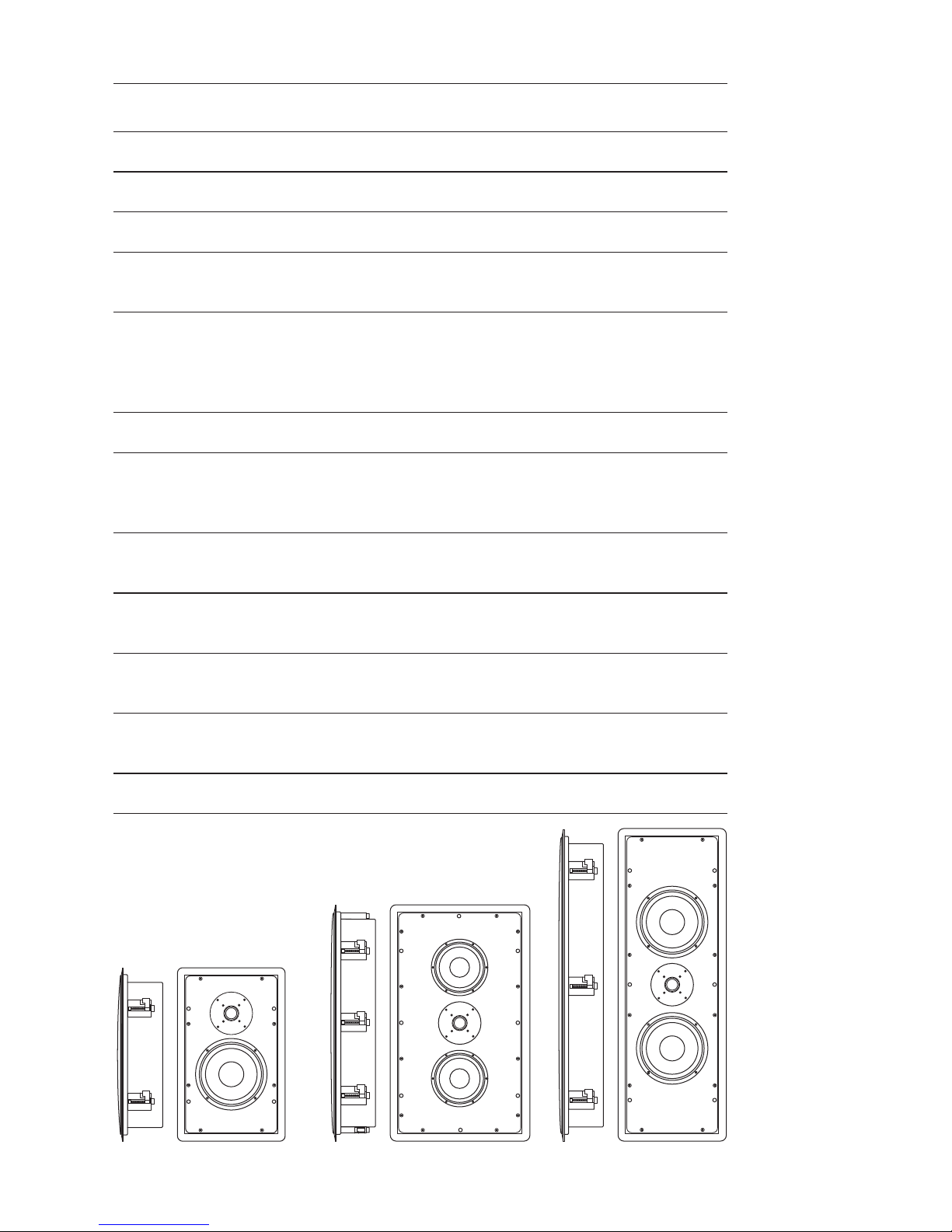

IW-J7 IW-LCR7

IW-J7

66 Hz–20 kHz

50–150W

8 ohms

87dB SPL

1” SEAS silk dome,

ferroﬂuid cooling

61/2-inch (165mm)

copolymer with

butyl rubber surround.

5mm excursion

2.5 khz

Specialty adhesive

between two 1/4” layers

of HD ﬁberboard

Perforated metal,

53% open

17 x 101/2x 33/4inches

(432 x 267 x 95mm)

157/8x 93/8 inches

(403 x 238mm)

White trim, suitable

for painting

9 lbs (4kg) / each

IW-D7

INTRODUCTION: WHAT IS A HIGH END IN-WALL?

The new Snell IW series units bring a novel approach to the design and construction of

in-wall loudspeakers, expanding the boundaries of in-wall performance.

Our primary goal was to develop loudspeakers that delivered performance that was as close as

possible to that of our highly regarded freestanding loudspeakers, like the K7 and LCR7. To do

this several issues had to be addressed.

The bass performance of conventional loudspeakers mounted in wall cavities is very unpredict-

able. Cavity volume can be large, which should be good for bass performance. However, with

one very short dimension (approximately 4”) and one very long dimension (up to 8’), the wall

cavity takes on the characteristics of a closed-end organ pipe. This creates a strong resonance

that tends to null out the bass. Lining this cavity with ﬁberglass will reduce the “Q” of the

notch but not restore the bass. What is needed is a deﬁned volume of a more regular size. This

is best done with fully enclosed in-wall speakers.

The Snell IW loudspeaker enclosure is a thin, but strong, aluminum tub. It is both damped and

braced. This largely contains the back radiated sound of the woofer within the enclosure. An

added beneﬁt of containing the woofer output is a reduced chance that resonances will be

excited in the house walls. Furthermore, sound “bleed through” to adjacent rooms is reduced.

To minimize resonances in the Snell enclosure, the speaker bafﬂe uses a technique ﬁrst

pioneered on our .5 and XA series loudspeakers. The bafﬂe is a three part composite with MDF

(ﬁberboard) outer layers around a thin, but highly effective, damping layer. This controls the

panel resonances of the bafﬂe that can obscure midrange clarity. As we have found with our

freestanding loudspeakers, a better loudspeaker cabinet means a better sounding loudspeaker.

In addition to these unique solutions, all traditional Snell attributes are retained. Highly coher-

ent in-phase crossover networks ensure a seamless blend from driver to driver. Drivers are

designed for smooth, wide range response and low distortion. Long sessions of listening and

adjusting give each system that special, characteristic Snell sound. Finally, that Snell sound is

guaranteed in every production pair by Snell’s proprietary 0.5dB production tuning techniques.

PLACEMENT OF THE FRONT CHANNEL SPEAKERS

A home theatre system includes three loudspeakers placed across the front of the listening

room. The distance between the left and right speakers determines the width of the stereo

image. If the speakers are placed too close together, the image will be too narrow; too far apart

and the blend will suffer, creating a hole in the middle. When properly placed, your speakers

will create a continuous “virtual image” from left to right, with an illusion of sound outside, in

front of, and behind the speaker systems.

We recommend an angular separation

between 45 degrees and 60 degrees

(when viewed from above). This is

equivalent to a separation between the

speaker systems that is about 85% of the

distance to either of the speakers.

Creation of sounds between the speakers

requires some precise placement. The

distance from the left speaker, right

speaker, and center channel to the

listener location should all be as equal as

possible. We advise using a tape measure

to equalize these two distances to the

primary listening location.

Ideally the front channel speakers should

be installed at the same height as the

ears of a seated listener. Try to keep the

front channel tweeters within two vertical feet of that height.

45°-60°

PLACEMENT OF THE SURROUND SPEAKERS

There are many opinions about where surround or “rear” speakers should be mounted. The

following is based on the ﬁndings of the best academics, and on our experience with many

installations. These placement recommendations apply to all the IW models.

If two surrounds are used in a standard

5.1 conﬁguration (not 7.1 or EX), they

are best mounted to the sides of the lis-

tening area. This means straight to the

sides of the listener or in line with the

primary row of seating, plus or minus

15 degrees. This is preferred over back

wall mounting for several reasons: It

places the surrounds at locations where

the difference between left ear and

right ear discrimination is at a maxi-

mum. This gives the maximum sense of

“envelopment” or being surrounded by

sound. Rear mounted speakers force a

huge angular gulf between the front primary speakers and the rear speakers. The sound image

is inherently discontinuous. Also, front to rear aural discrimination is not very strong. Differen-

tiation between front and rear speakers will not be as strong as the effect of adding speakers

to the side. 7.1 or EX systems that use side and rear speakers together overcome all of these

obstacles and give both maximum envelopment and a more continuous surround effect.

A second factor to consider is the evenness of sound coverage over the seating area. Most

surround processors have features for setting the balance of all channels. A circulating noise

signal is adjusted in each channel until the apparent or measured sound level is even. Of course,

moving to another seat will shift this balance somewhat. Well-placed surround speakers will

minimize the level variation from seat to seat. The best way to achieve evenness is to increase

the distance of the surround speakers from the listening area. Mount them high on the side

walls or even on the ceiling. As a good rule of thumb, surrounds should be on the side walls at

least one foot above the height of a standing listener. If the speakers are ceiling-mounted, they

should be close to the side walls, well away from an overhead position.

If a large theater room with three or more rows of seats is planned, then more than one pair of

surround speakers should be used to give more even coverage and a more diffuse sound ﬁeld.

We recommend that a pair of surrounds be used for every other seating row (the ﬁrst, the third,

the ﬁfth, etc.). This follows standard cinema practice.

Optional Direct Radiation

Surround Speaker Locations

INSTALLATION INSTRUCTIONS

IMPORTANT: This manual assumes that the installer possesses skill in the proper use of

hand and power tools, knowledge of local building and ﬁre codes, and a familiarity

with the environment behind the wall or ceiling in which the speakers will be installed.

Optional preconstruction brackets are available for each model.

PAINTING THE SPEAKERS

If you intend to paint the speakers, it is best to do so before installation.

1) Remove the speaker grille.

2) Mask the bafﬂe.

3) After painting, carefully remove the paint mask.

Note: Custom paint and grilles are available for an extra charge.

PREPARING FOR INSTALLATION

Map out the wiring paths from the speakers to the ampliﬁer. We recommend 16-gauge wire for

runs up to 25 feet, and 14-gauge wire for longer runs. Be sure the speaker wire does not rest or

rub against any sharp or pointed objects.

The speakers should be mounted on a ﬂat surface to form a good seal between the speaker

ﬂange and the mounting surface.

When connecting more than two speakers per ampliﬁer channel, you should use series/parallel

wiring. In all cases, make certain that the total impedance does not fall below the ampliﬁer’s

rating. If you are not sure, contact your Snell Acoustics dealer.

You will Need:

1) A utility knife, an electric jigsaw, or other means of cutting a hole in the mounting surface.

2) A #2 Phillips screwdriver.

3) A wire cutter or stripper for preparing the speaker wires.

With the supplied hardware, the speaker can be installed in existing walls or ceilings from 1/2”

(12mm) to 11/2” (38mm). For thinner walls, you will need to use spacers for the mounting legs

(contact your Snell dealer for this optional rubber part).

INSTALLATION

For convenient installation, these Snell IW series speaker systems use a dog-leg mounting sys-

tem (see illustrations below). This provides a quick and clean install. Furthermore, the dog-legs

can be removed if a particular situation requires the speaker to be directly attached to a stud.

1) Make an appropriate size speaker mounting cutout in the wall material.

2) Run the wire from the ampliﬁer to the cutout. Allow an extra foot of wire at the cutout.

Strip 1/2” (12mm) off the wire, and tightly twist the wire strands together.

3) Remove the speaker grille.

4) Insert the speaker wires into the spring terminal

binding posts mounted in the terminal cup.

Push down on the terminal to open the

hole for the wire and insert the wire.

Release the terminal to clamp

the wire in place.

Important: The speaker wire

may be color coded as illus-

trated here. Or it may have a

ridge or stripe on the insulation

of one of the conductors. Use the

color coding or marks to be sure the

+ terminal of the speaker is connected

to the + terminal on the ampliﬁer, and

the – terminal of the of the speaker is

connected to the – terminal of the ampliﬁer.

All the speakers in the system must be connected the same way to get proper performance.

Warning! To prevent electrical shock, always switch off the ampliﬁer or receiver when mak-

ing connections to the speaker system.

5) Place the speaker into the rough opening.

6) Level the speaker and tighten the screws, being careful not to over tighten them. See il-

lustration below for details.

7) Replace the speaker grille.

Turn the mounting clamps against the enclosure, then place the

speaker in the mounting hole. Use a phillips head screwdriver to deploy

the mounting clamps and pull them against the back of the drywall.

LISTENING LEVELS AND POWER HANDLING

The power recommendation for the system assumes you will operate the ampliﬁer in a way

that will not produce distortion. All speakers can be damaged by even a modest ampliﬁer if it is

producing distortion. If you hear a gritty noise or other signs of strain, turn down the volume.

Prolonged or repeated operation of your speakers with a distorted signal can cause damage

that is not covered by the warranty. It is especially important that you do not overdrive the

bass capability of smaller speakers. Watch for noises, such as pops, caused by the music’s bass

line. Use of the loudness control and/or full bass boost at louder volumes is likely to overdrive

the woofer. Use such controls sparingly.

HOW TO CARE FOR YOUR SPEAKERS

/Use a soft terry cloth towel slightly dampened with water, glass cleaner, or a diluted mild

detergent. The towel should be just damp enough to wipe the surface clean without leaving

a trail of moisture.

/Do not use abrasive cleaners or any cleaner containing chemicals harsher than those found

in glass cleaner.

LIMITED WARRANTY

For ﬁve years from the date of purchase, Snell Acoustics will repair for the original owner any

defect in materials or workmanship that occurs in normal use of the speaker system, without

charge for parts and labor.

Your responsibilities are to use the product according to the instructions supplied, to provide

safe and secure transportation to an authorized Snell Acoustics service representative, and to

present proof of purchase from an authorized Snell dealer in the form of your sales slip when

requesting service.

Excluded from this warranty is damage that results from abuse, misuse, accidents, shipping,

repairs, or modiﬁcations by anyone other than an authorized Snell Acoustics service representa-

tive. This warranty is void if the serial number has been removed or defaced.

This warranty gives you speciﬁc legal rights, and you may also have other rights that vary from

state to state.

If Service Seems Necessary

Contact the dealer from whom you purchased the speaker system. If that is not possible, call us

at 607-352-2488, or write to: Snell Acoustics

2 Chambers Street

Binghamton, NY 13903

We will promptly advise you of what action to take. If it is necessary to return your speaker

system to the factory, please ship it prepaid in the original factory packaging. Please note that

Snell Acoustics will not be held liable for shipping damage due to improper packaging. After it

has been repaired, we will return it freight prepaid in the U.S. or Canada.

For EU Customers Only

This symbol found on the product indicates that the product must not be disposed

of with household waste. Instead, it may be placed in a separate collection facility

for electronic waste or returned to a retailer when purchasing similar product. The

producer paid to recycle this product. Doing this contributes to reuse and recycling,

minimizes adverse effects on the environment and human health and avoids any

ﬁnes for incorrect disposal.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Snell Sprecher Handbücher

Snell

Snell AMC 360 Bedienungsanleitung

Snell

Snell SR.5 Surround Bedienungsanleitung

Snell

Snell QB 25 Series Bedienungsanleitung

Snell

Snell AMC 460 Bedienungsanleitung

Snell

Snell AMC 6030 Bedienungsanleitung

Snell

Snell QBx Surround Bedienungsanleitung

Snell

Snell AMC550mp Bedienungsanleitung

Snell

Snell IW-LCR7 Bedienungsanleitung

Snell

Snell 730 770 830 870 Bedienungsanleitung

Snell

Snell ICS 570 Bedienungsanleitung

Snell

Snell IW-J7 Bedienungsanleitung

Snell

Snell K7 Bedienungsanleitung

Snell

Snell IC-D7 Bedienungsanleitung

Snell

Snell AMC 830 Bedienungsanleitung

Snell

Snell AMC Sub 88 Bedienungsanleitung

Snell

Snell ICS 1070 Bedienungsanleitung

Snell

Snell AMC 650R Bedienungsanleitung

Snell

Snell AMC 730 Bedienungsanleitung

Snell

Snell PYXIS Bedienungsanleitung

Snell

Snell AMC 360 Bedienungsanleitung

Snell

Snell SR7 Bedienungsanleitung

Snell

Snell XA 55cr Bedienungsanleitung

Snell

Snell AMC 870 Bedienungsanleitung

Snell

Snell AMC 560 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
