#56663 SNOW THROWER OPERATOR’S MANUAL 2

SNOW THROWER IDENTIFICATION

For information and questions, please contact Customer Service by calling 1-800-232-1195.

Certain information will be requested by a Customer Service Representative. Please fill out the

information below and have it accessible prior to calling.

Refer to name plate on your Snow Thrower for the Serial Number. Record your Snow Thrower's

information below.

DATE OF PURCHASE: __________________________________________

PURCHASED FROM: __________________________________________

SNOW THROWER ITEM #: __________________________________________

SNOW THROWER SERIAL NUMBER: _________________________________________

#56663 SNOW THROWER OPERATOR’S MANUAL 3

TABLE OF CONTENTS

Specifications ………………………………………………………. 3

Important Safety Instructions ………………………………………. 4

Know Your Snow Thrower’s Components ………………………… 7

Assembly Instructions ……………………………………………… 8

Unpacking ………………………………………………….. 8

Middle Frame Assembly …………………………………… 8

Upper Frame Assembly …………………………………….. 9

Discharge Chute Assembly …………………………………. 10

Lower and Upper Chute Crank Assembly ………………….. 10

Operation ……………………………………………………………. 11

Securing the Extension Cord ………………………………… 11

Powering On and Off ………………………………………… 12

Plowing the Snow ……………………………………………………. 13

Changing Snow Discharge Chute’s Direction ……………………….. 14

Maintenance ………………………………………………………….. 15

Use and Care …………………………………………………. 15

Snow Thrower Lubrication …………………………………... 15

Storage ………………………………………………………… 15

Exploded View ………………………………………………………… 16

Parts List ………………………………………………………………. 17

Warranty ………………………………………………………………. 19

SPECIFICATIONS

13 Amp 18" Electric Snow Thrower

Item #: 56663

Motor: 120V, 60Hz, 13Amp

Speed: 2200 rpm (no load)

Clearing Width: 18"

Clearing Height: 10"

Wheel Size: 5"

Weight: 40 lbs.

#56663 SNOW THROWER OPERATOR’S MANUAL 4

IMPORTANT SAFETY INSTRUCTIONS

Warning: Do not plug in the Snow Thrower until the following steps have been

read and understood.

READ ALL INSTRUCTIONS BEFORE USING YOUR SNOW THROWER

Electrical Instructions

Your Snow Thrower has a polarized male plug, with one prong in the switch housing socket

slightly longer and wider than the other. The extension cord female end also should be polarized,

so that the extension cord fits snugly into the switch housing socket.

WARNING: Your Snow Thrower is intended for outdoor, residential use only. Do

not use it indoors, for commercial or industrial purposes.

DO NOT ABUSE THE CORD. Never use the cord for carrying, pulling or unplugging your

Snow Thrower. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or

entangled cords increase the risk of electric shock.

Warning: To prevent electric shock, use your Snow Thrower only with an extension

cord suitable for outdoor use.

Make sure your extension cord is in good condition. When using an extension cord, be sure to

use one heavy enough to carry the current your product will draw. An undersized cord will cause

a drop in line voltage resulting in loss of power and overheating. The table below shows the

correct size to be used according to cord length and nameplate ampere rating. If in doubt, use the

next heavier gauge. The smaller the gauge number, the heavier the cord.

Minimum gauge for Extension Cords (AWG)

(When using 120V only)

Ampere Rating

Total Length of Cord in feet

More Than

Not More

Than

100

150

Not Recommended

#56663 SNOW THROWER OPERATOR’S MANUAL 5

Personal Safety

Stay alert, watch what you are doing and use common sense when operating your Snow Thrower.

Do not use your Snow Thrower while you are tired or under the influence of drugs, alcohol, or

medication. A moment of inattention while operating the Snow Thrower may result in serious

bodily injury.

NEVER LEAVE YOUR RUNNING SNOW THROWER UNATTENDED. Turn the power

switch to OFF. Do not leave your Snow Thrower until it has come to a complete stop.

Remove any adjusting key or wrench before turning the Snow Thrower on. A wrench or a key

that is left attached to a rotating part of the Snow Thrower may result in bodily injury.

DO NOT OVERREACH. Keep proper footing and balance at all times. This enables better

control of the Snow Thrower in unexpected situations. Hold the handles firmly to avoid injury.

When stepping backwards, be cautious about any obstacles beneath your feet or behind you to

avoid falling.

Snow thrower Use and Care

Know your snow thrower - Familiarize yourself with the main parts of your snow thrower.

Read the operator’s manual carefully. Learn your snow thrower’s applications and limitations as

well as the specific potential hazards related to this machine. Do not use this machine for any

purpose other than the one for which it was designed. Otherwise, it may cause mechanical

defaults, serious damage or personal injury.

Preliminary unit inspection - Thoroughly inspect the unit before use. Make sure all the parts

are secure and installed correctly. If you notice any abnormalities, do not use the machine until it

has been properly repaired. Always perform a test run the first time you use the snow thrower or

after replacing parts to ensure that the unit is functioning properly.

Preliminary area inspection - Clear the area to be plowed before each use. Remove all objects

such as rocks, broken glass, nails, wire, or string, which can be thrown by or become entangled

in the snow thrower. Keep the area of operation clear of other people and pets.

Excessive force - The snow thrower was designed to respond at a certain rate for various snow

conditions for optimum safety and performance. Do not force it; keep pressure constant.

Malfunctioning switch - Do not use the snow thrower if the switch does not turn it on and off.

Any electrical appliance that cannot be controlled by the switch is not safe to use and must be

repaired.

Hitting an object - If the snow thrower accidentally strikes an object, stop the snow thrower;

inspect for damage; repair or replace any damaged part before restarting and operating the snow

thrower.

Discharge chute safety - Never direct the snow discharge chute at the operator, at bystanders, at

vehicles or at windows. Thrown snow and foreign objects accidentally picked up by the snow

thrower can cause serious damage and personal injury. Do not use your hands to unclog the

discharge chute. Stop the motor before removing debris.

#56663 SNOW THROWER OPERATOR’S MANUAL 6

Abnormal operation - If you notice the snow thrower running in an unstable state or hear

abnormal sounds from the motor, stop the machine, disconnect the power immediately, and

contact our customer service department.

Noise control - When using the snow thrower, you must respect local laws and regulations

regarding noise control and environmental protection. To avoid noise disturbance, you should

carefully decide upon an appropriate operation time and consider the surrounding conditions.

When work is completed - Disconnect the snow thrower from the power source when not in use,

when changing accessories, and before performing any maintenance.

Store safely - Store snow thrower indoors in a dry area between uses. Keep in a locked area

where children and unauthorized users cannot gain access. Do not store the machine while it is

still connected to the power source. It may cause damage and injury.

Maintain for safety and longevity - Check for misalignment or binding of moving parts,

breakage of parts, and any other conditions that may affect the unit’s operation. If damaged,

repair or replace the damaged part before use. Use only those replacement parts made for your

model. When replacing any parts, you must strictly observe the instructions and procedures

described in this manual. Special care should be paid to any rubber parts, since these parts may

increase the engine load and decrease its mechanical power if damaged.

Symbols

These symbols represent important information about the product or instructions on its use.

WARNING: The following warning symbol is to remind you of the safety

precautions you should take when operating the Snow Thrower.

Keep hands away from the moving parts of the Snow Thrower. The rotating parts

could cause bodily injury.

#56663 SNOW THROWER OPERATOR’S MANUAL 7

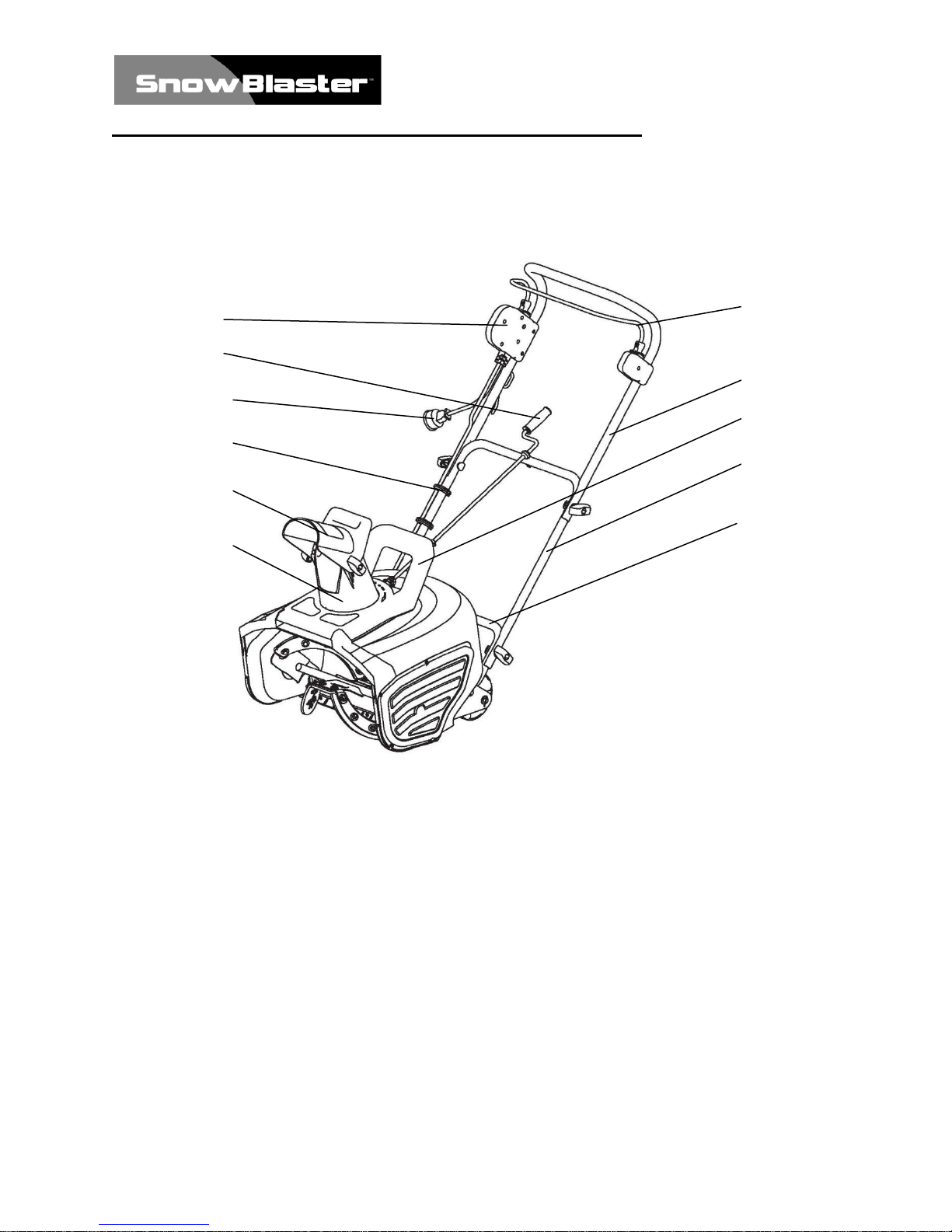

KNOW YOUR SNOW THROWER’S COMPONTENTS

LOWER FRAME

UPPER CHUTE CRANK

MIDDLE FRAME

POLARIZED PLUG

CARRYING HANDLE

CABLE CLIP

UPPER FRAME

CHUTE DEFLECTOR

HANDLE BAR

CHUTE

SWITCH

#56663 SNOW THROWER OPERATOR’S MANUAL 8

ASSEMBLY INSTRUCTIONS

Unpacking

1. Carefully remove your Snow Thrower and all other

items from box.

2. Your Snow Thrower comes with the following

accessories.

T-bolt: 4 pieces

Saddle Washer: 4 pieces

Knob: 4 pieces

Cable Clip: 3 pieces

Upper Chute Crank: 1 piece

Middle Frame Assembly

For easier assembly, the handle frames are marked with yellow

tape from the factory. This tape indicates the LEFT side of each

handle’s part, as viewed from the operator’s position of the

Snow Thrower.

Hold the Middle Frame with the yellow tape on the LEFT side

so that the screw holes align with the holes on the Lower Frame.

Note also that the hole and grommet of the Eye Bolt at the top of

the Middle Frame are facing UP. (Fig. 1)

Insert a T-bolt into each hole with the head on the inside of the

handle. Then attach a saddle washer and knob on the outside

and tighten. (Fig. 2)

Repeat this step on the other side of the handle.

The bolts should be inserted from the inside of the frame of the

unit so that the washers and knobs are fastened to the outside of

the frame.

Note: Do not over-tighten the knobs.

#56663 SNOW THROWER OPERATOR’S MANUAL 9

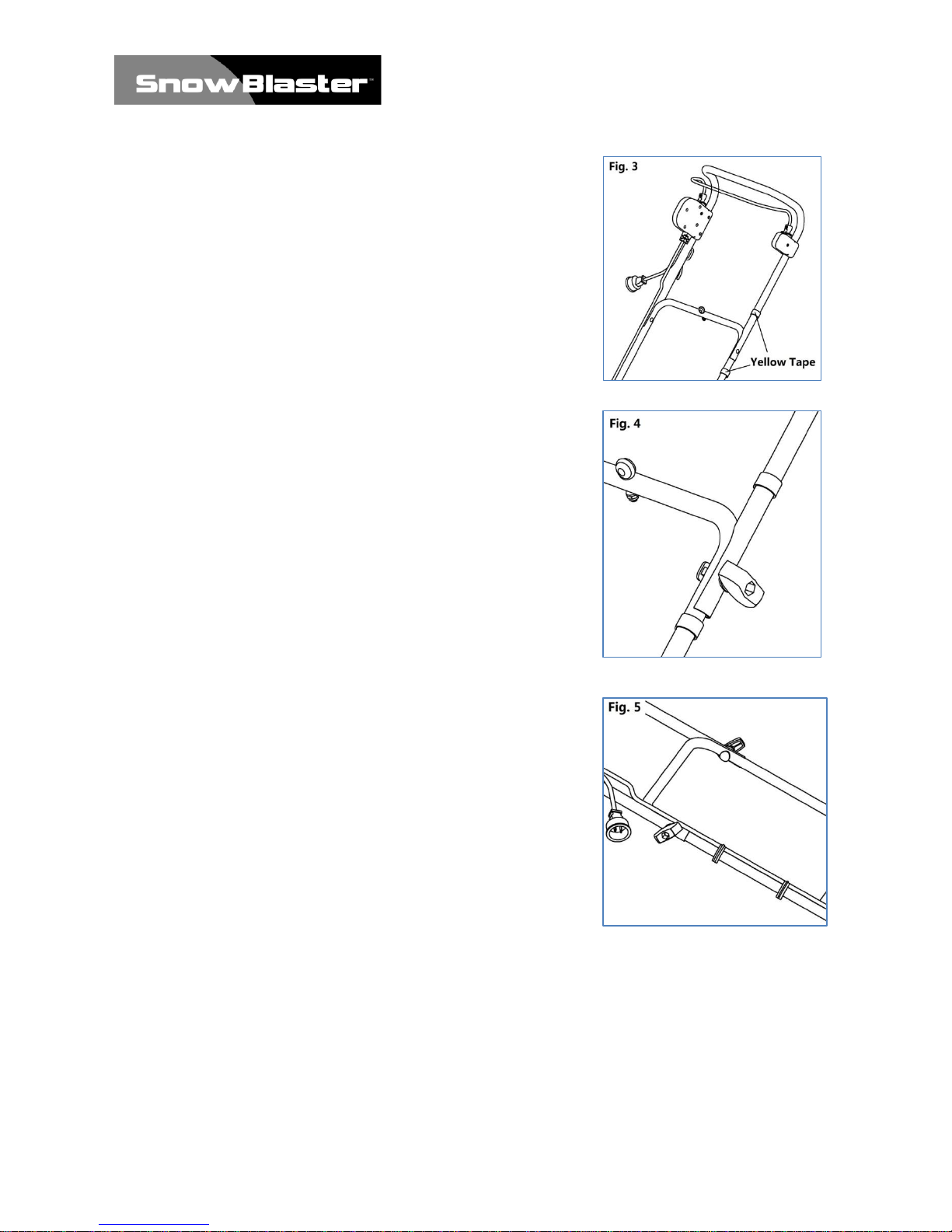

Upper Frame Assembly

For easier assembly, the handle frames are marked with yellow

tape from the factory. This tape indicates the LEFT side of

each handles part, as viewed from the operator’s position of the

Snow Thrower.

Hold the Upper Frame with the yellow tape on the LEFT side

so that the screw holes align with the holes on the Middle

Frame. (Fig. 3)

Insert a T-bolt into each hole with the head on the inside of the

handle. Then attach a saddle washer and knob on the outside

and tighten. (Fig. 4)

Repeat this step on the other side of the handle.

Locate the three Cable Clips in the parts bag. Secure the power

cord to the frame of the unit by clipping them onto the frame at

evenly spaced intervals. (Fig. 5)

#56663 SNOW THROWER OPERATOR’S MANUAL 10

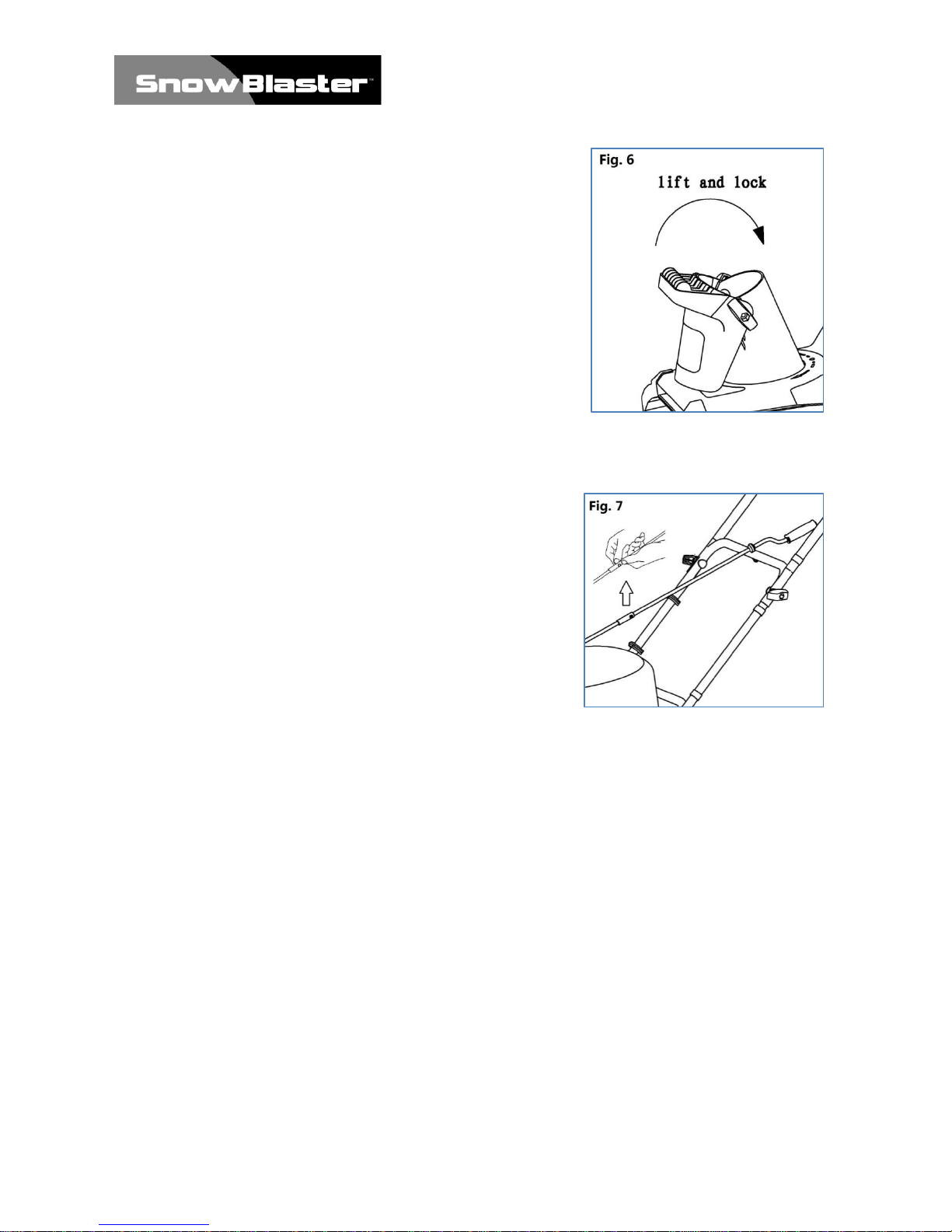

Discharge Chute Assembly (Fig. 6)

Lift the Chute Deflector so that it snaps and locks securely

onto the discharge chute.

Raise or lower the chute deflector to the desired height of the

snow stream and tighten the chute deflector knobs.

Note: Do not over tighten the chute deflector knobs.

Lower and Upper Chute Crank Assembly (Fig. 7)

Locate the upper chute crank in the parts bag. Loosen the

screw and nut located on the lower chute crank with

screwdriver and wrench.

Note: You may be able to unfasten the screw and nut by

hand.

Slide the upper chute into the lower chute crank, aligning the

screw holes. Tighten the screw into the aligning holes using

a screwdriver.

Tighten the nut with a wrench.

Note: If the center hole is not lining up correctly, you have the middle frame on backwards.

The hole and grommet of the eye bolt should face up.
