JOURNEY QUAD

FOUR PERSON TENT

Assembly Instructions

1 Orange Tipped

Pole

2Silver Tipped

Poles 20 Alloy Stakes

Lay out the footprint before

erecting the tent.

Unroll the outer tent, locate

the pole bag, separate the poles,

clip the sections together making

continuous poles. The poles are

held together by elastic.

Pole Placement

1. Insert the silver tipped

pole with silver section to

silver trim edging.

2.Insert the other silver

tipped pole with silver

section to silver trim

edging.

3.Insert the large orange

tipped pole with orange

section to orange trim

edging.

4.Insert the pole ends

into the grommets in the

corresponding webbing

straps.

5. When all the pole ends are

inserted into the grommets

take the ultralight alloy

stakes included with the

Journey Quad, stake down

the corners and webbing

straps with grommets. Add

additional stakes to other

stake points as required.

Assembly Instructions

Snugpak®products are exclusively

distributed in North & South America by:

Proforce Equipment, Inc.

3230 Executive Way - Miramar, FL 33025

Ph: 305.436.7984 / 800.259.5962

www.ProforceEquipment.com

www.SNUGPAKUSA.com

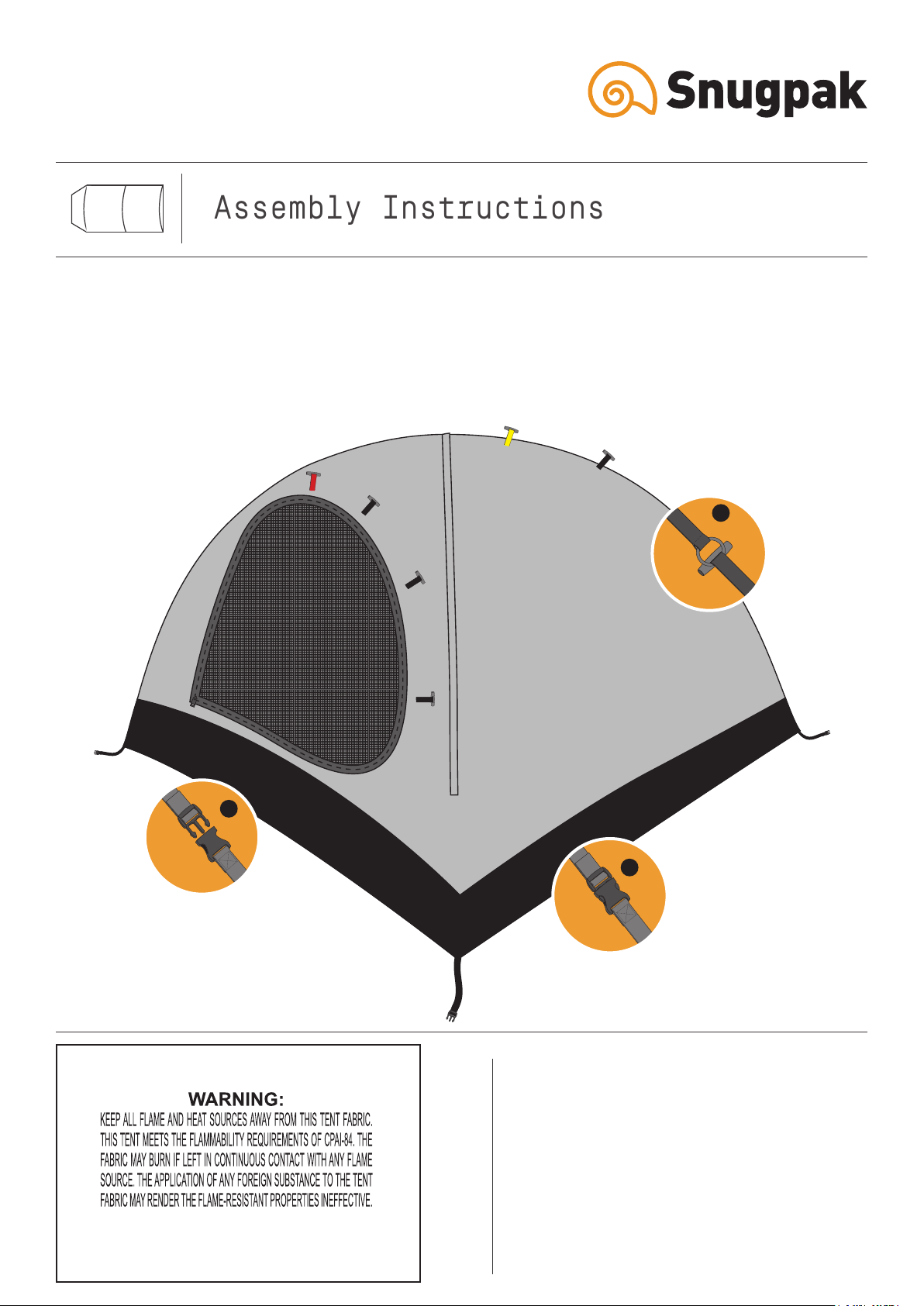

6.Unroll the inner tent and lay out. Line up the fly

to the main body matching up the door and foot

area, connect the two with the toggle and ring

attachments.

7. When the inner tent is connected with the fly by

all the toggle and ring attachments (red to the

front and yellow to the back), click all the side

release buckles together.

8. To gain access unzip the fly and inner tent zips.

9. When happy with the set-up, further stabilisation

is achieved by pegging out the guy lines. This is

essential in windy conditions.

THIS TENT MEETS THE FLAMMABILITY REQUIREMENTS OF ISO6941 / (EN5912).
