Sofar solar HYD 5KTL-3PH Bedienungsanleitung

Shenzhen SOFARSOLAR Co., Ltd.

Energy storage integrated inverter

Product Model: HYD 5K~20KTL-3PH

User manual

HYD 5-20KTL-3PH User manual

Content

1. Basic safety information........................................................... - 1 -

1.1. Safety instructions..........................................................- 1 -

1.2. Symbols and signs......................................................... - 4 -

2. Product characteristics.............................................................. - 6 -

2.1. Product informations......................................................- 6 -

2.2. Size description..............................................................- 7 -

2.3. Function characteristics................................................. - 7 -

2.4. Electrical block diagram................................................ - 7 -

3. Application modes.................................................................... - 9 -

3.1. Typical Energy Storage System..................................... - 9 -

3.2. System Without PV Connection.................................. - 10 -

3.3. System Without Battery............................................... - 11 -

3.4. Back-up Mode (Without Grid).....................................- 12 -

3.5. System With Multi Inverters........................................- 13 -

3.6. AC Retrofit System......................................................- 15 -

3.7. Back-up Unbalanced Output........................................- 17 -

3.8. On-Grid Unbalanced Output........................................- 18 -

4. Installation.............................................................................. - 19 -

4.1. Installation Process...................................................... - 19 -

4.2. Checking Before Installation....................................... - 19 -

4.3. Product Overview........................................................ - 22 -

4.4. Tools.............................................................................- 22 -

4.5. Installation Environment..............................................- 23 -

4.6. Determining the Installation Position.......................... - 24 -

4.7. Moving the HYD 5-20KTL-3PH.................................- 25 -

4.8. Installing HYD 5-20KTL-3PH.................................... - 26 -

5. Electrical Connections............................................................ - 28 -

5.1. Wire instructions.......................................................... - 30 -

5.2. Connecting PGND Cables........................................... - 30 -

5.3. Battery Connection &PV Connection..........................- 32 -

5.4. AC Load connection.................................................... - 33 -

HYD 5-20KTL-3PH User manual

5.5. AC Grid connection..................................................... - 34 -

5.6. External communication interface............................... - 35 -

5.7. Communication method...............................................- 50 -

6. Buttons and indicator lights.................................................... - 52 -

6.1. Buttons......................................................................... - 52 -

6.2. Indicator lights and status............................................ - 52 -

7. Operation（commission）..................................................... - 53 -

7.1. Double Check.............................................................. - 53 -

7.2. First Time Setup (Starting up Or Shutdown)............... - 53 -

7.3. Setting power quality response modes.........................- 58 -

7.4. Menu............................................................................ - 59 -

8. Troubleshooting...................................................................... - 77 -

9. Technical Data.........................................................................- 85 -

10. Quality Assurance................................................................. - 92 -

HYD 5-20KTL-3PH User manual

Notice

This manual contains important safety instructions that must be followed during

installation and maintenance of the equipment.

Save these instructions!

This manual must be considered as an integral part of the equipment. The manual

must always accompany the equipment, even when it is transferred to another

user or field.

The copyright of this manual belongs to Shenzhen SOFARSOLAR Co., Ltd. Any

corporation or individual should not plagiarize, partially copy or fully copy it

(including software, ect .),and no reproduction or distribution of it in any form or

SOFARSOLAR reserves the right of final interpretation. This manual is subject to

change according to user’s or customer’s feedback. Please check our website at

http://www.sofarsolar.com for latest version.

Document Updates

V1.1 2022-6-17

●Initial versio7

Shenzhen SOFARSOLAR Co., Ltd

Location:11/F., Gaoxinqi Technology Building, No.67 Area, Xingdong Comm

unity, Xin’an Sub-district, Bao’an District, Shenzhen City,China

Postcode: 518000

Company Website: www.sofarsolar.com

Email: service@sofarsolar.com

HYD 5-20KTL-3PH User manual

Preface

If you have any question or problem when you read the following

information, please contact Shenzhen SOFARSOLAR Co., Ltd.

Note

Outline

Please read the product manual carefully before installation, operation or

maintenance. This manual contains important safety instructions and installation

instructions that must be followed during installation and maintenance of the

equipment.

Scope

This product manual describes the installation, electrical connections,

commissioning, maintenance and troubleshooting of HYD 5-20KTL-3PH

inverters:

HYD 5KTL-3PH HYD 6KTL-3PH

HYD 8KTL-3PH HYD 10KTL-3PH

*HYD 10KTL-3PH-A

HYD 15KTL-3PH HYD 20KTL-3PH

Keep this manual where it will be accessible at all times.

Target Group

This manual is intended for qualified electrical technical personnel who are

responsible for inverter installation and commissioning in the PV power system

and PV plant operator.

Symbols Used

This manual is provides safety operation information and uses the symbol in order

to ensure personal and property security and property security and use inverter

efficiently when operating the inverter. You must understand these emphasized

information to avoid the personal injury and property loss. Please read the

following symbols used in this manual carefully.

HYD 5-20KTL-3PH User manual

III

"Dangerous" means there is a high potential danger that, if

not avoided, could result in death or injury.

Danger

"Warning" indicates a moderate potential danger that, if not

avoided, could result in death or injury.

Warning

"Caution" indicates a mild potential hazard that, if not

avoided, could result in moderate or mild injury to persons.

Caution

"Attention" denotes potential risk, if not avoided, that may

result in equipment not operating properly or property

damage.

Attention

"Note" are additional information in the manual,

highlighting and complements the content, and may also

provide tips or tricks for optimizing the use of the product

that can help you solve a problem or save you time.

Note

HYD 5-20KTL-3PH User manual

1. Basic safety information

1.1. Safety instructions

Read and understand the instructions of this manual, and be familiar with relevant

safety symbols in this chapter, then start to install and troubleshoot the equipment.

According to the national and state requirements, before connecting to the electrical

grid, you must get permission from the local electrical grid operation can only be

performed by qualified electrical engineer.

Please contact the nearest authorized service center if any maintenance or repair is

needed. Contact your distributor for the information of the nearest authorized

service center. Do NOT repair it by yourself, it may cause injury or property

damage.

Before installing and maintaining the equipment, you should turn the DC switch

OFF to cut off the high voltage DC of the PV array. You can also turn the switch in

the PV combiner box OFF to cut off the high voltage DC. When the battery needs

to be installed, please confirm the positive and negative terminals of the battery and

turn OFF the battery. Otherwise, serious injury may be caused.

Qualified persons

The customer must make sure the operator has the necessary skill and training to do

his/her job. Staff in charge of using and maintaining the equipment must be skilled,

aware and mature for the described tasks and must have the reliability to correctly

interpret what is described in the manual. For safety reason only a qualified

electrician, who has received training and / or has demonstrated skills and

knowledge in construction and in operation of this unit, can install this inverter.

Shenzhen SOFARSOLAR Co., Ltd. does not take any responsibility for the

property destruction and personal injury because of any incorrect use.

Installation requirements

Please install inverter according to the following section. Fix the inverter on an

appropriate objects with enough load bearing capacity (such as walls, PV racks

etc.), and ensure that inverter is vertical placed. Choose a place suitable for

HYD 5-20KTL-3PH User manual

installing electrical devices. And assure there is enough fire exit space, convenient

for maintenance. Maintain proper ventilation to ensure enough air cycle to cool the

inverter.

Transport requirements

If you find packing problems that may cause the damage of the inverter, or find any

visible damage, please immediately notice the responsible transportation company.

You can ask solar equipment installation contractor or Shenzhen SOFARSOLAR

Co. , Ltd. for help if necessary.

Transport of the equipment, especially by road, must be carried out with by suitable

ways and means for protecting the components (in particular, the electronic

components) from violent shocks, humidity, vibration, etc.

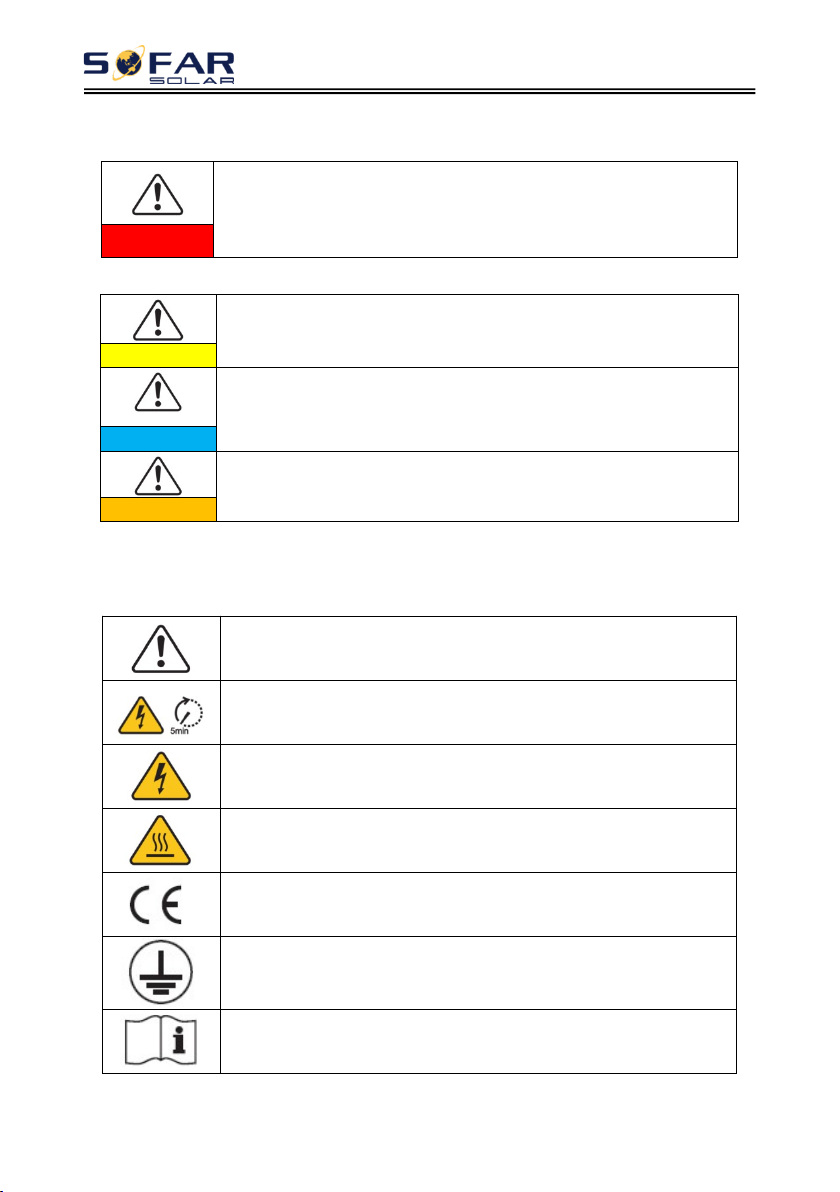

Labels on the equipment

Electric connection

Please comply with all the current electrical regulations about accident prevention

in dealing with the solar invert.

Before the electrical connection, make sure to use opaque material

to cover the PV modules or to disconnect PV array DC switch.

Exposure to the sun, PV array will produce a dangerous voltage!

Danger

The labels must NOT be hidden with objects and

extraneous parts(rags, boxes, equipment, etc.);they

must be cleaned regularly and kept visible at all

times.

HYD 5-20KTL-3PH User manual

All installation accomplished only by professional electrical

engineer!

Must be trained;

Completely read the manual operation and understand relevant

matter.

Warning

Get permission from the local electrical grid operator, complete all

electrical connections by professional electrical engineer, then

connect inverter to electrical grid.

Attention

It’s forbidden to remove the tamper evident label, or open the

inverter. Otherwise SOFARSOLAR will not provide warranty or

maintenance!

Note

Operation

Touching the electrical grid or the terminal of the equipment may

lead to electrocution or fire!

Don’t touch the terminal or conductor connected to the electrical

grid.

Pay attention to any instructions or safety documents related to grid

connection.

Danger

Some internal components will be very hot when inverter is

working. Please wear protective gloves!

Keep it away from kids !

Attention

Maintenance and repair

Before any repair work, turn OFF the AC circuit breaker between

the inverter and electrical grid first, then turn OFF the DC switch.

After turning OFF the AC circuit breaker and DC switch, wait for 5

minutes at least before carrying out any maintenance or repair work.

Danger

Inverter should work again after removing any faults. If you need

any repair work, please contact with the local authorized service

center.

Can’t open the internal components of inverter without authorized.

Shenzhen SOFARSOLAR Co., Ltd. does not take any responsibility

for the losses from that.

Attention

EMC / noise level of inverter

Electromagnetic compatibility (EMC) refers to that one electrical equipment

functions in a given electromagnetic environment without any trouble or error, and

impose no unacceptable effect upon the environment. Therefore, EMC represents

the quality characters of an electrical equipment. The inherent noise-immune

character: immunity to internal electrical noise. External noise immunity: immunity

HYD 5-20KTL-3PH User manual

to electromagnetic noise of external system. Noise emission level: influence of

electromagnetic emission upon environment.

Electromagnetic radiation from inverter may be harmful to

health!

Please do not continue to stay around the inverter in less than 20 cm

when inverter is working.

Danger

1.2. Symbols and signs

Caution of burn injuries due to hot enclosure!

You can only touch the screen and pressing key of the inverter while

it’s working.

Caution

PV array should be grounded in accordance to the requirements of

the local electrical grid operator!

We suggest that all PV module frames and inverter are reliably

grounded

protect

the

system

and

personnel

security.

Attention

Ensure input DC voltage < Max. DC voltage .Over voltage may

cause permanent damage to inverter or other losses, which will not

be included in warranty!

Warning

Signs on the inverter

There are some symbols which are related to security on the inverter. Please read

and understand the content of the symbols, and then start the installation.

This symbol indicates a hazardous situation which could result in

injuries, if not avoided.

There is a residual voltage in the inverter! Before opening the

equipment, operator should wait for five minutes to ensure the

capacitor is discharged completely.

Caution, risk of electric shock.

Caution hot surface.

Comply with the Conformite Europeenne (CE) certification.

Grounding point.

Please read this manual before install HYD 5-20KTL-3PH.

Andere Handbücher für HYD 5KTL-3PH

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Sofar solar Wechselrichter Handbücher

Sofar solar

Sofar solar SOFAR 1100TL Bedienungsanleitung

Sofar solar

Sofar solar PowerAll BTS Series Bedienungsanleitung

Sofar solar

Sofar solar 1.1K-3.3KTL-G3 Bedienungsanleitung

Sofar solar

Sofar solar 3KTLM-G3 Bedienungsanleitung

Sofar solar

Sofar solar 3.3KTL-X Bedienungsanleitung

Sofar solar

Sofar solar HYD 10K-20KTL-3PH Bedienungsanleitung

Sofar solar

Sofar solar 3.3-12KTL-X Bedienungsanleitung

Sofar solar

Sofar solar HYD 5KTL-3PH Bedienungsanleitung

Sofar solar

Sofar solar ME-3000SP Bedienungsanleitung

Sofar solar

Sofar solar 10K-15KTL-G2 Bedienungsanleitung

Sofar solar

Sofar solar 30000TL Bedienungsanleitung

Sofar solar

Sofar solar 7KTLM-G3 Bedienungsanleitung

Sofar solar

Sofar solar SOFAR 10K Bedienungsanleitung

Sofar solar

Sofar solar KTLX-G3 Series Bedienungsanleitung

Sofar solar

Sofar solar ME-3000SP Bedienungsanleitung

Sofar solar

Sofar solar HYD 3000-ES Bedienungsanleitung

Sofar solar

Sofar solar HYD 3K~6K-ES Bedienungsanleitung

Sofar solar

Sofar solar ME-3000SP Bedienungsanleitung

Sofar solar

Sofar solar SOFAR 1100TL-G3 Bedienungsanleitung

Sofar solar

Sofar solar 250KTL-HV Bedienungsanleitung

Sofar solar

Sofar solar HYD 5KTL-3PH Bedienungsanleitung

Sofar solar

Sofar solar HYD 3600-ES Bedienungsanleitung

Sofar solar

Sofar solar HYD 3K-6K-EP Bedienungsanleitung

Sofar solar

Sofar solar ME 5KTL-3PH Bedienungsanleitung

Beliebte Wechselrichter Handbücher anderer Marken

Fourgroup

Fourgroup Easy Bedienungsanleitung

Velleman

Velleman PI300M Bedienungsanleitung

Sungrow

Sungrow SG350HX-US Bedienungsanleitung

WilTec

WilTec 61897 Bedienungsanleitung

SMA

SMA SUNNY BOY STORAGE 2.5 Bedienungsanleitung

Simplicity

Simplicity LANDLORD 316 Bedienungsanleitung

Santak

Santak SMAX 3000 Bedienungsanleitung

ATON

ATON RA.Store-3 Bedienungsanleitung

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Bedienungsanleitung

Tektronix

Tektronix CFG250 Bedienungsanleitung

Champion

Champion 200989 Bedienungsanleitung

Vanner

Vanner 20-500 Series Bedienungsanleitung

GE GEP Bedienungsanleitung

Astrel Group

Astrel Group Power Reducer Kurzanleitung

MULTIQUIP

MULTIQUIP GDP-5H Leitfaden

GoWISE

GoWISE PS1007 Bedienungsanleitung

Promate

Promate PM13500D ES Bedienungsanleitung

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Bedienungsanleitung
