SolidRF Signal Plus Bedienungsanleitung

Signal Plus

Cell Phone Signal Booster

Manual

Manufactured and Warranted by

SolidRF Inc.

www.solidRFinc.com

customer service number:

Office (435) 319-6858

Toll Free (877) 579-7878

Operational Diagram

(How It Works)

Package Contents

Page 2

Installation Step By Step

Page 8 - 16

Trouble Shooting

Page 17 - 18

Technical Specification

Warranty Information

Page 19

Basic Signal Level Knowledge

Page 3

Preparation

Page 4 - 7

Safety Guidelines

Page 20

Working Diagram (How It Works)

Package Contents

1. The outdoor antenna catches the signal from the tower.

2. Sends outside signal to the booster through a coax cable.

3. The booster amplifies the signal then rebroadcasts the signal indoors to all mobile

devices within range.

4. The system also works in reverse; amplifying outgoing signal back to the tower.

The kit includes the following items:

1. Outdoor Antenna, Indoor Antenna;

2. Booster;

3. Power supply;

4. Splitter;

5. 3*30 ft&1*15 ft of RG6 cable;

The size of the coverage area and the strength of the boosted signal are

directly related to two key factors:

1. The signal strength received by the outdoor antenna. Therefore, setting up

external antenna where the signal is strongest will provide the best results.

2. Distance of separation between the outdoor and the indoor antennas.

Outdoor Antenna Booster Power supply RG6 cable

2*Indoor Antenna Splitter

Signal transmission loss and power level

Coverage area ability

Note: FCC regulations limit the amplification of all cell phone boosters in order to

prevent damage to the telecommunications infrastructure. Therefore, the maximum

coverage area of a booster depends on the original power level of the signal captured by

the outdoor unit.

Notice: Not recommended when outdoor signal strength is less than -110dbm(3G/1x)

or -120dBm(4G/LTE). The resulting coverage area of the boosted signal will be

prohibitively small.

Power level

at the outdoor antenna location

Coverage Area @ One Antenna

(sq. ft.)

Coverage Area @ Two Antenna

(sq. ft.)

Strong (5 bars on the cellphone)

5,000

8,000

Medium (3~4 bars on the cellphone)

2,500

4,000

Weak (1~2 bars on the cellphone)

600

1,000

Find your cell tower nearby!

There are a variety of resources available online, here is a third party website

recommended. Use it to locate your nearest cell tower: www.cellmapper.net

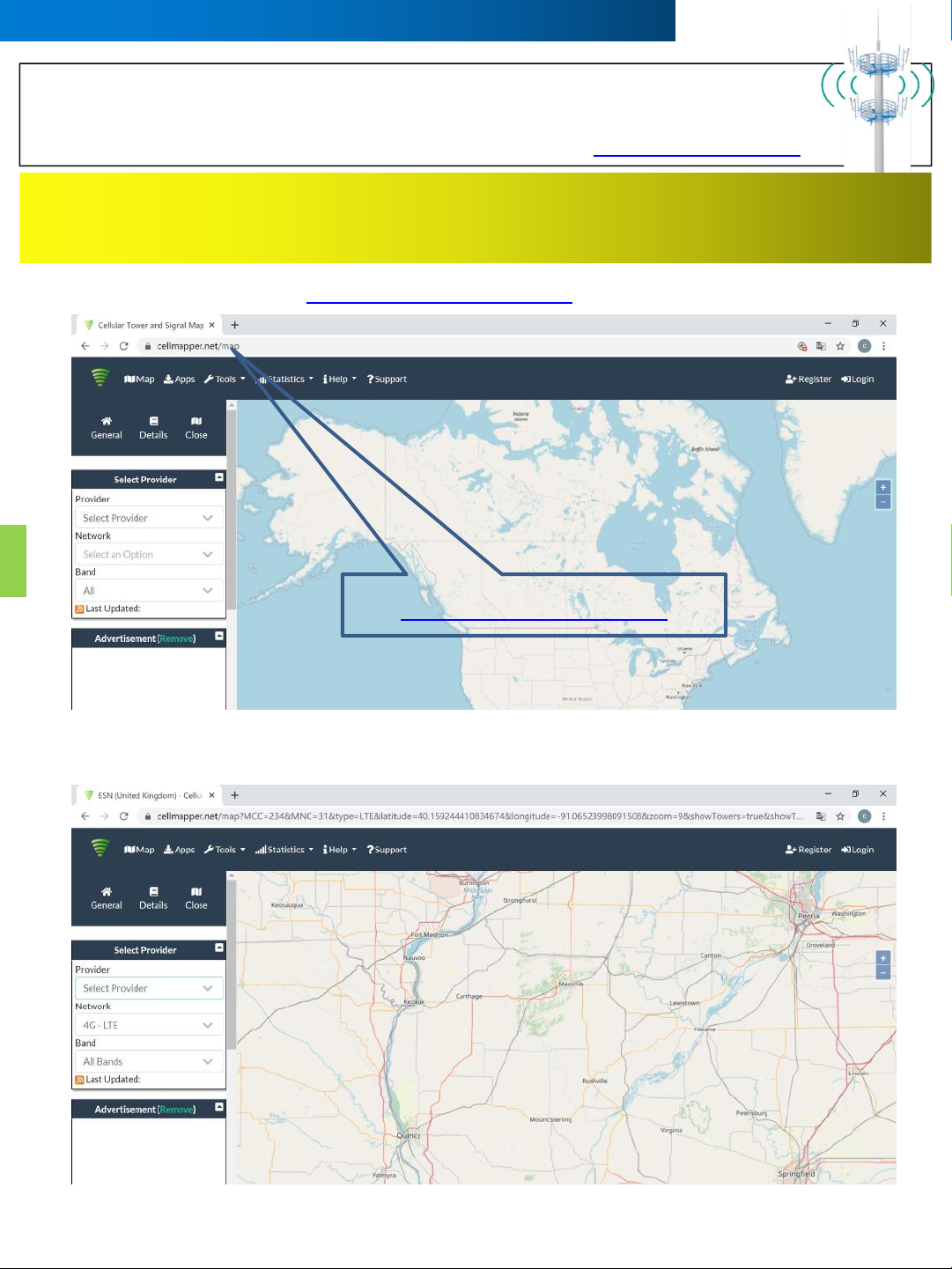

Preparation

Note: This is very important step. If we use the wrong direction, we

won't have good result.

Step 1: Visit website www.cellmapper.net

Step 2: Find your location on the map and zoom in on your area

www.cellmapper.net

Step 3:. Select Provider. You will find the cell tower around your

house.

Select Provider

Step 4: Find your cell tower

Click the red or green dot on the map that represents the base station, and the detailed

information of the base station will be displayed.

•The first important information, you can see from the above four pictures, the

coverage area (shaded part) of each base station is different. You have to find a base

station with signal coverage to your house, or the coverage direction is facing you,

and the coverage area is closest to you.

•The second important information,

you can scroll the information

content on the left to find the

specific carrier information of this

base station, including the

communication standard and

frequency band. Please reference

the left picture, “LTE” and “B2

FDD”(Band 2, FDD).

Find The dBm Reading On Your Phone

Having an accurate measurement of signal strength in decibels (dBm) is crucial when

installing your system. Decibels accurately measure the signal strength you are receiving.

Note: Turn off your cell phone’s WiFi to ensure you are checking the cellular connection.

The dBm reading will be refreshed every 30-60 seconds. Want faster results? Once you

have a reading, turn on airplane mode. Wait 15 seconds. Turn off airplane mode. The

signal strength reading is refreshed.

iPhone: dial *3001#12345#* then press call

Android: download third part APP-LTE Discovery

Band number

Receive level dBm

Band number

Step1: Select the Location for the Outside Unit

Note:This is the most critical step and will determine the overall performance of the

booster system.

1. Generally, the strongest signal will be located on the side of your home facing the

nearest cell tower. Keep in mind, the signal strength at ground level may be

different from the signal strength at or above the roofline due to obstructions

(trees, other buildings, etc.) that block the incoming signal. In most situations, the

strongest signal is found about 25 feet above the ground on the side of your home

facing the nearest cell tower.

2. The most ideal installation position is the corner of the building, choose the one

facing your cell tower.

Four corner of the building are the most ideal position

Choose the one facing your cell tower

Test Installation

We STRONGLY recommend doing a test installation before finalizing the installation.

Doing a test installation of your cell phone booster ensures that you will get the

optimal performance from your system.

Step 2: Temporarily Mount the Outside Antenna

In addition to the four corners of the building, the chimney and the pole above the roof

can also be selected. As long as the installation distance between indoor and outdoor

antennas is maintained enough, satisfactory results can also be achieved.

Use one of the three options to mount the outside antenna on your roof on the side of

the house with the strongest signal.

The height of the outside antenna should never exceed the highest point of your house.

This is a precaution against damage and safety concerns caused by lightning strikes to

the outside unit.

Caution

Trees will greatly attenuate wireless signals. If there are tall trees within 100 feet of the

house. At the same time you can't find a stable signal above 3 bars, the outdoor

antenna needs to be erected 60%(at least) to 80%(best) of the tree height. Never

exceed the trees!

But according to FCC

regulations, outdoor

antenna height cannot

exceed 30 feet.

At the same time, if the

antenna exceeds the roof,

please pay attention to

lightning protection

measures.

Step3: Select the Location for the Inside Antenna

Measure the Signal Strength Inside your Home

•Test your current signal strength in multiple locations throughout the home

•Record the current signal strength in the table provided for reference

Test Record

Location

Record(dBm)

In order to achieve the best signal coverage

effect, there is a certain distance requirement

between the indoor and outdoor units. Make

sure the inside and outside units are facing

away from each other.

Top view of antenna beam shape and energy distribution

•The radiation beam angle of indoor and outdoor antennas is about 90 degrees;

•In addition to signal radiation in front of the antenna, there is also energy radiation

behind the antenna;

Front FrontRear Rear

Outdoor antenna Indoor antenna

Minimum Required Separation Distance

Between Indoor and Outdoor Antenna：

Straight line distance over 30 feet(10 meters)

20 ft (6 meters) horizontal distance

13 ft (4 meters) vertical distance(As far as possible)
