SOLIS S6-EH3P5K2-H Bedienungsanleitung

User Manual

for S6 Series Hybrid Inverter

Version 1.2, Release Date: 04,2023

Applicable models

S6-EH3P5K2-H

S6-EH3P6K2-H

S6-EH3P8K2-H

S6-EH3P10K2-H

S6-EH3P3K-H-EU

S6-EH3P4K-H-EU

S6-EH3P5K-H-EU

S6-EH3P6K-H-EU

S6-EH3P8K-H-EU

S6-EH3P10K-H-EU

S6-EH3P10K-H-EU-BE

Applicable System

Three phase system

1.1 Product Description

…………………………………………………………………………………

…………………………………………………………………………………………………………

…………………………………………………………………………………………………

…………………………………………………………………………………………………………………………………………

………………………………………………………………………………………………

……………………………………………………………………………………

…………………………………………………………………………………………………

………………………………………………………………………………………………………………

………………………………………………………………………………………………………………………………

…………………………………………………………………………………………………………………………………

……………………………………………………………………………………………………………………………………

1. Introduction

1.2 Packaging

2. Safety & Warning

2.1 Safety

2.2 General Safety Instructions

3. Overview

3.1 Intelligent LED Indicators

4.9 Inverter Remote Monitoring Connection

4. Installation

4.1 Select a Location for the Inverter

4.2 Mounting the Inverter

4.4 PV Input Cable Installation

4.6 AC Cable Installation

4.7 Communication Cable Installation

………………………………………………………………………………………………………………

…………………………………………………………………………………………………………………………………

2.3 Notice For Use 06

…………………………………………………………………………………………………………………………

……………………………………………………………………………………………………………

………………………………………………………………………

4.5 Battery Power Cable Installation ……………………………………………………………………………………

4.8 Meter Installation ……………………………………………………………………………………………………………………

…………………………………………………………………………………

5. Commissioning & Shutdown

7. Troubleshooting ………………………………………………………………………………………………………………… 35

………………………………………………………………………………………………………………………

8. Specifications

…………………………………………………………………………………………………………………………

6. Maintenance

4.3 PE Cable Installation …………………………………………………………………………………………………………

5.1 Preparation of Commissioning ………………………………………………………………………………………

5.2 Commissioning Procedure ………………………………………………………………………………………………

5.3 Shutdown procedure …………………………………………………………………………………………………………

Contents

2.4 Notice for Disposal 06

………………………………………………………………………………………………………………

1. Introduction

User Manual

1.1 Product Description

The Solis S6 Series is designed for residential hybrid systems, which can work with batteries

to optimize self-consumption. The unit can operate in both off- and on-grid modes.

This manual covers the Solis S6 Series inverter model listed below:

S6-EH3P5K2-H, S6-EH3P6K2-H, S6-EH3P8K2-H, S6-EH3P10K2-H,

S6-EH3P5K-H-EU, S6-EH3P6K-H-EU, S6-EH3P8K-H-EU, S6-EH3P10K-H-EU

The following models are exclusively for the Polish market:

S6-EH3P3K-H-EU, S6-EH3P4K-H-EU

The following model is designed for the Belgian market:

S6-EH3P10K-H-EU-BE

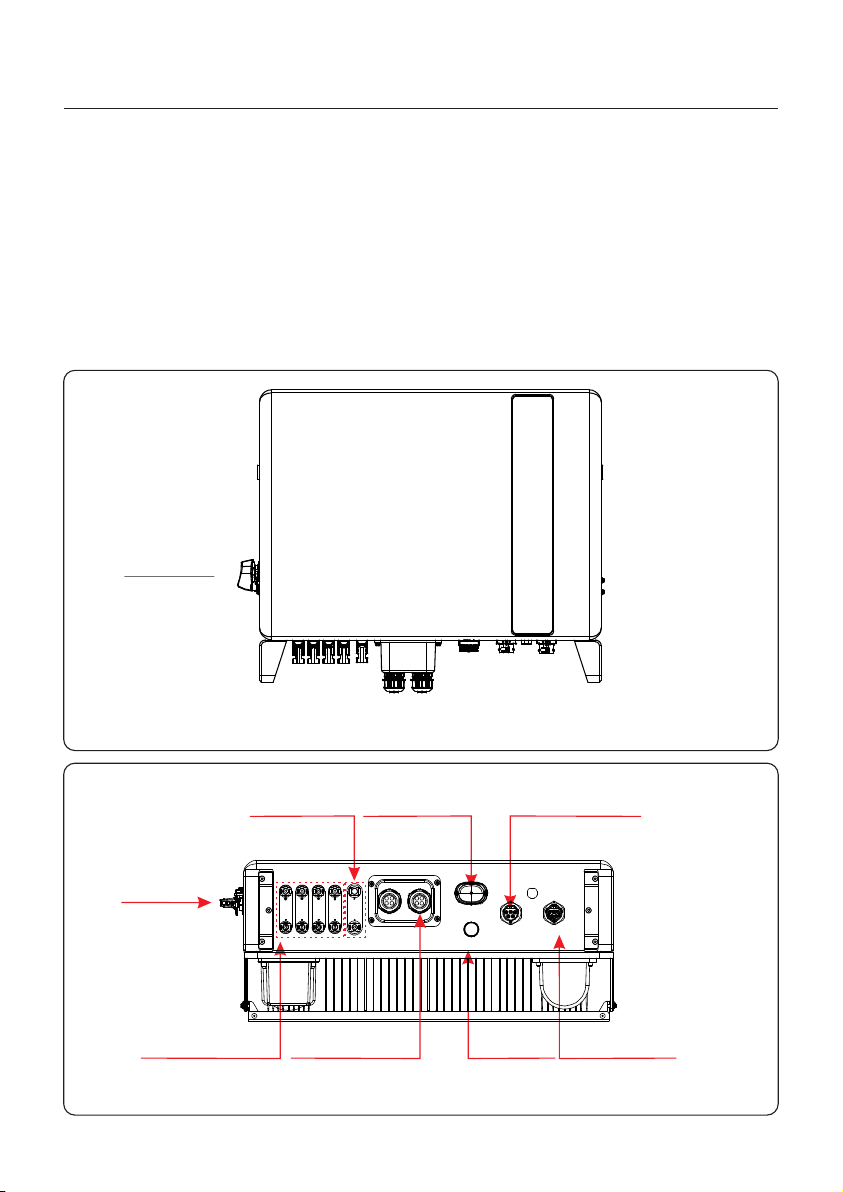

Figure 1.1

Front side view

Figure 1.2

Bottom side view

DC Switch

AC Grid Port

AC Backup Port

Data Logging

Stick (Optional)

AntennaPV Input

Battery Input

AC- GRI DAC- BAC KUP

ANT ENN A

COM

PV1 PV2 PV3 P V4 BAT

DC Switch

Communication

1. Introduction User Manual

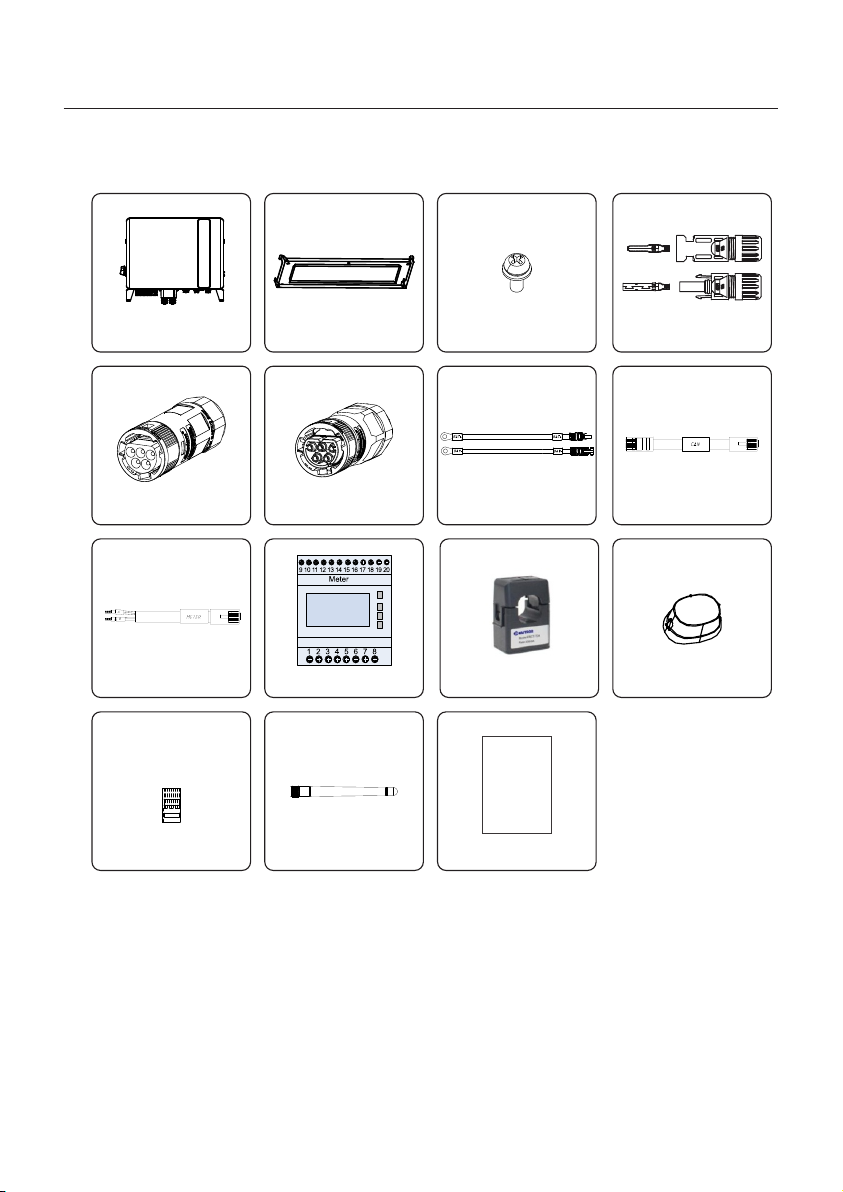

1.2 Packaging

Please ensure that the following items are included in the packaging with your machine:

Inverter x1 Back Plate x1

AC Backup x1

Fixing Screws(M4*12) x4

Dust Cover x1

CT x3

Eastron Meter x1

Meter cable x1

If anything is missing, please contact your local Solis distributor.

User Manual x1

Manual

Bluetooth Antenna x1

RJ45 connector x6

AC Grid x1 CAN cable x1

Battery cable x1

PV Connector x4

2. Safety & Warning User Manual

2.1 Safety

The following types of safety instructions and general information appear in this document as

described below:

CAUTION:

“Caution” indicates a hazardous situation which if not avoided, could result

in minor or moderate injury.

WARNING:

“Warning” indicates a hazardous situation which if not avoided, could result

in death or serious injury.

DANGER:

“Danger” indicates a hazardous situation which if not avoided, will result in

death or serious injury.

NOTE:

“Note” provides tips that are valuable for the optimal operation of your

product.

2.2 General Safety Instructions

WARNING:

Electrical installations must be done in accordance with the local and national

electrical safety standards.

WARNING:

Please don’t connect PV array positive (+) or negative (-) to ground, it could

cause serious damage to the inverter.

WARNING:

Only devices in compliance with SELV (EN 69050) may be connected to the

RS485 and USB interfaces.

WARNING:

Do not touch any inner live parts until 5 minutes after disconnection

from the utility grid and the PV input.

WARNING: Risk of fire

Despite careful construction, electrical devices can cause fires.

Do not install the inverter in areas containing highly flammable materials

or gases.

Do not install the inverter in potentially explosive atmospheres.

2. Safety & Warning User Manual

CAUTION:

The PV array supplies a DC voltage when they are exposed to sunlight.

CAUTION:

The surface temperature of the inverter can reach up to 75 (167 F).

To avoid risk of burns, do not touch the surface of the inverter while it’s

operating. Inverter must be installed out of the reach of children.

WARNING:

To reduce the risk of fire, over-current protective devices (OCPD) are

required for circuits connected to the inverter.

The DC OCPD shall be installed per local requirements. All photovoltaic

source and output circuit conductors shall have that comply with isolators

the NEC Article 690, Part II.

All Solis single phase inverters feature an integrated DC switch.

CAUTION:

Risk of electric shock, do not remove cover. There is no user serviceable

parts inside, refer servicing to qualified and accredited service technicians.

NOTE:

PV module used with inverter must have an IEC 61730 Class A rating.

WARNING:

Operations below must be accomplished by licensed technician or

Solis authorized person.

WARNING:

Operator must put on the technicians’ gloves during the whole process

in case of any electrical hazards.

WARNING:

AC BACKUP Port of S6 Series is not allowed to connect to the grid.

WARNING:

Please refer to the specification of the battery before configuration.

2. Safety & Warning User Manual

2.3 Notice for Use

The inverter has been constructed according to the applicable safety and technical

guidelines. Use the inverter in installations that meet the following specifications ONLY:

1. Permanent installation is required.

2. The electrical installation must meet all the applicable regulations and standards.

3. The inverter must be installed according to the instructions stated in this manual.

4. The inverter must be installed according to the correct technical specifications.

2.4 Notice for Disposal

This product shall not be disposed of with household waste.

They should be segregated and brought to an appropriate collection

point to enable recycling and avoid potential impacts on the environment

and human health.

Local rules in waste management shall be respected .

User Manual

3. Overview

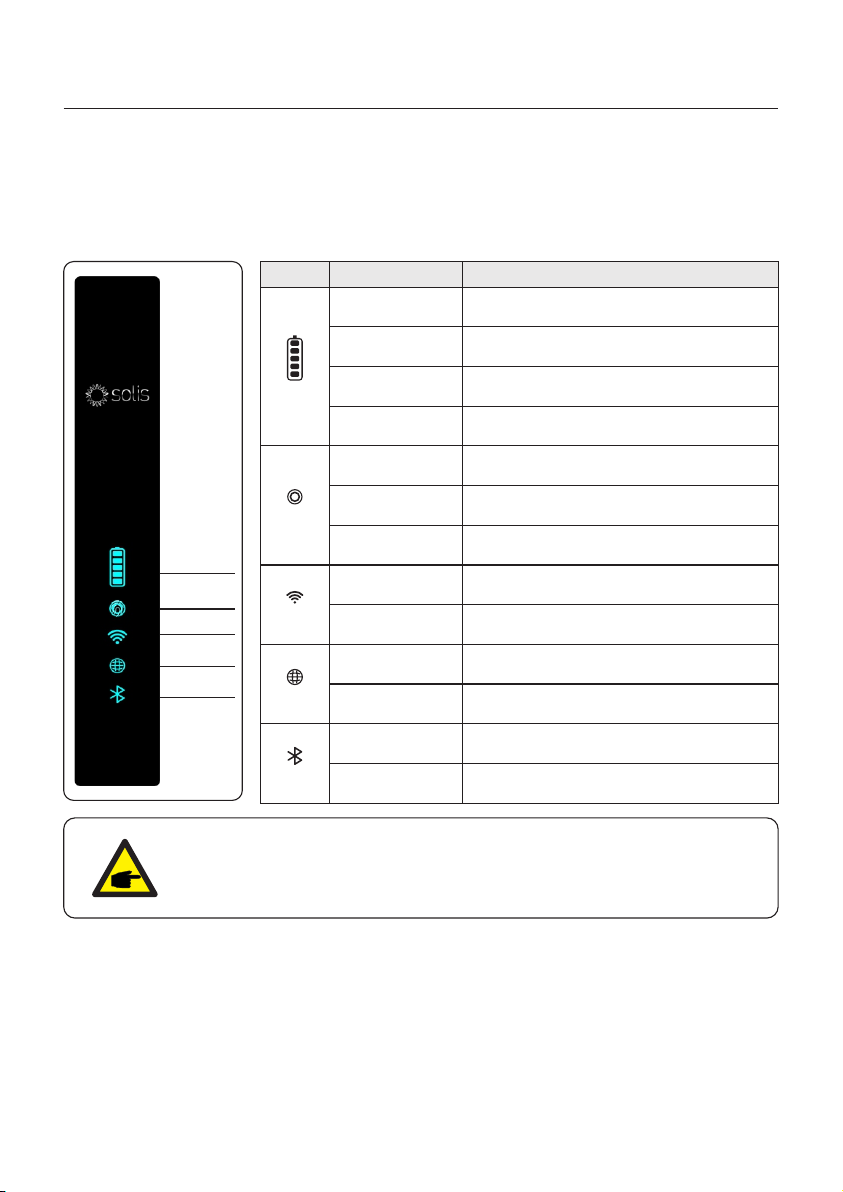

3.1 Intelligent LED Indicators

There are five indicators on the Inverter (Battery, Power, WiFi, Ethernet and The Solis S6 Series

Bluetooth) which indicate the working status of the inverter.

The Bluetooth Antenna or WiFi datalogger shall be installed at the Antenna/COM port of the hybrid

inverter before local debugging.

Battery

Power

WiFi

Bluetooth

RS485

NOTE:

Battery/WiFi/Ethernet/Bluetooth indicators will automatically turn off after

1 minute. The Power indicator will remain on with lower brightness. Short

press the Power indicator can wake up all indicators.

Light Status Description

Blue

Flashing every 3s

Blue

Flashing every 1.5s

Blue

Solid ON

Yellow

Solid ON

Blue

Solid ON

Yellow

Solid ON

Red

Solid ON

OFF

Battery discharging.

Battery charging.

Idle.

Battery Warning.

Normally Operating.

Warning.

Alarm.

COM Port is using.

RS485 Port is using.

Bluetooth Port is using.

COM Port is not used.

RS485 Port is not used.

Bluetooth Port is not used.

Blue

Solid ON

Blue

Solid ON

Blue

Solid ON

Power

WiFi

RS485

Bluetooth

Battery

User Manual

4.1 Select a Location for the Inverter

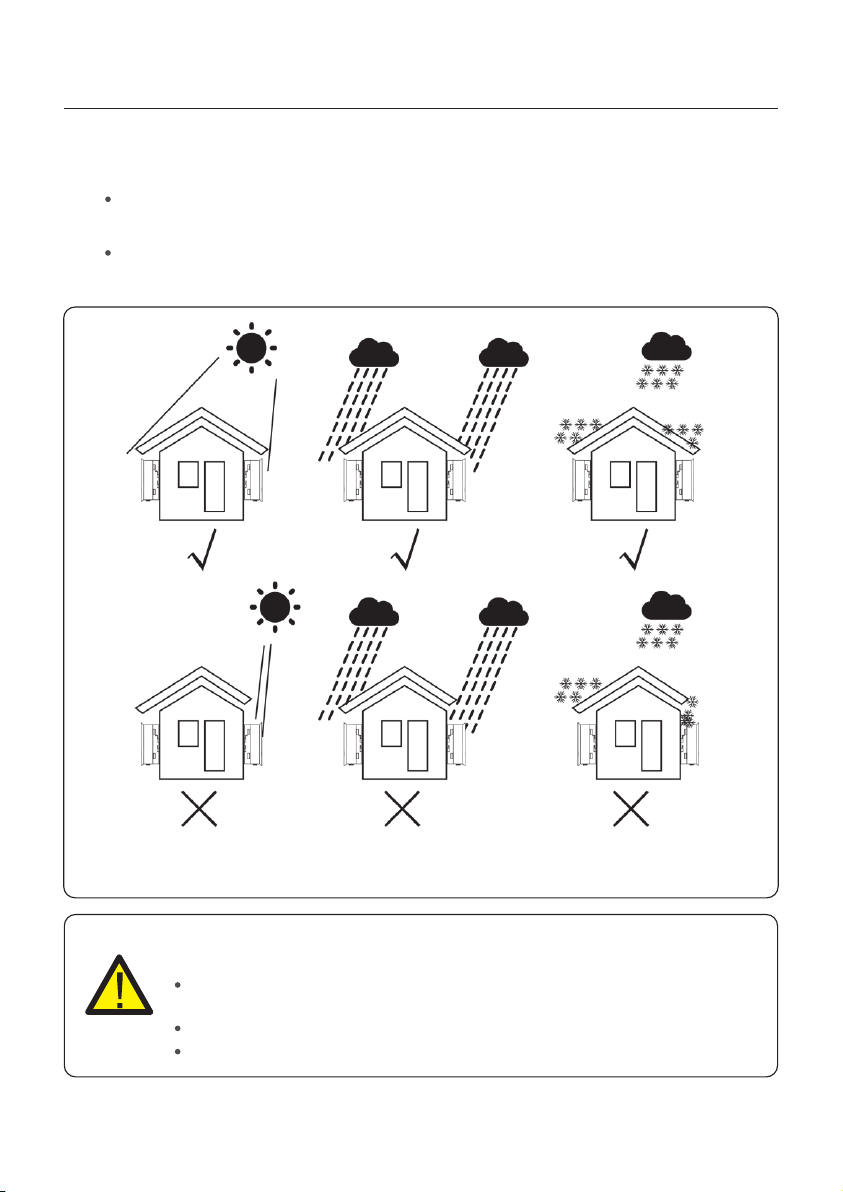

Figure 4.1 Recommended Installation locations

To select a location for the inverter, the following criteria should be considered:

Exposure to direct sunlight may cause output power derating. It is recommended to

avoid installing the inverter in direct sunlight.

It is recommended that the inverter is installed in a cooler ambient which doesn't

exceed 104℉/40℃.

WARNING: Risk of fire

Despite careful construction, electrical devices can cause fires.

Do not install the inverter in areas containing highly flammable materials or

gases.

Do not install the inverter in potentially explosive atmospheres.

The mounting structure where the inverter is installed must be fireproof.

4. Installation

User Manual

4. Installation

To avoid overheating, always make sure the flow of air around the inverter is not

blocked. A minimum clearance of 500mm should be kept between inverters or

objects and 1000mm clearance between the bottom of the machine and the ground.

Adequate ventilation must be provided.

NOTE:

Nothing should be stored on or placed against the inverter.

Install vertically with a maximum incline of +/- 5 degrees, exceeding this may cause

output power derating.

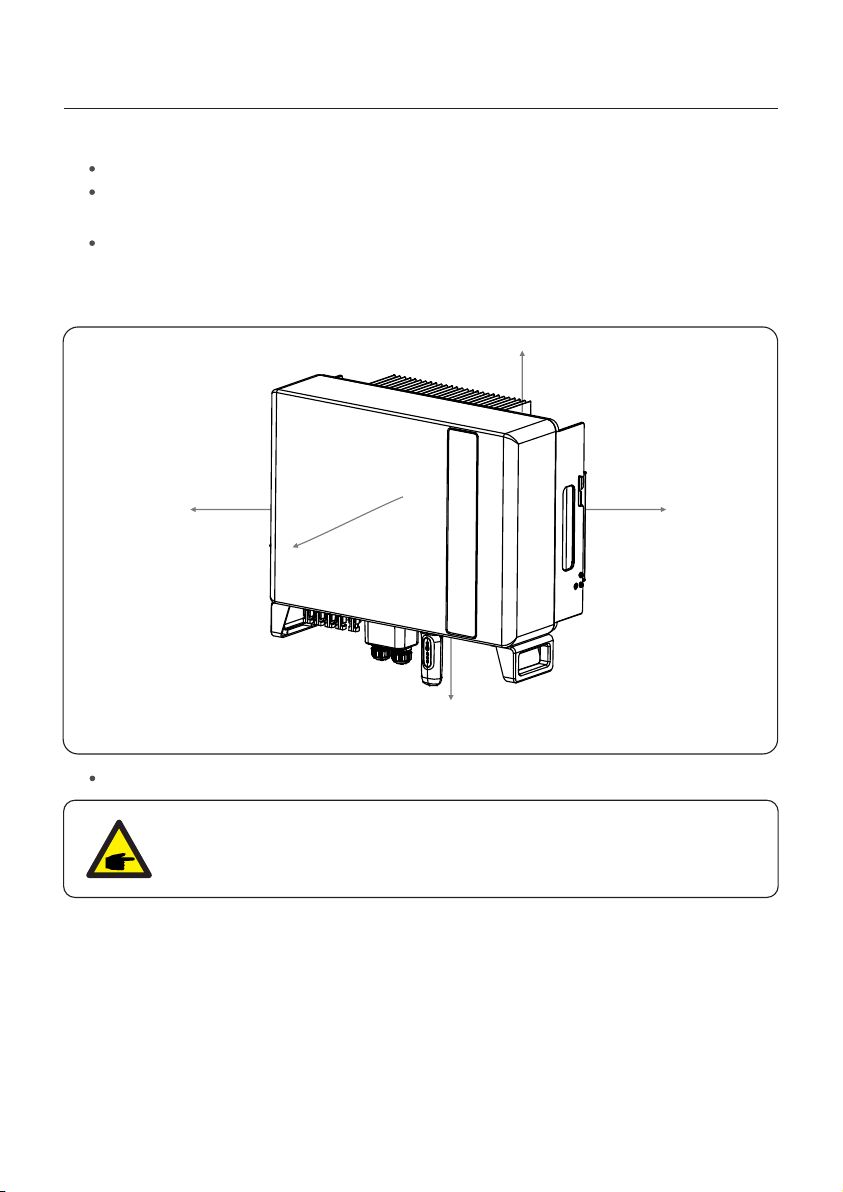

Figure 4.2 Inverter Mounting clearance

Install on a wall or strong structure capable of bearing the weight of the machine (24kg).

≥1000mm

≥500mm

≥1000mm

≥500mm ≥500mm
