Solt SOLTPEPEATER Bedienungsanleitung
3
Supplies Per Models
Repeater
Installation Deck (Screw 2pcs)
Adaptor
Specification
Repeater
Model SOLTPEPEATER
Frequency(MHz) 433.0500 ~ 434.7900
Freq Stability ±5 ppm
Data Rate 1800 bps
Channel space 12.5 KHz
Modulation FSK (±3KHz)
Output Power 10mW (Max)
Sensitivity -118dBm (at 12dB)
Power Supply DC 12V/1A Adapter
Dimension(mm) 146W × 90L x 32H
Battery Life cycle External Power
Antenna Tilt base snap-in_dipole (External)
User's Guide
SOLTREPEATER
4 5
Repeater
Repeater
/P3FDFJWF
① Folding antenna : 180 degrees pivot
④ Setting buttons
③ Wall mount holes :
Refer to item 4 of Installation Guide in page 53.
⑤ Display
⑥ Adapter input: DC12V 1A (Use the supplied adapter)
② Bell number indicator : activated led number varies by different models.
Limited accessary warranty: malfunctioning of
supplied adapter during its use is not covered by
manufactures' warranty.
Purchasing an adapter with AC110~22OV input,
DC12V 1A output is recommended.
PWR Red led indicates power is on
RX Blinking Red led indicates bell model
TX Blinking Green led indicates pager model
MENU / ESC ·Menu button in setting mode
· alphabetic and numeric changing button
▲ ▼ ·up /down
◀ ▶ ·left / right buttons
SET / PWR ·Storing button for set value
·Dower button
[Wall mount bracket installation]
Missed call icon
.&/6
&4$ ⶸⶼⶾ ⶺ
4&5
183
/P3FDFJWF
① Retractable antenna
⑤ Call number Display
② Status indicator
[Back cover]
④ Setting buttons
⑥ Adapter input
(DC 12V 1A)
Name of each section
③ Holes for wall mount
Front
Back
Input : AC110~220V
Output : DC12V 1A
6 7
Repeater
Repeater
② Bracket Installation
③ Power Cord
(Use the adapter provided in the package.)
④ Wall Mounting
(Pull down the unit until clicking sound is heard. )
Install at roof like picture above, it is better if antenna direction go downward.
In the case of cannot be installed to the roof install rear the roof.
Once decided where to install, fix the mount.

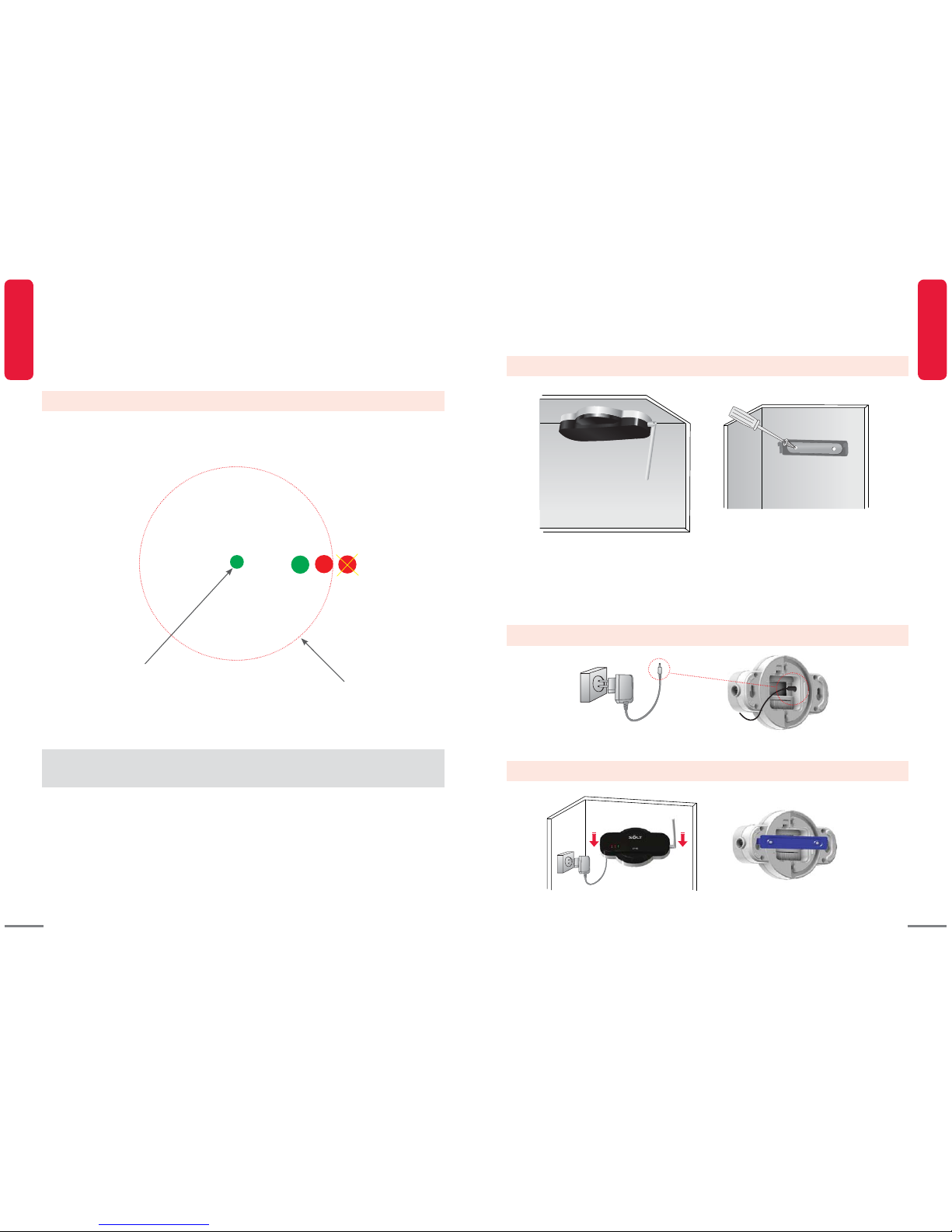

Installation guide
① Location
※ Transmitter must be installed with in 100% reception area.
※ This product is needed to avoid moisture and water (It can be cause of breakdown)
Recommend to install away from water. If needed to install outside of building, install
where does net get wet.
It is most appropriate to install A location which is located within 100% reception area.
(See map a picture above)
Transmitter (Main or Bell) Location. 100% Reception Area.
To assure the finest performance, please read this manual carefully.
8 9
Repeater
Repeater
Repeater selection mode (Cbr / CPr)
·Sets the repeater as call bell repeater or pager repeater.
·Entering setting mode as [E1 Rsel] is displayed.
·[E1 Rsel] is displayed and returns
to previous step.
·[ST-r5] is displayed and ready for reception.

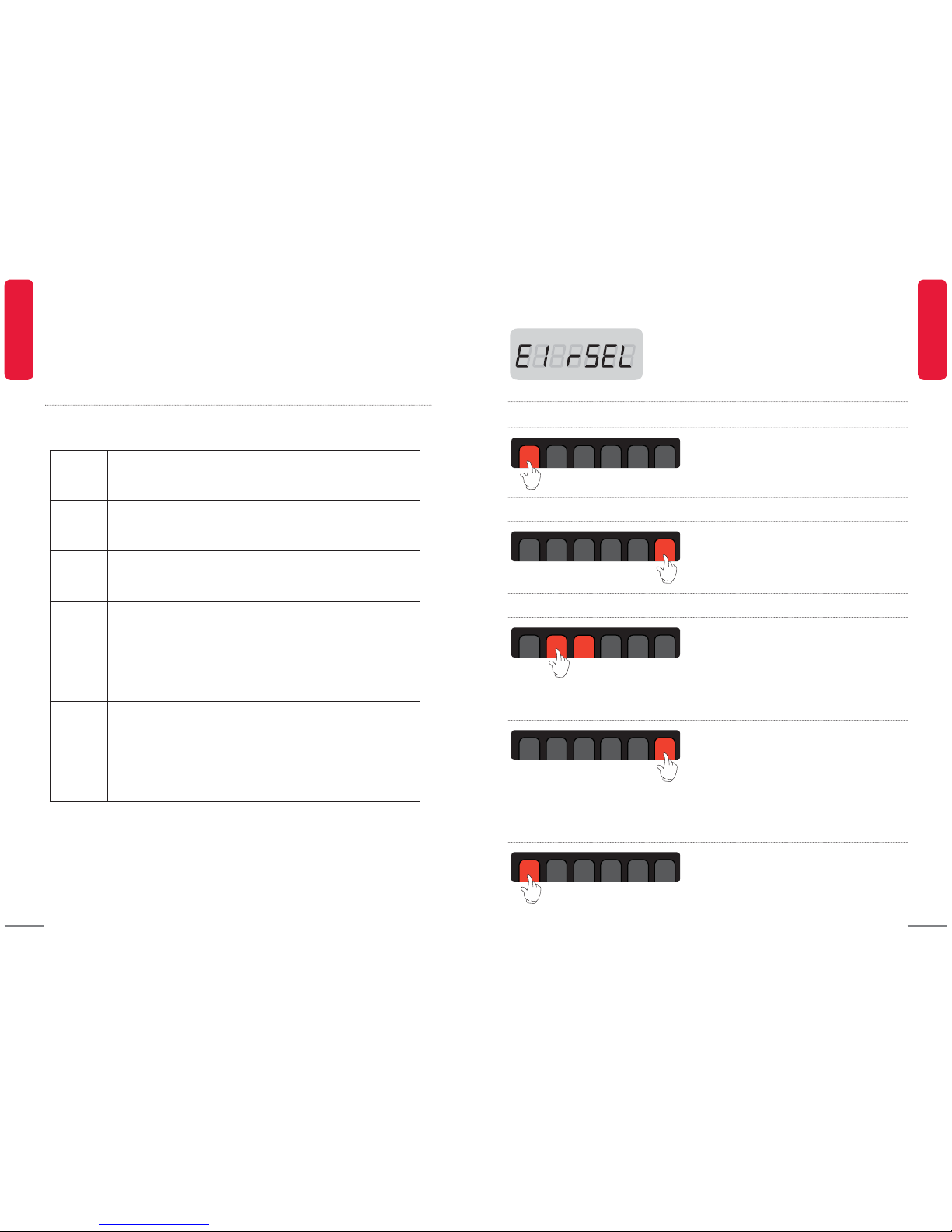

⑴ Press and hold (MENU) button for 3 seconds.
⑵ Press (SET) button.
⑶ Press (▲▼) buttons. (Cbr / CPr)
⑷ Press (SET) button.
⑸ Press (MENU) button.
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
※ Press (▲▼) buttons to select different setting mode.
Cbr : Extends bell receiving range by relaying
bell's data to main transceiver.
CPr : Extends pager receiving range by relaying
main transceiver data to pager.
· [Cbr or CPr] is displayed.
Repeater setting modes
Listed items below can be set by using user setting buttons.
E1
Repeater selection mode
Sets the repeater as call bell repeater or pager repeater.
E2
Download mode
Downloads registered call numbers from main transceiver.
E3
No receive call number setting mode
Selects call numbers that are not desired to receive.
E4
Call redundancy interval setting mode
Sets interval for redundant calls. (default value is 3 seconds)
E5
Call number deleting mode
Deletes registered call numbers.
E6
Call number registering mode
Registers new call numbers.
E7
TX delay time setting mode
Sets delay time for received call number from bell.
[TBD]
10 11
Repeater
Repeater
·Entering setting mode as [E1 Rsel] is displayed.
·[E3 Daof] is displayed.
·Registered call number is displayed.
⑴ Press and hold (MENU) button for 3 seconds.
⑵ Press (▲) button twice.
⑶ Press (SET) button.
⑷ Press (▲▼) buttons to select a Call number don't want to receive.
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
No receive call number setting mode
·Selects call numbers that are not desired to receive.
·Selected call number is displayed.
·[No Receive] button toggles each time
SET button is pressed.
⑸ Press (SET) button to select desired receiving mode.
MENU
ESC ▲◀ ▶ SET
PWR
▼
※ To set another receiving mode, repeat steps (4) to (5).
⑹ Press (MENU) button.
MENU
ESC ▲◀ ▶ SET
PWR
▼·[ST-r5] is displayed and ready for reception.
/P3FDFJWF
e.g.) Call number 200 is set to not receive when
[No Receive] icon is displayed.
Download mode
·Downloads registered call numbers from main transceiver.
·[E2 Down] is displayed.
·[---] is displayed.
·[---] is displayed during downloading is in progress.
·[E2 Down] is displayed when downloading is
completed and returns to previous step.
⑵ Press (▲) button once.
⑶ Press (SET) button.
⑷ Press (SET) button.
⑸ Press (MENU) button.
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
·Entering setting mode as [E1 Rsel] is displayed.
⑴ Press and hold (MENU) button for 3 seconds.
MENU
ESC ▲◀ ▶ SET
PWR
▼
·[ST-r5] is displayed and ready for reception.
※ Press (▲▼) buttons to select different setting mode.
[TBD]
12 13
Repeater
Repeater
·
" It has been deleted." is played.
·To delete another call number,
repeat the processes from (4) to (5).
⑸ Press (SET) button.
⑹ Press (MENU) button.
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
⑷ Press (▲▼) button. Select the call number you want to delete.
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
Call number deleting mode
·Deletes registered call numbers.
·[E5 Dele] is displayed.
⑵ Press (▲) button 4 times.
⑶ Press (SET) button.
MENU
ESC ▲◀ ▶ SET
PWR
▼
·Entering setting mode as [E1 Rsel] is displayed.
⑴ Press and hold (MENU) button for 3 seconds.
MENU
ESC ▲◀ ▶ SET
PWR
▼
·Registered call number is displayed.
·Selected call number is displayed.
·[ST-r5] is displayed and ready for reception.
⑸ Press (SET) button.
⑹ Press (MENU) button.
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
Repetition call setting mode
·Sets interval for redundant calls.
·[E4 Dupt] is displayed.
·[3] is displayed.
·Selected number is displayed.
⑵ Press (▲) button 3 times.
⑶ Press (SET) button.
⑷ Press (▲▼) buttons. Sets the desired number.
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
·Entering setting mode as
[E1 Rsel] is displayed.
⑴ Press and hold (MENU) button for 3 seconds.
MENU
ESC ▲◀ ▶ SET
PWR
▼
·[ST-r5] is displayed and ready for reception.
※ Press (▲▼) buttons to select different setting mode.
·[E1 Rsel] is displayed and returns to
previous step.
※ 3 is set for default. (Unit : second)
14 15
Repeater
Repeater
⑺ Press and hold (SET) button for 3 seconds when registration is finished.
⑸ Press (SET) button.
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
·Registration for selected call number is completed.
·The number of screen is again blinking.
·To register another Bell, repeat the processes from (4) to (6).
⑹ Press the button to register.
䌫䌬䌅䌚䌍
·Selected-number from (4)section is displayed
on the screen and the number stop blinking.
·[ST-r5] is displayed and ready for reception.
Call number registering mode
·Registers new call numbers.
·[E6 Breg] is displayed.
⑵ Press (▲) button 5 times.
⑶ Press (SET) button.
⑷ Press (▲▼◀▶) buttons. sets desired to call number.
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
· Press (◀▶) buttons to move to different digits.
· Press (MENU) button to toggle input mode from
/ to numeric and English modes.
Number
mode
English
mode
%ODQN
%ODQN
·Entering setting mode as [E1 Rsel] is displayed.
⑴ Press and hold (MENU) button for 3 seconds.
MENU
ESC ▲◀ ▶ SET
PWR
▼
·Blinking [0] is displayed.
1716
Repeater
TX delay time setting mode
·Sets delay time for received call number from bell.
·[E7 Txdt] is displayed.
·[0] is displayed.
·10(1Second), 20(2Second) ... 100(10Second)
·Selected number is displayed.
⑴ Press and hold (MENU) button for 3 seconds.
⑵ Press (▲) button 6 times.
⑶ Press (SET) button.
⑷ Press (▲▼) buttons. Sets the desired number.
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
※ '0' is default value :
transmits as soon as receiving a call.
·[ST-r5] is displayed and ready for reception.
⑸ Press (SET) button.
⑹ Press (MENU) button.
MENU
ESC ▲◀ ▶ SET
PWR
▼
MENU
ESC ▲◀ ▶ SET
PWR
▼
·Entering setting mode as [E1 Rsel] is displayed.
※ Press (▲▼) buttons to select different setting mode.
· [E1 Rsel] is displayed and returns to
previous step.
