SOMFY Sonesse 50 PA Bedienungsanleitung

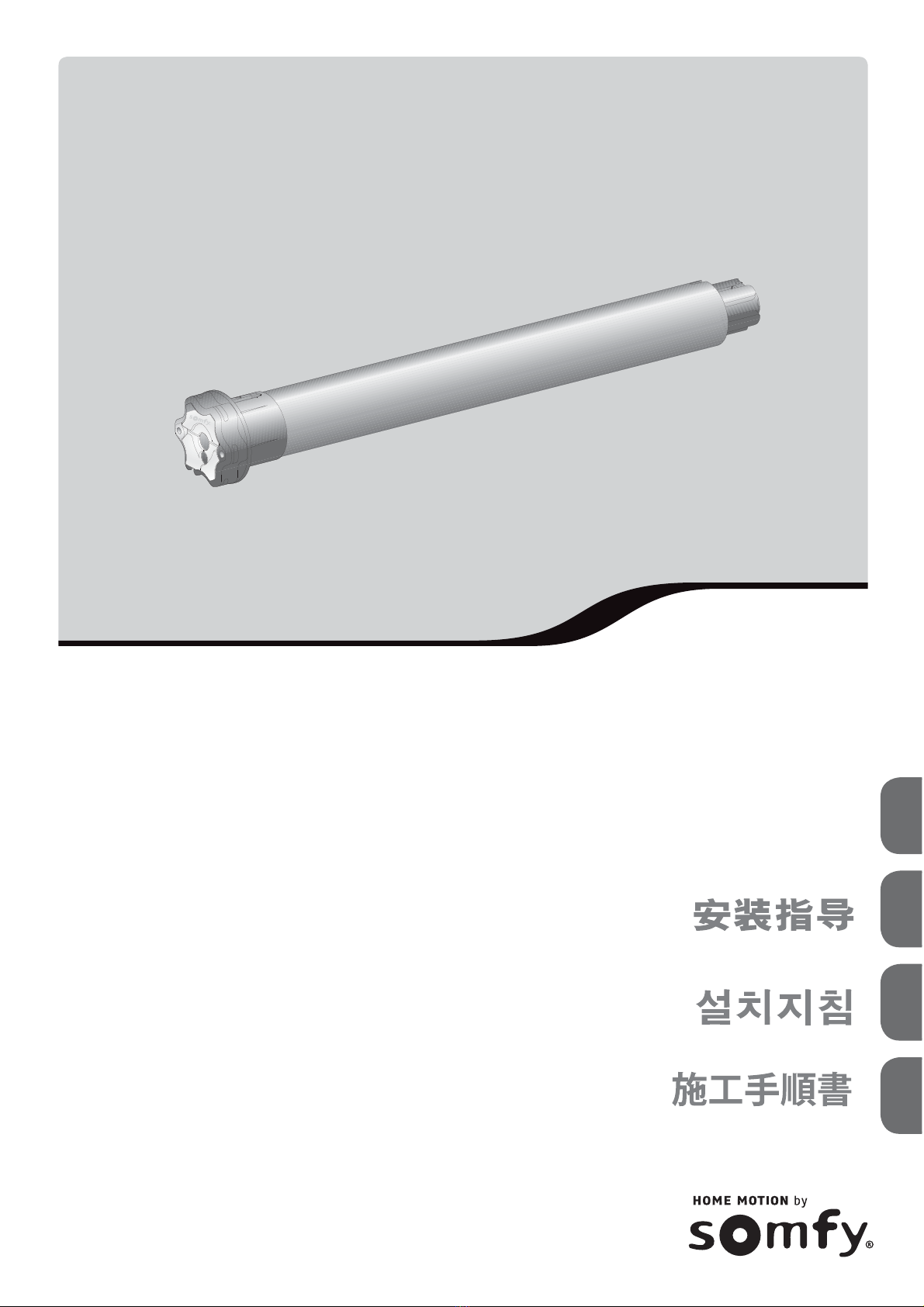

Sonesse®50 PA
Ref. 5106209A
JP ZH EN
KO
Installation guide
EN
ZH
KO
JP
Somfy hereby declares that this product conforms to the essential requirements and other relevant
provisions of Directive 1999/5/CE. A Declaration of Conformity is available at www.somfy.com/ce.
Usable in EU, CH and NO. Images are not contractually binding
Damaged electric products and batteries should not be disposed of with normal household
waste. Make sure to drop them in specially provided containers or at an authorized
organization that will ensure they are recycled.
3
© 2012 Somfy SAS. All rights reserved. 06/2012
EN
CONTENTS
1. Introduction 3
2. Safety 4
2.1. Safety and responsibility 4
3. Installation 5
3.1. Motor preparation 5
3.2. Tube preparation 5
3.3. Motor/tube assembly 5
3.4. Mounting the motorized tube on the
brackets 5
4. Wiring 6
5. Commissioning 6
5.1. Checking the rotation direction 6
5.2. Adjusting the end limits 7
6. Operation 7
6.1. Standard operation 7
7. Troubleshooting 8
7.1. Question on the Sonesse®50 PA? 8
8. Technical data 8
1. INTRODUCTION
The Sonesse®50 motor range can motorise all tubular applications: Roller shades, Roman shades,
Projection screens, ...
The Sonesse®50 is designed to ensure quiet operations.
4© 2012 Somfy SAS. All rights reserved. 06/2012
EN
2. SAFETY
2.1. Safety and responsibility
This Somfy product must be installed by a professional motorisation and home automation
installer, for whom these instructions are intended.
Before installation, check that this product is compatible with the associated equipment and
accessories.
These instructions describe how to install, commission and use this product.
Moreover, the installer must comply with current standards and legislation in the country in which
the product is being installed, and inform his customers of the operating and maintenance
conditions for the product.
failure to comply with the instructions given herein will invalidate the warranty, and Somfy refuses
to accept liability.
In addition to the safety instructions described in this guide, be sure to also observe the
instructions set out in the attached document "Safety instructions to follow and keep".
1) Switch off the mains supply of the shade before
performing any service operation in the vicinity.
To avoid damaging the product:
2) Never immerse it in liquid!
3) Avoid impacts!
4) Do not drop it!
5) Never drill holes in it!
6) Avoid moving the shade if ice has formed on it.
7) Never connect two control points to a single motor.
8) Never connect two motors to a single control point.
1
3
56
2
4
OFF
78
5
© 2012 Somfy SAS. All rights reserved. 06/2012
EN
1) Fit the crown (a) and drive wheel (b) to the motor.
2) Measure the length (L) between the end of the drive
wheel and the head end.
1) Cut the tube to the required length.
2) Deburr the tube and remove the debris.
3) For smooth roller tubes, cut a notch with the
following measurements:
e = 4 mm / 0.16 In h = 28 mm / 1.1 In
1) Slide the motor into the tube.
For smooth roller tubes, position the notch previously
cut on the crown.
2) Fix the tube to the drive whell with 4 self-tapping
screws with a diameter of 5 mm or 4 steel pop rivets
with a diameter of 4.8 mm located at L - 15 mm ± 3 mm.
Warning: The screws or pop rivets must only be
attached to the drive wheel and not to the motor.
If necessary, screw the bracket interface on the motor
head.
1) Mount the motorized tube on the end bracket (c).
2) Mount the motorized tube on the motor bracket (d).
Fit the stop ring (e).
3. INSTALLATION
ab
Ø > 47
eh
c
d
e
3.1. Motor preparation
3.2. Tube preparation
3.3. Motor/tube assembly
3.4. Mounting the motorized tube on the brackets
6© 2012 Somfy SAS. All rights reserved. 06/2012
EN
4. WIRING
1) Cut off the mains power supply.
2) Connect the motor according to the information in the table below:
5. COMMISSIONING
1) Switch on the power supply.
2) Press the control point UP button:
a) If the shade is raised (a), the rotation direction is
correct: move to the section entitled «Adjusting the
end limits».
b) If the shade is lowered (b), the rotation direction is
incorrect: move to the next step.
3) Switch off the power supply.
Reverse the two live wires on the control point.
4) Switch on the power supply.
Press the control point UP button to check the rotation
direction.
5.1. Checking the rotation direction
PA PS
RANGE Neutral Live Live Earth No contact
230V-50Hz Blue Brown Black Yellow/
Green
NA
220V-60Hz
120V-60Hz White Black Red Green Grey
100V-50/60Hz NA
a
b
=
=
4
1
3
2
PA PS
7
© 2012 Somfy SAS. All rights reserved. 06/2012
EN
The limits can be set in any sequence.
5.2.1. Up limit
Press the control point UP button to raise the shade
to the Up limit and turn the corresponding adjustment
screw to set this limit.
5.2.2. Down limit
Press the control point DOWN button to lower the
shade to the Down limit and turn the corresponding
adjustment screw to set this limit.
Up, Down, Stop
1) To move the shade from a limit to the other limit,
2) To stop the shade, press the STOP button.
6. OPERATION
5.2. Adjusting the end limits
6.1. Standard operation
8© 2012 Somfy SAS. All rights reserved. 06/2012
EN
7. TROUBLESHOOTING
7.1. Questions on the Sonesse®50 PA?
The motor doesn’t work:
Verify:
The equipment stops too soon:
Verify:
The equipment is noisy:
Verify that:
8. TECHNICAL DATA
Power supply 230V-50Hz
120V-60Hz 220V-60Hz 100V-
50Hz/60Hz
Operating temperature - 20°C to + 70°C
Protection rating IP 44
15
© 2012 Somfy SAS. All rights reserved. 06/2012
KO
목차
1. 소개 15
2. 안전 16
2.1. 안전 및 책임 16
2.2. 안전 지침 16
3. 설치 17
3.1. 모터 준비 17
3.2. 샤프트 준비 17
3.3. 모터/샤프트 조립 17
3.4. 모터/샤프트를 브라켓에 장착 17
4. 배선 18
5. 기본설정 18
5.1. 회전 방향 점검 18
5.2. 상단/하단 리미트 조정 19
6. 작동 19
6.1. 기본 작동 19
7. 문제해결 20
7.1. Sonesse® 50 PA 관련 질문 20
8. 기술 데이터 20
1. 소개
Sonesse® 50 모터 제품군은 롤러 쉐이드, 로만 쉐이드, 프로젝션 스크린 등에 사용되는 원주형
모터입니다.
Sonesse® 50에는 소음 방지 기술이 적용되었습니다.
16 © 2012 Somfy SAS. All rights reserved. 06/2012
KO
2. 안전
2.1. 안전 및 책임
• 이 Somfy 제품은 모터 및 홈 오토메이션 설치 기사가 설치해야 하고, 이 설명서는 설치 기
사를 위해 작성되었습니다.
• 설치 전에 제품이 관련 장비 및 액세서리와 호환되는지 확인하십시오.
• 이 설명서에서는 제품의 설치, 기본설정 및 사용 방법에 대해 설명합니다.
• 또한 설치 기사는 제품이 설치되는 국가의 표준과 규정을 준수해야 하고, 고객에게 제품의 작동
및 유지보수 조건을 알려줄 의무가 있습니다.
• Somfy가 정한 용도를 벗어난 사용은 허용되지 않습니다. 용도를 벗어나 사용하거나 이 설명서
의 지침을 따르지 않으면 보증이 무효가 되고, Somfy는 이에 대해 책임을 지지 않습니다.
기술적인 변경이 있을 수 있습니다.
2.2. 안전 지침
이 설명서에 명시된 안전 지침 외에 첨부된 "반드시 준수해야 할 안전 지침" 문서의 지침도
반드시 준수해야 합니다.
1) 쉐이드 근처에서 정비 작업을 수행하기 전에
쉐이드의 주 전원을 반드시 끄십시오.
제품 손상 방지를 위한 조치:
2) 절대로 액체에 담그지 마십시오!
3) 충격을 주지 마십시오!
4) 떨어뜨리지 마십시오!
5) 구멍을 뚫지 마십시오!
6) 쉐이드 위에 얼음이 생겼을 경우 쉐이드를
움직이지 마십시오.
7) 모터 한 개에 스위치 두개를 직접 연결하지
마십시오.
8) 모터 두 개를 하나의 스위치에 직접 연결하지
마십시오.
1
3
56
2
4
꺼짐
78
