Working Instruction, Mechanical

3/000 21-1/FEA 209 544/136 B

Company Internal

Sony Ericsson Mobile Communications AB

1(51)

Working Instruction, Mechanical

Applicable for K530i

CONTENTS

Introduction .............................................................................. 3

1.1

Equipment.................................................................................4

1.2

General cautions ......................................................................5

1.3

Adhesives .................................................................................5

Disassembly ............................................................................. 6

2.1

Overview ...................................................................................6

2.1.1 Battery Cover & Battery......................................................... 7

2.1.2 Antenna Plug & Speaker Mesh Cover Assy ..........................8

2.1.3 Antenna Cover .................................................................... 10

2.1.5 Frame Cover Assembly & PCBA......................................... 11

2.1.5 LCD Frame Assembly & PCBA ........................................... 13

Replacements......................................................................... 15

3.1

Battery Cover & Battery.........................................................16

3.2

Antenna Plug & Speaker Mesh Cover Assy ........................16

3.3

Antenna Cover........................................................................16

3.4

Front Cover & Keypad ...........................................................16

3.5

Frame Assembly & PCBA......................................................16

3.6

Key Foil Assy & LCD..............................................................17

3.7

LCD Frame Assy.....................................................................20

3.8

Receiver “Ear Speaker” .........................................................23

3.9

Shield Can Lid Wanda............................................................24

3.10

Shield Can Lid ........................................................................26

3.11

2.0 Mega Pix Camera & Camera Shield................................28

3.12

System Connector..................................................................31

3.13

VGA Camera “QCIF” ..............................................................32

3.14

Vibrator....................................................................................33

3.15

Speaker Box Assy ..................................................................34

3.16

Antenna Assy .........................................................................36

3.17

Power Key ...............................................................................38

3.18

Volume Key.............................................................................39

3.19

Camera Key.............................................................................40

3.20

M2 Memory Card Lid ..............................................................41

3.21

Liquid Intrusion Indicator ......................................................42

3.22

Label ……………………………………………………………..43

Working Instruction, Mechanical

3/000 21-1/FEA 209 544/136 B

Sony Ericsson Mobile Communications AB

2(51)

Reassembly ............................................................................ 44

4.1

Overview .................................................................................44

4.1.1 Frame Cover Assembly & PCBA......................................... 45

4.1.2 Front Cover & Keypad......................................................... 46

4.1.3 Antenna Cover .................................................................... 48

4.1.5 Speaker Mesh Cover Assy & Antenna Plug ........................ 49

4.1.5 Battery & Battery Cover....................................................... 50

Revision history ..................................................................... 51

Working Instruction, Mechanical

3/000 21-1/FEA 209 544/136 B

Company Internal

Sony Ericsson Mobile Communications AB

3(51)

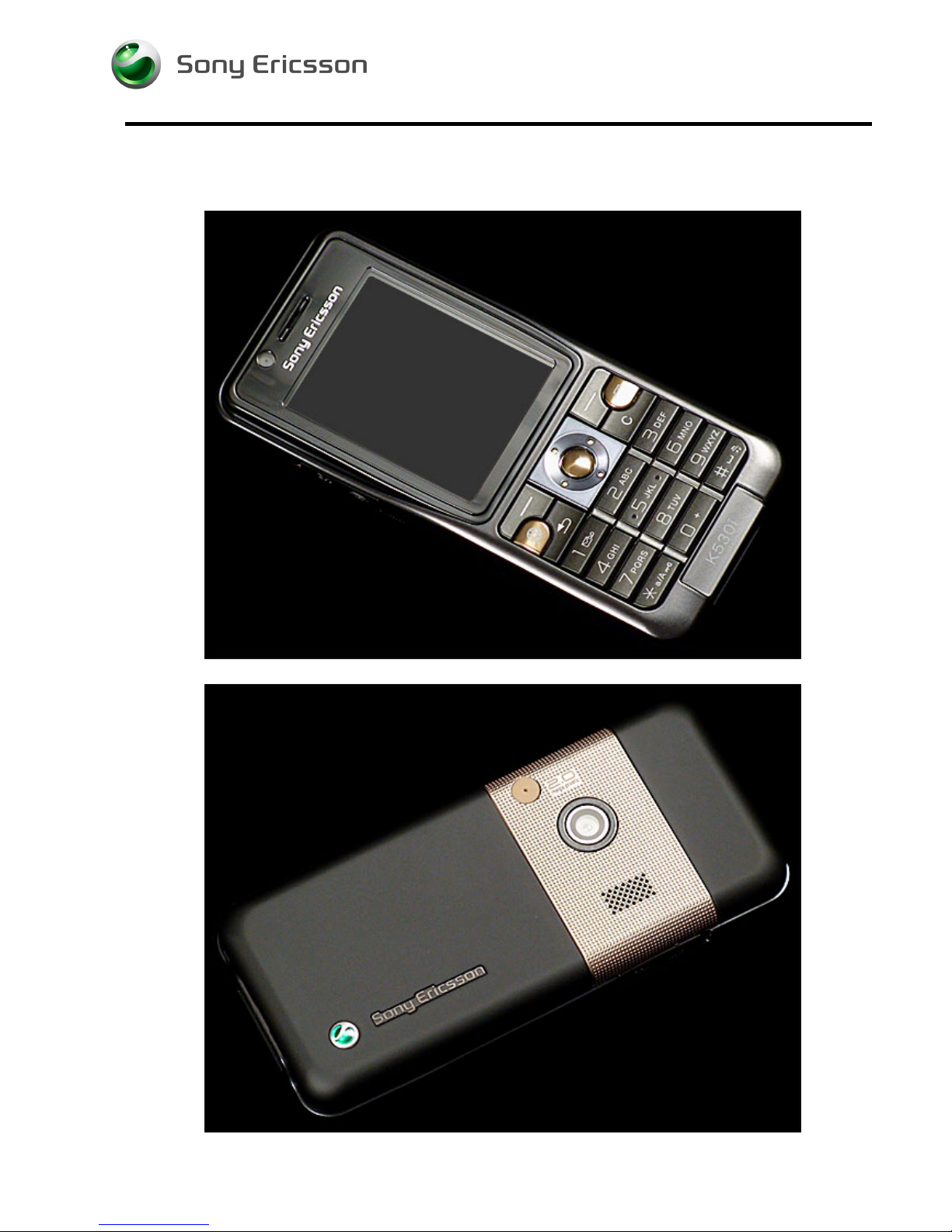

1 Introduction

FRONT

REAR

Working Instruction, Mechanical

3/000 21-1/FEA 209 544/136 B

Company Internal

Sony Ericsson Mobile Communications AB

4(51)

1.1 Equipment

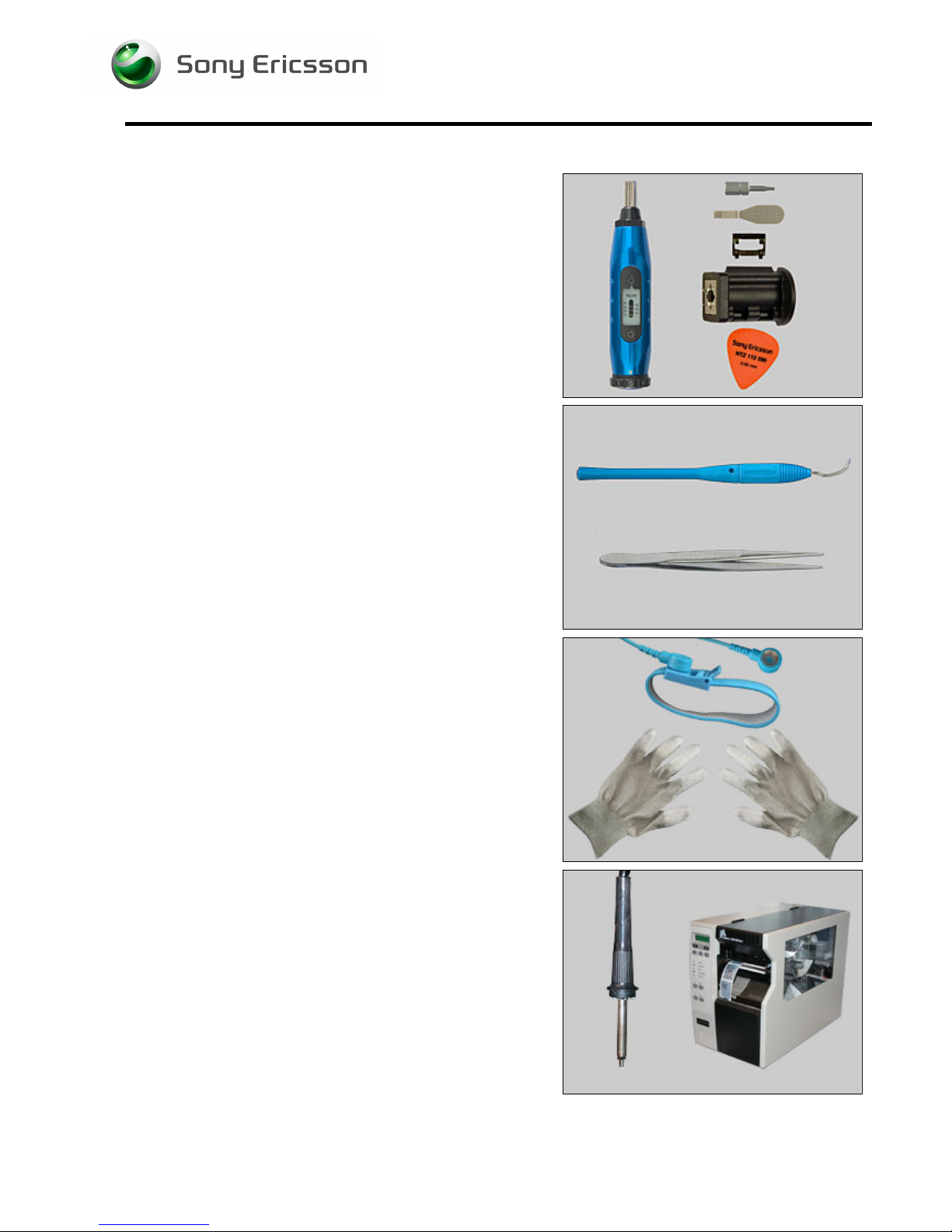

SPECIAL TOOLS

•NTZ 112 459 Torque screwdriver (or equivalent)

•NTZ 112 288 Torx bit no. 6

•NTZ 112 1052 JCIS Phillips Bit

•NTZ 112 302/2 Front opening tool

•NTZ 112 1067 Mega Camera Tool

•NTZ 112 1077 VGA Camera Tool

•NTZ 112 590 Guitar Pick “Plectrum”

STANDARD TOOLS

Standard tools text:

•Dentist hook

•ESD tweezers

ESD EQUIPMENT

Protect the phone from ESD damages whenever it has

been opened by using:

•ESD-wristband

•ESD-gloves

LABEL EQUIPMENT

The following special equipment is required when replacing

or installing a new label:

•Hot air flow solder station

•Zebra printer connected to computer

Working Instruction, Mechanical

3/000 21-1/FEA 209 544/136 B

Company Internal

Sony Ericsson Mobile Communications AB

5(51)

1.2 General cautions

The following cautions are considered to be generic for all phone models and will not be repeated in

the Disassembly, Replacements and Reassembly sections:

•S

WITCH OFF THE PHONE AND REMOVE ANY MEMORY STICK BEFORE THE START OF THE DISASSEMBLY

•K

EEP ALL CONTACT SURFACES CLEAN

•B

E CAREFUL WHEN USING TOOLS LIKE THE DENTIST HOOK

TWEEZERS

OPENING TOOLS

GUITAR PICK

ETC

TO AVOID SCRATCHES OR DAMAGES TO THE EXTERIOR AND INTERIOR PARTS OF THE PHONE

•B

E CAREFUL NOT TO DAMAGE ANY CONTACT SPRINGS

•R

EMEMBER TO REMOVE THE PROTECTION FOILS ON NEW PARTS SUCH AS THE FRONT COVER AND LCD

•N

EVER TOUCH THE DISPLAY GLASS

•U

SE AIR BLOW EQUIPMENT TO KEEP THE FRONT WINDOW AND DISPLAY MODULE DUST FREE

1.3 Adhesives

Use a dentist hook and/or the tweezers to remove old adhesives.

Clean the surface with isopropyl alcohol before attaching new adhesives.

Working Instruction, Mechanical

3/000 21-1/FEA 209 544/136 B

Company Internal

Sony Ericsson Mobile Communications AB

6(51)

2 Disassembly

When you are going to replace a part being listed in Replacements, the instruction of that section

usually begins by directing you to this Disassembly section with a specification of the instructions you

have to carry out in order to disassemble the phone as far as needed before returning to

Replacements for the actual replacement.

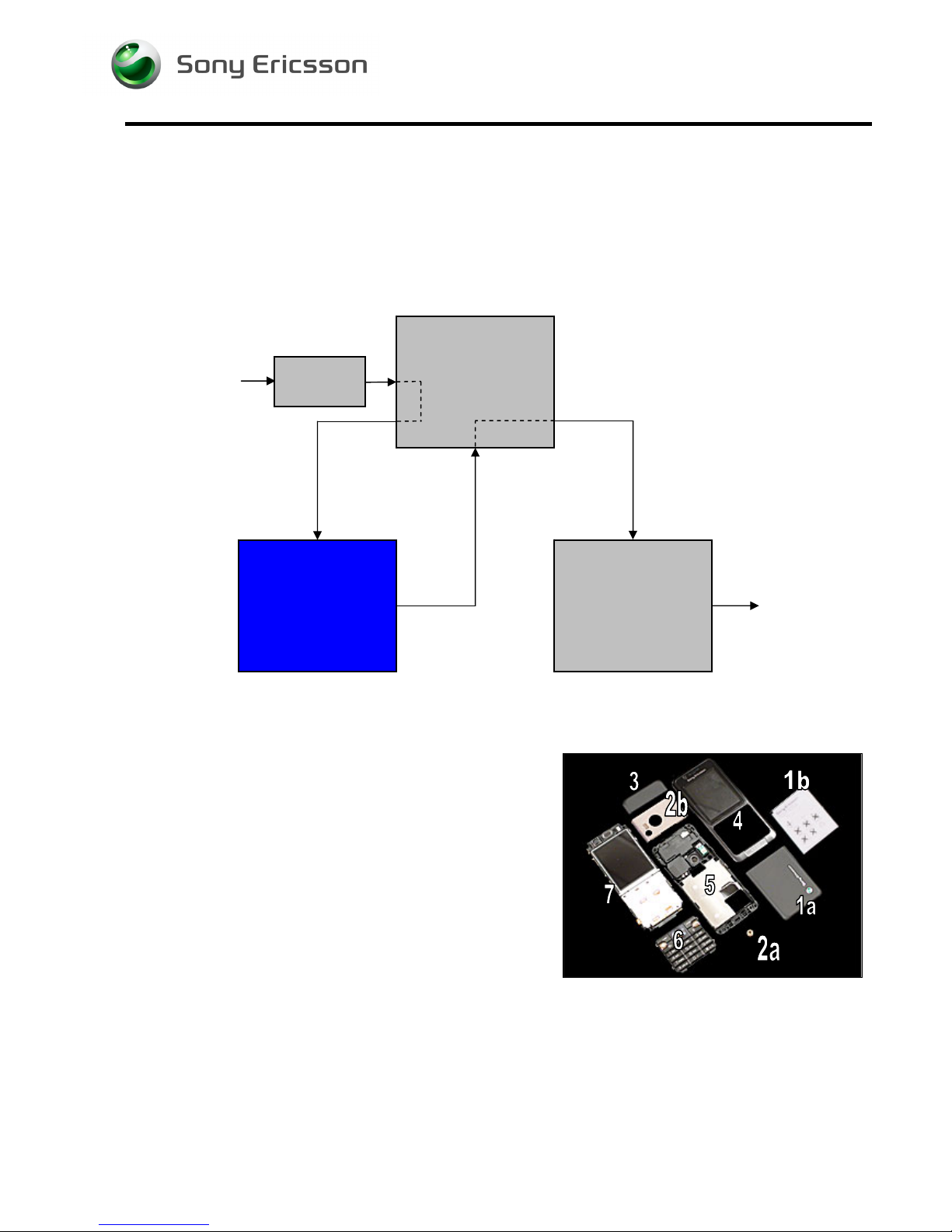

2.1 Overview

The disassembly is done in the following sequence:

1. Battery Cover (a) & Battery (b)

2. Antenna Plug (a) Speaker Mesh Cover Assy (b)

3. Antenna Cover

4. Front Cover

5. Frame Cover Assembly

6. Keypad

7. PCBA

Start

Done

REPLACEMENTS

DISASSEMBLY REASSEMBLY

Contents

page

Working Instruction, Mechanical

3/000 21-1/FEA 209 544/136 B

Company Internal

Sony Ericsson Mobile Communications AB

7(51)

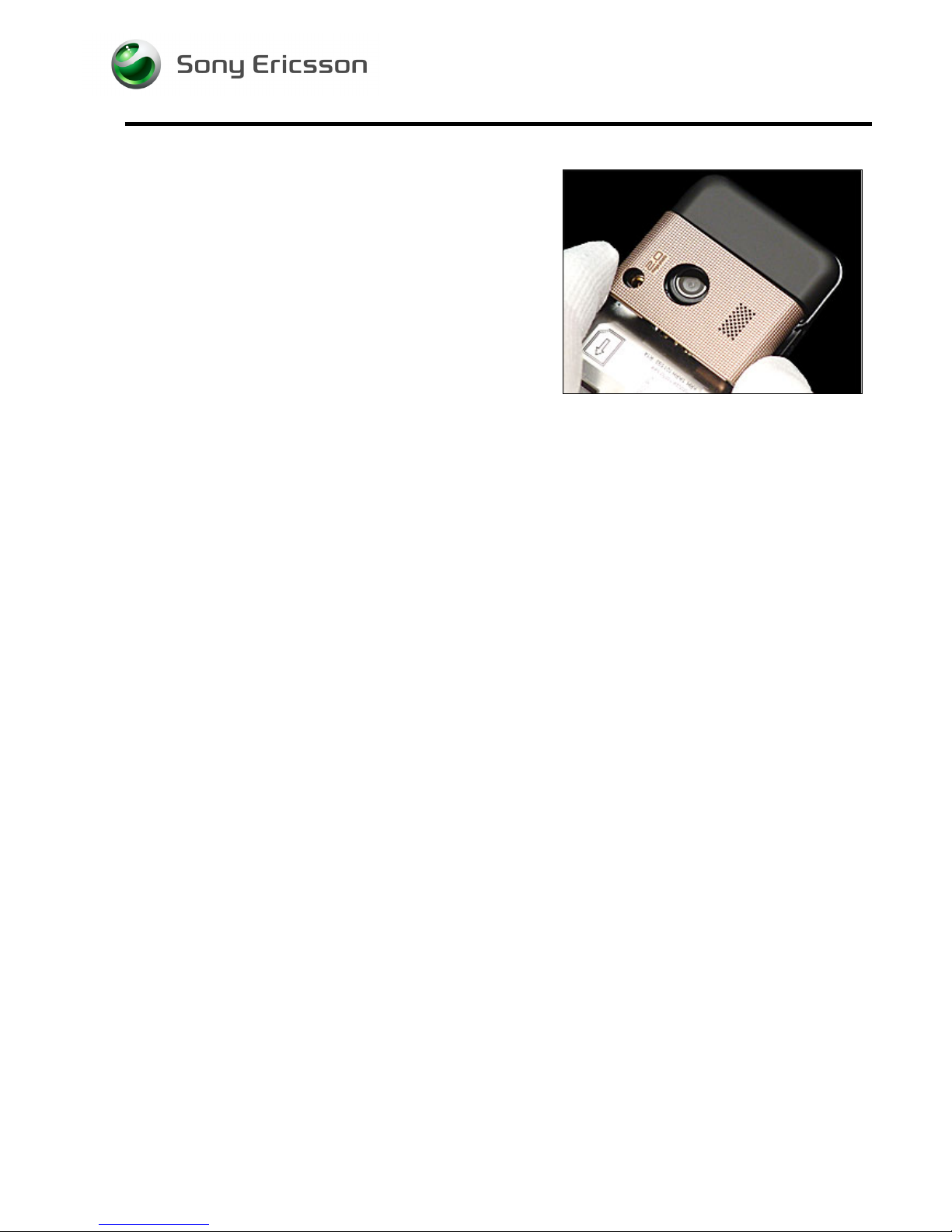

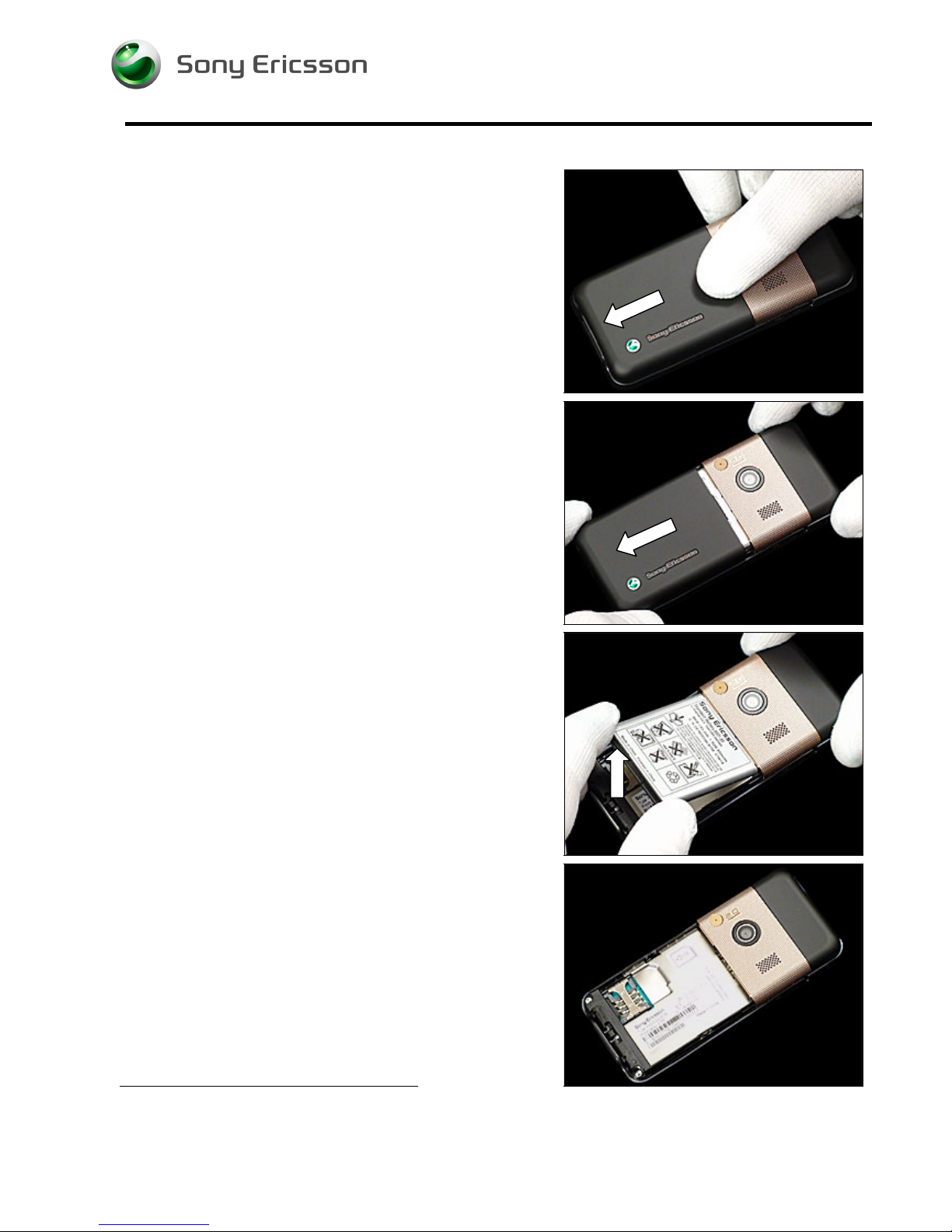

2.1.1 Battery Cover & Battery

Press down with thumb on Battery Cover and push in the

direction shown by the arrow.

Grip Battery Cover with fingers and lift off Battery Cover.

Grip Battery as shown in picture and lift out from phone.

Overview picture of Battery & Battery Cover removed

Working Instruction, Mechanical

3/000 21-1/FEA 209 544/136 B

Company Internal

Sony Ericsson Mobile Communications AB

8(51)

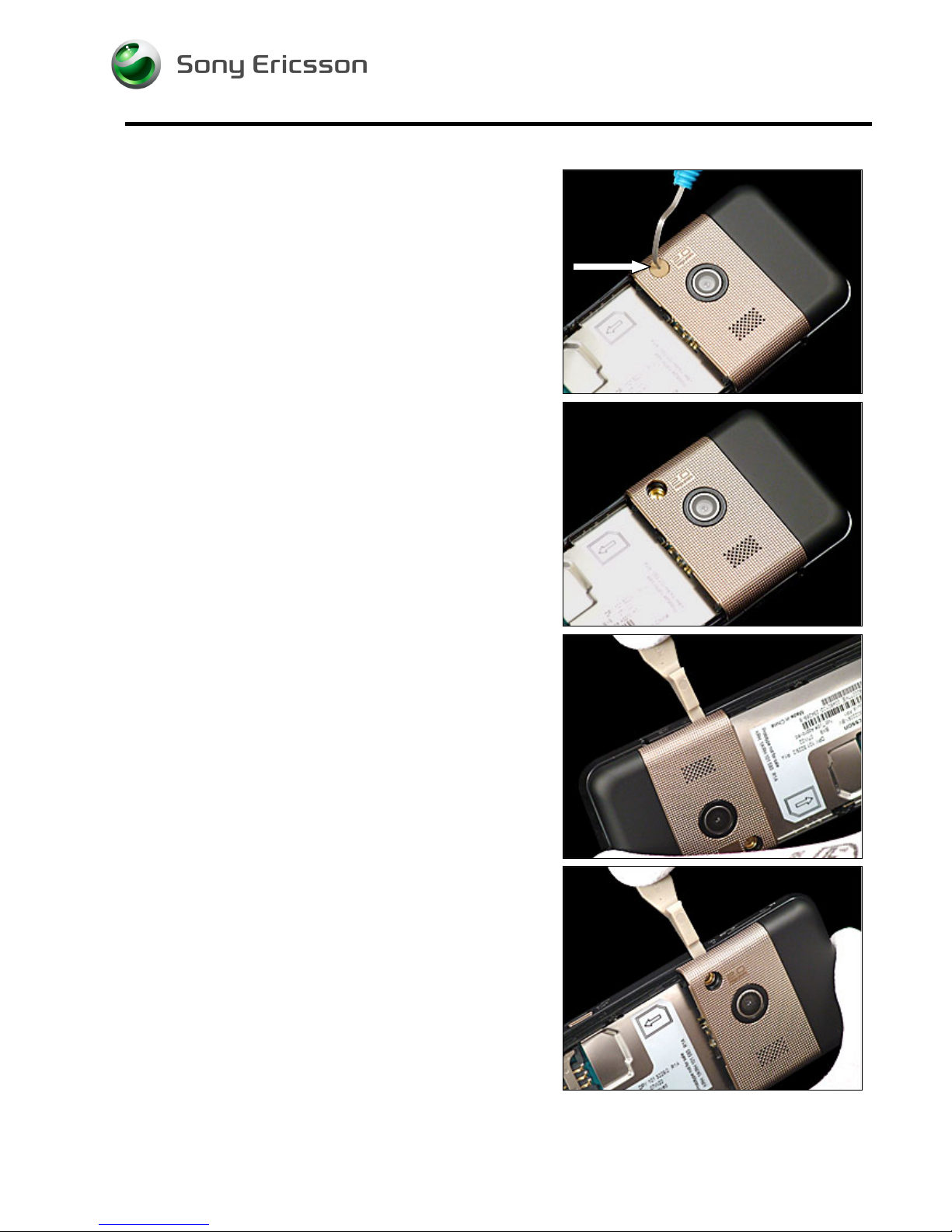

2.1.2 Antenna Plug & Speaker Mesh Cover Assy

Insert dentist hook at slot as shown in picture and lift out.

Overview picture.

Insert side opening tool as shown and unlock snap hook.

Repeat this for other side.

Working Instruction, Mechanical

3/000 21-1/FEA 209 544/136 B

Company Internal

Sony Ericsson Mobile Communications AB

9(51)

Antenna Plug & Speaker Mesh Cover Assy continued

Grip Speaker Mesh Cover with fingers and lift off.

Working Instruction, Mechanical

3/000 21-1/FEA 209 544/136 B

Company Internal

Sony Ericsson Mobile Communications AB

10(51)

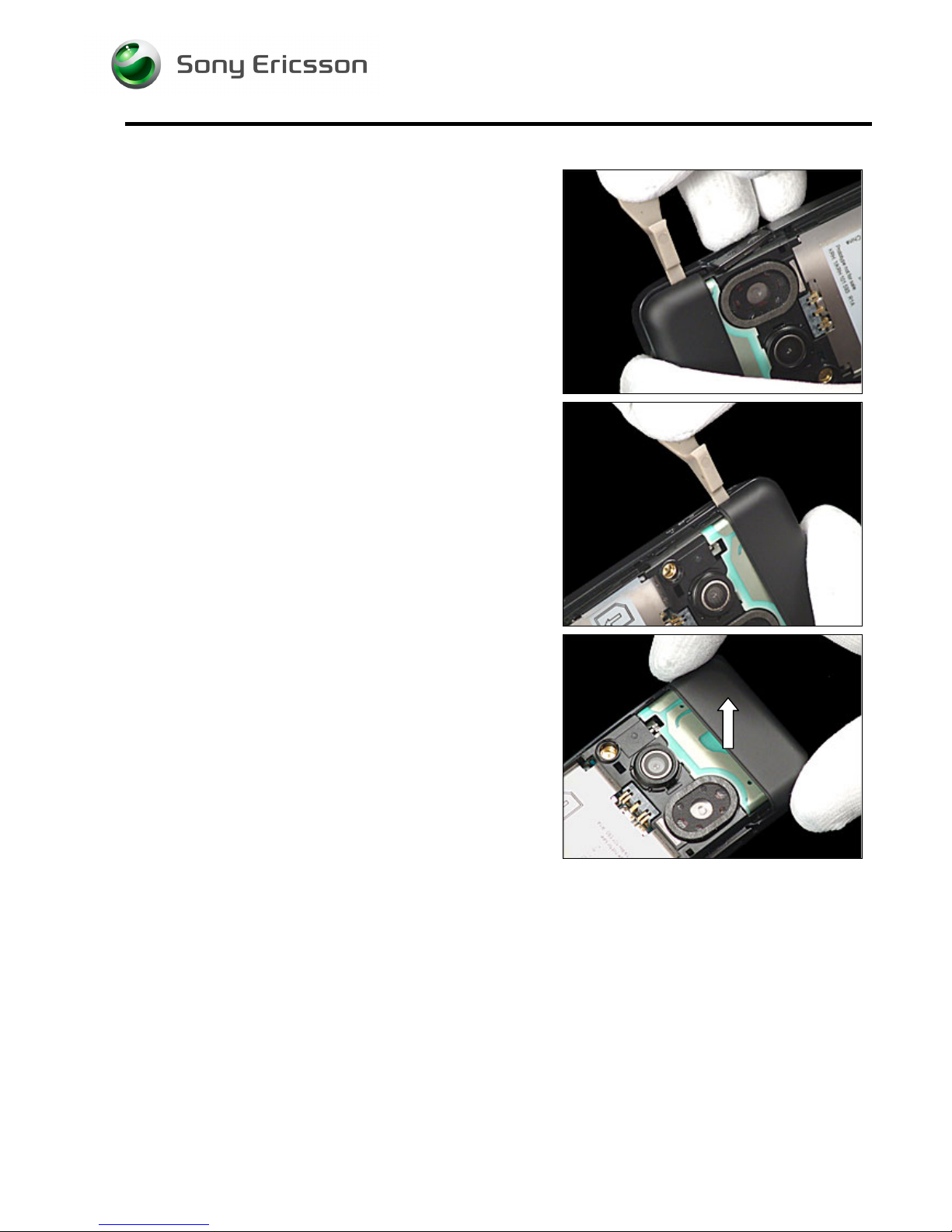

2.1.3 Antenna Cover Assembly

Insert side opening tool as shown and unlock snap hook.

Repeat this for other side.

Grip Antenna Cover with fingers and lift off.
