Sony Ericsson T68 Bedienungsanleitung

Getting started:

Using the T68 as a modem

First edition (February 2002)

This manual is published by Sony Ericsson

Mobile Communications AB, without any warranty.

Improvements and changes to this manual

necessitated by typographical errors, inaccuracies

of current information, or improvements to programs

and/or equipment, may be made by Sony Ericsson

Mobile Communications AB at any time and without

notice. Such changes will, however, be incorporated

into new editions of this manual.

©Sony Ericsson Mobile Communications AB, 2002

Publication number: EN/LZT 108 5502 R1A

Please note:

Some of the services in this manual are not

supported by all networks.Please contact your

network operator or service provider if you are in

doubt whether you can use a particular service

or not.

Microsoft and Windows are registered trademarks

of Microsoft Corporation

Palm is a trademark of Palm, Inc.

The BLUETOOTH trademarks are owned by

Bluetooth SIG, Inc.

Other product and brand names may be trademarks

or registered trademarks of their respective owners.

Getting started: Using the T68 as a modem

Introduction

Your phone has a built-in modem. You can use it to connect a PC or a PDA to your Internet

Service Provider (ISP) to browse the Internet or manage your e-mail messages.

You can also use the modem to transfer files (for example, using FTP) or to send and receive

fax messages.

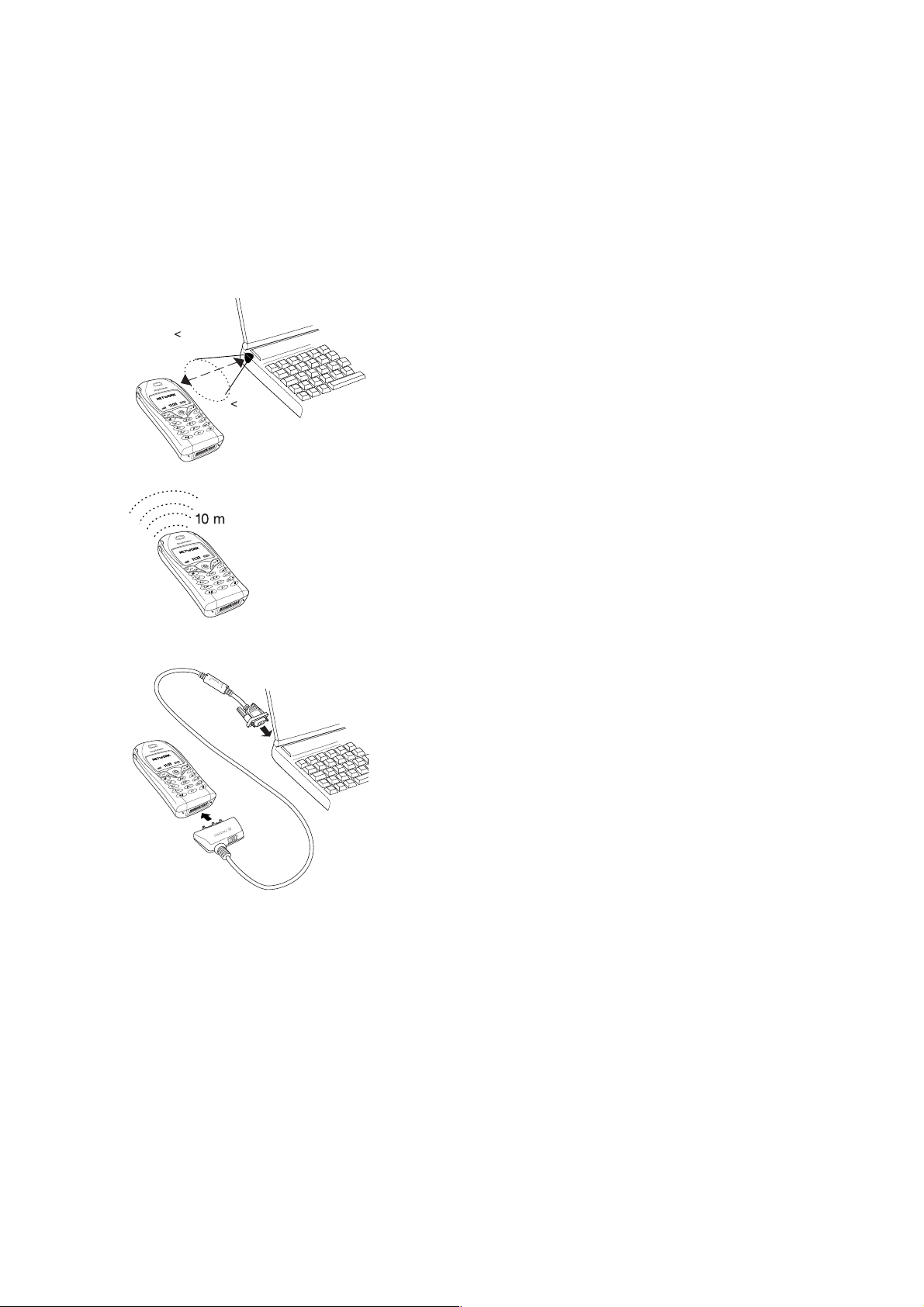

Connecting to the PC or PDA

You can connect the modem to the PC or PDA using:

• Infrared communication. To turn on the infrared port in

your phone, scroll to Connect/Infrared port.

•Bluetooth™ wireless technology. To use Bluetooth™

wireless technology you need to pair your phone with a

Bluetooth-enabled computer. To use dial-up networking via

Bluetooth™ wireless technology, the operation mode has

to be set to On. To change operation mode in your phone,

scroll to Connect/Bluetooth/Options/Operation mode.

• Ericsson serial interface cable DRS-10 or DRS-11 (RS-232

cable) (PC only)

The instructions in this document focus on how to set up:

• a PC running Windows® to use a GPRS connection

• a Palm™ m505/V™ to use a GPRS or a High Speed Data (GSM Data) connection.

• a Pocket PC 2002 to use a GPRS or a High Speed Data (GSM Data) connection.

Before you set up your computer and start using the modem make sure you have the following:

• GSM phone subscription that supports GPRS or High Speed Data.

• Data account set up in your phone (recommended). See the T68 User’s Guide and your

GSM operator’s subscription information for details.

3' 3"

1 m

30°

Getting started: Using the T68 as a modem

Using the modem with a PC

In order to use the built-in modem with a PC, you have to install modem drivers on the PC.

This document describes installation on the following Windows® operating systems:

• Windows® 98

Installing the T68 modem on Windows® 98

Creating a GPRS Dial-up connection on Windows® 98

Optimizing GPRS Dial-up networking on Windows® 98

• Windows® 2000

Installing the T68 modem on Windows® 2000

Creating a GPRS Dial-up connection on Windows® 2000

• Windows® XP

Installing the T68 modem on Windows® XP

Creating a GPRS Dial-up connection on Windows® XP

To use the T68 as a modem with a PC you first have to do the following:

1.Download the modem driver file from http://www.SonyEricssonMobile.com/support/.

• Enter T68 in the search box. You find the modem drivers and Ericsson Mobile Modem

Settings under T68/Software. You can also install the files from the CD if it is provided

with the phone.

2.Install the modem either with Plug and Play or manually from the Control Panel (see below).

3.Connect the phone to your computer with the external interface you want to use (RS-232

cable, infrared or Bluetooth™ wireless technology)

If the modem is found with Plug and Play, install the modem and use the downloaded

driver file. If it is not found with Plug and Play, install the modem manually according to

the instructions below.

Getting started: Using the T68 as a modem

Installing the T68 modem on Windows® 98

To install the T68 modem manually

1.Click the Start button, point to Settings, click Control Panel, and then double-click

the Modems icon.

2.Click the Add button.

3.Click Other and then click Next.

4.Select the Don’t detect my modem, I will select it from a list check box and then click Next.

5.Click Have disk, and then click Browse and select the driver file you have downloaded.

Note: If you have already installed a T68 modem, or Ericsson Mobile Modem Settings for

the T68, you will find the modem in the list. Select Ericsson under Manufacturers, select

a modem under Models and then click Next. You can now skip the next step.

6.Select a modem model and then click Next.

7.Select the COM port that corresponds with the external interface, for example,

infrared modem, that you intend to use and then click Next.

8.Click Finish.

Getting started: Using the T68 as a modem

Creating a GPRS Dial-up connection on Windows® 98

You have to create a new dial-up connection and configure it, to be able to connect to

the Internet via GPRS.

To create a new GPRS dial-up connection

1.On the desktop, double-click My Computer.

2.Double-click Dial-Up Networking and then double-click Make New Connection.

3.Enter a name for the connection, select the modem you want to use and then click Next.

4.In the Telephone number box, enter the special dial string used for GPRS services *99***1#.

The number before the hash mark should be the same as the CID for the phone’s data

account.

• To check CID in the phone, scroll to: Connect/Data comm./Data accounts. Open the account

you use for GPRS and check what CID is used for that account. If, for example, the CID is 3,

the dial string above should be *99***3#. Click Next.

5.Check the name of the connection and click Finish.

6.Right-click your new dial-up networking connection icon, and then click Properties.

7.On the General tab:

• In the Telephone number box, the telephone number string you entered in step 4 above

should already be entered.

• Make sure the Use area code and Dialing Properties check box is cleared.

Getting started: Using the T68 as a modem

8.On the Server Types tab:

• In the Type of Dial-Up Server box, select PPP.

Under Advanced options:

• Make sure all check boxes are cleared. However, Record a log file for connection is optional.

Under Allowed network protocols:

• Select the TCP/IP check box. The other check boxes should be cleared.

9. Click the TCP/IP Settings button.

• Select Server assigned IP address.

• Select Server assigned name server addresses.

Note: With some operators you have to select Specify name server addresses. If you

cannot browse the Internet after a connection has been established, check with your GSM

operator what name server address (DNS) to use.

•Use IP header compression should be cleared.

• Select Use default gateway on remote network.

10.Click OK twice to save the settings.

Getting started: Using the T68 as a modem

Optimizing GPRS Dial-up networking on Windows® 98

Optimizing the computer settings for GPRS

First you need to make sure that you have installed the Ericsson Mobile Modem

Settings program.

To optimize the computer settings for GPRS

1.Click the Start button, point to Settings, click Control Panel, and then double-click

the Ericsson Mobile Modem Settings icon.

2.On the Computer Settings tab, click the Computer settings optimized for GPRS option button.

3.Click OK.

To connect to a GPRS network

1.Make sure the phone is connected to the PC.

2.On the desktop, double-click My Computer and then double-click Dial-Up Networking.

3.Double-click the dial-up networking icon to the connection you created above.

4.In the Connect to dialog box, enter the user name and password if your operator has

provided you with these, otherwise leave these boxes empty.

5.Make sure the telephone number (that is, the GPRS dial string, for example, *99***1#) is correct

and click Connect.

Getting started: Using the T68 as a modem

Installing the T68 modem on Windows® 2000

Note: If you are using the infrared modem, you should install an update from Microsoft®

before installing the modem.

Go to: http://www.microsoft.com/windows2000/downloads/security/q252795/default.asp/.

To install the T68 modem manually

1.Click the Start button, point to Settings, click Control Panel, and then double-click

the Phone and Modem Options icon.

2.On the Modems tab, click the Add button.

3.Select the Don’t detect my modem, I will select it from a list check box and then click Next.

4.Click Have disk, and then click Browse and select the driver file you have downloaded.

Note: If you have already installed a T68 modem, or Ericsson Mobile Modem Settings for

the T68, you will find the modem in the list. Select Ericsson under Manufacturers, select

a modem under Models and then click Next. You can now skip the next step.

5.Select a modem model and then click Next.

6.Select the COM port that corresponds with the external interface, for example, infrared

modem, that you intend to use and then click Next.

7.Click Finish.

Getting started: Using the T68 as a modem

Creating a GPRS Dial-up connection on Windows® 2000

You have to create a new dial-up connection and configure it, to be able to connect to

the Internet via GPRS.

To create a new GPRS dial-up connection

1.Click the Start button, point to Settings, click Network and Dial-up Connections, and then

double-click the Make New Connection icon

2.Click Next. Select Dial-up to private network and then click Next.

3.Select the modem you want to use and then click Next. If you only have one modem installed

you can disregard this step.

4.In the Phone number box, enter the special dial string used for GPRS services *99***1#. The

number before the hash mark should be the same as the CID for the phone’s data account.

• To check CID in the phone, scroll to: Connect/Data comm./Data accounts. Open the account

you use for GPRS and check what CID is used for that account. If, for example, the CID is 3,

the dial string above should be *99***3#.

Make sure the Use dialing rules check box is cleared. Click Next.

5.Select For all users and then click Next

6.Enter a name for the connection and then click Finish.

7.In the Connect dialog box, click Properties.

8.On the General tab:

•UnderConnect using, select the modem you want to use.

• In the Phone number box, the telephone number string you entered in step 4 above

should already be entered.

Getting started: Using the T68 as a modem

• Make sure the Use dialing rules check box is cleared.

9.On the Networking tab:

• In the Type of dial-up server I am calling box, select PPP.

•UnderComponents checked are used by this connection, select Internet Protocol

(TCP/IP). The other check boxes should be cleared.

• Click the Properties button.

10.On the General tab:

• Select Obtain an IP address automatically.

• Select Obtain DNS server address automatically.

Note: With some operators you have to select Use the following DNS server addresses.

If you cannot browse the Internet after a connection has been established, check with your

GSM operator what name server address (DNS) to use.

•ClickAdvanced.

11.On the General tab:

•Use IP header compression should be cleared.

12.Click OK three times to save the settings.

Andere Sony Ericsson Handy Handbücher

Sony Ericsson

Sony Ericsson XPERIA PLAY R800at Service-Handbuch

Sony Ericsson

Sony Ericsson P910a Bedienungsanleitung

Sony Ericsson

Sony Ericsson Z200 Z200 Z200 Bedienungsanleitung

Sony Ericsson

Sony Ericsson Hazel Service-Handbuch

Sony Ericsson

Sony Ericsson Xperia X2a Service-Handbuch

Sony Ericsson

Sony Ericsson W890 Bedienungsanleitung

Sony Ericsson

Sony Ericsson Walkman W580i Bedienungsanleitung

Sony Ericsson

Sony Ericsson Xperia X10i Bedienungsanleitung

Sony Ericsson

Sony Ericsson Z200 Bedienungsanleitung

Sony Ericsson

Sony Ericsson W760c Bedienungsanleitung

Sony Ericsson

Sony Ericsson Txt pro Bedienungsanleitung

Sony Ericsson

Sony Ericsson Xperia X10 Service-Handbuch

Sony Ericsson

Sony Ericsson X10 mini Service-Handbuch

Sony Ericsson

Sony Ericsson Walkman W580i Bedienungsanleitung

Sony Ericsson

Sony Ericsson XPERIA mini Service-Handbuch

Sony Ericsson

Sony Ericsson V630i Bedienungsanleitung

Sony Ericsson

Sony Ericsson U10 Programmierhandbuch

Sony Ericsson

Sony Ericsson T202 Bedienungsanleitung

Sony Ericsson

Sony Ericsson K200i Bedienungsanleitung

Sony Ericsson

Sony Ericsson UIQ 3 Bedienungsanleitung

Sony Ericsson

Sony Ericsson D750i Bedienungsanleitung

Sony Ericsson

Sony Ericsson K510i Bedienungsanleitung

Sony Ericsson

Sony Ericsson Z555i Bedienungsanleitung

Sony Ericsson

Sony Ericsson Live with Walkmantrade Referenzhandbuch

Beliebte Handy Handbücher anderer Marken

Zte

Zte BLADE A520 Bedienungsanleitung

Nokia

Nokia Lumia 620 Bedienungsanleitung

Blackbe;rry

Blackbe;rry KEYone Bedienungsanleitung

Bea-fon

Bea-fon X5 Premium Bedienungsanleitung

Blackbe;rry

Blackbe;rry 8707 Series Bedienungsanleitung

Blackbe;rry

Blackbe;rry Storm Betriebsanleitung

LG LM-X420QN Bedienungsanleitung

LifeWatch

LifeWatch V Bedienungsanleitung

Bea-fon

Bea-fon SILVER LINE SL860 Bedienungsanleitung

IKI Mobile

IKI Mobile KF4.5i Bedienungsanleitung

Hitech

Hitech HT-850 Bedienungsanleitung

Yezz

Yezz Fashion F10 Bedienungsanleitung

Point Mobile

Point Mobile PM60 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Q10 Bedienungsanleitung

Blackbe;rry

Blackbe;rry Bold 9900 Bedienungsanleitung

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Bedienungsanleitung

LG LM-K420EMW Bedienungsanleitung

ISAFE MOBILE

ISAFE MOBILE IS655.2 Bedienungsanleitung
