Sony Ericsson W710 Bedienungsanleitung
Installation Instruction, Mechanical
1/00021-1/FEA 209 544/601 B
©Sony Ericsson Mobile Communications AB
Installation Instruction, Mechanical
Applicable for W710 and Z710
Contents
1General............................................................................................................... 2
2Hardware............................................................................................................ 2
2.1 Test Setup ............................................................................................. 2
2.2 Computer............................................................................................... 3
2.3 Service Card Reader/Service Card ....................................................... 3
2.4 Sony Ericsson programming interface cable – DCU-60........................ 3
2.5 Infrared Device ...................................................................................... 3
2.6 Bluetooth Device ................................................................................... 3
2.7 Power Supply ........................................................................................ 4
2.8 Battery Eliminator (optional) .................................................................. 4
2.9 Battery Eliminator Support .................................................................... 4
2.10 Label Printer (optional) .......................................................................... 5
3Software ............................................................................................................. 5
3.1 EMMA III................................................................................................ 5
3.2 Labelmake II software (optional) ........................................................... 5
4Revision History................................................................................................ 5
Installation Instruction, Mechanical
1/00021-1/FEA 209 544/601 B
©Sony Ericsson Mobile Communications AB
2(5)
1 General
This document describes the installation procedure for the Mechanical repair package.
The Mechanical repair package consists of a Computer and Interface Cables. A service
card is required for security reasons. A label printer can be installed to be able to print
new labels (optional).
2 Hardware
All hardware must be approved by Sony Ericsson and is documented in the Equipment
List.

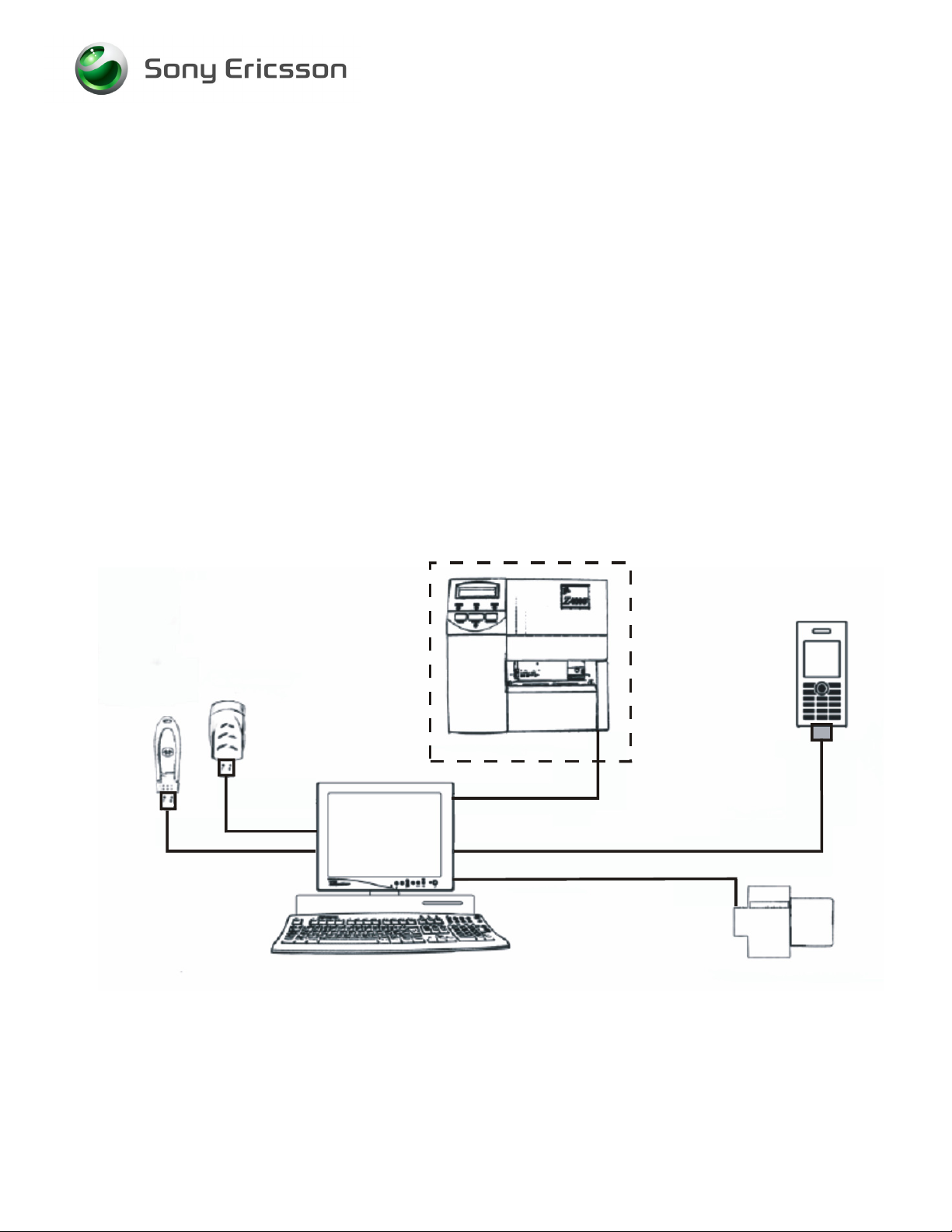

2.1 Test Setup
BLUETOOTH
DEVICE
INFRARED
DEVICE
ZEBRA PRINTER
NULL MODEM CABLE
SERVICE CARD READER
DCU-60
USB CABLE
The equipment in this picture is specified in the Equipment List.
Installation Instruction, Mechanical
1/00021-1/FEA 209 544/601 B
©Sony Ericsson Mobile Communications AB
3(5)
2.2 Computer
IBM compatible computer is required. The computer should include at least two USB-
ports. Refer to Equipment List for minimum requirements.
2.3 Service Card Reader/Service Card
NOTE! The Service Card is only needed for printing labels and when flashing
offline
The Service Card Reader is delivered with the necessary software and instructions for
installation. The Service Card Reader should be connected to an USB-port on the
computer. The Service Card should be inserted into the Service Card Reader.
Smart Card Reader Service Card
2.4 Sony Ericsson programming interface cable – DCU-60
The cable is the interface between the computer and the phone. DCU-60 cable should
be connected to an USB-port on the computer.
2.5 Infrared Device
An RS 232 or USB type infrared adapter or another phone may be used.
Install according to the manufacturer’s instructions.
2.6 Bluetooth Device
Any Bluetooth device as headset, other Bluetooth phone or other Bluetooth device can
be used to verify the Bluetooth function in the phone. Set up the connection according to
the chosen equipments manufacturer instructions.
Installation Instruction, Mechanical
1/00021-1/FEA 209 544/601 B
©Sony Ericsson Mobile Communications AB
4(5)
2.7 Power Supply
A Power Supply according to Mechanical Equipment List may be used.
Set the output of the Power Supply as follows
•Voltage: 3.8Vdc
•Current: 2.0Amps
2.8 Battery Eliminator (optional)
A Battery eliminator is to be used together with a power supply to power the phone.
Connect the cables from the battery eliminator to the power supply, red cable to positive
output terminal and black cable to negative output terminal.
2.9 Battery Eliminator Support
In some situations, a device may be needed to hold the battery eliminator in place when
it is being used. The following is a set of simple instructions for making a support that
holds the battery eliminator in place during use.
1. Obtain a battery cover. (The battery cover is listed in the Mechanical Parts List.)
2. Cut off the bottom half of the battery cover using the dimensions specified in the
picture below.
3. Assemble the Battery Eliminator (Dummy Battery) and modified battery cover to
the phone. Make sure that the Battery Eliminator (Dummy Battery) and the
modified battery cover both mount correctly, easily, and that there is no
interference between the battery cover and the wires of the battery eliminator.
43 MM
Installation Instruction, Mechanical
1/00021-1/FEA 209 544/601 B
©Sony Ericsson Mobile Communications AB
5(5)
2.10 Label Printer (optional)
A Zebra printer shall be used. Connect the printer with a Null Modem cable [refer to the
Zebra printer manual] to the serial port on the computer. Read the Zebra installation
manual for more information about the installation.
3 Software
3.1 EMMA III
EMMA III contains software upgrades and tools required for servicing this phone. Emma
III is accessible through the CSPN web page. Installation and user manuals are
available at the EMMA III start page.
http://ma3.extranet.sonyericsson.com/ma3/
3.2 Labelmake II software (optional)
LabelMake II is an application installed through Java Web Start.
Access the Labelmake II software from CSPN Web page.
You will find LabelMake II in the dropdown menu on the CSPN web page.
http://cspn.extranet.sonyericsson.com
Press “START LabelMake II “button and you will be directed to the LABELMAKE II client
page.
Product labels are downloaded on-line from a remote server database.
4 Revision History
Rev. Date Changes / Comments
A 2006-08-25 Initial Release
B 2006-10-18 Updated Service Card requirements
